Husky Pump,1050A-Pau3Aa1Bnactp

GG 647731

HUSKY PUMP, 1050A-PAU3AA1BNACTP

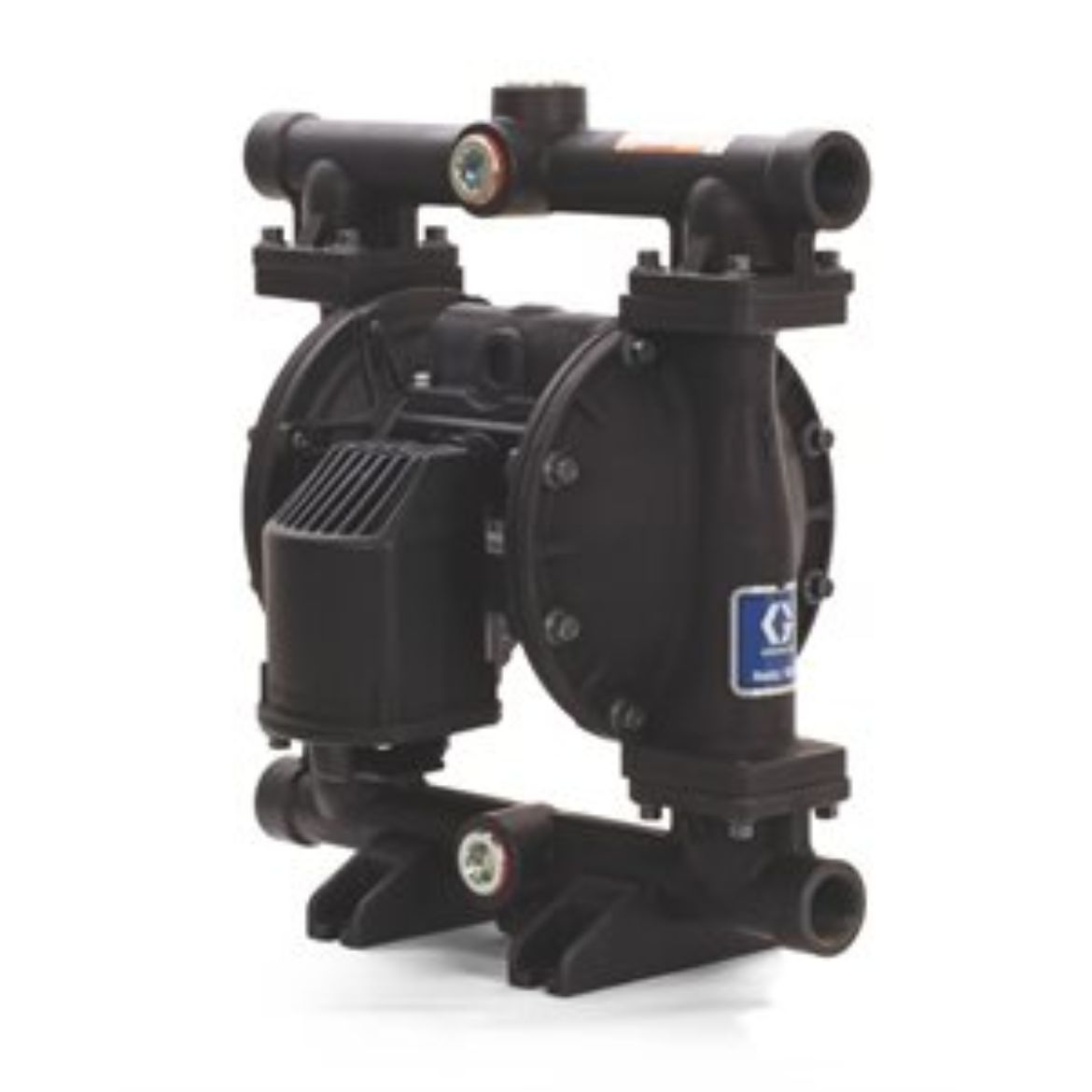

Graco 647731 Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation, Oil Transfer, BN/AC/TPE

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
• Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
• One-Piece Center Section - Eliminates air leaks for more efficient operation
• Multiple Ports - Increased number of ports for installation flexibility
• Optional Features - DataTrak (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
• Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
• 30% more efficient than the market leader
• 20% increase in fluid flow compared to the Husky 1040

• Model: Husky
• Series: 1050

• Air Exhaust Port Size (in): 3/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Acetal

• Center Section Material: Aluminum

• Compatible Material: Oil, Water, Antifreeze

• Connection Type: Threaded

• Diaphragm Material: TPE (Hytrel)

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• For Use With: Oil, Waste Oil

• Manifold O-Ring Material: None
• Material: Aluminum

• Maximum Air Consumption (SCFM): 25
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 280

• Maximum Flow Rate (GPM): 50
• Maximum Flow Rate (L/min): 189

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Solid Size (cm): 0.3175
• Maximum Solid Size (in): 0.125
• Maximum Solid Size (mm): 3.175

• Overall Height (in): 15.9

• Power Source: Air

• Pump Ratio: 1:1
