Hose and Tubing

GG 17J664

THERM-O-FLOW HOSE,HEATED,20FT #12,3000 PSI

GG 17J665

THERM-O-FLOW HOSE,HEATED,25FT #12,3000 PSI

GG 17J667

THERM-O-FLOW HOSE,HEATED,10FT #16,3000 PSI

GG 17J669

THERM-O-FLOW HOSE,HEATED,20FT #16,3000 PSI

GG 17J672

THERM-O-FLOW HOSE,HEATED,15FT #20,3000 PSI

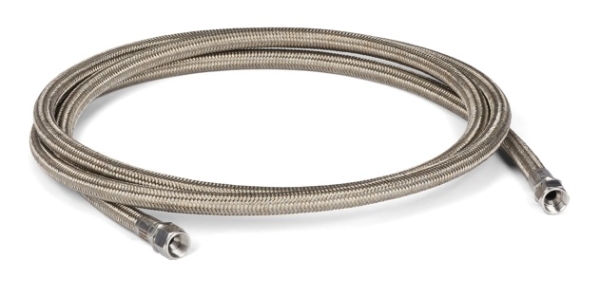

GG 17K274

HOSE, CPLED, 4000PSI, 400F, 15'#12

Graco 17K274 15 ft. (4.6 M) Stainless Steel Braided PTFE Ambient Hose, No. 12 (0.617 in. / 15.7 mm ID)

Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application's needs.

• For use with Graco sealants and adhesives systems.

• Hose Diameter (in): 0.617
• Hose Diameter (mm): 15.7
• Hose Heating Type: Ambient
• Hose Length (ft): 15
• Hose Length (m): 4.6

• Inside Diameter (in): 0.617
• Inside Diameter (mm): 15.672

• JIC Size: JIC 12

• Material: PTFE Lined Stainless Steel Braid

• Maximum Temperature ( degree C): 100
• Maximum Temperature ( degree F): 212

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

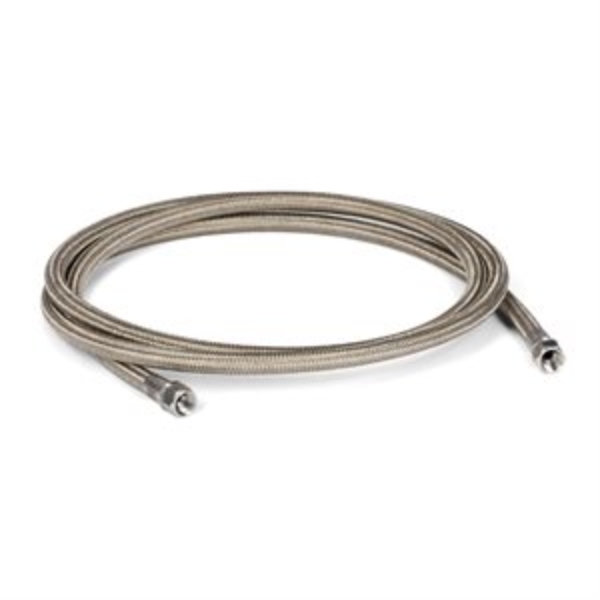

GG 17K279

HOSE, CPLED, 4000PSI, 400F, 15'#16

Graco 17K279 15 ft. (4.6 M) Stainless Steel Braided PTFE Ambient Hose, No. 16 (0.867 in. / 22.0 mm ID)

Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application's needs.

• For use with Graco sealants and adhesives systems.

• Hose Diameter (in): 0.867
• Hose Diameter (mm): 22.0
• Hose Heating Type: Ambient
• Hose Length (ft): 15
• Hose Length (m): 4.6

• Inside Diameter (in): 0.867
• Inside Diameter (mm): 22.022

• JIC Size: JIC 16

• Material: PTFE Lined Stainless Steel Braid

• Maximum Temperature ( degree C): 100
• Maximum Temperature ( degree F): 212

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

GG 17S552

GG 186447

GG 192121

GG 195151

GG 196096

GG 19M401

THERM-O-FLOW HOSE, HEATED, 6-FT, #8, 3000 PSI

Graco 19M401 6 ft. (1.8 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 8 (0.401 in. /10.2 mm ID)

Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.

• For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
• Maximum Fluid Working Pressure is dependent on operating temperature.
• Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65 degree F to 212 degree F (-54 degree C to 100 degree C)

• Hose Heating Type: Heated
• Hose Length (ft): 6
• Hose Length (m): 1.8

• Inside Diameter (in): 0.401
• Inside Diameter (mm): 10.2

• Material: PTFE Lined Stainless Steel Braid

• Maximum Temperature ( degree C): 204
• Maximum Temperature ( degree F): 400

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

GG 19M403

THERM-O-FLOW HOSE,HEATED,15-FT,#8,3000 PSI

Graco 19M403 15 ft. (4.6 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 8 (0.401 in. /10.2 mm ID)

Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.

• For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
• Maximum Fluid Working Pressure is dependent on operating temperature.
• Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65 degree F to 212 degree F (-54 degree C to 100 degree C) Rated at 3000 psi (207 bar, 20.7 Mpa) at Temperatures up to 400 degree F (204 degree C)

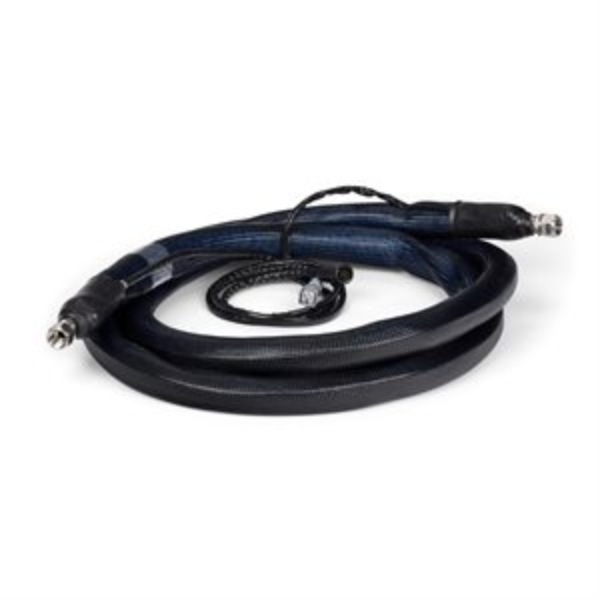

GG 19M405

THERM-O-FLOW HOSE, HEATED, 10-FT, #10, 3000 PSI

Graco 19M405 10 ft. (3.0 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 10 (0.495 in. / 12.6 mm ID)

Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.

• For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
• Maximum Fluid Working Pressure is dependent on operating temperature.
• Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65 degree F to 212 degree F (-54 degree C to 100 degree C)

• Hose Heating Type: Heated
• Hose Length (ft): 10
• Hose Length (m): 3

• Inside Diameter (in): 0.495
• Inside Diameter (mm): 12.6

• Material: PTFE Lined Stainless Steel Braid

• Maximum Temperature ( degree C): 204
• Maximum Temperature ( degree F): 400

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

GG 19M407

THERM-O-FLOW HOSE, HEATED, 20-FT, #10, 3000 PSI

Graco 19M407 20 ft. (6.1 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 10 (0.495 in. / 12.6 mm ID)

Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.

• For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
• Maximum Fluid Working Pressure is dependent on operating temperature.
• Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65 degree F to 212 degree F (-54 degree C to 100 degree C)

• Hose Heating Type: Heated
• Hose Length (ft): 20
• Hose Length (m): 6.1

• Inside Diameter (in): 0.495
• Inside Diameter (mm): 12.6

• Material: PTFE Lined Stainless Steel Braid

• Maximum Temperature ( degree C): 204
• Maximum Temperature ( degree F): 400

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

GG 19M416

THERM-O-FLOW HOSE, HEATED, 6-FT, #16, 3000 PSI

Graco 19M416 6 ft. (1.8 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 16 (0.867 in. / 22.0 mm ID)

Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.

• For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
• Maximum Fluid Working Pressure is dependent on operating temperature.
• Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65 degree F to 212 degree F (-54 degree C to 100 degree C)

• Hose Heating Type: Heated
• Hose Length (ft): 6
• Hose Length (m): 1.8

• Inside Diameter (in): 0.867
• Inside Diameter (mm): 22.0

• Material: PTFE Lined Stainless Steel Braid

• Maximum Temperature ( degree C): 204
• Maximum Temperature ( degree F): 400

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

GG 200033

GG 2005141

GG 2005144

GG 2005146

GG 206749

GG 21203-00

GG 215241

GG 220590
