GG 19M416
THERM-O-FLOW HOSE, HEATED, 6-FT, #16, 3000 PSI

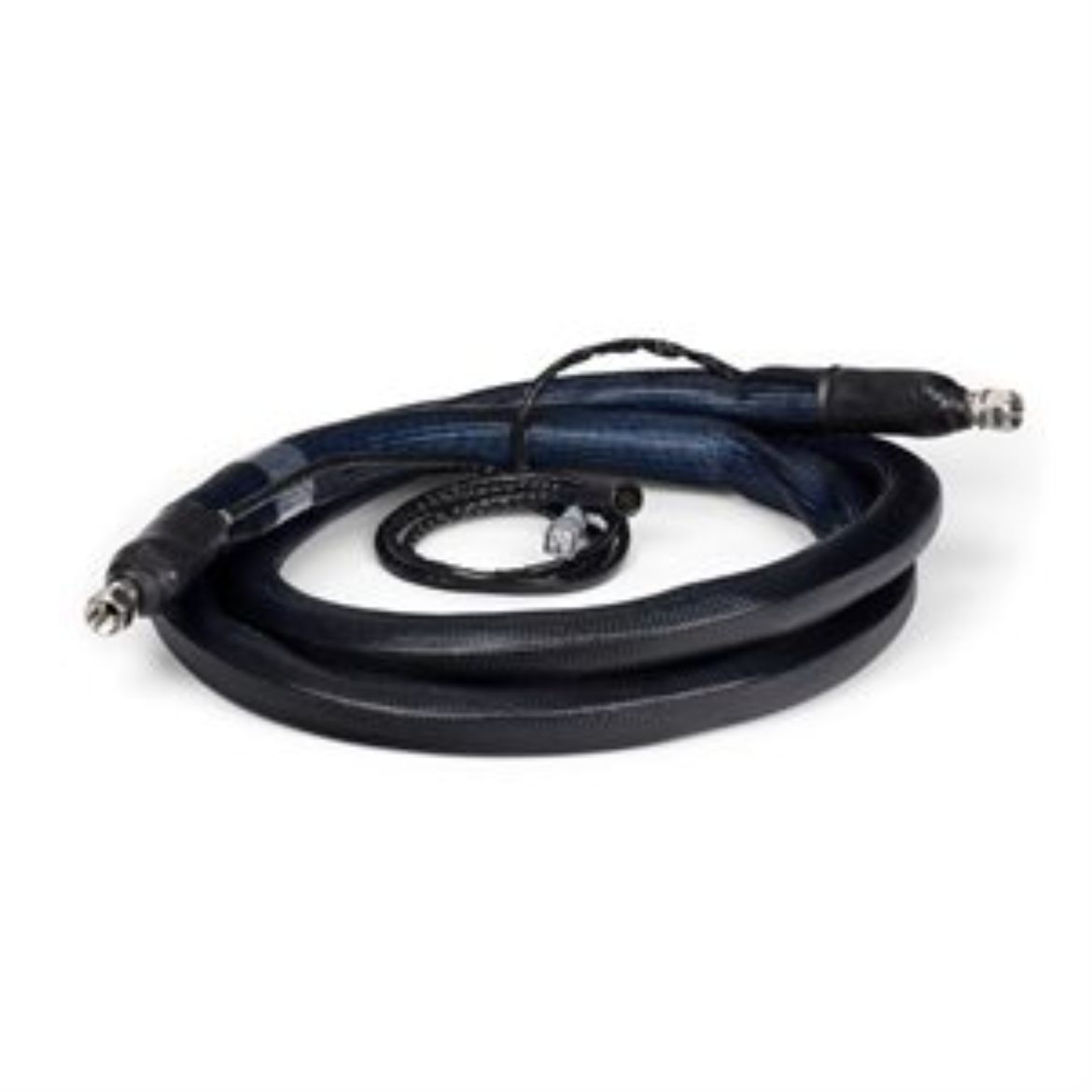

Graco 19M416 6 ft. (1.8 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 16 (0.867 in. / 22.0 mm ID)
Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.
- For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
- Maximum Fluid Working Pressure is dependent on operating temperature.
- Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)
- Hose Heating Type: Heated
- Hose Length (ft): 6
- Hose Length (m): 1.8
- Inside Diameter (in): 0.867
- Inside Diameter (mm): 22.0
- Material: PTFE Lined Stainless Steel Braid
- Maximum Temperature (°C): 204
- Maximum Temperature (°F): 400
- Maximum Working Pressure (bar): 276
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
