Hose and Tubing
THERM-O-FLOW HOSE, HEATED, 30-FT, #10, 3000 PSI
GG 19M409
GG 19M409
THERM-O-FLOW HOSE, HEATED, 30-FT, #10, 3000 PSI
Graco 19M409 30 ft. (9.1 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 10 (0.495 in. / 12.6 mm ID)
Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.
- For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
- Maximum Fluid Working Pressure is dependent on operating temperature.
- Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)
- Hose Heating Type: Heated
- Hose Length (ft): 30
- Hose Length (m): 9.1
- Inside Diameter (in): 0.495
- Inside Diameter (mm): 12.6
- Material: PTFE Lined Stainless Steel Braid
- Maximum Temperature (°C): 204
- Maximum Temperature (°F): 400
- Maximum Working Pressure (bar): 276
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
$8,810.00
THERM-O-FLOW HOSE, HEATED, 6-FT, #12, 3000 PSI
GG 19M411
GG 19M411
THERM-O-FLOW HOSE, HEATED, 6-FT, #12, 3000 PSI
Graco 19M411 6 ft. (1.8 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 12 (0.617 in. / 15.7 mm ID)
Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.
- For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
- Maximum Fluid Working Pressure is dependent on operating temperature.
- Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)
- Hose Heating Type: Heated
- Hose Length (ft): 6
- Hose Length (m): 1.8
- Inside Diameter (in): 0.617
- Inside Diameter (mm): 15.7
- Material: PTFE Lined Stainless Steel Braid
- Maximum Temperature (°C): 204
- Maximum Temperature (°F): 400
- Maximum Working Pressure (bar): 276
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
$4,400.00
THERM-O-FLOW HOSE, HEATED, 25-FT, #12, 3000 PSI
GG 19M415
GG 19M415
THERM-O-FLOW HOSE, HEATED, 25-FT, #12, 3000 PSI
25 ft. (7.6 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 12 (0.617 in. / 15.7 mm ID) Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality. For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives. Maximum Fluid Working Pressure is dependent on operating temperature. Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C) Rated at 3000 psi (207 bar, 20.7 Mpa) at Temperatures up to 400°F (204°C)
$8,880.00

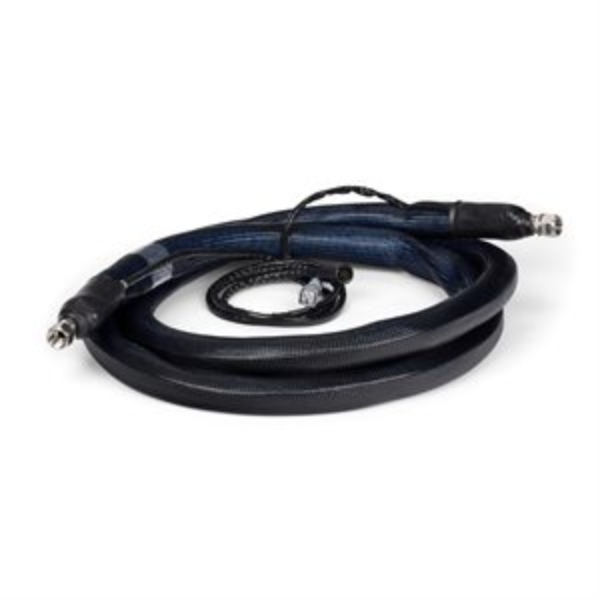

THERM-O-FLOW HOSE, HEATED, 10-FT, #16, 3000 PSI
GG 19M417
GG 19M417
THERM-O-FLOW HOSE, HEATED, 10-FT, #16, 3000 PSI
Graco 19M417 10 ft. (3.0 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 16 (0.867 in. / 22.0 mm ID)
Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.
- For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
- Maximum Fluid Working Pressure is dependent on operating temperature.
- Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)
- Hose Heating Type: Heated
- Hose Length (ft): 10
- Hose Length (m): 3
- Inside Diameter (in): 0.867
- Inside Diameter (mm): 22.0
- Material: PTFE Lined Stainless Steel Braid
- Maximum Temperature (°C): 204
- Maximum Temperature (°F): 400
- Maximum Working Pressure (bar): 276
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
$6,360.00

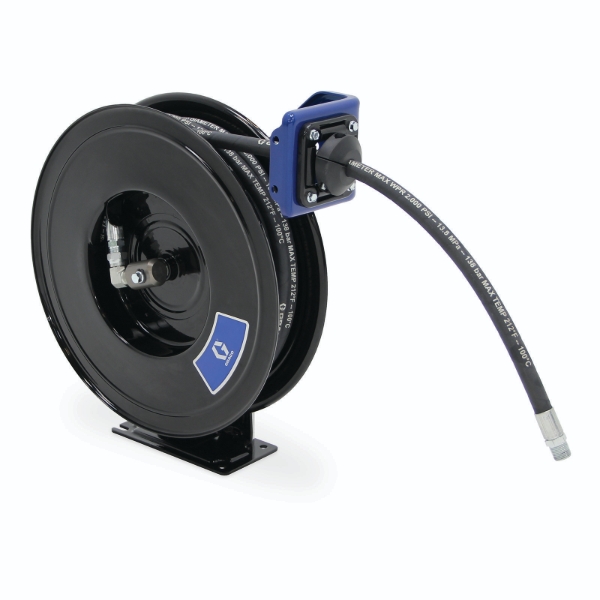

SDX SERIES 20 REEL, HOSE
GG SDH55B
GG SDH55B
SDX SERIES 20 REEL, HOSE
SDX™ 20, Grease, 3/8 in (10 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Overhead Mount, Metallic Blue Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm - Easily change the arm position for your application Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish - Baked-on enamel finish protects reel from corrosion
$1,255.00
3/4In x 180In Titeflex Hose
KI R165-12SS-012-012-180.00
KI R165-12SS-012-012-180.00
3/4In x 180In Titeflex Hose
$1,053.60
Tubing, 1-1/2" OD x .120 wall 316 seamless
ATF TS316S-24120-20
ATF TS316S-24120-20
Tubing, 1-1/2" OD x .120 wall 316 seamless
$50.46
5/16in PolyurethaneFlexeel Hose, 1/4in ID x 50ft, No Fittings, Transparent Yellow
CO PFE4050TY
CO PFE4050TY
5/16in PolyurethaneFlexeel Hose, 1/4in ID x 50ft, No Fittings, Transparent Yellow
$53.56
2 ft., Thermo-plastic High Pressure Hydraulic Hose, .25 in. Internal Diameter
EP H7202
EP H7202
2 ft., Thermo-plastic High Pressure Hydraulic Hose, .25 in. Internal DiameterH700-Series Hoses have a safety factor of 4:1 to provide the reassurance and reliability needed for demanding high-pressure applications.
Each hose contains two layers of steel wire braids covered by a polyurethane sleeve - providing the strength and abrasion resistance needed for repeated use in tough working environments.
Diameters available 0.25 and 0.38 (6.4 and 9.7mm), and connection types include 1/4 NPTF 3/8 NPTF and CH604.
A variety of lengths are available up to 50 ft (15 m), and the vinyl strain relief guard on both ends of hose helps to improve hose life and durability.
- Type: Hose
- Max Bar: 700
- Max PSI: 10000
- Product Group: Hoses, Pumps
- Product Line: Industrial Tools
- Series: H700
- SubTypes: Thermo-plastic Hose
- For demanding applications, featuring a 4:1 safety factor
- Maximum working pressure of 10,000 psi
- Outside jacket is polyurethane, to provide maximum abrasion resistance
- Exhibits low volumetric expansion under pressure to enhance overall system efficiency
- Vinyl strain relief guard on both ends of hose to improve life and durability on all models.
$127.00
Frp Hose, Bundle, 50 ft Int/Ext Chop
GG 16M583
GG 16M583
Frp Hose, Bundle, 50 ft Int/Ext Chop
$2,510.00
LSR (Liquid, Silicone, Rubber) Hose, Assembly, 1/4X19.5, Ss, Brd, Wht
GG 16U717
GG 16U717
LSR (Liquid, Silicone, Rubber) Hose, Assembly, 1/4X19.5, Ss, Brd, Wht
$155.00
