GG 126389
INVISIPAC HOSE, HEATED, 10FT

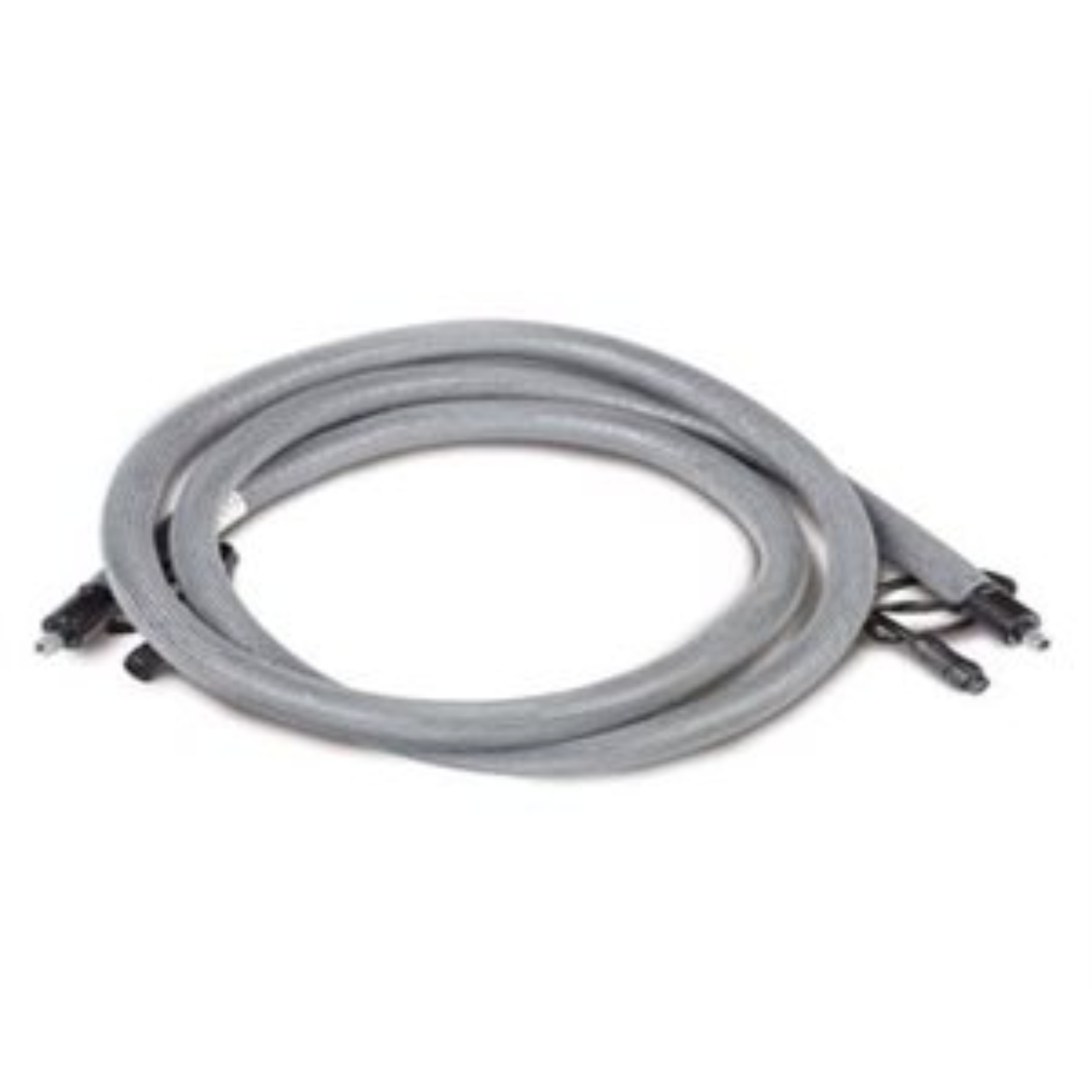

Graco 126389 10 ft. (3.0 M) InvisiPac Heated Hose No. 6 (0.308 in./7.082 mm ID)
Superior heated hose design is char resistant, reducing char buildup, resulting in more uptime and lower maintenance costs.
Application: Standard model hoses are meant for dry environments only.
- Standard model hoses have a gray braided scuff guard.
- Connection Type: JIC Female
- For Use With: Hot Melt Supply System
- Hose Heating Type: Heated
- Hose Length (cm): 304.8
- Hose Length (ft): 10
- Hose Length (in): 120
- Hose Length (m): 3
- Hose Length (mm): 3048
- Inside Diameter (cm): 0.782
- Inside Diameter (in): 0.308
- Inside Diameter (mm): 7.8232
- Material: PTFE, Stainless Steel
- Maximum Temperature ( degree C): 204
- Maximum Temperature ( degree F): 400
- Maximum Working Pressure (bar): 103
- Maximum Working Pressure (kg/cm 2): 105.46
- Maximum Working Pressure (kPa): 1050
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Minimum Temperature ( degree C): 21.11
- Minimum Temperature ( degree F): 70
