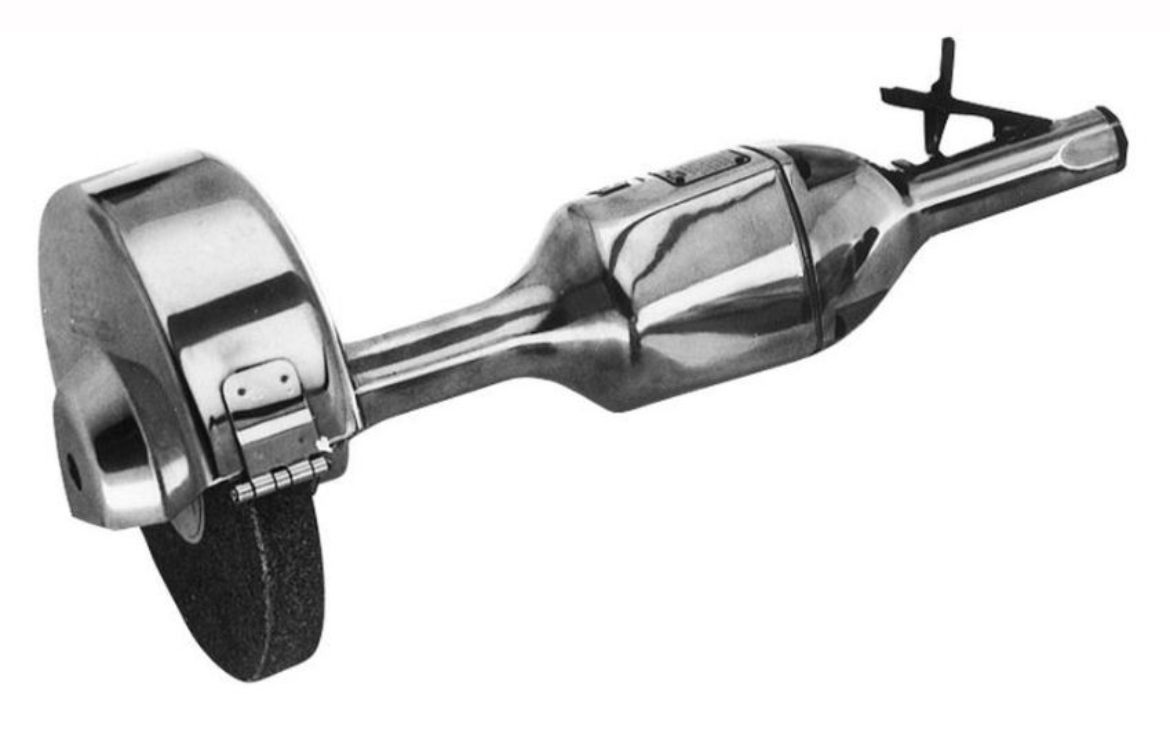

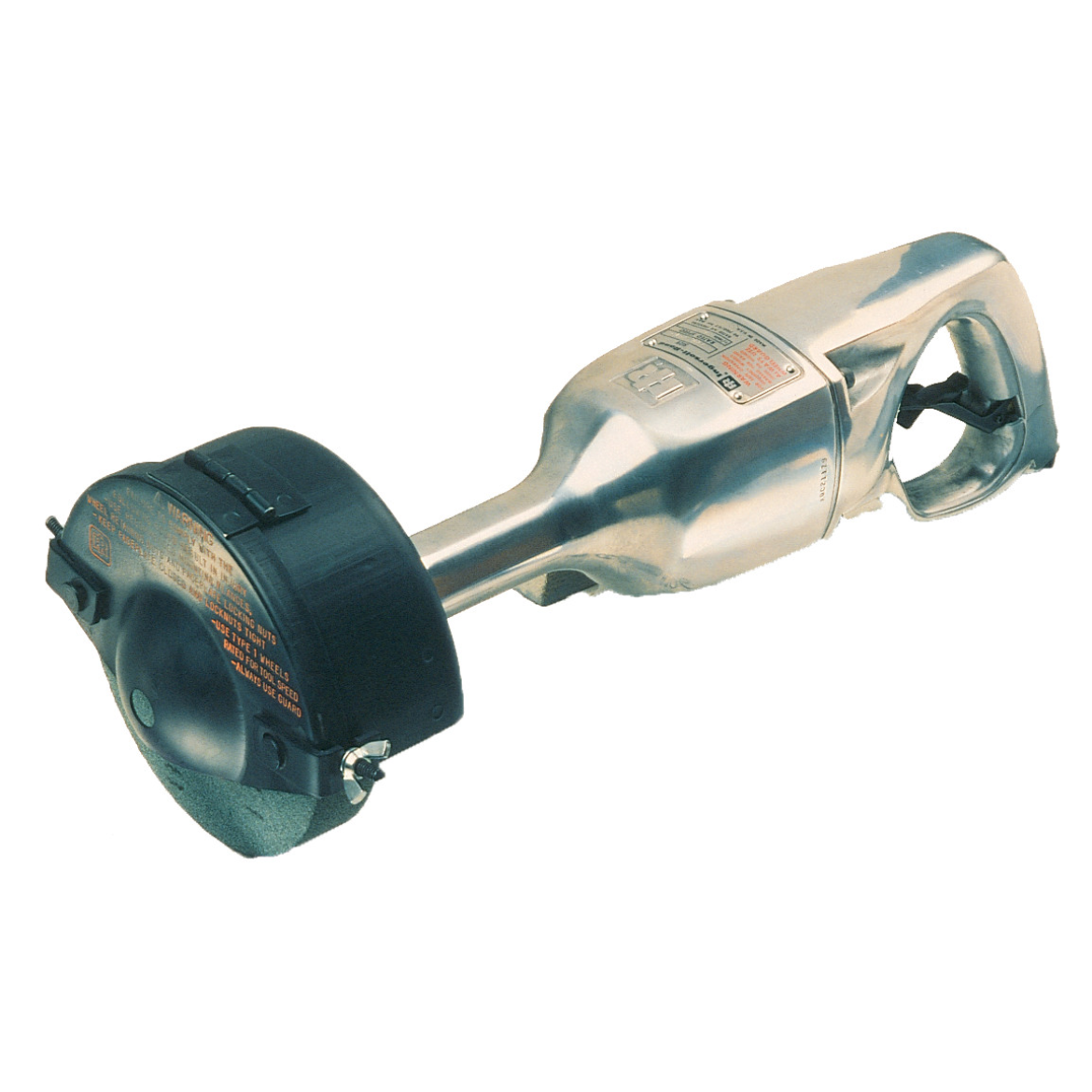

IR 99HL60H106
Extended Air Grinder, 6" Type 1 Wheel, 6,000 RPM, 3HP, 5/8 in-11 Thread, Side Exhaust
The 99 Series Type 1 Grinder is designed for the toughest jobs. With a patented motor controller that maximizes material-removal rate and prevents over speeding, this grinder is both safe to use and powerful.
Features And Benefits
- Safety: A lock-out lever and guard safety provide extra safety measures and increased operator comfort.
- Cleaner Workspaces: Compatible with piped-away exhaust kits to keep your worksite free from exhaust air.
- Durability: The 99 Series Type 1 Grinder’s built-in mist lubricator automatically oils the motor to keep your grinder in top condition.
- 1-year warranty.
Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Automotive, general assembly, metal fabrication, plant maintenance, production prep, aerospace, shipbuilding
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Side
Grinder Type: Horizontal Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 5.91
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 20.5
Product Weight (lb): 13.5
Rated Power (hp): 3
Sound Pressure/Power Db(A): 82.8/93.8
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 6
Wheel Thickness (in): 1
Wheel Type: Type 1
