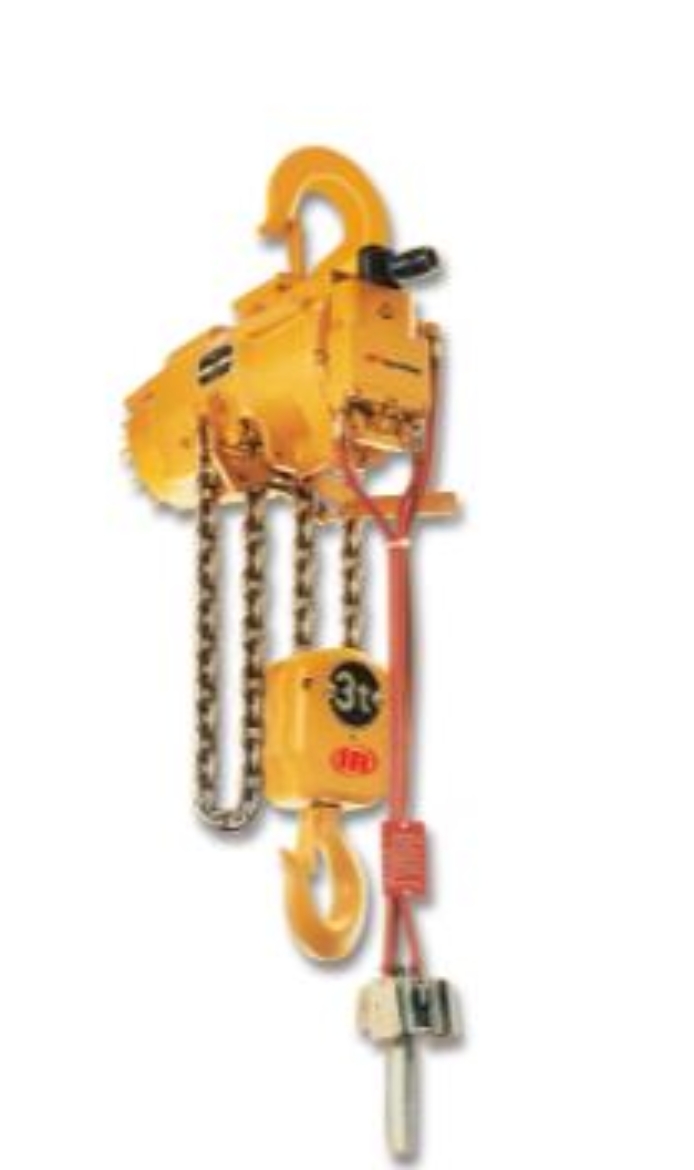

IR HL1500K-2C10-C6
HL1500K-2C10-C6 Air Hoist, 3300 Lb Capacity, 10ft Lift, Pendant Control, Hook Mount
2200 lbs (1000 kg) - 13200 lbs (6000 kg) Lifting Capacity Serving industry for over 25 years, the rugged and reliable HLK series share a common design with many interchangeable parts. With high speeds and precise spotting, these hoists are ideal for high production cycle operations. The HLK series come with a wide array of options and accessories HLK series hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.
Product Application/Uses:
Ideal for the harsh environments found in steel mills, foundries and electroplating operations. These are also ideal for high duty cycle applications.Features and Benefits:
- Meets ASME HST-5 Specifications and OSHA requirements
- Self adjusting, air operated disc brake is spring applied and air released. Wear tested to over 1 million cycles before replacement.
- All rotating parts are supported by either ball or roller type bearings. Unique planetary gearing system assures long life.
- Thoughtful design includes parts interchangeability, inlet swivels, exhaust air chain lubrication, control adjustment screws and easy conversion from pull chain to pendent control.
- 100 percent duty cycle enables continuous operation
Capacity (lb): 3300
Lift (ft): 10
