EP CH604

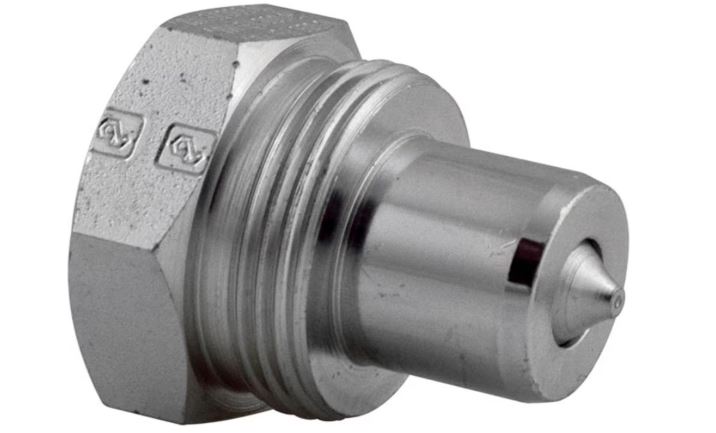

High Flow Hydraulic Coupler, Male Half
The C-Series High Flow Hydraulic Coupler is the standard used on most Enerpac pumps and cylinders up to 10,000 psi (700 bar). These 3/8" high flow couplers provide a quick and secure connections, allowing a flow up to 2100 in3/min (35 liters) per minute.
They can be purchased as a complete set or individually as male and female halves. Included is a "2-in-1" dust cap for use with both on male and female components.
- Type: Coupler
- Max Bar: 700
- Max PSI: 10000
- Product Group: Couplers
- Product Line: Industrial Tools, Work Holding Tools
- Series: C
- SubTypes: High Flow Coupler
- 3/8" High Flow Couplers
- Standard equipment on most Enerpac cylinders
- Recommended for use on all Enerpac pumps and cylinders where space and porting permits
- Include " 2-in-1" dust cap for use on male and female coupler halves
- Dimension A is total length when male and female halves are connected.
