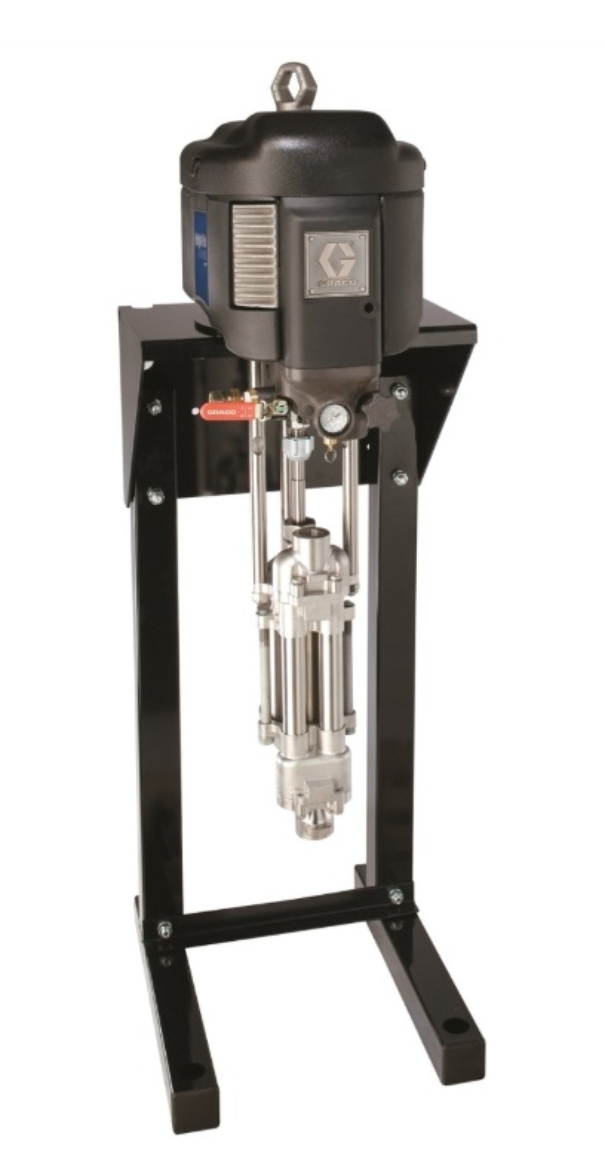

High-Flo 4-Ball Pump, CS, 4:1, Low Noise Exhaust, Open Wet Cup Lower, NPT Fittings, Ultralife Rod/Cylinder

GG JC40L9

HIGH-FLO PUMP, 2200/1000, LOW N, OPN, NPT

Graco JC40L9 High-Flo 4-Ball Pump, CS, 4:1, Low Noise Exhaust, Open Wet Cup Lower, NPT Fittings, Ultralife Rod/Cylinder

Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.

• Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
• Rugged body armor, won't rust or dent
• De-icing controls eliminate stalling

• Model: High-Flo
• Series: 4-Ball

• Application: Circulation

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Open Wet Cup

• Includes: Carbon Steel Pump, Low Noise Exhaust, NPT Fittings, Ultralife Rods, Ultralife Cylinder

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 12

• Maximum Flow Rate (GPM): 16.9
• Maximum Flow Rate (L/min): 63.97

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 31
• Maximum Working Pressure (kPa): 3100
• Maximum Working Pressure (MPa): 3.1
• Maximum Working Pressure (psi): 450

• Motor Type: Low Noise NXT

• Portable: Non-Portable

• Pump Ratio: 4:1
