Heated Accessories

GG 15Y917

GG 16A110

GG 16A112

GG 16C575

GG 17A335

THERMOLAZER SPRAYER, 200TC, 6" FLEXDIE

Graco 17A335 ThermoLazer 200TC Thermoplastic Striping System, 6 in FlexDie

The ThermoLazer 200TC is the premiere solution for smaller thermoplastic striping jobs. The FlexDie is built with the same precision and functionality as its big brother, the SmartDie II. Solid steel construction, built-in die adjustment and direct flames will give you great lines every time.

• FlexDie


  Delivers excellent line quality with exclusive deep-die, all steel construction and a no-tools change out design

• 200 lb Material Kettle

  Easy-to-fill cylindrical kettle allows for precise heating of thermoplastic material, and its no-tool change-out design lets you switch colors fast

• 40 lb Bead Hopper

  Perfectly matched to the material kettle with a superior flow design

• Tri-Wheel System

  Dual solid front and single solid rear wheels provide smooth, quiet operation

• Adjustable Operator Handle

  Handle easily adjusts to multiple heights

• Adjustable Front Pointer

  Easily adjusts for all size dies for following all marks and creating straight lines

• Model: ThermoLazer
• Series: 200TC

• Bead System: Gravity Bead System

• Compatible Material: Thermoplastics
• Compatible Surfaces: Pavement

• Includes: 6 in FlexDie

• Maximum Working Pressure (bar): 17.24
• Maximum Working Pressure (kPa): 172.4
• Maximum Working Pressure (psi): 250

• Number of Colors: One Color

• Number of Hoppers: 1

GG 17J659

GG 17J660

GG 17J666

GG 245869

GG 246254

GG 246616

GG 246618

GG 247813

GG 249513

THERM-O-FLOW GUN,HOT MELT,TOP W/SWITCH

Graco 249513 Manual Top Feed Electric Hot Melt Dispense Gun with Switch

Perfect for high pressure, high flow sealant and adhesive applications, Therm-O-Flow Guns are available with electric switches so they can be used in conjunction with automated equipment.

Application: For applying hot melt materials.

• Provides accurate dispense control for Therm-O-Flow Systems

  • Provides precise proportional control and variable dispense volume with unique tapered needle valve design
  • Dual heaters offer rapid warm-up during initial start-up and maintain uniform temperature control
  • Rugged construction – durable, lightweight anodized aluminum body
  • Ergonomic, easy-trigger actuation
  • Designed for easy service – minimal maintenance and downtime
  • Rated for high-pressure Therm-O-Flow Systems up to 3500 psi (24.1 MPa, 241 bar)

• Precise temperature control from PID control panel

• Piston-actuated ball and seat design for positive shut off

  Light trigger pull

• Rugged all metal construction

• Model: Therm-O-Flow

• Compatible Material: Sealants, Adhesives

GG 24E732

GG 24E921

GG 24E922

GG 24J787

GG 24U565

GG 24Y240

REACTOR HEATED HOSE, X-WRAP, 3/8, 50', RT

Graco 24Y240 50 ft x 3/8 in Heated Hose, 2000 psi, RTD, Xtreme-Wrap, Reactor 2

Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

• New multi-strand copper heating element has greatly increased hose quality:

  Provides 10-times* the flex life compared to previous flat copper heating element

  Long-term, even heating without hot spots

  Backwards compatible with existing Reactor heated hoses

  • New Xtreme-Wrap Scuff Guard

    Form fitting to the hose, no more baggy excess material

    Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance

    Sheds surface moisture and wont absorb water to weigh down the hose bundle, will not freeze solid in cold temperatures

    Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors

    • Joint Protectors

      Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft (15 m) hoses with the new Xtreme-Wrap will come with one Joint Protector.

      • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
      • Hoses are covered with foam insulation for heat retention
      • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
      • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
      • Helix-design whip hose uses braided copper wires for added flexibility and longer life
      • Resistance Temperature Detector (RTD)

        Graco's latest advanced controls on Reactor 2 and Integrated Reactor utilize RTD technology. RTDs offer the highest accuracy and the best day-to-day repeatability of material temperatures in your hose. RTD technology allows the machine to automatically shut down if the sensor is damaged, which saves wasted time and materials.




        • Model: Reactor 2
        • Series: Xtreme Wrap
        • Compatible Sprayer: Reactor 2
        • For Use With: Plural Component Proportioners
        • Hose Heating Type: External Heated
        • Hose Inside Diameter (in): 3/8
        • Hose Inside Diameter (mm): 9.525
        • Hose Length (ft): 50
        • Hose Length (m): 15.2
        • Inside Diameter (in): 3/8
        • Maximum Working Pressure (bar): 138
        • Maximum Working Pressure (kPa): 13800
        • Maximum Working Pressure (MPa): 13.8
        • Maximum Working Pressure (psi): 2000

GG 24Y679

REACTOR HEATED HOSE, X-WRAP, 3/8, 50'

Graco 24Y679 50 ft x 3/8 in Heated Hose, 3500 psi, Thermocouple, Xtreme-Wrap, Reactor 1

Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

• New multi-strand copper heating element has greatly increased hose quality:
  • Provides 10-times* the flex life compared to previous flat copper heating element
  • Long-term, even heating without hot spots
  • Backwards compatible with existing Reactor heated hoses
• New Xtreme-Wrap Scuff Guard
  • Form fitting to the hose, no more baggy excess material
  • Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
  • Sheds surface moisture and won't absorb water to weigh down the hose bundle, will not freeze solid in cold temperatures
  • Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors
• Joint Protectors
  • Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft (15 m) hoses with the new Xtreme-Wrap will come with one Joint Protector.
• Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
• Hoses are covered with foam insulation for heat retention
• Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
• Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
• Helix-design whip hose uses braided copper wires for added flexibility and longer life

• Model: Reactor 1
• Series: Xtreme Wrap

• Compatible Sprayer: Reactor 1

• For Use With: Plural Component Proportioners

• Hose Heating Type: External Heated
• Hose Inside Diameter (in): 3/8
• Hose Inside Diameter (mm): 9.525
• Hose Length (ft): 50
• Hose Length (m): 15.2

• Inside Diameter (in): 3/8

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

GG 256548

REACTOR HEATED HOSE, 3500, W/SCUFF, 1/2" , 50'

Graco 256548 50 ft (15 m) High Pressure Heated Hose with Thermocouple Scuff Guard and 1/2 in Inside Diameter

Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

• New multi-strand copper heating element has greatly increased hose quality:

  Provides 10-times* the flex life compared to previous flat copper heating element

  Long-term, even heating without hot spots

  Backwards compatible with existing Reactor heated hoses

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life




  • Model: Reactor Heated Hoses
  • Series: Mesh Scuff
  • For Use With: Plural Component Proportioners
  • Hose Length (ft): 50
  • Hose Length (m): 15.2
  • Maximum Working Pressure (bar): 241
  • Maximum Working Pressure (kPa): 24100
  • Maximum Working Pressure (MPa): 24.1
  • Maximum Working Pressure (psi): 3500

GG 25A481

REACTOR HEATED HOSE, 3500, W/SCUFF, 1/4X3/8

Graco 25A481 50 ft (15 m) Custom Application 2 Component Hose with 1/4 in (6.3 mm) and 3/8 in (9.5 mm) Inside Diameter

Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

• New multi-strand copper heating element has greatly increased hose quality:

  Provides 10-times* the flex life compared to previous flat copper heating element

  Long-term, even heating without hot spots

  Backwards compatible with existing Reactor heated hoses

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life




  • Model: Reactor Heated Hoses
  • Series: Specialty
  • For Use With: Plural Component Proportioners
  • Hose Inside Diameter (in): 3/8
  • Hose Inside Diameter (mm): 9.525
  • Hose Length (ft): 50
  • Hose Length (m): 15.2
  • Maximum Working Pressure (bar): 345
  • Maximum Working Pressure (kPa): 24100
  • Maximum Working Pressure (MPa): 34.5
  • Maximum Working Pressure (psi): 3500

GG 26C476

GG 26D098

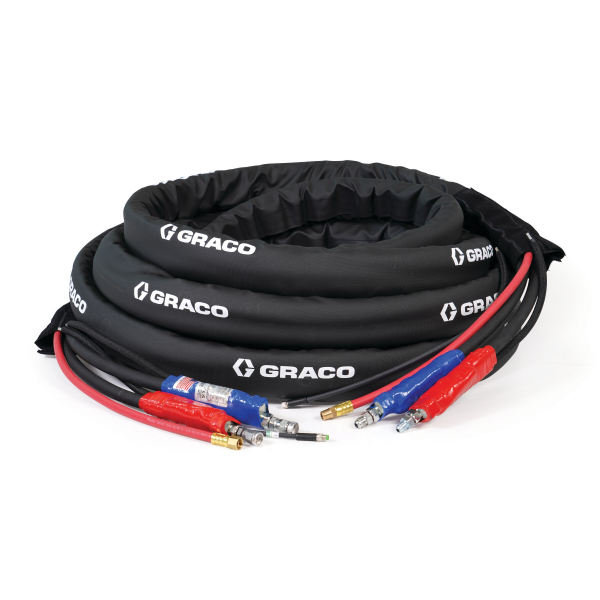

REACTOR HEATED HOSE, R2, IHH, 50FT, RTD

Graco 26D098 50 ft x 3/8 in Internal Heated Hose, 2000 psi, RTD, Xtreme-Wrap, Reactor 2

Graco's internal heated hoses provide more options and control than ever. Light weight hoses for easy movement around the jobsite, more flexibility for those tight areas, and heats up even quicker than your traditional externally heated hose, for less downtime on the job.

• Variety of Lengths
  • Available in both 50 ft and 100 ft lengths: Minimizes fluid and electrical connections
• Optimized for Resistance Control Mode

  • Reduces maintenance and issues with no cables or sensors required

• Model: Reactor 2
• Series: Xtreme Wrap

• Compatible Sprayer: Reactor 2

• Hose Heating Type: Internal Heated
• Hose Length (ft): 50

• Inside Diameter (in): 0.375

• Maximum Working Pressure (psi): 2000
