GG 258971
RS GUN, ASM, INT MIX, CHOP

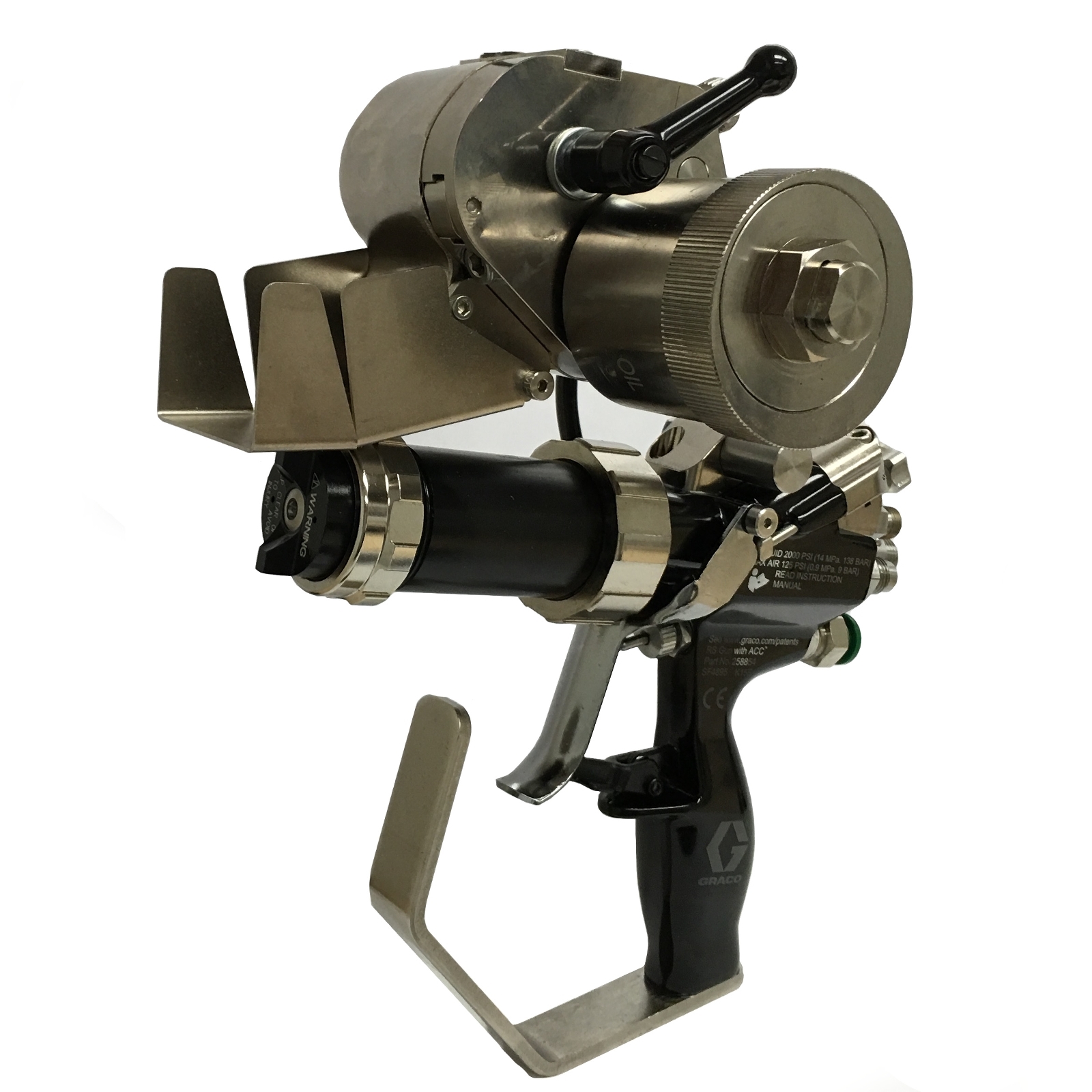

Graco 258971 RS Internal Mix Chop Gun with Cutter and Tip
Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. Its lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It's available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun's revolutionary design and industry-first features can help boost your company's bottom line.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.
- Makes production easier
Simple, quick start up and shut down
Quick tool-less blade change
No need to adjust needle settings after maintenance
- Improves product quality
Lightweight cutter gives better chopping control
Easy one-hand cutter speed control
Superior spray pattern
- Improves operator comfort for increased job satisfaction
Lighter, ergonomic gun reduces fatigue
Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
No problems soaking the RS Gun in solvents overnight
- Chop Gun Type: With Cutter
- Compatible Material: Polyester Resin, Gel-Coat
- Gun Type: Chop Gun
- Gun Weight (g): 1116
- Gun Weight (kg): 1.12
- Gun Weight (lb): 2.46
- Gun Weight (oz): 39.36
- Includes: CST443 Tip, Cutter
- Maximum Air Pressure (bar): 8.6
- Maximum Air Pressure (kg/cm²): 8.79
- Maximum Air Pressure (kPa): 860
- Maximum Air Pressure (psi): 125
- Maximum Fluid Pressure (bar): 138
- Maximum Fluid Pressure (kg/cm²): 141
- Maximum Fluid Pressure (kPa): 13800
- Maximum Fluid Pressure (psi): 2000
- Maximum Fluid Temperature (°C): 38
- Maximum Fluid Temperature (°F): 100
- Maximum Fluid Pressure (bar): 138
- Maximum Fluid Pressure (kg/cm²): 141
- Maximum Fluid Pressure (kPa): 13800
- Maximum Fluid Pressure (psi): 2000
- Maximum Fluid Temperature (°C): 38
- Maximum Fluid Temperature (°F): 100
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (psi): 80
