Gtx Sprayer, Compressorless

GG 257030

GTX SPRAYER, COMPRESSORLESS

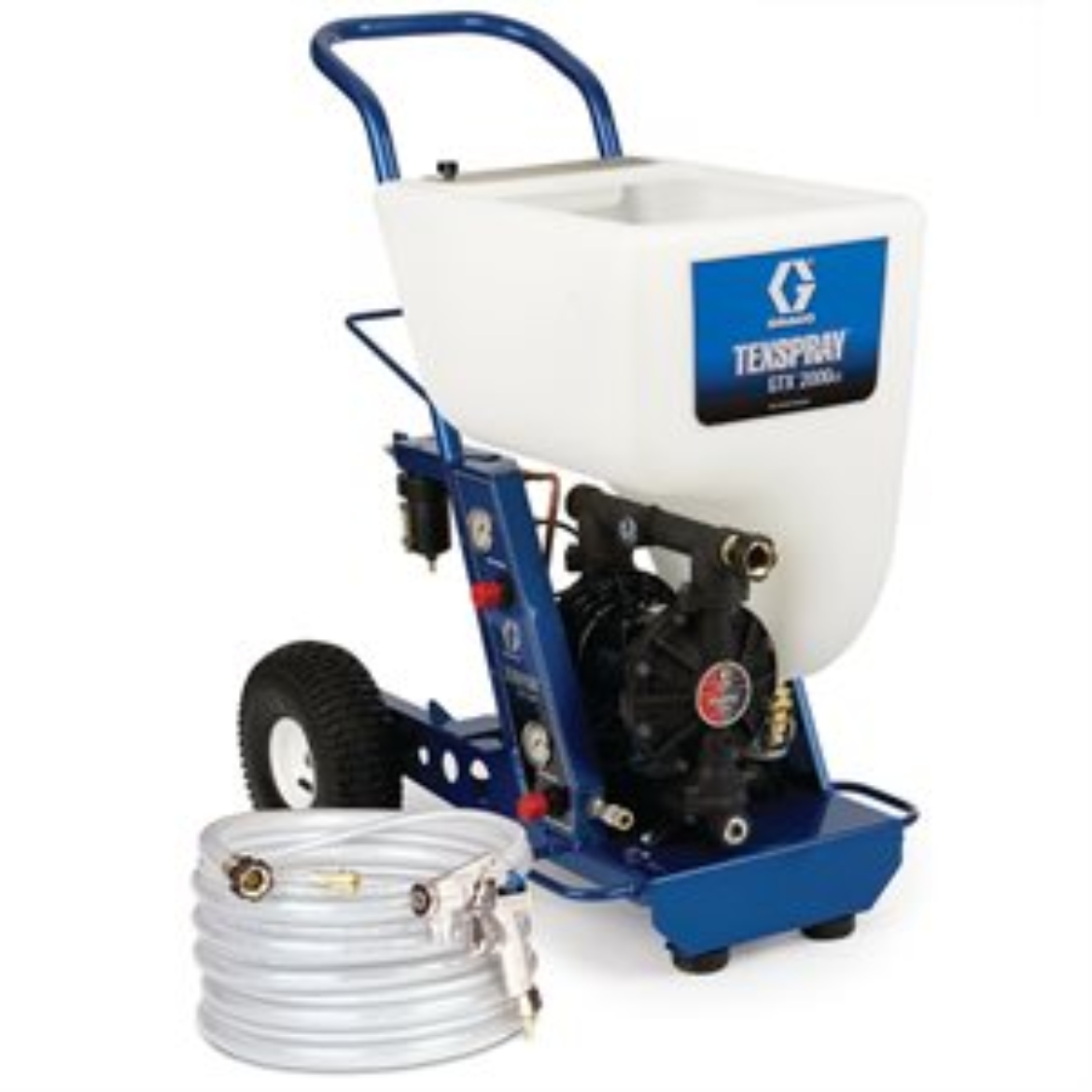

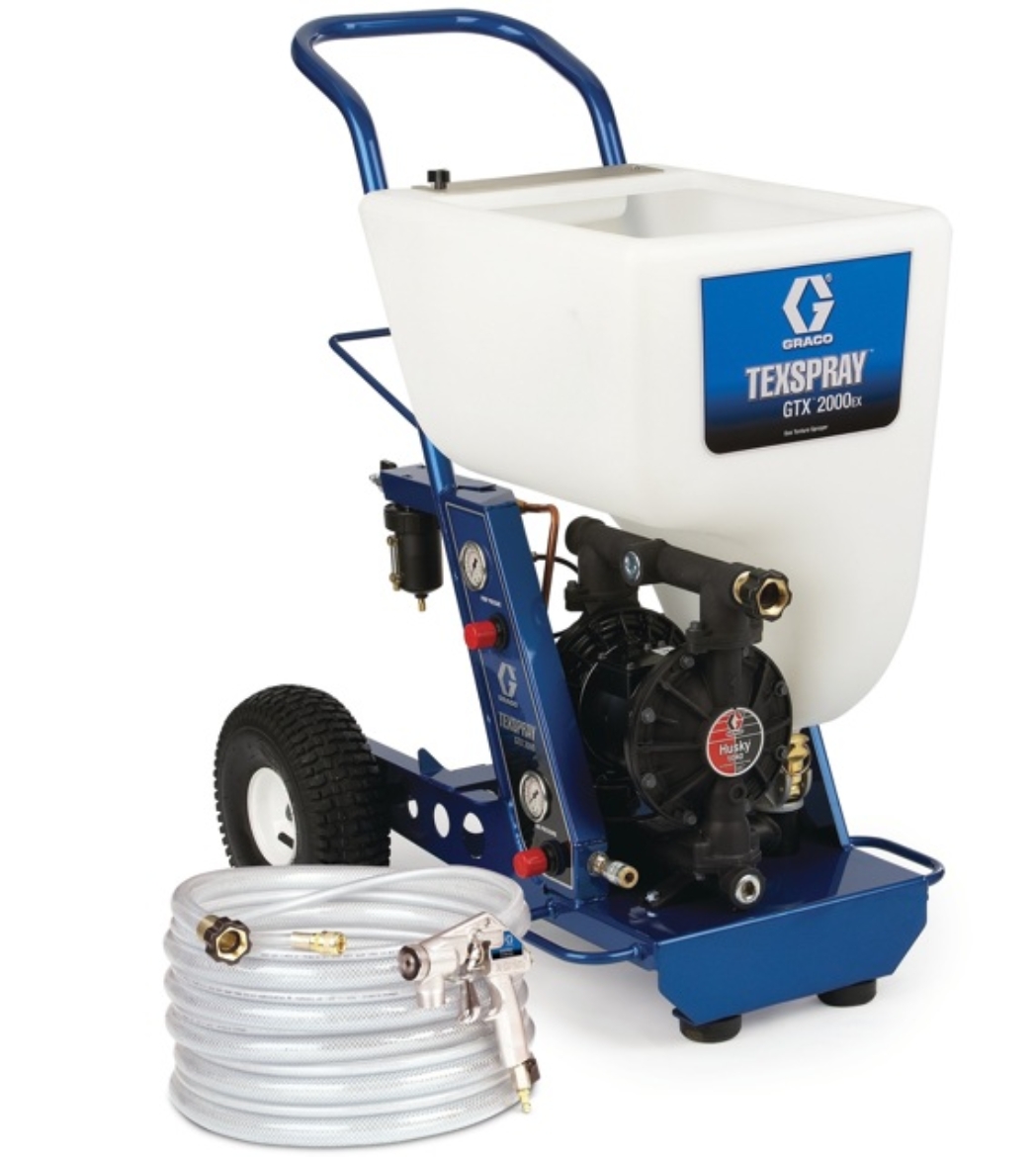

Graco 257030 TexSpray GTX 2000EX Air-Powered Texture Sprayer with Graco Trigger Gun

A highly portable texture system for both smooth materials and those with fine aggregates, the GTX 2000EX is the ideal solution for drywall muds, deck coatings, and exterior aggregate acrylic and elastomeric finishes.

• Husky 1040 Double Diaphragm Pump


  Jobsite Proven Performance

  Texture delivery rates to 4.0 gpm from durable, high-output 1-inch pump

  Durable, User-Friendly Spraying

• Air Spray Heavy-Duty Trigger Gun


  Durable, User-Friendly Spraying

  Pump heavy mud mixes and larger aggregate with oversized fluid passages

  Quick nozzle changes with extra-coarse gun head threads

• Largest 17-Gallon (64 Liter) Capacity Hopper


  Longer Spray Time

  Easy cleanup and removal with no-tools

• Skip-Bond Material/Air Hose


  Improved Handling & Flexibility

  Both hoses are permanently bonded together for easy handling

  Oversized grip with no-tools hose connection

• On-Board Air Filtration


  Moisture Build-Up Eliminated

  Automatically filters air to keep your sprayer running at optimal performance

• Texture Applications


  Simulated Acoustic (Popcorn)

  Orange Peel & Fine Splatter

  Splatter

  Knockdown

  Textured Acrylics & Elastomerics

  EIFS & Synthetic Stucco Finish Coats

• Model: TexSpray GTX
• Series: 2000EX

• Compatible Material: Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint

• Features: Large Capacity Hopper, On-Board Air Filtration, Separate Pump/Gun Air Controls

• Includes: Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft Bonded Materia/Airl Hose, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm Nozzles

• Maximum Flow Rate (GPM): 4.0
• Maximum Flow Rate (L/min): 15.1

• Maximum Hose Length (ft): 100
• Maximum Hose Length (m): 30

• Maximum Working Pressure (bar): 227
• Maximum Working Pressure (kg/cm 2): 22.7
• Maximum Working Pressure (kPa): 2270
• Maximum Working Pressure (MPa): 0.8
• Maximum Working Pressure (psi): 3300

• Minimum Generator Power (W): 5000

• Motor Type: Brushless DC

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Overall Length (cm): 66
• Overall Length (in): 22
• Overall Length (mm): 558.8
• Overall Width (cm): 61
• Overall Width (in): 24.0340
• Overall Width (mm): 610.4636

• Phase: 1

• Power Rating (HP): 2.2
• Power Rating (kW): 1.65
• Power Source: Air
