Grinders

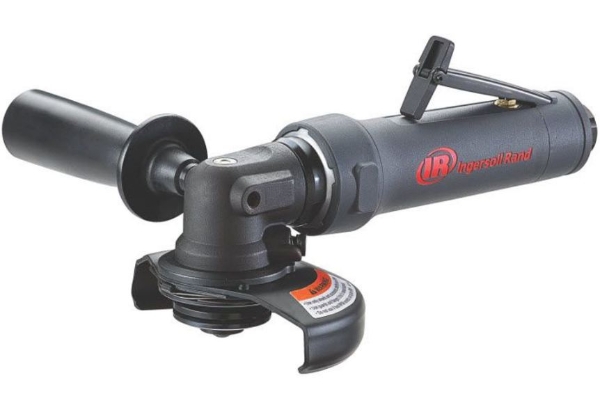

IR M2A090RP95

ANGLE GRINDER, 9K, M14, 5IN

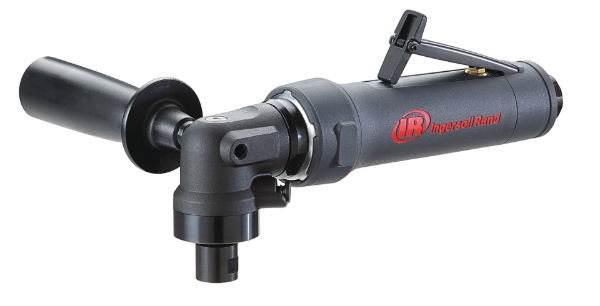

IR M2A120RG4

Angle Air Die Grinder, 12,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Handle Material: Composite
Height Over Spindle (in): 3.28
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.94
Product Weight (lb): 3.56
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87.1 / 98.1
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.3
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2A180RG4

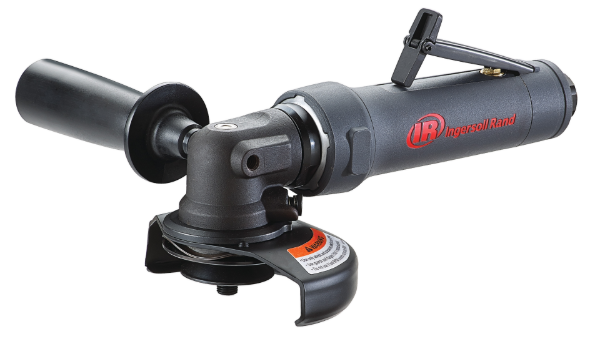

IR M2A135RP64

Angle Air Grinder, 4" Type 27 Wheel, 13,500 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 13,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 13500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.29
Product Weight (lb): 3.72
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87.7 / 98.7
Speed Setting: Variable Speed
Vibration Level (m/s2): 5
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2E145RP64

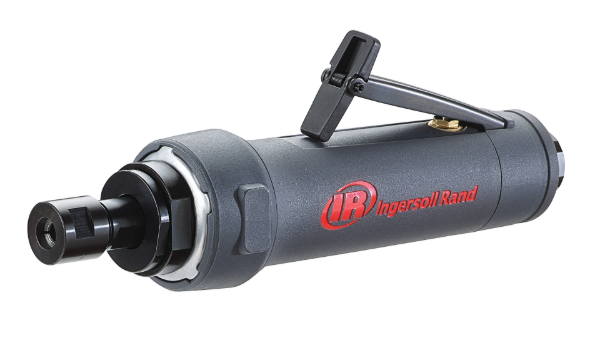

IR M2H200RG4

Air Die Grinder, 20,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 20,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.38
Product Weight (lb): 1.69
Rated Power (hp): 1
Sound Pressure/Power Db(A): 84.9 / 95.9
Speed Setting: Variable Speed
Vibration Level (m/s2): 4.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2H180RG4

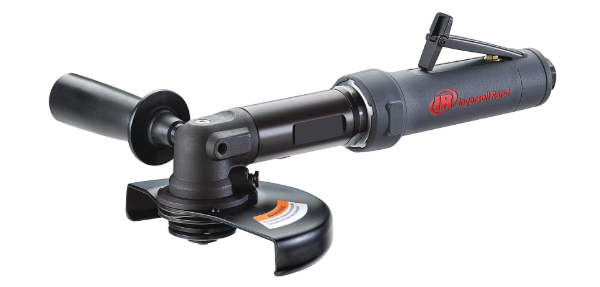

IR M2L100RP106

Extended Angle Air Grinder, 6" Type 27 Wheel, 10,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust

Features And Benefits

• Power: With a powerful, lube-free 1 HP 10,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 5.46
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88.8 / 98.8
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.3
Warranty: 1-year
Wheel Diameter (in): 6
Wheel Thickness (in): 1/4
Wheel Type: Type 27

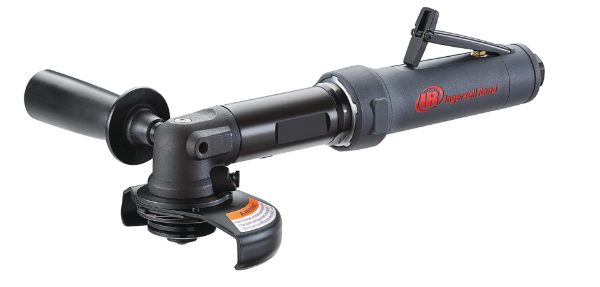

IR M2L120RP1045

Extended Angle Air Grinder, 4.5" Type 27 Wheel, 12,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel and optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding,
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 4.55
Rated Power (hp): 1
Right Angle Length (in): 11.17
Right Angle Length (mm): 284
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87 /98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.8
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2L100RP106

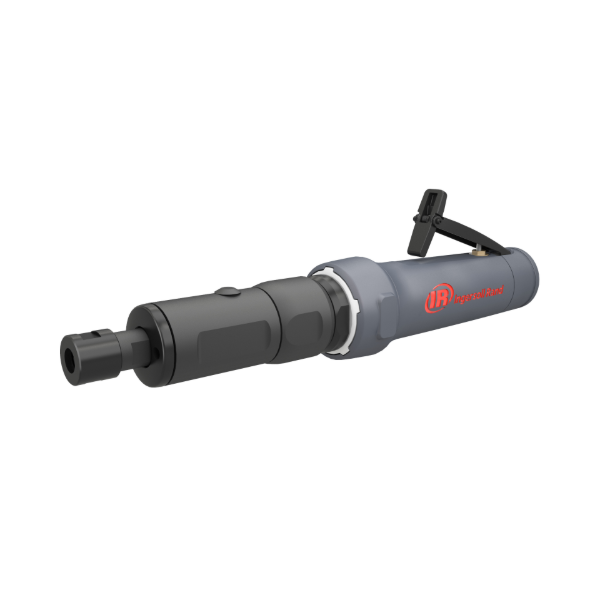

IR M2X075RG4

Extended Air Die Grinder, 7500 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 7,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 780
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 7500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 11.95
Product Weight (lb): 2.97
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88 / 99
Speed Setting: Variable Speed
Vibration Level (m/s2): 0.8
Warranty: 1-year
Wheel Type: Sanding Drum (Mounted)

Similar IR

• M2X180RG4

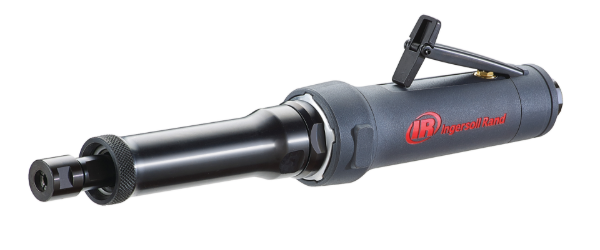

IR M2X200RG4

Extended Air Die Grinder, 20,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 20,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.08
Product Weight (lb): 2.68
Rated Power (hp): 1
Sound Pressure/Power Db(A): 84.9 / 95.9
Speed Setting: Variable Speed
Vibration Level (m/s2): 1.9
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2X180RG4

IR MG1-53-4

ROTOR

IR MG1-A106-5

WHEEL GUARD ASSEMBLY, 5"

IR 5102MAX-591A

Collet Arbor

IR 5102MAX-A552-1.25

GEAR PINION SET

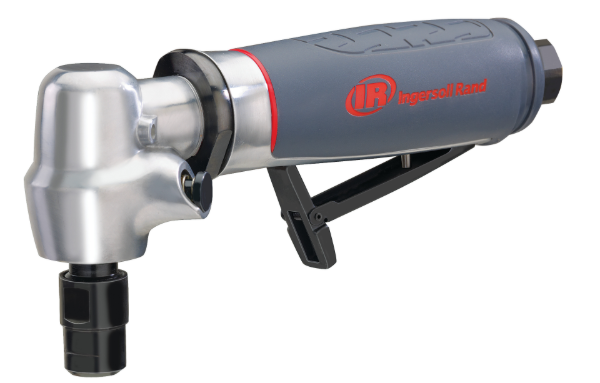

IR 5104MAX

Angle Air Die Grinder, 12,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 12,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Productivity: Spindle lock feature allows for quick abrasive changeovers reducing operator downtime.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (2) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.4
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7
Product Height (in): 3.43
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 85.6 / 96.6
Special Features: Lube-free Motor, Spindle Lock
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4
Vibration Uncertainy K* (m/s2): 1
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5102MAX
• G1A120RG4
• G1A120PS4
• G1A120FG4
• 302B
• 301B

Supersedes

• 312AC4A
• 314AC4A

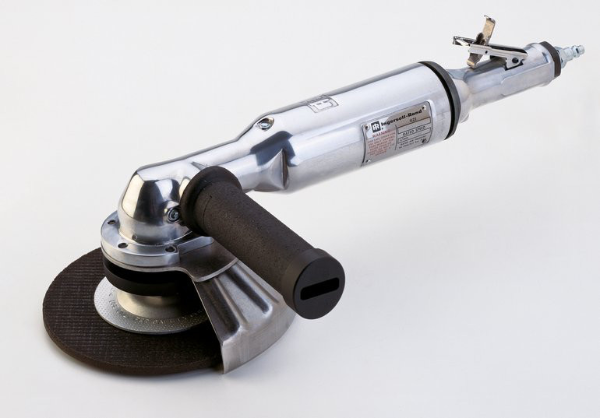

IR 77A60P107

Air Angle Grinder, 7" Type 27/28 Wheel, 6000 RPM, 1.5 HP, 5/8"-11 Thread, Side Exhaust

Air Pressure (psi): 90
Configuration/Handle Type: Right Angle
Max Pressure (bar): 6.2
Power Source: Air Powered
Warranty: 1-year

IR 77H120H84

Air Grinder, 4" Type 1 Wheel, 12,000 RPM, 1.5 HP, 1/2"-13 Thread

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Power: High powered 1.5 HP and 12,000 RPM motor allow for quick and easy material removal without breaking a sweat.
• Durability: Ingersoll Rand tools are built to withstand harsh conditions and repeated drops, and this series is no different.

Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-13 Thread
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Guard Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Mounting Type: Arbor
Power Source: Air Powered
Rated Power (hp): 1.5
Rated Power (kW): 1.12
Sound Pressure/Power Db(A): 82.4 / 93.4
Vibration Level (m/s2): 2.8
Vibration Uncertainy K* (m/s2): 1.2
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1
Wheel Type: Type 1

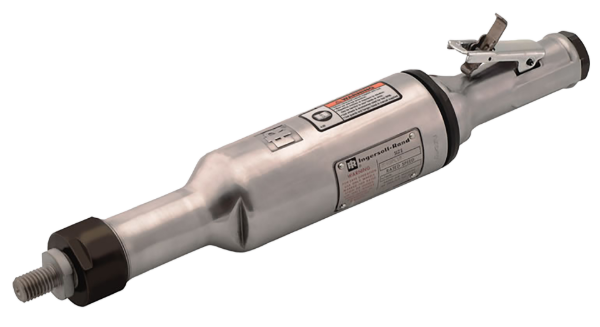

IR 77H90L10

Cone and Plug Air Grinder, 9000 RPM, 1.5 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Versatile: Compatible with piped-away exhaust kits to make your job easier.

Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 37
Air Consumption @ Load (l/min): 1048
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Side
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 9000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 16.44
Product Weight (lb): 6
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 3.5
Warranty: 1-year
Wheel Type: Cone

IR 88H60-129

GASKET (49844-108)

IR 88H60-27

Lockwasher

IR 88H60-23

DEFLECTOR

IR 88V-K301

NAMEPLATE KIT

DY 52435

3in (76 mm) Diameter Straight-Line Cut-Off Wheel Tool

.5 hp, 20,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Cut-Off Wheel Tool, for efficient cutting of sheet metal, frame rails, clamps, bolts, etc.

3in Diameter, Straight Line, .5 hp, 20,000 RPM, Rear Exhaust.

• HP: 0.5
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 52538

3in (76 mm) Diameter Right Angle Vacuum Cut-Off Wheel Tool

.4 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.

3in Diameter, Right Angle, .4 hp, 12,000 RPM, Rear Exhaust. Ideal for use with optional 3in diameter Diamond Cut-Off Wheels.

• HP: 0.4
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 53249

9in (229 mm) Diameter Type 27 Vertical Depressed Center Wheel Grinder

3 hp, 6,000 RPM, Gearless, Rotational Exhaust, 5/8in -11 Spindle Thread

Ideal for heavy-duty applications in foundries and shipyards. Fast stock, rust and scale removal.

Governor-controlled air motor maintains tool RPM under heavy load. Over-speed shut-off feature ensures maximum operator safety. Motor is gearless with less wearable parts, ensuring reduced maintenance and less down-time.

• HP: 3.0
• Max. RPM: 6000.0
• Motor RPM: 6,000

DY 53281

7in (180 mm) Diameter Right-Angle Depressed Center Wheel Grinder with Auto Balancer

2.8 hp, 8,500 RPM, 5/8in -11 Spindle Thread

Rebel 2.8 hp series grinders and sanders are powerful tools designed to overcome the challenges of heavy-duty industrial applications

Durability has been elevated to a new level. with 1,000+ hours of use between recommended maintenance, the Rebel 2.8 hp is a tool to depend upon

• HP: 2.8
• Max. RPM: 8500.0
• Motor RPM: 8,500

DY 53531

Cone or Plug Grinder (Single Extension)

1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Includes 3/8in -24 Male Threaded Adapter (53610)

Extension Grinders allow operator to extend into work pieces and reach lengthy distances.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000
