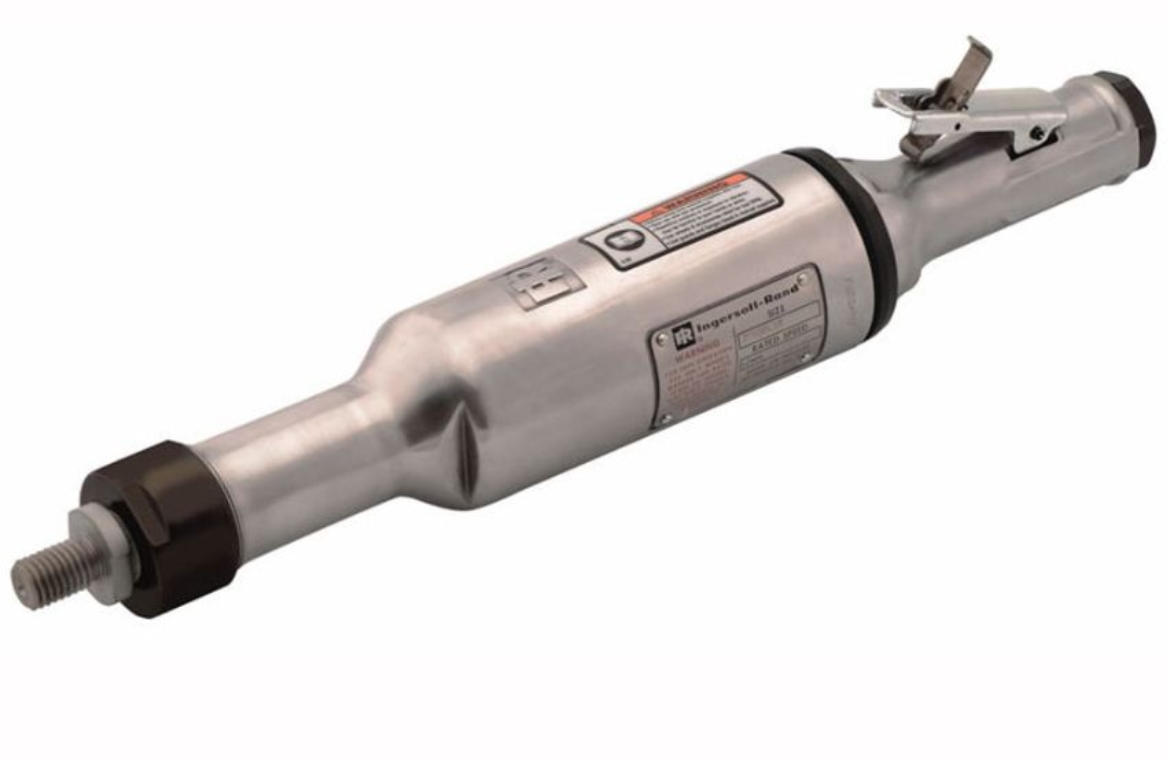

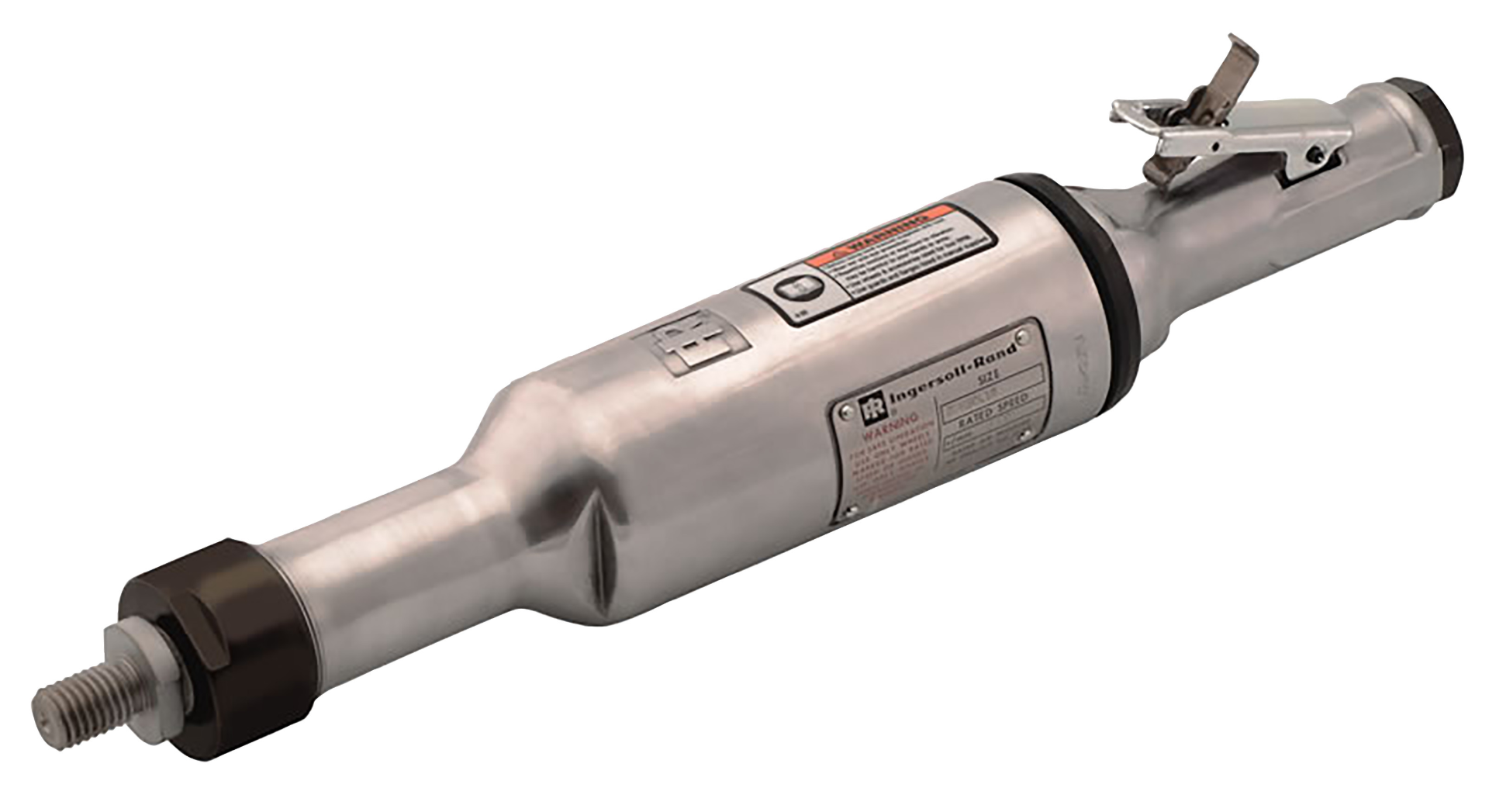

IR 77H90L10
Cone and Plug Air Grinder, 9000 RPM, 1.5 HP, 5/8 in-11 Thread, Side Exhaust
Description: Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Features And Benefits:
- Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
- Versatile: Compatible with piped-away exhaust kits to make your job easier.
Product Application and Uses:
Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
- Actuation/Throttle Type/Switch Type: Safety Lever
- Air Consumption @ Load (cfm): 37
- Air Consumption @ Load (l/min): 1048
- Air Inlet: 3/8" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 5/8" -11 Thread
- Color: Black
- Configuration/Handle Type: Straight
- Lock Mechanism: Lever lock in off position
- Max Free Speed (rpm): 9000
- Max Pressure (bar): 6.2
- Min Hose Size (in): 1/2
- Power Source: Air Powered
- Product Length (in): 16.44
- Product Weight (lb): 6
- Rated Power (hp): 1.5
- Rated Power (kW): 1.1
- Vibration Level (m/s2): 4.2
- Vibration Uncertainy K* (m/s2): 3.5
- Warranty: 1-year
- Wheel Type: Cone
