Grinders

SX SDG05S23

Die Grinder, 23,000 rpm, 1/4 In. 0.5 Hp

SX SDG7S25F

Die Grinder, Straight, .7 Hp, 1/4 In.

SX SAG03S20S

Angle Die Grinder .3HP 20K 1/4IN

SX SAG05S23

RA Die Grinder, .5HP, 1/4 Collet

SX SAG05S23S

Angle Die Grinder, .5HP, 23K, 1/4in Collet

MPT MP-250L-ST58

5in Angle Grinder, 5/8-11

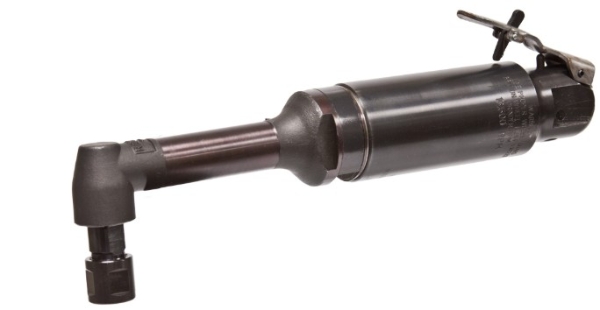

MPT MP-3040E-C

4" Die Grinder

MPT MP-5158

Grinder

MPT MP-5666VSC-ORANGE

6in Grinder, Cup Guard

MPT MP-5667VS-ORANGE

Vertical Grinder, 7in, 3.0 Hp, 6000 Rpm, 5/8-11

MPT MP-9513EXTAGR-384T7

4in Ext. Angle Grinder, Type 27 Wheel

MPT MP-9513EXTAGS-383T1

3 ANGLE GRINDER W/3 GUARD

MPT MP-9513EXTDGS-383T7

3 ANGLE GRINDER W/ GUARD

MPT MP-9518EXTHGS-383CW

HORIZONTAL EXT. CONE GRINDER

MPT SWO-TG-6085-587T7

Grinder 7" Angle Turbine Modification

MPT TG-6066-587T7

7" ANGLE TURBINE GRINDER

MPT TG-6066-589T7

9" ANGLE TURBINE GRINDER

MPT TG-6085-587T7

7" ANGLE TURBINE GRINDER

SX 5056A

COMPOSITE GRIP RA DIE GRINDER

CSU 38502A

PIPE-MAX Weld Seam Grinder / Pipe Sander, Electric, 110V, 950-3500 rpm

MPT MP-7252-ST

Grinder RA 1/4in Cap

SUM ST-DG1032L

1/4In Low Speed Air Die Grinder, Free Speed: 2500 rpm

CL MP4200

Inline Pencil Grinder

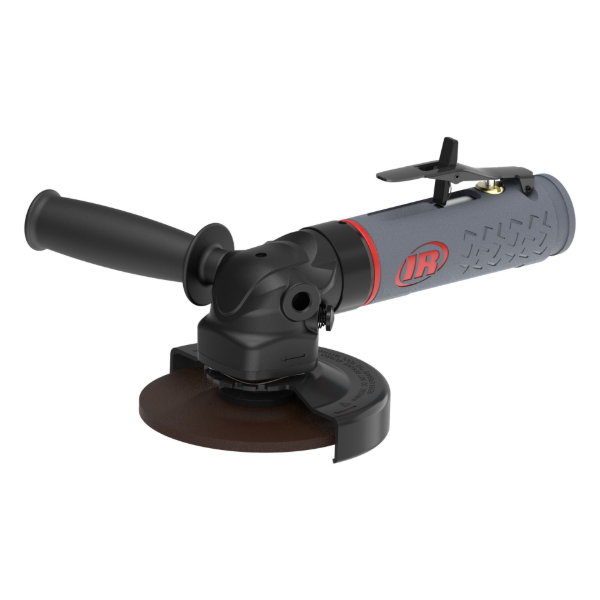

IR 545MAX

Air Angle Grinder, 5" Type 27 Wheel, 12,000 RPM, 2.5 HP, 5/8"-11 Thread, Rear Exhaust

Take your productivity to the MAX with the 5445MAX and 545MAX Series 2.5 HP Air Angle Grinders from Ingersoll Rand®. Featuring a 2.5 hp motor that delivers the best power-to-weight ratio to maximize material removal, dramatically reducing job completion time on even the hardest alloys. At just over 4lbs, its compact construction is comfortable for all day use without operator fatigue. Durable, high strength internal components are built for long run times, reducing maintenance costs and operator downtime. An governed motor optimizes air consumption for the task at hand, delivering more power when you need it while increasing the life of abrasives and reducing consumable costs. A tool-free adjustable guard allows for orientation changes in seconds and spindle lock enables quick abrasive changeovers with a single spanner wrench. For colossal power in a compact size, keep your operators running with the 545MAX Series Angle Grinders.

Features And Benefits

• Power: 2.5 hp motor delivers the best power-to-weight ratio to maximize material removal, dramatically reducing job completion time on even the hardest alloys.
• Performance: Governed motor optimizes air consumption for the task at hand, delivering more power when you need it while increasing the life of abrasives and reducing consumable costs.
• Productivity: No more excessive accessories. A tool-free adjustable guard allows for orientation changes in seconds and spindle lock enables quick abrasive changeovers with a single spanner wrench.
• Durability: Durable, high strength internal components are built for long run times, reducing maintenance costs and operator downtime.
• Comfort: At just over 4lbs, its compact construction packs a punch with a best-in-class power-to-weight ratio for all day use without operator fatigue.

Includes: Tool, 1 Wrench, Safety Manual, Auxiliary Handle, Allen wrench, Screw
Product Application and Uses: Designed for material removal using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 32.33
Air Consumption @ Free Speed (l/min): 916
Air Consumption @ Load (cfm): 76.75
Air Consumption @ Load (l/min): 2174
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 76.75
Average Air Consumption (l/min): 2174
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Gripping Length (in): 5.4
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 4.17
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 9.33
Product Height (in): 5.5
Product Weight (lb): 4.12
Rated Power (hp): 2.5
Rated Power (kW): 1.86
Side to Center Distance (in): 33.9
Side to Center Distance (mm): 861
Sound Pressure/Power Db(A): 95.1/106.1
Special Features: Tool free adjustable guard, spindle lock
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vibration Level (m/s2): 8.38
Vibration Uncertainy K* (m/s2): 1.32
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2A120RP105
• 345MAX

IR AG1-303S

VALVE SEAT
