Grinders

IR AG2-A3

ASSEMBLY.G2 GRINDER 0.75 HP

IR AG3-105

BRG, BALL, DBL, FG, 17 X 35 X 10 THK, 2Z

IR AG3-26M

SPANNER WRENCH

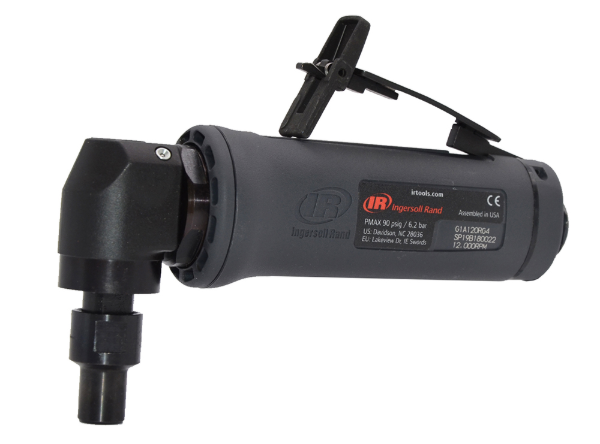

IR G1A120RG4

Angle Air Die Grinder, 12,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.1
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6
Product Width (in): 12.5
Product Height (in): 2.5
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 3
Right Angle Length (mm): 76
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 82.4 / 93.4
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 3.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2A120RG4
• G1A200RG4
• G1A120FG4

IR G3X180RG4

Extended Air Die Grinder, 18,000 RPM, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 18,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 87.6 / 98.6
Vibration Level (m/s2): <2.5
Warranty: 1-year

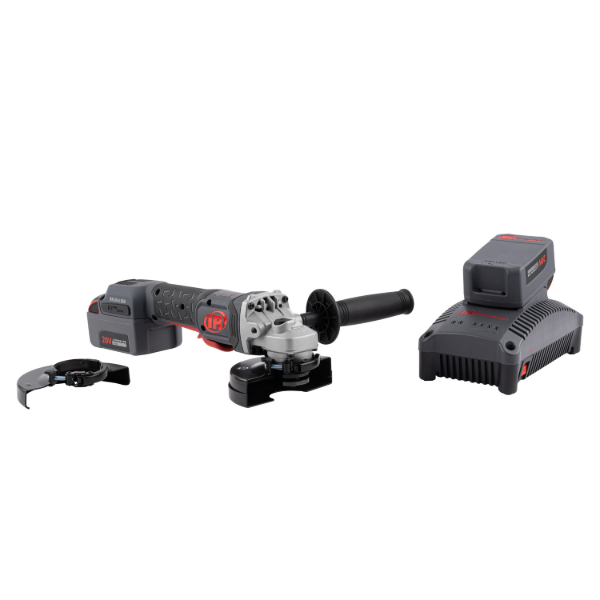

IR G5351-K22

20V Cordless Angle Grinder/Cut-off Tool 2 Battery Kit, 8000 RPM, 1HP, 4.5" Wheel

Break free from the cord with the G5351 20V Cordless 4.5/5.0” Angle Grinder & Cut-Off Tool that brings the power of a corded tool with the mobility of a cordless. Slim and well-balanced, G5351 allows access to tight spaces and weighs 20% less than leading competitor. Tool features an extended paddle switch and unique inline battery design that eliminates interference from the forearm during use. The G5351 couples a high-performance Brushless Motor with advanced features like Anti-Kickback and overload protection for safe, reliable performance. Slim handle with rubberized grip makes the G5351 Cordless Grinder comfortable to use for long periods. Tool-free guard attachment and Spindle-lock button allow quick, easy accessory changes.

Features And Benefits

• 1.0 HP brushless motor delivers up to 8,000 RPM and makes short work of material removal on a variety of surfaces.
• The G5351 is a lightweight and compact tool weighing 5 lbs. (including battery) and 13.25" length, improving control and access to tight spaces.
• Extended paddle switch with lock-off lever prevents accidental triggering and provides a more comfortable grip when maneuvering.
• Spindle-lock design with simple button press to disengage. Spindle can be used with all 5/8”-11 and 4.5”-5.0” wheels.
• Automatic anti-kickback protection and overload protection with E-brake.
• Change guards with tool-free quick release; use with included grinding guard for material removal and surfacing, or with the included cut-off guard for fast metal cutting.
• Slim body and comfortable rubber grip provide more tool control and reduce fatigue during extended use.
• Included side-handle attaches on the left or right side.
• Kit Includes: G5351 Grinder, (2) BL2022 20V 5Ah Batteries, 20V Charger; Type 1 (Cutting) Guard; Type 27 (Grinding) Guard; Handle, flange, nut, Spanner Wrench; Charger Cord, Manuals.
• Compatible with IQV® 20 Series Battery System.

Includes: G5351 Grinder, (2) BL2022 20V 5Ah Batteries, 20V Charger; Type 1 (Cutting) Guard; Type 27 (Grinding) Guard; Handle, flange, nut, Spanner Wrench; Charger Cord, Manuals
Product Application and Uses: Material Removal, Surface Preparation, Blade Sharpening, Metal Cutting. Removes material from a variety of sources including wood, steel, aluminum, ceramic, glass, concrete and stone.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Paddle Switch
Anti-Restart Technology: Yes
Anti-Vibration Technology: No
Arbor/Collet: 5/8"-11 Thread
Brake Type: Electronic
Clutch Type: Electronic Anti-Kickback Clutch
Color: Grey
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: TPE Composite
Head Style: Standard Head
Height Over Spindle (in): 3.11
Housing Material: Impact and chemical-resistant composite housing
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 8000
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 13.25
Product Width (in): 3.11
Product Height (in): 4.4
Product Weight (lb): 3.5
Product Weight (lb) (with Battery): 5.36
Rated Power (hp): 1
Rated Power (kW): 0.75
Right Angle Length (in): 13.25
Right Angle Length (mm): 337
Side to Center Distance (in): 1.42
Side to Center Distance (mm): 36
Sound Pressure/Power Db(A): 76.3
Speed Setting: Single speed
Standards/Certifications: UL/CSA/EN/IEC 62841-1, UL/CSA/EN/IEC 62841-2-3
Tether Style: Not Tether Capable
Vibration Level (m/s2): 6.6
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wheel Diameter (in): 4.5
Wheel Diameter (in): 5
Wheel Thick

IR LG1-A352A

WHEEL ASSEMBLY (49440-138)

IR MG1-A550

ASSEMBLY, ANGLE HEAD

SX 5055C

R/A .3 Hp 20,000 rpm Die Grinder

CL 207989PT

Vanes, Super Grinder- 20pk

IR LG1-103-3

FLOW RING (49440-50)

IR LG1-24

Bearing (49440-17)

CL 208863PT

D14-0811 Dotco Wrench Grinder 9/16 x 11/16

MPT G14990R-C4

Grinder, 1/4in Angle Die

MPT G14990RE4-C4

Grinder, Extended 1/4in Angle Die

MP MP4424

Die Grinder, R/A, 1/4Incollet Q

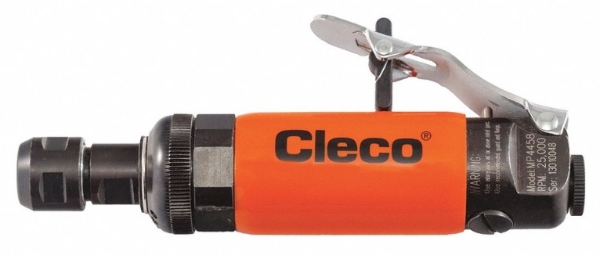

MP MP4458

Grinder, Inline, 1/4 Collet Q

DC 10R0401-18

PENCIL GRINDER,60K,1/8" COLLET

DC 12L1080-36

GRINDR ERGO,RE,30K,1/4" COLLET

DC 12L1382-36

VERT SNDR/GRD,RE,20K,1/4" E300

DC 12L2001-01

GRINDR ERGO,FE,20K,1/4" COLLET

DC 12L2002-01

GRINDR ERGO,FE,18K,1/4" COLLET

DY 50318

Flange, Locking, 3/8-24 Thread, 4 Inch Grinder

DY 02083

3/8-24 SPINDLE, 3 GRINDER

SX SDG05S18

Inline Die Grinder
