Grinders

IR LG1-32

SEAL (49440-16)

IR LG1-A350-812

ATTACHMENT (49440-156)

IR LG1-634

SCREW (49440-142)

IR LG1-K284

Exhaust Hose Adapter Kit for Ingersoll Rand G1 Series Grinder

Includes: adapter, hose, retainer

For Use With

• G1A120FG4
• G1A120PG4M
• G1A120PS4
• G1A120RG4
• G1A200FG4
• G1A200PG4M
• G1A200PS4
• G1A200RG4
• G1H200FG4
• G1H200PG4M
• G1H200RG4
• G1H250PG4M
• G1H250RG4
• G1H350FG4
• G1H350PG4M
• G1H350RG4
• G1X200RG4
• G1X250RG4
• G1X350PG4M
• G1X350RG4

IR 99H60-638

BOLT

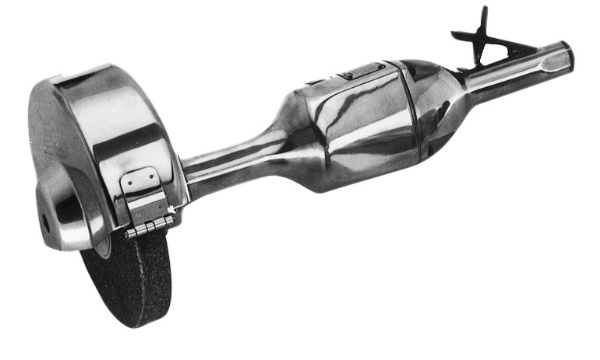

IR 99HL60H108

Extended Air Grinder, 8" Type 1 Wheel, 6,000 RPM, 3HP, 5/8 in-11 Thread, Side Exhaust

Features And Benefits

• Safety: A lock-out lever and guard safety provide extra safety measures and increased operator comfort.
• Cleaner Workspaces: Compatible with piped-away exhaust kits to keep your worksite free from exhaust air.
• Durability: The 99 Series Type 1 Grinder’s built-in mist lubricator automatically oils the motor to keep your grinder in top condition.

Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Side
Grinder Type: Horizontal Grinder
Guard Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Rated Power (hp): 3
Warranty: 1-year
Wheel Diameter (in): 8
Wheel Thickness (in): 1
Wheel Type: Type 1

IR 99V60-106-9

GUARD

IR 99V60-204-P10

ARBOR

IR 99V60-386

ADAPTER

IR 99V60-53

ROTOR

IR 99V60-A216A

GUARD

IR 99V60-A302

VALVE

IR 307A-699

HOUSING CAP

IR 307A-A11

FRONT END PLATE ASSEMBLY 307A-A11

IR LG1-40

MOTOR HOUSING

IR LG3-103-3

FLOW RING (49460-21) BLU

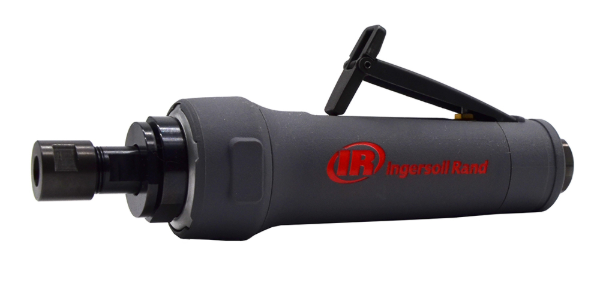

IR M2H250RG4

Air Die Grinder, 25,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 25,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.38
Product Width (in): 7.01
Product Height (in): 2.83
Product Weight (lb): 1.69
Rated Power (hp): 1
Side to Center Distance (in): 0.89
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 88.2
Speed Setting: Variable Speed
Standards/Certifications: En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 2.3
Warranty: 1-year
Wheel Type: Burr

Similar IR

• G1H250RG4
• G1H250FG4
• M2H200RG4

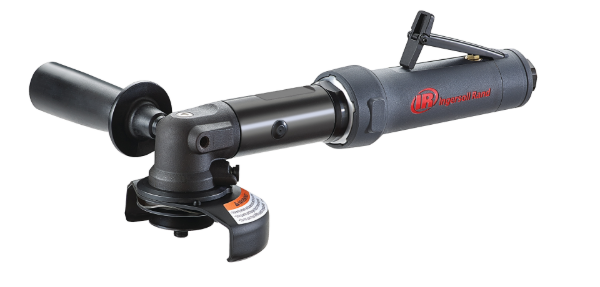

IR M2L135RP64

Extended Angle Air Grinder, 4" Type 27 Wheel, 13,500 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 13,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic extended reach handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 22
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 13500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 4.55
Rated Power (hp): 1
Sound Pressure/Power Db(A): 87 / 98.7
Speed Setting: Variable Speed
Vibration Level (m/s2): 4.4
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27

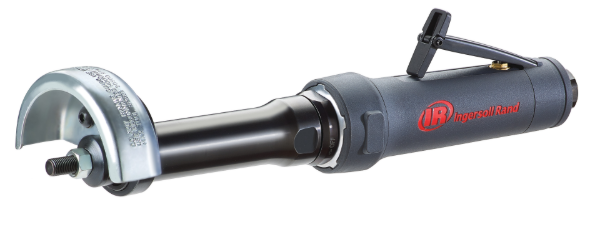

IR M2X180RH63

Extended Air Grinder, 3" Type 1 Wheel, 18,000 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

The M2-Series industrial Grinders is offering high durability with a powerful motor and less maintenance, more productivity with the speed governor helping to maximize life time of the abrasive, an adjustable guard and a spindle lock feature. For sure with the M2-Series from Ingersoll Rand you will get more time to work and less time in maintenance.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 18,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: 3/8" spindle; Piped Exhaust; Wrenches
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 14
Air Consumption @ Free Speed (l/min): 396
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.35
Product Weight (lb): 3.26
Rated Power (hp): 1
Sound Pressure/Power Db(A): 85.3 / 96.3
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.3
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/2
Wheel Type: Type 1

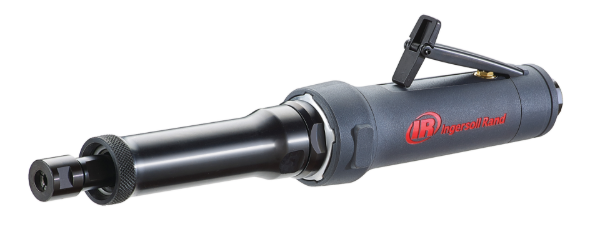

IR M2X250RG4

Extended Air Die Grinder, 25,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 25,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 30
Air Consumption @ Free Speed (l/min): 849
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.08
Product Weight (lb): 2.68
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88.2 / 99.2
Speed Setting: Variable Speed
Vibration Level (m/s2): 1.9
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2X200RG4

IR MG1-A465

ASSEMBLY, INLET BUSHING

FP UT8715-20

1/4 Ra Die Grinder 20, 000Rpm

CL 3060AVL-06

3HP VERT GRD, 6K RPM, 6" CUP WHEEL GUARD

CL 3060AVL-07

3HP VERT GRD, 6KRPM, 7" GUARD

CL 3060AVL-09

3HP VERT GRD, 6KRPM, 9" GUARD
