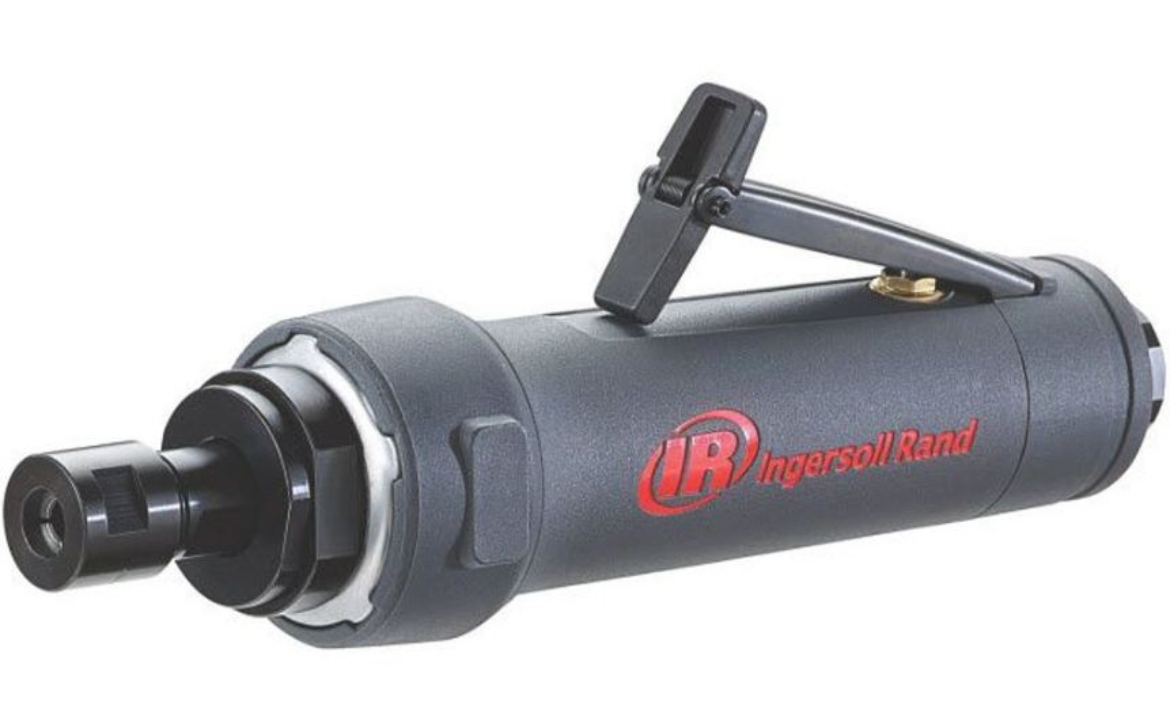

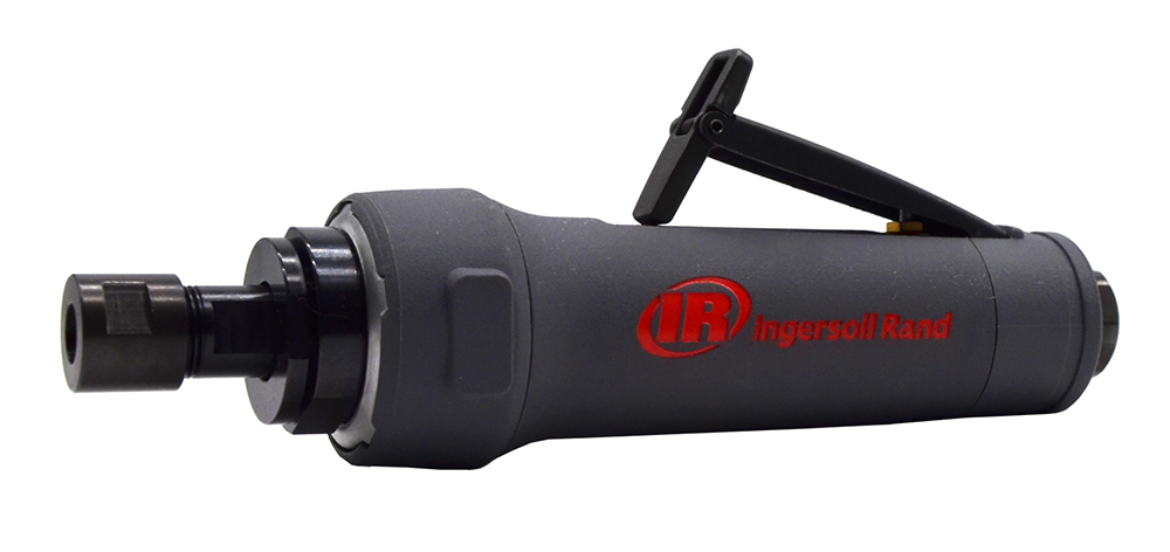

IR M2H250RG4
Air Die Grinder, 25,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust
Description: You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool's speed to maximize material removal- so you can trust it to work through your most important jobs.
Features And Benefits:
- Power: With a powerful, lube-free 1 HP 25,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
- Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
- Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
- Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
- Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
Product Application and Uses:
Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
- Includes: Tool, (2) Collet Wrenches, Manuals
- Actuation/Throttle Type/Switch Location: Handle
- Actuation/Throttle Type/Switch Type: Safety Lever
- Air Consumption @ Free Speed (cfm): 25
- Air Consumption @ Free Speed (l/min): 708
- Air Consumption @ Load (cfm): 40
- Air Consumption @ Load (l/min): 1133
- Air Inlet: 3/8" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 1/4"
- Arbor/Collet: 6mm
- Bearing Type: Ball Bearing
- Bearing Type: Needle Bearing
- Color: Grey
- Configuration/Handle Type: Straight
- Duty Rating: Industrial Duty
- Grinder Type: Die Grinder
- Handle Material: Composite
- Housing Material: Aluminum core with composite sleeve
- Lock Mechanism: Lever lock in off position
- Max Free Speed (rpm): 25000
- Max Pressure (bar): 6.2
- Min Hose Size (in): 3/8
- Power Source: Air Powered
- Product Length (in): 8.38
- Product Width (in): 7.01
- Product Height (in): 2.83
- Product Weight (lb): 1.69
- Rated Power (hp): 1
- Side to Center Distance (in): 0.89
- Side to Center Distance (mm): 23
- Sound Pressure/Power Db(A): 88.2
- Speed Setting: Variable Speed
- Standards/Certifications: En Iso 28927-12, En Iso 15744, En Iso 11148-9
- Vibration Level (m/s2): 2.3
- Warranty: 1-year
- Wheel Type: Burr
- Parts: HG2-DGTKH
- Parts: HG2-K284
