Grinders

DC 10N2080-01

GRINDER,RE,25K,1/4" COLLET

DC 12L1003-36

GRINDER,ERGO,FE,25K,1/4" COLLET

DC 12L1028-36

GRINDR ERGO,RE,20K,1/4 COLLET

DC 12L1082-36

GRINDER,ERGO,RE,25K,1/4" COLLET

DC 12L1101-36

GRD,ERGO,EXT,5" ,FE,28K,1/4" COL

DC 12S1008-36

GRINDR ERGO,FE,20K,1/4" COLLET

IR 5102MAX-531

Cap

IR 80183395

ELECTRIC INTERFACE KIT #1

IR HG2-161

THROTTLE PIN

IR HG2-19

NOZZLE

IR LG1-118

RETAINER (49440-11)

IR LG1-358

SLEEVE (49440-87)

IR LG1-42-5

VANE PACK

IR LG3-592

SEAT (49450-23, 26)

IR M2A120RP64

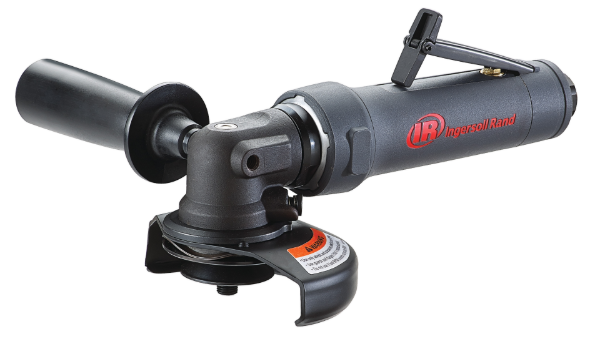

Angle Air Grinder, 4" Type 27 Wheel, 12,000 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.85
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.29
Product Weight (lb): 3.76
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87 / 98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.1
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2A135RP64

IR M2A120RP105

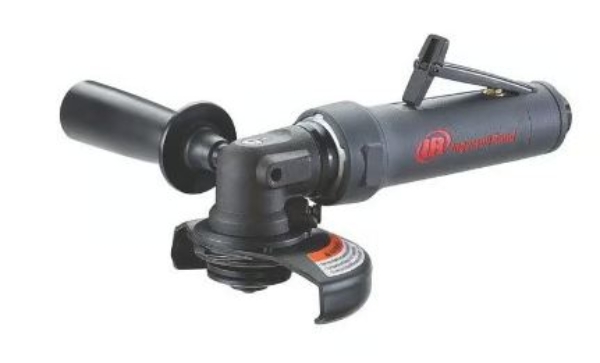

Angle Air Grinder, 5" Type 27 Wheel, 12,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust

Features And Benefits

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 17
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.29
Product Weight (lb): 3.89
Rated Power (hp): 1
Sound Pressure/Power Db(A): 87 / 98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR MG1-11

FRONT ENDPLATE

IR MG1-12

REAR ENDPLATE

IR MG1-531

BEARING RETAINER

IR AG210-302

VALVE (49440-147)

IR AG31-667-4

SCREW PACK

IR AG3-K284

EXHAUST KIT, G3 SERIES

IR 308A-22

BEARING

IR 308A-699

COLLET NUT

ATP 4420

Grinder
