Grinders

AIM USG-4VL

Grinder Vertical

DC 12L2778-84

RA SND/GRD, ERGO, RE, 14. 5, 4" TP27

IR 77H90L10

Cone and Plug Air Grinder, 9000 RPM, 1.5 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Versatile: Compatible with piped-away exhaust kits to make your job easier.

Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 37
Air Consumption @ Load (l/min): 1048
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Side
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 9000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 16.44
Product Weight (lb): 6
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 3.5
Warranty: 1-year
Wheel Type: Cone

CL 12S2674-2C

.83 MULTI EXT,RE,18K,3/8-24E

IR 77H120L10

Cone and Plug Air Grinder, 12000 RPM, 1.5 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Versatile: Compatible with piped-away exhaust kits to make your job easier.

Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Air Consumption @ Load (cfm): 39
Air Consumption @ Load (l/min): 1104
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Configuration/Handle Type: Straight
Exhaust Location: Side
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 16.44
Product Weight (lb): 6
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 3.5
Warranty: 1-year
Wheel Type: Cone

IR 77H90L10-EU

GRINDER 77H90L10-EU

GG 19B224

Grindlazer Control, Assembly With Heat Shrink

DY 58900

Grinder, 4-1/2 Inch, Right Angle, 2.3 HP, 13000 RPM, Type 27, 5/8-11 Spindle

DY 53532

Cone or Plug Grinder (Double Extension)

1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Includes 3/8in -24 Male Threaded Adapter (53610)

Extension Grinders allow operator to extend into work pieces and reach lengthy distances.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

IR 77A60P107M-EU

GRINDER 77A60P107M-EU

GG 19B304

Grindlazer Pump, Pc Series

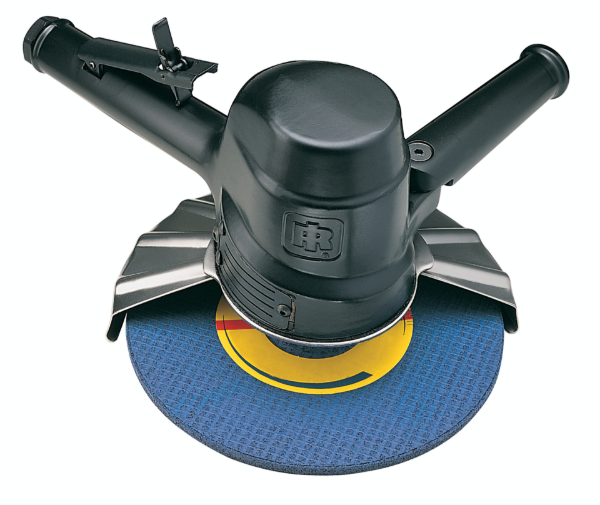

IR 99V85P107

Vertical Air Grinder, 7" Type 27/28 Wheel, 8,500 RPM, 3 HP, 5/8 in-11 Thread, Side Exhaust

The 99 Series Vertical Grinders are tough and reliable, with a number of features that help you get the job done faster, easier and safer.

Features And Benefits

• Power: The 99 Series Vertical Grinder sports a powerful vane motor and an ideal power-to-weight ratio.
• Safety: The included guard on the 99 Series block sparks and debris from flying back at you, while the locking throttle lever prevents accidental throttle operation.
• Reliable: Made with you in mind, the 99 Series Vertical Grinder is a trusted tool that will last you years to come. Comes with a 1-year warranty.

Includes: Tool, Large Wrench, Small Wrench
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Industrial Duty
Exhaust Location: Side
Grinder Type: Vertical Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 6.9
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 8500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 6.88
Product Weight (lb): 11.25
Rated Power (hp): 3
Right Angle Length (in): 7.95
Right Angle Length (mm): 202
Sound Pressure/Power Db(A): 103 / 104
Vibration Level (m/s2): 3.6
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

Similar IR

• 88V77P107

DY 50302

4in (102 mm) Diameter Right Angle Depressed Center Wheel Grinder

1 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.

4in Diameter, Right Angle, 1 hp, Rear Exhaust, 12,000 RPM.

• HP: 1.0
• Max. RPM: 12000.0
• Motor RPM: 12,000

IR G3L120RP1045

G3 EXTENDED ANGLE GRINDER

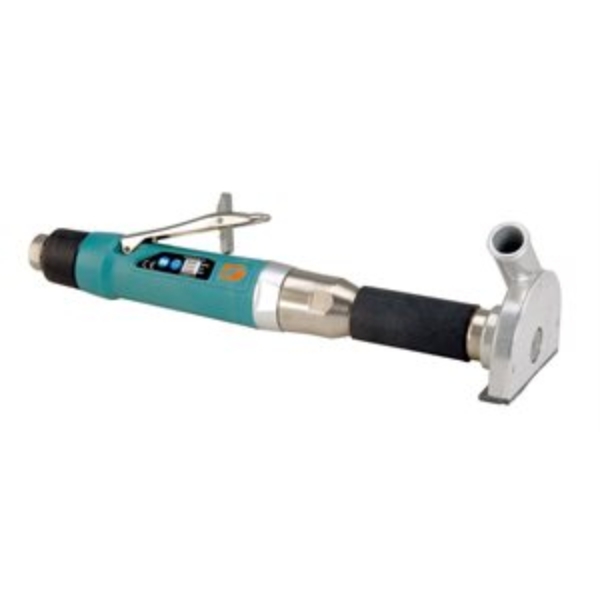

DY 52537

3in (76 mm) Diameter Straight-Line Vacuum Extension Cut-Off Wheel Tool

1 hp, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.

Ideal for 3in Diameter Diamond Cut-Off Wheels.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

IR G3L086PP95

G3 EXTENDED ANGLE GRINDER

DY 54785

3in (76 mm) Diameter Extended Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 18,000 RPM, Steel

Model accepts optional 3in (76 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 18000.0
• Motor RPM: 18,000

DY 54789

4in (102 mm) Diameter Extended Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 12,000 RPM, Steel

Model accepts optional 4in (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 54793

4in (102 mm) Diameter Extended Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 13,500 RPM, Steel

Model accepts optional 4in (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 13500.0
• Motor RPM: 13,500

IR 99V77P107

GRINDER

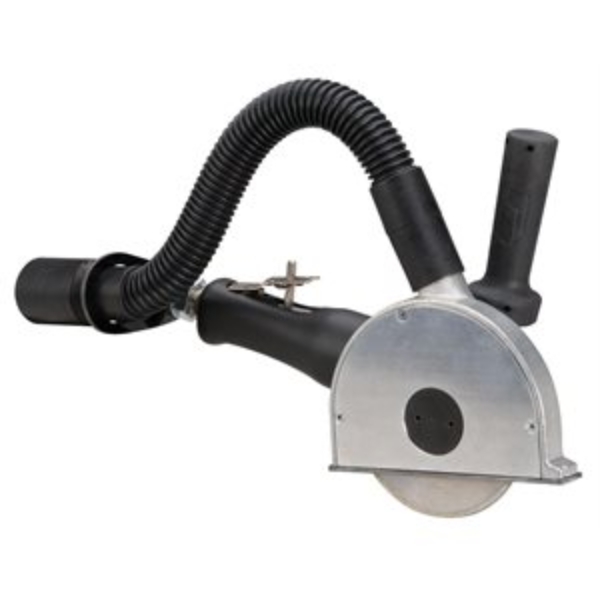

DY 52615

5in (127mm) Diameter Right Angle Vacuum Cut-Off Wheel Tool

1.3 hp, 12,000 RPM, Rotational Exhaust, 3/8in -24 Spindle Thread

Tool accepts optional 5in (127 mm) Diameter Diamond Cut-Off Wheels with 3/4in (19 mm) Diameter center hole. Adjustable wheel guard has vacuum port 1-1/4in (32 mm) outside Diameter that diverts airborne dust and debris to optional vacuum source. Excellent for efficient cutting with capture of dust and debris. Ideal for use on fiberglass and composites.

Non-marring composite base is removable to utilize maximum blade depth of 1-3/16in (30 mm). Optional composite base is available for scoring. Shroud/Guide Plate design allows cutting as close as 1/8in (3 mm) to leading edge of work piece.

• HP: 1.3
• Max. RPM: 12000.0
• Motor RPM: 12,000

GG 19B431

Grindlazer System, Drum Assembly 20In Housing

IR G3L086PS10

G3 EXTENDED ANGLE SANDER

DC 12L2762-80

RA SND/GRD,FE,4.5K,GOV,5/8-11E

DY 49420

.4 hp Angle-Head Die Grinder

3,200 RPM, Planetary-Geared, Rear Exhaust, 1/4in Collet

Includes 50055 Collet Assembly and extended rear exhaust muffler to reduce noise levels.

Governor-controlled motor maintains speed under load.

• HP: 0.4
• Max. RPM: 3200.0
• Motor RPM: 3,200
