Grinders

GG 25M846

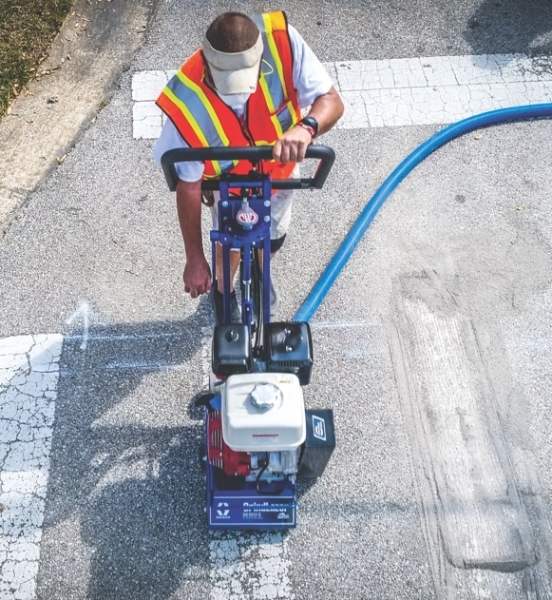

GRINDLAZER SYSTEM, PRO DC1013 G

GrindLazer Pro DC1013 G Gas-Powered Scarifier The GrindLazer Pro DC1013 G is a high-output drum style scarifier with a 13 HP Honda engine, 10 inch (25.4 cm) maximum cut width, and larger selection of cutters for marking removal, leveling and surface preparation. Heavy-Duty All-Steel Frame

• Jobsite Tough Design

Durable 13 HP Honda Power With Cyclone Filter

• Contractor-Preferred Power
• Cyclone filter protects the engine from harmful airborne dust

Center-Weight Design

• Efficient “No-Bounce" Cutting
• Better control for a better quality cut

DialDown Depth Control System

• Easy Cutter Depth Control
• Easy to “dial down” for precise cutting depth control

Precision All-Steel Wheel Assemblies

• Accurate Cuts & Long Life

Anti-Vibration Handlebars

• Padded for minimal vibration transfer for all-day comfort

Sealed Main Bearing

• Maintenance-Free Design
• Long life and ease-of-use

Heavy-Duty Wide HTD Drive Belt

• Eliminate Costly Downtime

Vacuum Port

• Less Dust
• For optional LazerVac vacuum system

Dual Purpose Tachometer and Hour Meter

• Easy-to-Read Gauges
• Ideal for maintenance—ensuring your equipment is in top shape
• Displays engine RPMs while running

GG 26A594

Grindlazer System, Dc89G, 8InFul Crbd Mil F

GG 26A593

Grindlazer System, Dc89G, 8InFul Crbd Mil M

GG 26A583

Grindlazer System, Dc87G, 8InFullcrbd Mil F

GG 26A582

Grindlazer System, Dc87G, 8InFullcrbd Mil M

GG 26A590

Grindlazer System, Std Dc89G, 8InCrbd Flt F

DY 52630BK

4in (102 mm) Diameter Robotic Right Angle Depressed Center Wheel Grinder Kit

1.3 hp, 13,500 RPM, Rotational Exhaust, 3/8in -24 Spindle Thread

• Motor RPM: 13,200

GG 26A589

Grindlazer System, Std Dc89G, 8InCrbd Flt M

GG 26A592

Grindlazer System, Std Dc89G, 8InCrbd Mil F

GG 26A579

Grindlazer System, Std Dc87G, 8InCrbd Flt F

GG 26A591

Grindlazer System, Std Dc89G, 8InCrbd Mil M

DY 66402

Air Tool Post Grinder

1.86 hp, 7,200 RPM, Side Exhaust, 4,700 SFPM, for 1-1/2in W x 24in L (38 mm x 610 mm) Belts

For use on metal, glass, stone, rubber, ceramic, carbide composites and other hard to grind materials. Mounts to standard lathes. Simple tool holder mounting. Holds close tolerances.

Reduce surface finish on materials prior to a superfinishing process.In-line belt tracking prevents uneven belt stretching, as found on conventional belt tracking arrangements.

• HP: 1.86
• Max. RPM: 7200.0
• Motor RPM: 7200

GG 26A588

Grindlazer System, Std Dc89G, 8InCrbd Fl F

GG 26A578

Grindlazer System, Std Dc87G, 8InCrbd Flt M

GG 26A581

Grindlazer System, Std Dc87G, 8InCrbd Mil F

GG 26A587

Grindlazer System, Std Dc89G, 8InCrbd Fl M

GG 26A584

Grindlazer System, Std Dc89G, Wire Brush

GG 26A580

Grindlazer System, Std Dc87G, 8InCrbd Mil M

GG 26A577

Grindlazer System, Std Dc87G, 8InCrbd Fl F

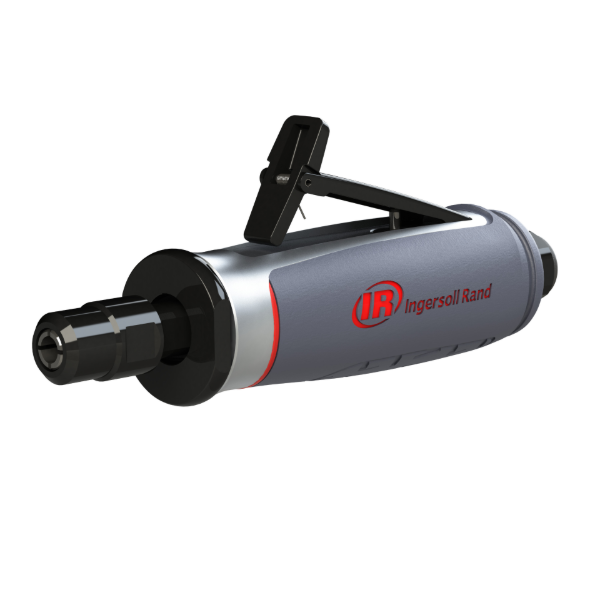

IR 5109MAX-24

Air Die Grinder, 20,000 RPM, 0.3 HP, 1/4" Collet, Rear Exhaust, Top Mounted Lever, 24-Piece

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 20,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: (24) 5109MAX Die Grinders; 1/4" collet, 24 Large Wrenches; 24 Small Wrenches
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 21
Air Consumption @ Load (l/min): 600
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 5.3
Average Air Consumption (l/min): 150
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.6
Product Height (in): 2.7
Product Weight (lb): 1.1
Rated Power (hp): 0.3
Rated Power (kW): 0.22371
Side to Center Distance (in): 0.75
Side to Center Distance (mm): 19
Sound Pressure/Power Db(A): 83.3 / 94.3
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 1.8
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5108MAX
• G1H200RG4
• 308B
• 307B

GG 26A585

Grindlazer System, Std Dc89G, 8In Stl Str F

GG 26A586

Grindlazer System, Std Dc89G, 8InStl Beam F

GG 26A576

Grindlazer System, Std Dc87G, 8InCrbd Fl M

GG 26A573

Grindlazer System, Std Dc87G, Wire Brush

GG 26A574

Grindlazer System, Std Dc87G, 8In Stl Str F
