Grinders

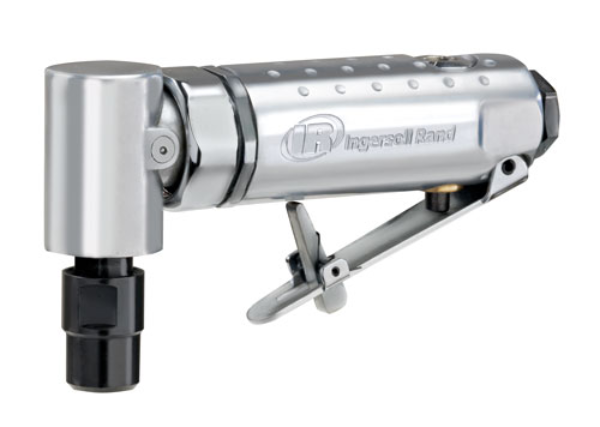

DIE GRINDER, 0.25 HP, 21K, ANGLE, 1/4" C
IR 301B
IR 301B
Angle Air Die Grinder, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust
As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere!Features And Benefits
- Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Strong: Aluminum housing withstands tough operating conditions.
- Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Safety: 1/4" collet and a integral self-locking throttle lever that prevents accidental start up.
- Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
Includes: Tool, 1/4" collet, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year
Similar IR
- 302B
- 5102MAX
- 307B
- 308B
$80.64
Grindlazer Hose, Hydrauilic, 3/8in, 3000 psi
GG 18B446
GG 18B446
Grindlazer Hose, Hydrauilic, 3/8In, 3000 Psi
$86.75

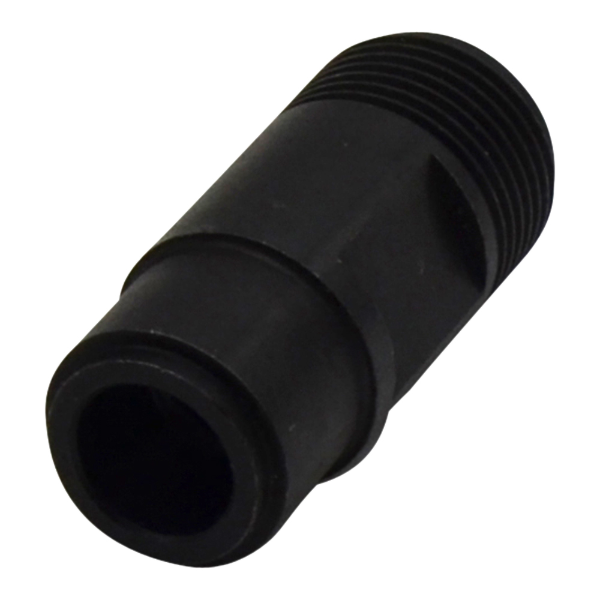

COLLET BODY (49450-39)
IR LG2-290
IR LG2-290
Collet Body for Ingersoll Rand M2 Series Grinder
Product Application and Uses: For use with Ingersoll Rand M2X and M2H Model GrindersFor Use With
- M2H180RG4
- M2H200RG4
- M2H250RG4
- M2X075RG4
- M2X180RG4
- M2X200RG4
- M2X250RG4
$89.00

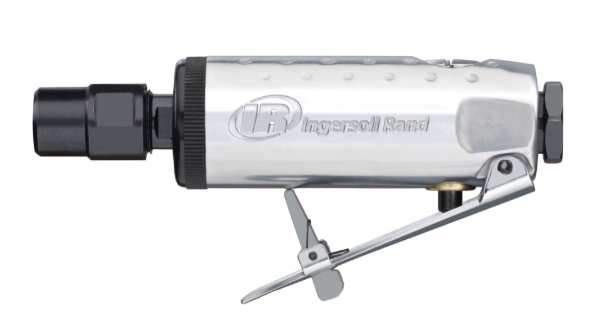

DIE GRINDER, 0.25 HP, 28K, STRAIGHT, 1/4" C
IR 307B
IR 307B
Air Die Grinder, 28,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust
Ingersoll Rand's 307B general purpose Air Die Grinder is durable, reliable, and cost-effective. Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing. Their compact design offers exceptional maneuverability, versatility, and accessibility for difficult-to-reach spots. Also available in the 307BK kit which includes 10 mounted grinding tips and a blow-molded case.Features And Benefits
- Performance: Powerful vane motor delivers .25 HP and 28,000 RPM.
- Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
- Reliable: Strong aluminum housing withstands tough operating conditions and powerful vane motor will make the 307B a trusted tool in your arsenal for years to come.
- Safety: Integral safety-lock throttle lever prevents accidental start up.
- Comfort: Weighing under 1 lb., this small and lightweight design provides easy operation, and greater access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Also available in the 307BK kit which includes 10 abrasive stones, and a blow-molded carrying case.
Includes: 1/4" collet, (2) Wrenches and Manuals
Product Application and Uses: Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 28000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.19
Product Height (in): 2.1
Product Weight (lb): 0.73
Rated Power (hp): 0.25
Side to Center Distance (in): 0.65
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4.5
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Similar IR
- 308B
- 5108MAX
- 409
$72.24

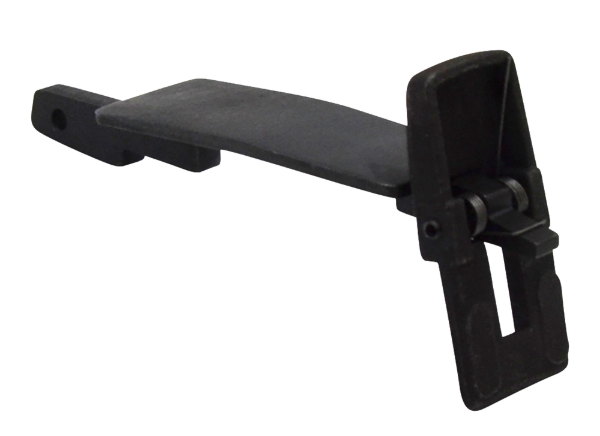

LEVER ASSEMBLY
IR AG1-A400
IR AG1-A400
Lever Assembly for Ingersoll Rand G1 Series Angle and Belt Sander
$82.00
