Grinders

IR HG2-GTKE

TUNE-UP KIT

IR AG210-4-W2

ARBOR (49440-66)

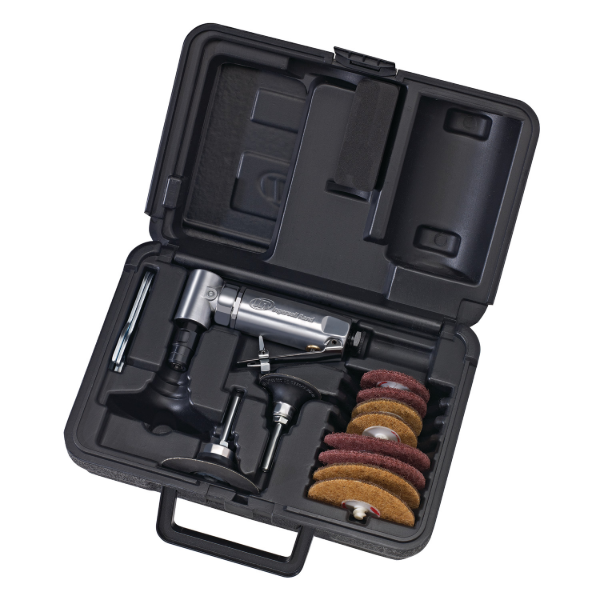

IR 301B32MK

Angle Air Die Grinder 2" & 3" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit Includes (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, and a Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, and a Blow-molded case.

Includes: 301B Air Angle Die Grinder, (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

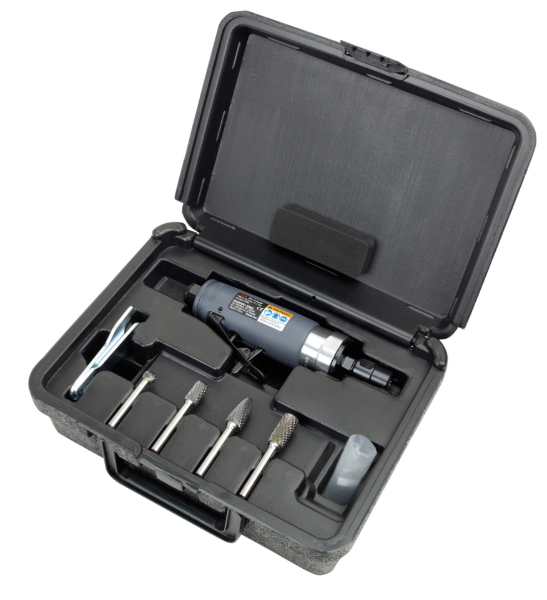

IR 308BK

Air Die Grinder Burr Kit, 25,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 308B die grinder is the perfect choice. These powerful grinders feature a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. Kit includes 4 burrs.

Features And Benefits

• Performance: Powerful vane motor delivers 0.33 HP and 25,000 RPM free speed.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Lightweight: At only 1lb., the ergonomic composite housing protects this tool from cold air and offers greater operator comfort.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Rear exhaust directs air away from the operator
• Kit Includes: 4 burrs and a blow-molded carrying case.

Includes: 308B Straight Air Die Grinder, 4 Burrs (Cylindrical bit super cut burr, Cylindrical bit super cut burr, 3/8" ball shaped super cut burr, Tree shaped super cut burr), a Blow-molded Carrying Case, 1/4" Collet, (2) Wrenches.
Product Application and Uses: Designed for various applications including porting, weld breaking, de-burring, polishing and grinding.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 198
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.85
Product Width (in): 4
Product Height (in): 2.5
Product Weight (lb): 1.02
Rated Power (hp): 0.33
Side to Center Distance (in): 0.71
Side to Center Distance (mm): 18
Sound Pressure/Power Db(A): 92.0 / 103.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.7
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 307BK
• 5108MAX

SUM ST-7432M

Air Die Grinder, 6MM, Lever Type, 24000 RPM Free Speed, .35 HP Motor

DY DGR31

.3 hp Right Angle Die Grinder

18,000 RPM, Rotational Side Exhaust, 1/4in Collet

Compact, lightweight contemporary tool design permits easy access to tight areas

Thermoplastic rubber tool grip reduces cold air transmission and absorbs vibration

• HP: 0.3
• Max. RPM: 18000.0
• Motor RPM: 18,000

IR LG1-40

MOTOR HOUSING

IR AG3-A53-4A

G3 ROTOR ASSEMBLY

IR AG1-A53-3A

G1 ROTOR ASSEMBLY, 3 VANE

DY 02083

3/8-24 SPINDLE, 3 GRINDER

MPT MP-7255-ST

Grinder, 115 Deg. 1/4 Angle

MPT MP-5214

Grinder 1/4in DIE

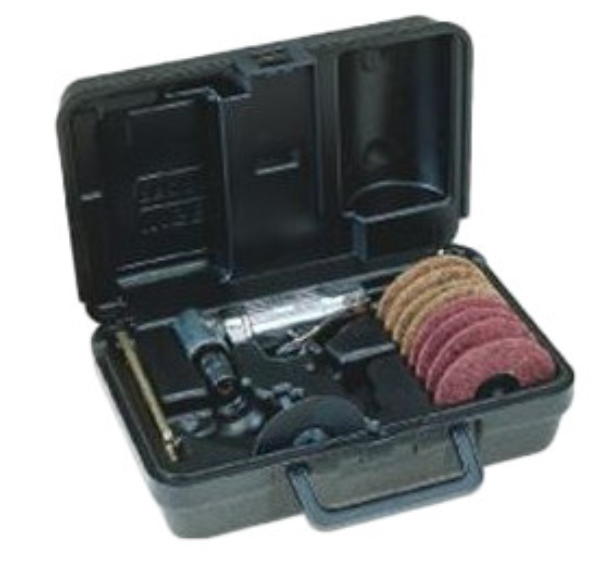

IR 301B3MK

Angle Air Die Grinder 3" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes (4) 3” coarse pads, (4) 3” medium pads, and a Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: (4) 3” coarse pads, (4) 3” medium pads, Blow-molded case.

Includes: 301B Angle Die Grinder, (4) 3” coarse pads, (4) 3” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals.
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR HG2-GTKA

Tune-up Kit for Ingersoll Rand HG2 Series Grinder

IR 99V60-A400A

LEVER

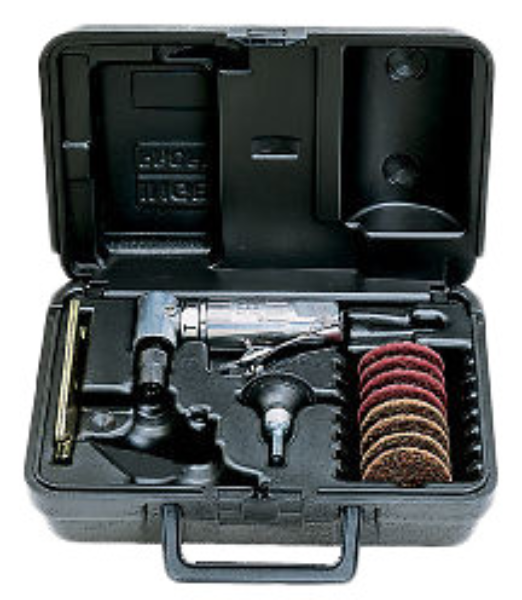

IR 301B2MK

Angle Air Die Grinder 2" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case.

Includes: 301B Air Angle Die Grinder, (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

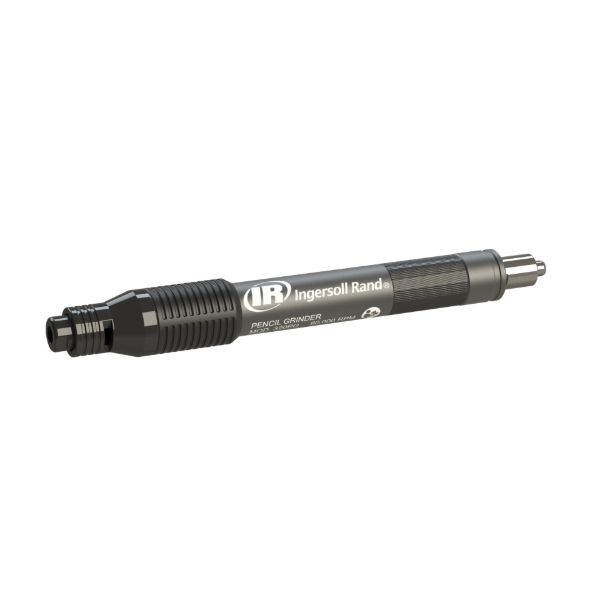

IR 320PG

Air Pencil Grinder, 60,000 RPM

A slim profile pencil grinder makes it ideal for intricate spaces, precise grinders to final cleaning and polishing dies, to mold finishing, light deburring and flash removal

Features And Benefits

• COMFORT: Complete with a custom TPU grip, low vibration and noise and an oversized speed control knob, the 320PG was designed for enhanced user comfort and safety.
• PRODUCTIVITY: The countless capabilities of the 320PG allow for more tasks to be completed with a singular tool, allowing for maximum versatility and productivity.
• VALUE: Affordability across the board is a top priority for the 320PG, which provides high quality performance at a budget-conscious price point.

Includes: (1) Tool; (2) Wrench; (1) Hose Assy; (1) Sleeve Exhaust
Product Application and Uses: For precision grinding and applications in confined spaces. Used for final cleaning and polishing of dies, mold finishing, intricate grinding applications, light deburring and flash removal.
Actuation/Throttle Type/Switch Type: Twist
Air Consumption @ Load (cfm): 8
Air Consumption @ Load (l/min): 220
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Handle Material: Alloy with TPU Grip
Hose Length (ft): 4.75
Housing Material: Aluminum Alloy
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Pencil Diameter (in): 0.74
Power Source: Air Powered
Product Length (in): 5.51
Product Width (in): 0.74
Product Height (in): 0.74
Product Weight (lb): 0.51
Rated Power (hp): 0.1
Side to Center Distance (in): 0.37
Side to Center Distance (mm): 9
Sound Pressure/Power Db(A): 78 / 89
Speed Setting: Variable Speed
Spindle Offset (in): 0.37
Standards/Certifications: CE, EAC, UKCA
Vibration Level (m/s2): <3.2
Warranty: 1-year
Wheel Type: Burr, Mounted Points

Similar IR

• GH011A-600-1
• 7978
• 140EP
• EP51
• EP51K

IR AG3-422-A15

ASSY. CONTROLLER, 15K

IR AG3-422-A18

ASSY. CONTROLLER, 18K

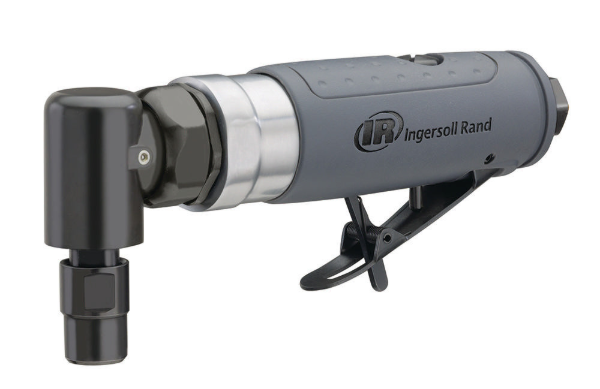

IR 302B

Angle Air Die Grinder, 20,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. 302BK Kit also available that includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case.

Features And Benefits

• Power: Powerful motor with precision gearing offers .33 HP at 20,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Lightweight: Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Reliability: Integral safety-lock throttle lever prevents accidental start up.
• Built-In Lubrication: Built-in lubricating wick increases angle gear life.
• Rear exhaust directs air away from the operator.
• Also available in the 302BK Kit that includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case.

Includes: Tool, (2) Wrenches, 1/4" Collet and Manuals
Product Application and Uses: Deburring, Grinding, Polishing, Porting, Weld Breaking
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.93
Product Width (in): 3.74
Product Height (in): 2.36
Product Weight (lb): 1.28
Rated Power (hp): 0.33
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.53
Side to Center Distance (mm): 13
Sound Pressure/Power Db(A): 90.0 / 101.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR

• 301B
• 5102MAX

GG 17X693

Grindlazer Hose, Vac, Short

IR AG2-53-4A

ROTOR

IR 88V60-53

ROTOR

DY 55065

Grinder Guard Assy

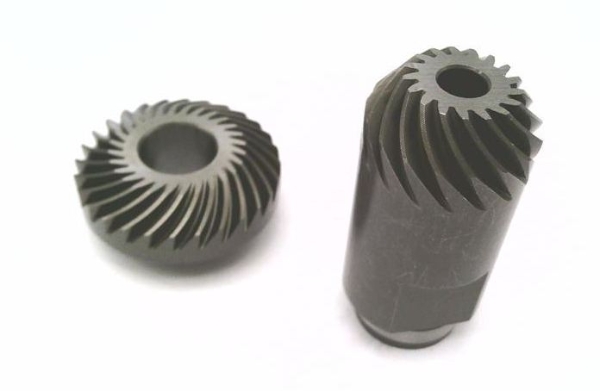

IR HG2-A552-2.4

BEVEL PINION ASSEMBLY
