Grinders

DC 12L1003-36

GRINDER,ERGO,FE,25K,1/4" COLLET

IR 345MAX-M

Angle Air Grinder/Cut-off Tool, 5" Wheel, 12,000 RPM, 0.88 HP, M14 Arbor, Rear Exhaust

In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.

Includes:

Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust

Product Application/Uses:

These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.

Features and Benefits:

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.
• 1-year warranty.

Configuration/Handle Type: Right Angle

Max Free Speed (rpm): 12000

IR 3445MAX-M

Angle Air Grinder/Cut-off Tool, 4.5" Wheel, 12,000 RPM, 0.88 HP, M14 Arbor, Rear-Piped Away Exhaust

In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.

Includes:

Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust

Product Application/Uses:

These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.

Features and Benefits:

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.
• 1-year warranty.

Configuration/Handle Type: Right Angle

Max Free Speed (rpm): 12000

IR 345MAX

Angle Air Grinder/Cut-off Tool, 5" Wheel, 12,000 RPM, 0.88 HP, 5/8"-11 Thread, Rear Exhaust

In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.

Features And Benefits

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With a .88 HP motor, 12,000 RPM and weighing less than 3.5 lbs., the 345MAX has an ideal power-to-weight ratio. The Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication. Cut, grind, or polish a variety of materials, including metal and concrete, with confidence thanks to the superior comfort and power.
• Built-in lubrication: Its built-in lubricating wick optimizes the life of the angle gear set by improving lubrication to the bevel and pinion gear set.

Includes: Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 10
Air Consumption @ Free Speed (l/min): 283
Air Consumption @ Load (cfm): 41
Air Consumption @ Load (l/min): 1161
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 292
Bearing Type: Needle Bearing
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 2.8
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.6
Product Width (in): 5.2
Product Height (in): 5
Product Weight (lb): 3.37
Rated Power (hp): 0.88
Right Angle Length (in): 8.27
Right Angle Length (mm): 210
Side to Center Distance (in): 1.3
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 79.6 / 90.6
Standards/Certifications: Ansi/Cagi B 186.1-1984, Ansi B186.1-2006, Bs En 792-7-2001
Vibration Level (m/s2): 7.9
Vibration Uncertainy K* (m/s2): 2.5
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)

Similar IR

• 3445MAX
• G5351

DY ECU4

4in Diameter Extension Cut-Off Tool, Right Angle, 14,000 RPM

3/8in -24 Spindle, Rear Exhaust

Model accepts 4in (76 mm) diameter Type 41 reinforced Cut-Off Wheels, with 3/8in (9.5 mm) center hole

Composite grip absorbs vibration and reduces cold air transmission to operator

• HP: 1.0
• Max. RPM: 14000.0

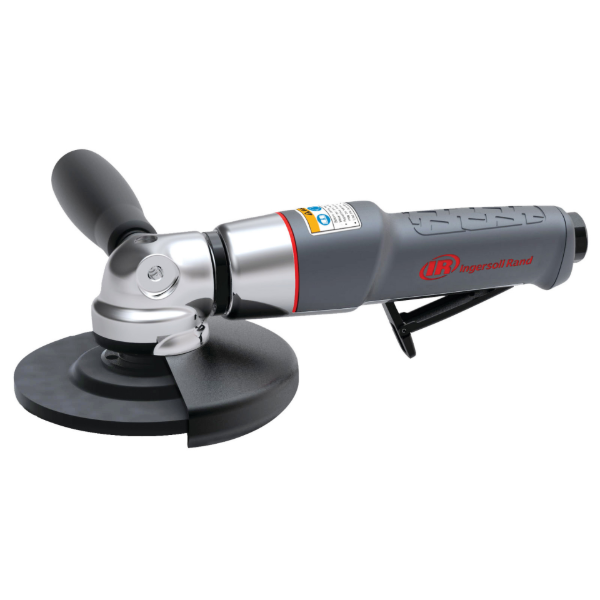

IR 3445MAX

Air Angle Grinder/Cut-off Tool, 4.5" Wheel, 12,000 RPM, 0.88 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits

• Max Power: The 4-1/2" wheel 3445MAX grinder delivers maximum power, productivity, comfort, and reliability to tackle the toughest material removal jobs in metalworking, construction, and more.
• Work Faster, Safer: The .88 HP air motor with 12,000 RPM delivers the power you need and the internal governor maximizes speed under the load, increasing the rate of material removal.
• Built-in lubrication: Its built-in lubricating wick optimizes the life of the angle gear set by improving lubrication to the bevel and pinion gear set.
• Lightweight Comfort: The enhanced grip design increases operator comfort for extended use, and its lightweight construction, weighing less than 3.5 lbs., delivers the best power-to-weight ratio in its class.
• Material Compatibility: Cut, grind, or polish a variety of materials, including metal and concrete, with confidence thanks to the superior comfort and power.

Includes: Wheel Guard, Flange, Nut and Wheel Nut Wrenches
Product Application and Uses: Rust And Material Removal
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 41
Air Consumption @ Load (l/min): 1161
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 292
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Height Over Spindle (in): 2.8
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.31
Product Width (in): 3.41
Product Height (in): 6.81
Product Weight (lb): 3.44
Rated Power (hp): 0.88
Right Angle Length (in): 1.9
Right Angle Length (mm): 48
Side to Center Distance (in): 1.3
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 79.6 / 90.6
Standards/Certifications: Ansi/Cagi B 186.1-1984, Ansi B186.1-2006, Bs En 792-7-2001
Vibration Level (m/s2): 6.3
Vibration Uncertainy K* (m/s2): 2.2
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)

Similar IR

• 345MAX
• M2A120RP1045
• G3A120RP1045
• G5351

GG 17X156

Grindlazer Hose, Vac

MP MP4458

Grinder, Inline, 1/4 Collet Q

MP MP4430

Die Grinder, 23000 Rpm Q

MP MP4201

Pencil Grinder R/A Q

IR 88V60-A216

GUARD

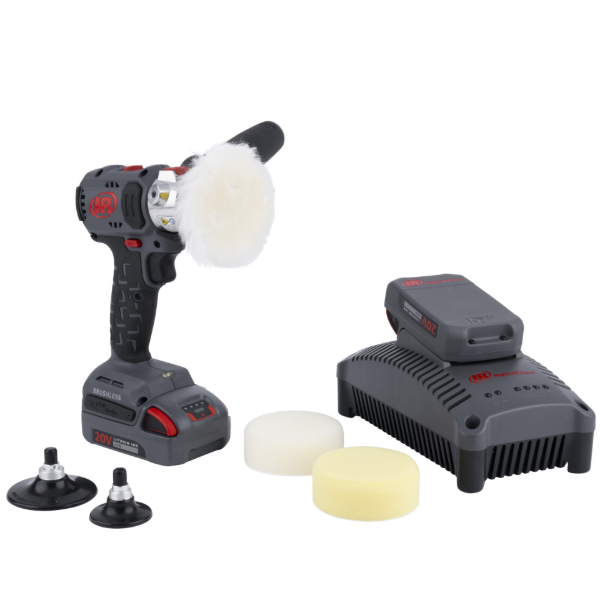

IR G4621-K22

20V Cordless Polisher/Sander 2 Battery Kit, 8300 RPM, 2" & 3" Pad

Say goodbye to stall-outs, and say hello to power that lasts all shift long. The IQV20™ Cordless Polisher/Sander comes equipped with a powerful brushless motor, compact form, and powerful battery platform that helps you tackle any task in record time. Plus, lightweight, ergonomic features designed with technicians in mind help keep operator fatigue at bay. So, whether you’re sanding down sheet metal or giving a headlight one last polish, you’ll be covered. Kit includes 6 polishing and sanding accessories (2" & 3" Roloc Pads, 3" Hook & Loop Backing Pad, 3” Wool, 3” Soft Foam, 3” Medium Foam Pads), (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.

Features And Benefits

• Performance: A high-power brushless motor provides extended runtime and reliability, so you can leave stall-outs and overheated equipment in the dust.
• Durability: A threaded, all-metal chuck and spindle lock keep accessories in place during tough jobs and make abrasive changes quick. IPX6 rated protection against harmful effects of water ingress.
• Ergonomics: Small size to easily reach spots where large sanders (DA/Orbital) cannot.
• Visibility: An LED light located at the foot of the tool helps reduce shadows so you can see your work area clearly.
• Flexibility: An adjustable auxiliary handle keeps you steady in any configuration.
• Reliability: Efficient, high-performance brushless motor provides extended runtime and long-term reliability.
• Compatibility: Compatible with the entire Ingersoll Rand IQV20™ platform, giving it an extra dose of power without weighing it down.
• Kit Includes: G4621 Polisher/Sander, 2" & 3" Roloc Pads, 3" Hook & Loop Backing Pad, 3" Wool Pad, 3" Soft Foam Pad, 3" Medium Foam Pad, Auxiliary Handle, (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.

Includes: G4621 Polisher/Sander Tool; 2" & 3" Roloc Backing Pads; 3" Hook & Loop Backing Pad; 3" Wool; 3" Soft Foam Pad, 3" Medium Foam Pad; Auxiliary Handle; (2) BL2012 20V 2.5Ah Batteries, 20V Battery Charger, 110/120V Power Cord
Product Application and Uses: Gasket removal or cleaning corrosion and dirt off parts similar to right angle die grinders; Small size to easily reach spots where larger polisher/sanders (ex. DA/Orbital sanders) cannot reach.
Actuation/Throttle Type/Switch Type: Trigger
Anti-Restart Technology: No
Anti-Vibration Technology: No
Arbor/Collet: 5/16"-24 Thread
Color: Grey
Configuration/Handle Type: Pistol Grip
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Maintenance Duty
Gear Train: Planetary
Gripping Length (in): 4
Handle Material: Overmolded Grip
Height Over Spindle (in): 1.06
Housing Material: Nylon
Lock Mechanism: Toggle Switch
Max Free Speed (rpm): 8300
Mounting Type: Arbor
Pad Diameter or Size (in): 2 & 3
Pad Face: Hook & Loop
Pad Face: Roloc
Power Source: Battery Powered
Product Length (in): 4.92
Product Width (in): 3.19
Product Height (in): 8.26
Product Height (in) (with Battery): 9.25
Product Weight (lb): 1.7
Product Weight (lb) (with Battery): 2.61
Sound Pressure/Power Db(A): 73 / 84
Speed Setting: Dual speed
Standards/Certifications: UL, IPX6 (protection against harmful effects of water ingress)
Tether Style: Not Tether Capable
Vacuum: None
Vibration Level (m/s2): 1.2
Vibration Uncertainy K* (m/s2): 0.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wheel Thickness (in): 0.5

Similar IR

• 3129KA
• 317-B
• 313-B

GG 17X704

Grindlazer Hose, Vac, Long

IR 99V60-204-P10

ARBOR

IR 99V60-106-9

GUARD

IR 99V77-106-7

GUARD (99V85)

IR 88V60-106-7

GUARD

GG 18B128

Grindlazer Hose, 4000Psi 3/4In X 60In

IR 88V60-106-9

GUARD

U UT8780-1

Angle Grinder, Ac, 4-1/2In.

CL MP4200

Inline Pencil Grinder

MP MP4200

Pencil Grinder Q

SX SDG05S18

Inline Die Grinder

GG 18B394

Grindlazer Control, Standard Vernier (Gas)

GG 18B396

Grindlazer Control, Standard Vernier Propane
