Grinders

DY 51742

.1 hp Straight-Line Pencil Grinder

60,000 RPM, Turbine Air Motor, Rear Exhaust, 3 mm Collet, with Mount Stem

Tool has integrated collet with 3 mm Collet Insert (51673)

Turbine-Driven Air Motor Models are ideal for precision deburring and finishing on a variety of surfaces. High-efficiency air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor is controlled with patented governor, providing constant tool speed under load. Quality high-speed bearings are included.

• HP: 0.1
• Max. RPM: 60000.0
• Motor RPM: 60000

MPT G14990R-C4

Grinder, 1/4in Angle Die

IR M2H200RG4

Air Die Grinder, 20,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 20,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.38
Product Weight (lb): 1.69
Rated Power (hp): 1
Sound Pressure/Power Db(A): 84.9 / 95.9
Speed Setting: Variable Speed
Vibration Level (m/s2): 4.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2H180RG4

CL 12R0410-43

GRD,PENCIL,ERGO,60K,3MM COLLET

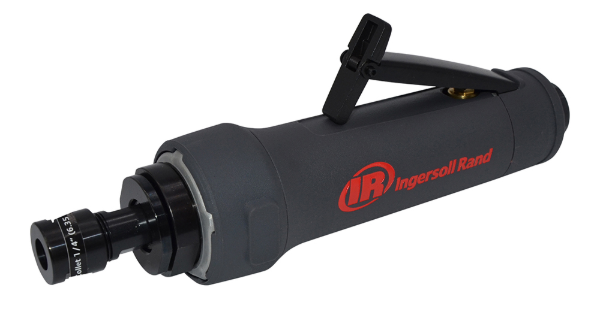

IR M2H180RG4

Air Die Grinder, 18,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 18,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 14
Air Consumption @ Free Speed (l/min): 396
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.38
Product Width (in): 6.77
Product Height (in): 2.83
Product Weight (lb): 1.69
Rated Power (hp): 1
Side to Center Distance (in): 0.89
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 84.7
Speed Setting: Variable Speed
Standards/Certifications: En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4.2
Warranty: 1-year
Wheel Type: Burr

Similar IR

• G1H200RG4
• G1H200FG4
• G1H250RG4

IR M2H250RG4

Air Die Grinder, 25,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 25,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.38
Product Width (in): 7.01
Product Height (in): 2.83
Product Weight (lb): 1.69
Rated Power (hp): 1
Side to Center Distance (in): 0.89
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 88.2
Speed Setting: Variable Speed
Standards/Certifications: En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 2.3
Warranty: 1-year
Wheel Type: Burr

Similar IR

• G1H250RG4
• G1H250FG4
• M2H200RG4

DY 48205

.4 hp 7 Degree Offset Die Grinder

25,000 RPM, Gearless, Extended Rear Exhaust, 1/4in and 6mm Collets

One-piece spindle keeps all rotating components on the same centerline for reduced run-out, which means lower vibration levels for enhanced operator comfort.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25,000

GG 18B189

Grindlazer Valve, Cushion Relief High Flow

JET 578173

PEDESTAL STAND FOR 8&10 BENCH GRINDERS

DC 10L1081-36

GRINDER,RE,34K,1/4" COLLET

IR G1H350PG4M

G1 HOR DIE GRINDER-6MM COLLET-REAR EXHAUST

DC 10L1080-36

GRINDER,RE,30K,1/4" COLLET

DY 48500

2in (51 mm) Diameter 7 Degree Offset Disc Sander

.4 hp, 25,000 RPM, Gearless, Extended Rear Exhaust, Locking-Type Female Pad

Includes 51348 Locking-Type Pad (2in diameter).

Handle is offset 7 degree for greater operator comfort and control. Gearless for reduced maintenance and down-time.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25,000

DY 48335

.4 hp 7 Degree Offset Die Grinder

25,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

One-piece spindle keeps all rotating components on the same centerline for reduced run-out, which means lower vibration levels for enhanced operator comfort.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25,000

DY 48337

.4 hp 7 Degree Offset Die Grinder

30,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes both 1/4in and 6mm collet inserts.

• HP: 0.4
• Max. RPM: 30000.0
• Motor RPM: 30,000

DC 12R0410-18

GRD,PENCIL,ERGO,60K,1/8" COLLET

DC 12R0410-13

GRD,PENCIL,ERGO,60K,3MM COLLET

IR G1H250PG4M

G1 HOR DIE GRINDER-6MM COLLET-REAR EXHAUST

DY 52435

3in (76 mm) Diameter Straight-Line Cut-Off Wheel Tool

.5 hp, 20,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Cut-Off Wheel Tool, for efficient cutting of sheet metal, frame rails, clamps, bolts, etc.

3in Diameter, Straight Line, .5 hp, 20,000 RPM, Rear Exhaust.

• HP: 0.5
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 51305

.5 hp Straight-Line Die Grinder

18,000 RPM, Gearless, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 18000.0
• Motor RPM: 18000

DY 51304

.5 hp Straight-Line Die Grinder

15,000 RPM, Gearless, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 15000.0
• Motor RPM: 15000

DY 51306

.5 hp Straight-Line Die Grinder

20,000 RPM, Gearless, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 51307

.5 hp Straight-Line Die Grinder

24,000 RPM, Gearless, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 24000.0
• Motor RPM: 24000

DY 53811

.7 hp Straight-Line Die Grinder, Steel Housing

20,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Tool feature's steel housing for increased durability. Used in Steel Fabrication, Welding Operations, Shipyards, Foundries and more!

Dynabrade?s Steel Housing Die Grinders feature the quality and power you have come to expect.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20,000

DC 12R0400-18

GRD,PEN,ERGO,SHRT GRD,60K,1/8"
