DY 48316.jpg

.4 Hp Right Angle Die Grinder 15,000 rpm, Spiral-Geared, Rear Exh

DY 48316

DY 48316

.4 hp Right Angle Die Grinder

15,000 RPM, Spiral-Geared, Rear Exhaust, 1/4in Collet

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

  • HP: 0.4
  • Max. RPM: 15000.0
  • Motor RPM: 15,000
$800.10
DY 48317.jpg

R/A .4 HP 20, 000 RPM Grinder

DY 48317

DY 48317

.4 hp Right Angle Die Grinder

20,000 RPM, Spiral-Geared, Rear Exhaust, 1/4in Collet

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

  • HP: 0.4
  • Max. RPM: 20000.0
  • Motor RPM: 20,000
$800.10
DY 52720.jpg

Cone or Plug 6in Ext. Wheel Grinder

DY 52720

DY 52720

Cone or Plug 6in (152 mm) Extension Wheel Grinder

1 hp, Straight-Line, 15,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

Straight Line, 1 hp, Rear Exhaust, 6in Extension, 15,000 RPM.

  • HP: 1.0
  • Max. RPM: 15000.0
  • Motor RPM: 15,000
$799.20
DY 52439.jpg

3In Dia. Right Angle Diamond Cut-Off Wheel Tool .4 Hp, 12,000 rpm

DY 52439

DY 52439

3in (76 mm) Diameter Right Angle Diamond Cut-Off Wheel Tool

.4 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Accepts optional 3in (76 mm) diameter Diamond Cut-Off Wheels with 3/8in (10 mm) diameter center hole.

Ideal for cutting thick fiberglass over-wrap and fiber spray.

  • HP: 0.4
  • Max. RPM: 12000.0
  • Motor RPM: 12000
$797.40
CL 216GLFB-250-C4.jpg

Grinder

CL 216GLFB-250-C4

CL 216GLFB-250-C4

GRINDER,FE,25K,1/4" COLLET
25,000 RPM 0.7 hp (0.45 kW)
  • Designed for demands of heavy industries, such as shipbuilding, foundries, metal fabrication, etc.

  • Rugged advanced alloy housing

  • Front and side exhaust models available

Air Inlet Size: 1/4 in
Exhaust: Front
Type Housing: Aluminum
Weight (lbs): 1.32 lb

All tools performance rated @ 90psi / 620 kPa air pressure. Standard Equipment: Applicable collet, collet wrenches Minimum Hose I.D.: 1/4in / 6.4mm
$817.00
Picture of .4 Hp Right Angle Die Grinder, 12,000 rpm, 1/4In And 6 mm Collets

.4 Hp Right Angle Die Grinder, 12,000 rpm, 1/4In And 6 mm Collets

DY 47800

DY 47800

.4 hp Right Angle Die Grinder

12,000 RPM, Spiral-Geared, Front Exhaust, 1/4in and 6mm Collets

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

  • HP: 0.4
  • Max. RPM: 12000.0
  • Motor RPM: 12,000
$787.50
DY 47802.jpg

Grinder, Angle Die

DY 47802

DY 47802

.4 hp Right Angle Die Grinder

20,000 RPM, Spiral-Geared, Front Exhaust, 1/4in and 6mm Collets

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

  • HP: 0.4
  • Max. RPM: 20000.0
  • Motor RPM: 20,000
$787.50
DY 47801.jpg

.4 hp Right Angle Die Grinder

DY 47801

DY 47801

.4 hp Right Angle Die Grinder

15,000 RPM, Spiral-Geared, Front Exhaust, 1/4in and 6mm Collets

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

  • HP: 0.4
  • Max. RPM: 15000.0
  • Motor RPM: 15,000
$787.50
Picture of G1 ANGLE SANDER-1/4-20 THREAD

G1 ANGLE SANDER-1/4-20 THREAD

IR G1A200PS4

IR G1A200PS4

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Piped Away Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits
  • Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
  • Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
  • Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.


Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"-20 Thread
Bearing Type: Needle Bearing
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Piped away
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 2.98
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.98
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 5.17
Right Angle Length (mm): 131
Sound Pressure/Power Db(A): 80.6 / 91.6
Vibration Level (m/s2): 3
Warranty: 1-year
Wheel Type: Burr

Similar IR
  • G1A120PS4
$1,080.00
IR G1A120PG4M.jpg

G1 ANGLE DIE GRINDER, 6 MM COLLET, REAR EXHAUST

IR G1A120PG4M

IR G1A120PG4M

Angle Air Die Grinder, 12,000 RPM, 0.4 HP, 6mm Collet, Piped Away Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits
  • Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
  • Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
  • Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.


Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 18.96
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 6mm
Bearing Type: Needle Bearing
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Piped away
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.28
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.98
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 5.17
Right Angle Length (mm): 131
Sound Pressure/Power Db(A): 79.6 / 90.6
Vibration Level (m/s2): 3.4
Warranty: 1-year
Wheel Type: Burr

Similar IR
  • G1A120RG4
$1,075.00
IR M2A120RP64.jpg

MERCURY ANGLE GRINDER

IR M2A120RP64

IR M2A120RP64

Angle Air Grinder, 4" Type 27 Wheel, 12,000 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits
  • Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
  • Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
  • Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
  • Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
  • Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
  • Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.


Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.85
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.29
Product Weight (lb): 3.76
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87 / 98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.1
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR
  • M2A135RP64
$724.20

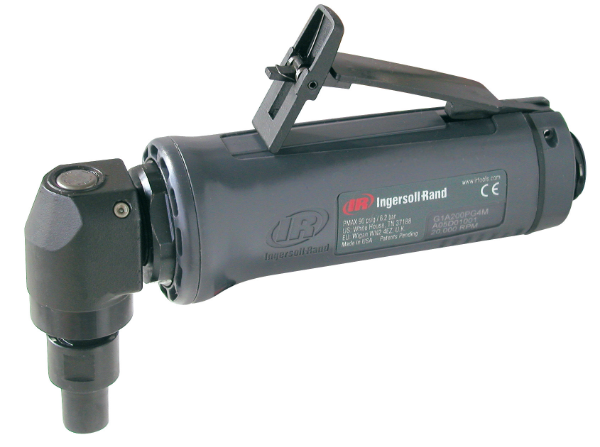

IR G1A200PG4M.jpg

G1 ANGLE DIE GRINDER, 6 MM COLLET

IR G1A200PG4M

IR G1A200PG4M

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 6mm Collet, Piped Away Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits
  • Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
  • Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
  • Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.


Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 6mm
Bearing Type: Needle Bearing
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Piped away
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.28
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.98
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 5.17
Right Angle Length (mm): 131
Sound Pressure/Power Db(A): 80.6 / 91.6
Vibration Level (m/s2): 5.6
Warranty: 1-year
Wheel Type: Burr

Similar IR
  • G1A200RG4
$1,065.00
DY 43505.jpg

.4 Hp 3In Ext. Die Grinder, 25,000 rpm, Rear Exh., 1/4 And 6 mm Collets

DY 43505

DY 43505

.4 hp 3in (76 mm) Extension Die Grinder

25,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets, Extended Muffler

Dynabrade .4 hp (298W) Die Grinder, with extended shafts of 3in (76 mm) for reaching into previously inaccessible areas! These tools allow efficient finishing within deep work-piece channels and difficult passages!

Ideal for rapid material removal, deburring, deflashing, surface preparation, cleaning, finishing and polishing. Models accept optional carbide burrs, abrasive stones, mounted wheels and molded abrasives.

  • HP: 0.4
  • Max. RPM: 25000.0
  • Motor RPM: 25,000
$758.70
Picture of RA Sander/Grinder

RA Sander/Grinder

DC 10LF201-36

DC 10LF201-36

RA SNDR/GRD,20K,1/4" COLLET
12,000 - 20,000 RPM 0.4 hp (0.29 kW)
  • Composite housing

  • Wide array of speeds; front and rear exhaust models available

  • Ergonomic and balanced design minimized operator fatigue

  • OH Option Supplied with 4' Overhose for additional noise suppression

  • Conversion kits available to add OH Overhose on rear exhaust tools for additional noise suppression

Air Inlet Size: 1/4 in
Exhaust: Front
Type Housing: Aluminum
Weight (lbs): 1.1 lb

All tools performance rated @ 90 psi / 620 kPa air pressure. Standard Equipment: Applicable collet, collet wrenches Minimum Hose I.D.: 1/4 in / 4.8 mm
$782.60
Picture of Right Angle Sander/Grinder, 20000Rpm

Right Angle Sander/Grinder, 20000Rpm

DC 10LF281-36

DC 10LF281-36

RA SNDR/GRD,RE,20K,1/4" COLLET
12,000 - 20,000 RPM 0.4 hp (0.29 kW)
  • Composite housing

  • Wide array of speeds; front and rear exhaust models available

  • Ergonomic and balanced design minimized operator fatigue

  • OH Option Supplied with 4' Overhose for additional noise suppression

  • Conversion kits available to add OH Overhose on rear exhaust tools for additional noise suppression

Air Inlet Size: 1/4 in
Exhaust: Rear
Type Housing: Aluminum
Weight (lbs): 1.1 lb

All tools performance rated @ 90 psi / 620 kPa air pressure. Standard Equipment: Applicable collet, collet wrenches Minimum Hose I.D.: 1/4 in / 4.8 mm
$782.60
DY 43500.jpg

.4 Hp 3 Inch Ext. Die Grinder

DY 43500

DY 43500

.4 hp 3in (76 mm) Extension Die Grinder

25,000 RPM, Front Exhaust, 1/4in and 6 mm Collets

Dynabrade .4 hp (298W) Die Grinder, with extended shafts of 3in (76 mm) for reaching into previously inaccessible areas! These tools allow efficient finishing within deep work-piece channels and difficult passages!

Ideal for rapid material removal, deburring, deflashing, surface preparation, cleaning, finishing and polishing. Models accept optional carbide burrs, abrasive stones, mounted wheels and molded abrasives.

  • HP: 0.4
  • Max. RPM: 25000.0
  • Motor RPM: 25,000
$748.80
IR M2X200RG4.jpg

EXT DIE GRINDER, 1HP, 20K, STRAIGHT, 1/4" C

IR M2X200RG4

IR M2X200RG4

Extended Air Die Grinder, 20,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits
  • Power: With a powerful, lube-free 1 HP 20,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
  • Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
  • Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
  • Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
  • Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.


Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.08
Product Weight (lb): 2.68
Rated Power (hp): 1
Sound Pressure/Power Db(A): 84.9 / 95.9
Speed Setting: Variable Speed
Vibration Level (m/s2): 1.9
Warranty: 1-year
Wheel Type: Burr

Similar IR
  • M2X180RG4
$710.60
IR DG600G2.jpg

GRINDER (DG100G2)

IR DG600G2

IR DG600G2

Air Pencil Grinder, 60,000 RPM, 1/8" Collet

Product Application and Uses: For precision grinding and applications in confined spaces. Used for final cleaning and polishing of dies, mold finishing, intricate grinding applications, light deburring and flash removal.
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 3.3
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Power Source: Air Powered
Product Length (in): 5
Product Weight (lb): 1.5
Sound Pressure/Power Db(A): 76
Spindle Offset (in): 0.34
Vibration Level (m/s2): 3.5
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year
$707.20
Picture of CONTROLLER ASSEMBLY (-A424)

CONTROLLER ASSEMBLY (-A424)

IR 88V60-A524

IR 88V60-A524

CONTROLLER ASSEMBLY (-A424)
$810.00
Picture of Vertical Sander/Grinder, 1/4in collet

Vertical Sander/Grinder, 1/4in collet

DC 12L1382-36

DC 12L1382-36

VERT SNDR/GRD,RE,20K,1/4" E300
20,000 - 30,000 RPM 0.3 hp (0.22 kW)
  • Composite housing

  • Wide array of speeds offered; front and rear exhaust models available

  • Suitable for a wide range of finishing and deburring applications

Air Inlet Size: 1/4 in
Exhaust: Rear
Tool Configuration: Right Angle
Type Housing: Composite
Weight (lbs): 1.1 lb

All tools performance rated @ 90 psi / 620 kPa air pressure. Standard Equipment: Applicable collet, collet wrenches Minimum Hose I.D.: 1/4 in / 4.8 mm
$765.40
IR M2X180RH63.jpg

EXT HOR DIE GRINDER, 1HP, 18K, 3/8X24, 3" WHEEL

IR M2X180RH63

IR M2X180RH63

Extended Air Grinder, 3" Type 1 Wheel, 18,000 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

The M2-Series industrial Grinders is offering high durability with a powerful motor and less maintenance, more productivity with the speed governor helping to maximize life time of the abrasive, an adjustable guard and a spindle lock feature. For sure with the M2-Series from Ingersoll Rand you will get more time to work and less time in maintenance.

Features And Benefits
  • Power: With a powerful, lube-free 1 HP 18,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
  • Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
  • Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
  • Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this grinder.
  • Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.


Includes: 3/8" spindle; Piped Exhaust; Wrenches
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 14
Air Consumption @ Free Speed (l/min): 396
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.35
Product Weight (lb): 3.26
Rated Power (hp): 1
Sound Pressure/Power Db(A): 85.3 / 96.3
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.3
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/2
Wheel Type: Type 1
$703.80
IR M2X250RG4.jpg

EXT DIE GRINDER, 1HP, 25K, STRAIGHT, 1/4" C

IR M2X250RG4

IR M2X250RG4

Extended Air Die Grinder, 25,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits
  • Power: With a powerful, lube-free 1 HP 25,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
  • Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
  • Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
  • Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
  • Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.


Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 30
Air Consumption @ Free Speed (l/min): 849
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.08
Product Weight (lb): 2.68
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88.2 / 99.2
Speed Setting: Variable Speed
Vibration Level (m/s2): 1.9
Warranty: 1-year
Wheel Type: Burr

Similar IR
  • M2X200RG4
$703.80
DY 52850.jpg

.1 hp Pencil Grinder 60, 000 RPM

DY 52850

DY 52850

0.1 hp Straight-Line Variable Speed Pencil Grinder

35-60,000 RPM, Rotary Vaned Air Motor, 1/8in Collet

Dynabrade's Variable Speed Pencil Grinder offers precision deburring, finishing and engraving, with easily adjustable speed to suit each application. This is an essential tool for turbine blade manufacturers, tool and die shops, machine shops, investment castings, jewelry, medical implants, composites and more!

High-Quality Air Line. 1/4in (6 mm) in diameter and 5 feet (1.5 m) in length. Over-hose Assembly. Helps direct air and excess oil away from operator - 12in (305 mm) in length. Variable Speed Flow Control. Adjust your desired speed with dial, up to 60,000 RPM. Unlike roll valves, your speed stays set when turning tool off and on. One Touch Starts Tool at Desired Speed. Handy push-button for simple on/off operation. Tool comes on at same speed as when you shut it off!

  • HP: 0.1
  • Max. RPM: 60000.0
  • Motor RPM: 60,000
$737.10
IR 99V60-A524.jpg

CONTROLLER (-A424)

IR 99V60-A524

IR 99V60-A524

CONTROLLER (-A424)
$800.00
DY 52102.jpg

.7hp Straight-Line Die Grinder, 4500Rpm, Planetary-Geared

DY 52102

DY 52102

.7 hp Straight-Line Die Grinder

4,500 RPM, Planetary-Geared, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Extended rear exhaust muffler design.

  • HP: 0.7
  • Max. RPM: 4500.0
  • Motor RPM: 4500
$727.20
Refine
×
