Grinders

IR M2L120RP1045

Extended Angle Air Grinder, 4.5" Type 27 Wheel, 12,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel and optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding,
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 4.55
Rated Power (hp): 1
Right Angle Length (in): 11.17
Right Angle Length (mm): 284
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87 /98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.8
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2L100RP106

IR G3A120RP1045

Air Angle Grinder, 4.5" Type 27 Wheel, 12,000 RPM 1.35 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.

Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.35
Rated Power (kW): 1
Sound Pressure/Power Db(A): 87.9
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR M2L135RP64

Extended Angle Air Grinder, 4" Type 27 Wheel, 13,500 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 13,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic extended reach handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 22
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 13500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 4.55
Rated Power (hp): 1
Sound Pressure/Power Db(A): 87 / 98.7
Speed Setting: Variable Speed
Vibration Level (m/s2): 4.4
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR G3A120PG4M

G3 ANGLE DIE GRINDER 6MM COLLET

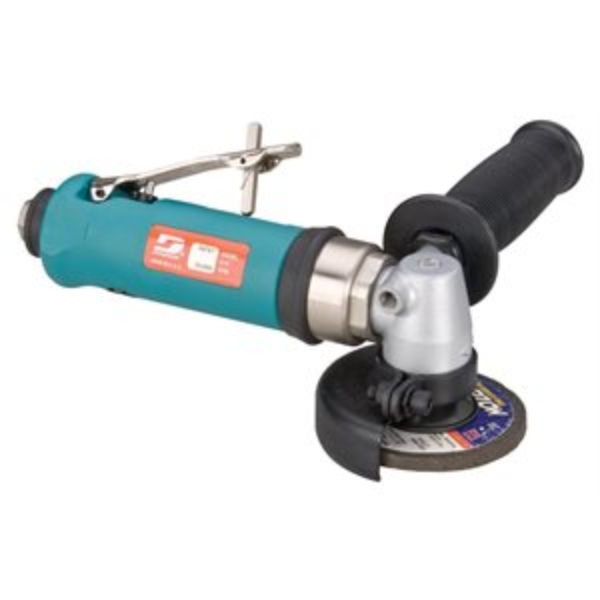

DY 54767

3in (76 mm) Diameter Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 18,000 RPM, Composite

Model accepts optional 3in (76 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 18000.0
• Motor RPM: 18,000

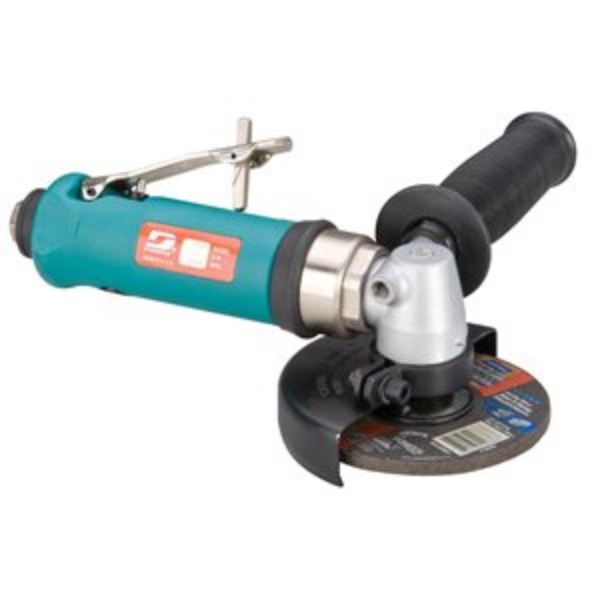

DY 54771

4in (102 mm) Diameter Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 12,000 RPM, Composite

Model accepts optional 4in (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 54775

4in (102 mm) Diameter Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 13,500 RPM, Composite

Model accepts optional 4in (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 13500.0
• Motor RPM: 13,500

DY 52538

3in (76 mm) Diameter Right Angle Vacuum Cut-Off Wheel Tool

.4 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.

3in Diameter, Right Angle, .4 hp, 12,000 RPM, Rear Exhaust. Ideal for use with optional 3in diameter Diamond Cut-Off Wheels.

• HP: 0.4
• Max. RPM: 12000.0
• Motor RPM: 12,000

DC 10N2580-01

Grinder

IR G3H180PG4M

G3 HOR DIE GRINDER-6MM COLLET

DY 52802

7in (178 mm) Diameter Right Angle Disc Sander

1.3 hp, 7,200 RPM, Rotational Exhaust, 5/8in -11 Spindle Thread

Includes 51151 Backing Pad, 7in (178 mm) diameter, plus mounting hardware. Accepts optional 7in (178 mm) diameter Abrasive Discs with 7/8in (22 mm) center hole.

Dynabrade's 1.3 hp (970 W) Right Angle Sander offer countless grinding and material removal solutions to industries such as metal/stainless steel fabrication, composites, masonry, ironwork and general welding. Designed to the Dynabrade standard of excellence, these tools offer a wide array of features to increase efficiency and maximize operator comfort!Vibration Dampening Side Handle Specially designed to reduce vibration transfer to operator. Removable for left or right hand use. Rotational Exhaust System Rotates a full 360 degree to ensure that exhaust is directed away from operator.

• HP: 1.3
• Max. RPM: 7200.0
• Motor RPM: 7,200

IR 99V60-A25A

CYLINDER CASE

DY 52906

1/4in Drill, Central Vacuum

.4 hp, 3,600 RPM, Pistol-Grip, Geared, Rear Exhaust, DynaChuck

.4 hp (298 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.

Pistol Grip design includes slow-speed start-up trigger.

• HP: 0.4
• Max. RPM: 3600.0
• Motor RPM: 3,600

CL 4060AVL-09

4HP VERT GRD, 6K RPM, 9" GUARD

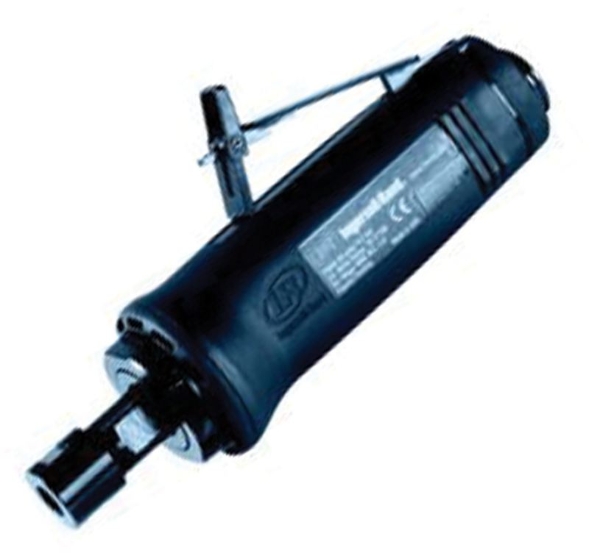

IR G3H150RG4

Air Angle Die Grinder, 15,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 15,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 84.1 / 95.1
Vibration Level (m/s2): 3.7
Vibration Uncertainy K* (m/s2): 2.6
Warranty: 1-year

IR G3H180RG4

Air Angle Die Grinder, 18,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 18,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 87.4 / 98.4
Vibration Level (m/s2): 3.6
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year

IR G3H150PG4M

G3 HOR DIE GRINDER-6MM COLLET

DY 52378

3in (76 mm) Diameter Straight-Line Type 1 Extension Wheel Grinder

1 hp, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

3in Diameter, Straight Line, 1 hp, 6in Extension, 18,000 RPM.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

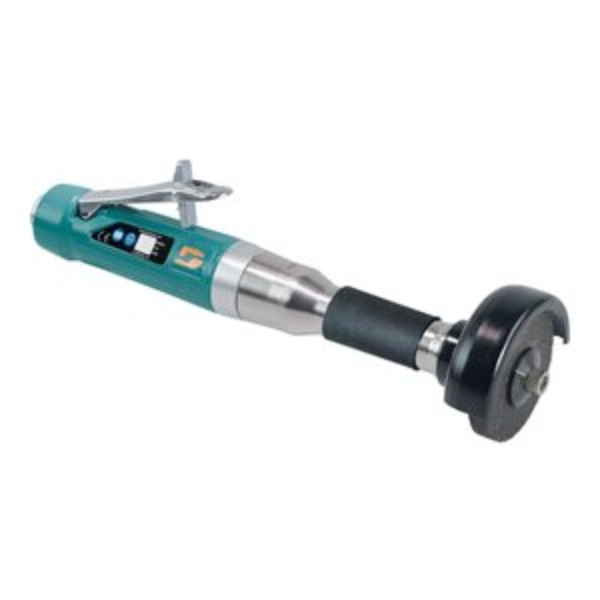

DY 52376

3in (76 mm) Diameter Straight-Line Type 1 Extension Wheel Grinder

1 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

3in Diameter, Straight Line, 1 hp, 6in Extension, 12,000 RPM.

• HP: 1.0
• Max. RPM: 12000.0
• Motor RPM: 12,000

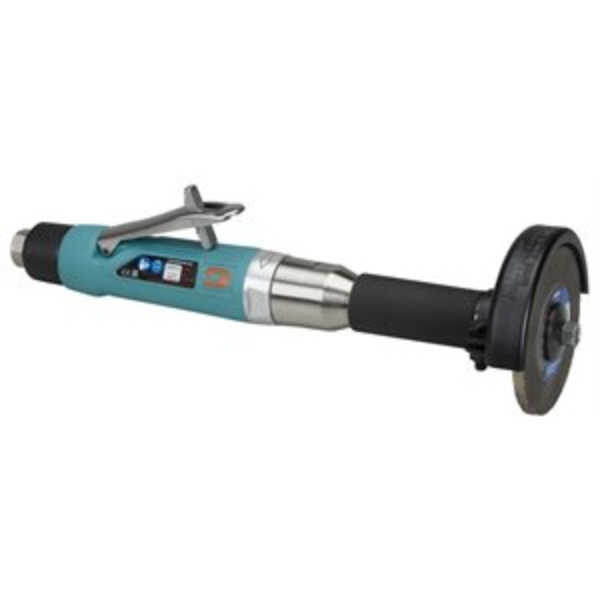

DY 52379

4in (102 mm) Diameter Straight-Line Type 1 Extension Wheel Grinder

1 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

4in Diameter, Straight Line, 1 hp, 6in Extension, 12,000 RPM.

• HP: 1.0
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 52662

1 hp Straight-Line Die Grinder

3,400 RPM, Planetary-Geared, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Governor-controlled to maintain RPM under heavy load.

• HP: 1.0
• Max. RPM: 3400.0
• Motor RPM: 3400

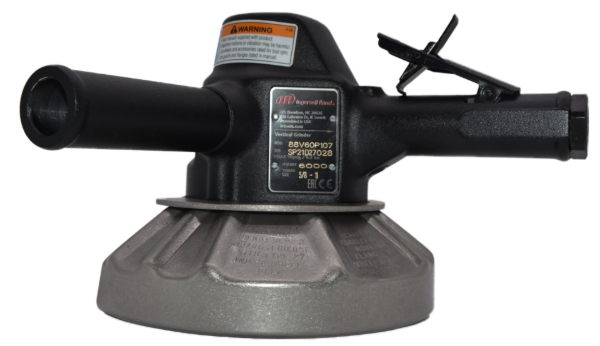

IR 88V60P107

Vertical Air Grinder, 7" Type 27/28 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Vertical Type 27/28
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Width (in): 11.3
Product Height (in): 8.2
Product Weight (lb): 8.75
Rated Power (hp): 2.1
Side to Center Distance (in): 2.1
Side to Center Distance (mm): 53
Sound Pressure/Power Db(A): 86.2 / 97.2
Standards/Certifications: En Iso 28927-1, En Iso 15744, En Iso 11148-7
Vibration Level (m/s2): 3.1
Vibration Uncertainy K* (m/s2): 0.9
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

Similar IR

• 99V60P107
• 88V60P109
• 99V60P109

CL 10LF281-36OH

RA SNDR/GRD,RE,20K,1/4" COLLET

IR 88V60P109M-EU

GRINDER 88V60P109M-EU

IR 88V85P107M-EU

GRINDER 88V85P107M-EU
