GG 24K164
GREASE JOCKEY PUMP, 6 LB PLSTC RESV TEE

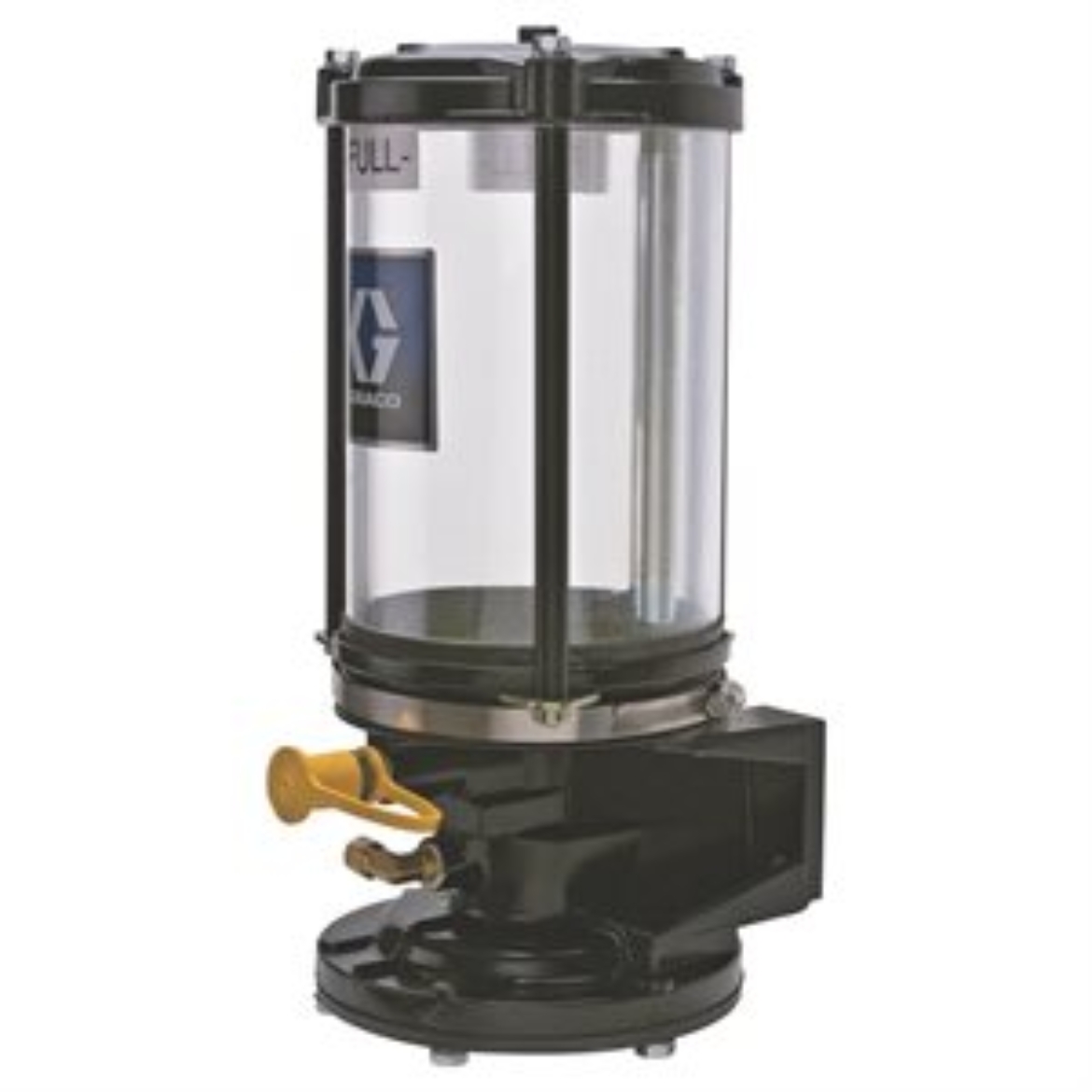

Graco 24K164 Pneumatic Grease Jockey® Pump with 6 lb. (2.72 kg) Reservoir, Straight Fill Port, Fluid Tee Outlet
Classic Grease Jockey pump
Application: Air powered grease pump for automatic lubrication systems
- For NLGI #000 to #0 grade grease
- Air Inlet Size (in): 0.2502
- Air Inlet Size (mm): 6.35
- Application: On-Road Vehicles, Off-Road Equipment
- Compatible Material: Grease
- Component Technology: Solid-State
- Includes: Pneumatic Grease Jockey Pump, Reservoir, Fittings, Hardware
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Fluid Output Pressure (bar): 93
- Maximum Fluid Output Pressure (psi): 1350
- Maximum Fluid Output Pressure (bar): 93
- Maximum Fluid Output Pressure (psi): 1350
- Maximum Run Time (min): 99
- Maximum Voltage (V dc): 32
- Minimum Air Inlet Pressure (psi): 60
- Minimum Voltage (V dc): 9
- Overall Width (cm): 39.4
- Overall Width (in): 15.5
- Overall Width (mm): 394
