Lubemaster Pump
GG LM5114
GG LM5114
LUBEMASTER PUMP
Graco LM5114 Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Plastic Reservoir, Low Level
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Plastic
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 49.7
- Overall Height (in): 19.56
- Overall Height (mm): 497
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing
Lubemaster Pump
GG LM5211
GG LM5211
LUBEMASTER PUMP
Graco LM5211 Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Plastic Reservoir, Clutch Drive
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Plastic
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 49.7
- Overall Height (in): 19.56
- Overall Height (mm): 497
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
$5,580.00

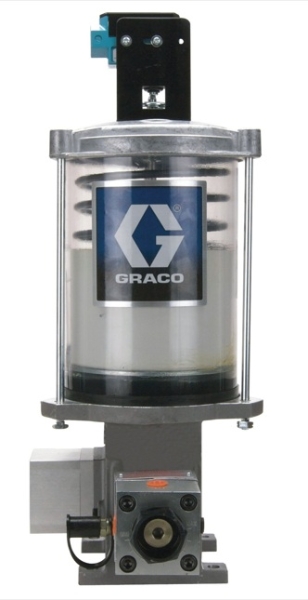

Lubemaster Pump
GG LM5214
GG LM5214
LUBEMASTER PUMP
Graco LM5214 Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Plastic Reservoir, Clutch Drive, Low Level
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Plastic
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 49.7
- Overall Height (in): 19.56
- Overall Height (mm): 497
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
$5,840.00
Lubemaster Pump
GG LM5331
GG LM5331
LUBEMASTER PUMP
Graco LM5331 Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Plastic Reservoir, 10:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Plastic
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 49.7
- Overall Height (in): 19.56
- Overall Height (mm): 497
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing
Lubemaster Pump
GG LM5334
GG LM5334
LUBEMASTER PUMP
Graco LM5334 Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Plastic Reservoir, 10:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Plastic
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 67.5
- Overall Height (in): 26.56
- Overall Height (mm): 675
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing
LUBEMASTER PUMP
GG LM6214
GG LM6214
LUBEMASTER PUMP
Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, Clutch Drive, Low LevelThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$6,000.00
LUBEMASTER PUMP
GG LM6334
GG LM6334
LUBEMASTER PUMP
Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 10:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LLThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$8,330.00

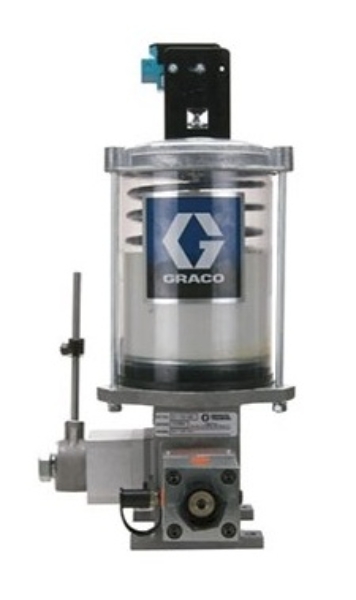

Lubemaster Pump
GG LM6514
GG LM6514
LUBEMASTER PUMP
Graco LM6514 Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 60:1 Floor Mount, Low Level
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Plastic
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 67.5
- Overall Height (in): 26.56
- Overall Height (mm): 675
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing
Lubemaster Pump
GG LM6524
GG LM6524
LUBEMASTER PUMP
Graco LM6524 Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 60:1 Floor Mount, 115/230V, 1/2 HP, 1 PH, 60 Hz, 1725 RPM, LL
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Plastic
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 67.5
- Overall Height (in): 26.56
- Overall Height (mm): 675
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
$8,340.00
LUBEMASTER PUMP
GG LM6534
GG LM6534
LUBEMASTER PUMP
Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LLThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$8,330.00
LUBEMASTER PUMP
GG LM6544
GG LM6544
LUBEMASTER PUMP
Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 60:1 Floor Mount, 115/230V, 1/2 HP, 1 PH, 60 Hz, 1140 RPM, LLThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$9,110.00
LUBEMASTER PUMP
GG LM6611
GG LM6611
LUBEMASTER PUMP
Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 60:1 Wall MountThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$6,920.00
Lubemaster Pump
GG LM7211
GG LM7211
LUBEMASTER PUMP
Graco LM7211 Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Metal Reservoir, Clutch Drive
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Metal
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 49.7
- Overall Height (in): 19.56
- Overall Height (mm): 497
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
$5,820.00
Lubemaster Pump
GG LM7344
GG LM7344
LUBEMASTER PUMP
Graco LM7344 Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Metal Reservoir, 10:1 Floor Mount, 115/230V, 1/2 HP, 1 PH, 60 Hz, 1140 RPM, LL
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Metal
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 49.7
- Overall Height (in): 19.56
- Overall Height (mm): 497
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing
Lubemaster Pump
GG LM7354
GG LM7354
LUBEMASTER PUMP
Graco LM7354 Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Metal Reservoir, 10:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1140 RPM, LL
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Metal
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 49.7
- Overall Height (in): 19.56
- Overall Height (mm): 497
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing
Lubemaster Pump
GG LM7514
GG LM7514
LUBEMASTER PUMP
Graco LM7514 Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Metal Reservoir, 60:1 Floor Mount, Low Level
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Metal
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 49.7
- Overall Height (in): 19.56
- Overall Height (mm): 497
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing
LUBEMASTER PUMP
GG LM7534
GG LM7534
LUBEMASTER PUMP
Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Metal Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LLThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$8,370.00
LUBEMASTER PUMP
GG LM8114
GG LM8114
LUBEMASTER PUMP
Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, Low LevelThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$5,230.00
Lubemaster Pump
GG LM8211
GG LM8211
LUBEMASTER PUMP
Graco LM8211 Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, Clutch Drive
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Metal
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 67.5
- Overall Height (in): 26.56
- Overall Height (mm): 675
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing
Lubemaster Pump
GG LM8334
GG LM8334
LUBEMASTER PUMP
Graco LM8334 Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, 10:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Metal
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 67.5
- Overall Height (in): 26.56
- Overall Height (mm): 675
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
$8,600.00
LUBEMASTER PUMP
GG LM8354
GG LM8354
LUBEMASTER PUMP
Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, 10:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1140 RPM, LLThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$9,380.00
LUBEMASTER PUMP
GG LM8534
GG LM8534
LUBEMASTER PUMP
Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LLThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$8,600.00
Lubemaster Pump
GG LM8554
GG LM8554
LUBEMASTER PUMP
Graco LM8554 Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1140 RPM, LL
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Material: Metal
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 67.5
- Overall Height (in): 26.56
- Overall Height (mm): 675
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
$9,380.00
Lubemaster Pump
GG LM9331
GG LM9331
LUBEMASTER PUMP
Graco LM9331 Lube Master® Electric Pump, Overhead Supply Reservoir, 10:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Oil
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 19.5
- Overall Height (in): 7.66
- Overall Height (mm): 195
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing
LUBEMASTER PUMP
GG LM9521
GG LM9521
LUBEMASTER PUMP
Lube Master® Electric Pump, Overhead Supply Reservoir, 60:1 Floor Mount, 115/230V, 1/2 HP, 1 PH, 60 Hz, 1725 RPMThe Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)
$7,860.00
Lubemaster Pump
GG LM9511
GG LM9511
LUBEMASTER PUMP
Graco LM9511 Lube Master® Electric Pump, Overhead Supply Reservoir, 60:1 Floor Mount
The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Application: Built For Severe-Duty Environments.- Adjustable output
- Broad output range
- Simplified construction
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
- Model: Lube Master
- Application: In-Plant Machinery
- Compatible Material: Oil
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPSF
- Maximum Cycle Rate (strokes/min): 175
- Maximum Flow Rate (ci/min): 8.62
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum Fluid Output Pressure (bar): 345
- Maximum Fluid Output Pressure (psi): 5000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 340
- Maximum Working Pressure (kPa): 34000
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Minimum Cycle Rate (strokes/min): 1
- Minimum Flow Rate (ci/min): 0.01
- Overall Depth (cm): 26
- Overall Depth (in): 10.25
- Overall Depth (mm): 260
- Overall Height (cm): 19.5
- Overall Height (in): 7.66
- Overall Height (mm): 195
- Overall Width (cm): 19.8
- Overall Width (in): 7.812
- Overall Width (mm): 198
- Power Type: Electric
Call for pricing

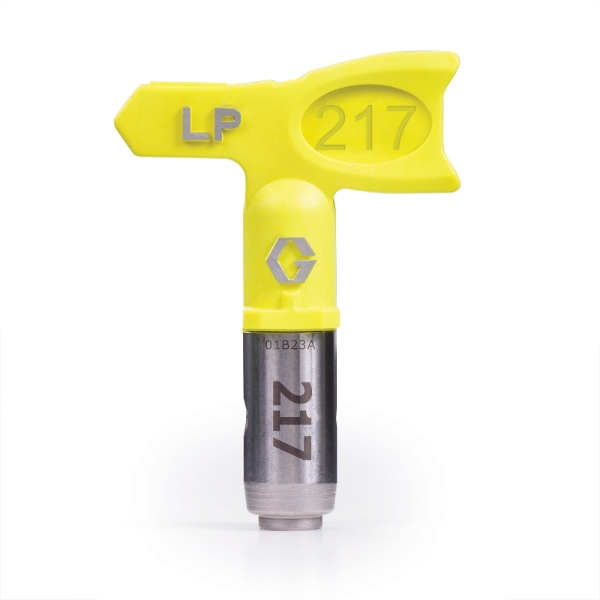

RAC X LP TIP, SPRAY, (217)
GG LP217
GG LP217
RAC X LP TIP, SPRAY, (217)
Low Pressure RAC X LP SwitchTip, 217 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 217 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 2 to 4 inch fan pattern and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (313)
GG LP313
GG LP313
RAC X LP TIP, SPRAY, (313)
Low Pressure RAC X LP SwitchTip, 313 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 313 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 6 to 8 inch fan pattern and has a 0.013 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (317)
GG LP317
GG LP317
RAC X LP TIP, SPRAY, (317)
Low Pressure RAC X LP SwitchTip, 317 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 317 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 6 to 8 inch fan pattern and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (319)
GG LP319
GG LP319
RAC X LP TIP, SPRAY, (319)
Low Pressure RAC X LP SwitchTip, 319 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 519 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 6 to 8 inch fan pattern and has a 0.019 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (415)
GG LP415
GG LP415
RAC X LP TIP, SPRAY, (415)
Low Pressure RAC X LP SwitchTip, 415 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 415 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 8 to 10 inch fan pattern and has a 0.015 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (417)
GG LP417
GG LP417
RAC X LP TIP, SPRAY, (417)
Low Pressure RAC X LP SwitchTip, 417 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 417 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 8 to 10 inch fan pattern and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (419)
GG LP419
GG LP419
RAC X LP TIP, SPRAY, (419)
Low Pressure RAC X LP SwitchTip, 419 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 419 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 8 to 10 inch fan pattern and has a 0.019 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (421)
GG LP421
GG LP421
RAC X LP TIP, SPRAY, (421)
Low Pressure RAC X LP SwitchTip, 421 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 421 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 8 to 10 inch fan pattern and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (423)
GG LP423
GG LP423
RAC X LP TIP, SPRAY, (423)
Low Pressure RAC X LP SwitchTip, 423 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 423 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 8 to 10 inch fan pattern and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (425)
GG LP425
GG LP425
RAC X LP TIP, SPRAY, (425)
Low Pressure RAC X LP SwitchTip, 425 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 425 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 8 to 10 inch fan pattern and has a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (523)
GG LP523
GG LP523
RAC X LP TIP, SPRAY, (523)
Low Pressure RAC X LP SwitchTip, 523 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 523 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 10 to 12 inch fan pattern and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (525)
GG LP525
GG LP525
RAC X LP TIP, SPRAY, (525)
Low Pressure RAC X LP SwitchTip, 525 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 525 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 10 to 12 inch fan pattern and has a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (527)
GG LP527
GG LP527
RAC X LP TIP, SPRAY, (527)
Low Pressure RAC X LP SwitchTip, 527 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 527 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 10 to 12 inch fan pattern and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (625)
GG LP625
GG LP625
RAC X LP TIP, SPRAY, (625)
Low Pressure RAC X LP SwitchTip, 625 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 625 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 12 to 14 inch fan pattern and has a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (623)
GG LP623
GG LP623
RAC X LP TIP, SPRAY, (623)
Low Pressure RAC X LP SwitchTip, 623 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 623 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 12 to 14 inch fan pattern and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (627)
GG LP627
GG LP627
RAC X LP TIP, SPRAY, (627)
Low Pressure RAC X LP SwitchTip, 627 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 627 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 12 to 14 inch fan pattern and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (629)
GG LP629
GG LP629
RAC X LP TIP, SPRAY, (629)
Low Pressure RAC X LP SwitchTip, 629 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 629 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 12 to 14 inch fan pattern and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (723)
GG LP723
GG LP723
RAC X LP TIP, SPRAY, (723)
Low Pressure RAC X LP SwitchTip, 723 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 723 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 14 to 16 inch fan pattern and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (725)
GG LP725
GG LP725
RAC X LP TIP, SPRAY, (725)
Low Pressure RAC X LP SwitchTip, 725 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 725 Low Pressure (LP) RAC X SwitchTip. This low pressure, high production tip produces a 14 to 16 inch fan pattern and a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surface areas such as walls, ceilings and floors Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surface
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (729)
GG LP729
GG LP729
RAC X LP TIP, SPRAY, (729)
Low Pressure RAC X LP SwitchTip, 729 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 729 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 14 to 16 inch fan pattern and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
RAC X LP TIP, SPRAY, (731)
GG LP731
GG LP731
RAC X LP TIP, SPRAY, (731)
Low Pressure RAC X LP SwitchTip, 731 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 731 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 14 to 16 inch fan pattern and has a 0.031 inch orifice. Reverse the SwitchTip to easily clear clogs. For large surfance areas such as walls and ceilings Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
$82.00
