Airpower | GRACO INC. S10595 branded products

Husky Pump, 1590F-Pa01Af2Spspsppt

GG DB5666

HUSKY PUMP, 1590F-PA01AF2SPSPSPPT

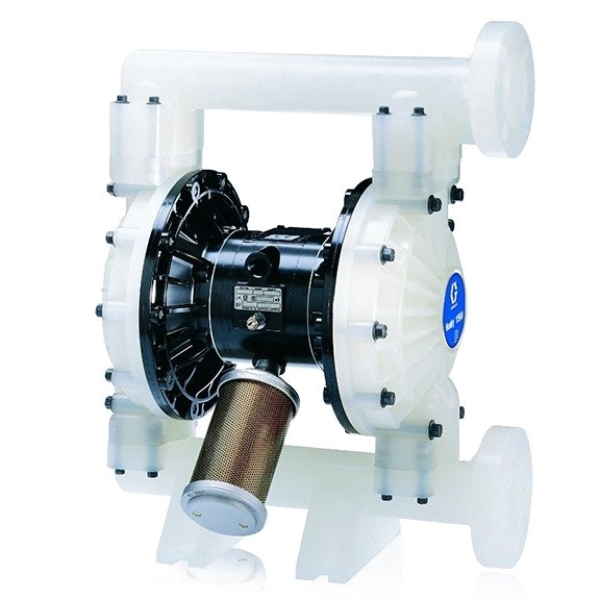

Graco DB5666 Husky 1590 PVDF 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Industrial

Ball Material: Santoprene

Center Section Material: Aluminum

Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

Connection Type: Threaded

Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene

Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: PVDF (Kynar)

Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: PVDF

Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8.4

Maximum Air Pressure (kPa): 840
Maximum Air Pressure (MPa): 0.84
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 200

Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379

Maximum Fluid Pressure (bar): 8.4
Maximum Fluid Pressure (kPa): 840
Maximum Fluid Pressure (MPa): 0.84
Maximum Fluid Pressure (psi): 120

Maximum Operating Temperature (Â°C): 66
Maximum Operating Temperature (Â°F): 150

Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763

Power Source: Air

$10,950.00

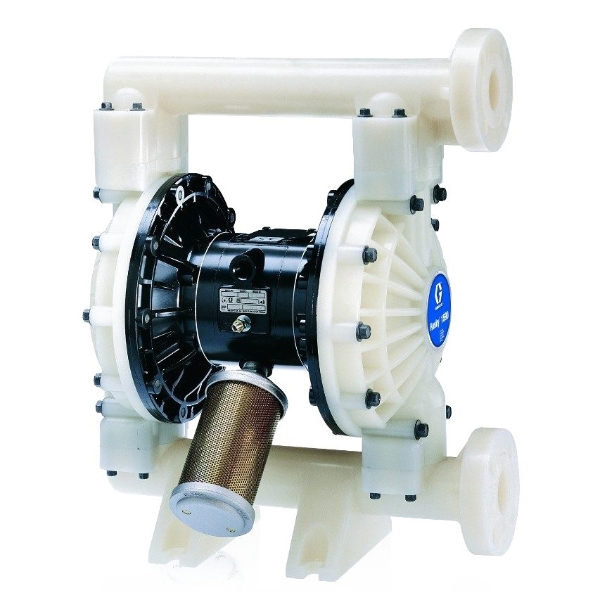

HUSKY PUMP, 1590F-PA01AF2PVPTPTPT

GG DB5A11

HUSKY PUMP, 1590F-PA01AF2PVPTPTPT

Husky 1590 PVDF 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$10,450.00

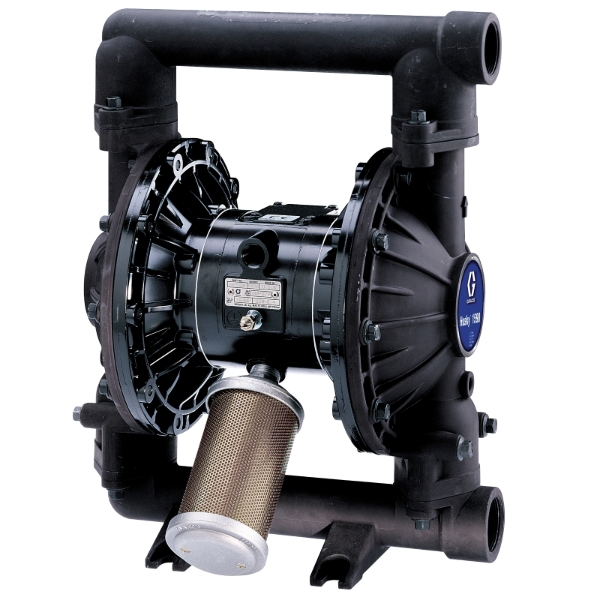

HUSKY PUMP, 1590A-PA01AA2SSSDPTPT

GG DBC341

HUSKY PUMP, 1590A-PA01AA2SSSDPTPT

Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with FKM Seal Seats, SS Seats, Hardened SS Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$4,100.00

Husky Pump, 1590A-Pa01Aa2Sssdsppt

GG DBC346

HUSKY PUMP, 1590A-PA01AA2SSSDSPPT

Graco DBC346 Husky 1590 Al 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with SS Seats, Hardened SS Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Industrial

Ball Material: 440C Stainless Steel

Center Section Material: Aluminum

Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

Connection Type: Threaded

Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene

Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Type: BSPT

Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Aluminum

Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum

Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 200

Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379

Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

Maximum Operating Temperature (Â°C): 66
Maximum Operating Temperature (Â°F): 150

Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763

Power Source: Air

$3,480.00

HUSKY PUMP, 1590A-PA01AA2TPACTP

GG DBC525

HUSKY PUMP, 1590A-PA01AA2TPACTP

Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$2,050.00

HUSKY PUMP, 1590A-PA01AA2TPTPTP

GG DBC555

HUSKY PUMP, 1590A-PA01AA2TPTPTP

Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, TPE Seats, TPE Balls & TPE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$2,090.00

HUSKY PUMP, 1590A-PA01AA2PPPTPTPT

GG DBC911

HUSKY PUMP, 1590A-PA01AA2PPPTPTPT

Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$3,170.00

HUSKY PUMP, 1590S-PA01AS2SSPTPTPT

GG DBD311

HUSKY PUMP, 1590S-PA01AS2SSPTPTPT

Husky 1590 SS Air Operated Double Diaphragm Metal Pump

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$6,740.00

HUSKY PUMP, 1590S-PA01AS2SSSDPTPT

GG DBD341

HUSKY PUMP, 1590S-PA01AS2SSSDPTPT

Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, PP Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$7,970.00

HUSKY PUMP, 1590S-PA01AS2SPSPSPPT

GG DBD666

HUSKY PUMP, 1590S-PA01AS2SPSPSPPT

Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$7,210.00

HUSKY PUMP, 1590S-PA01AS2PPPTPTPT

GG DBD911

HUSKY PUMP, 1590S-PA01AS2PPPTPTPT

Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, BN Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$7,020.00

HUSKY PUMP, 1590S-PA01AS2GEGEGEPT

GG DBDGGG

HUSKY PUMP, 1590S-PA01AS2GEGEGEPT

Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$5,910.00

Husky Pump, 1590S-Pa01As5-2Ssptptpt

GG DBP311

Husky Pump, 1590S-Pa01As5-2Ssptptpt

$7,770.00

Husky Pump, 1590S-Pa01As5-1Spspsppt

GG DBR666

Husky Pump, 1590S-Pa01As5-1Spspsppt

$6,920.00

HUSKY PUMP, 1590S-PA01AS5-1SSSDPTPT

GG DBR341

HUSKY PUMP, 1590S-PA01AS5-1SSSDPTPT

Husky 1590 SS AODD Metal Pump with AL Air Motor, Horizontal Outlet, SS Seat, PTFE Ball & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$7,780.00

HUSKY PUMP, 2150P-PA01AP2BNBNBN

GG DF2777

HUSKY PUMP, 2150P-PA01AP2BNBNBN

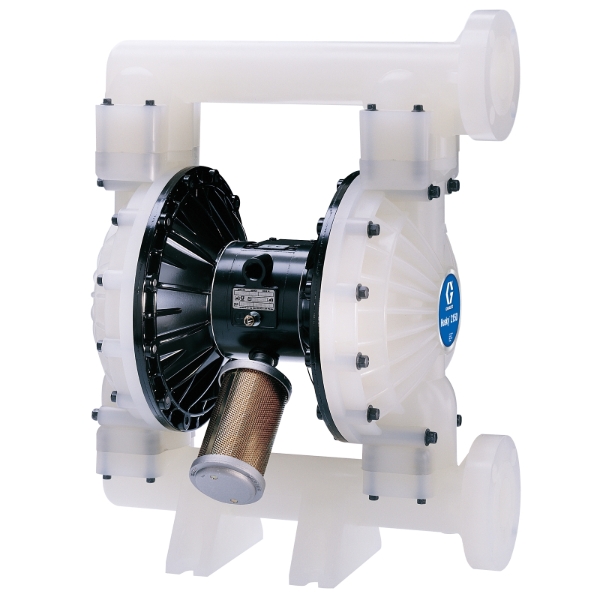

Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$7,210.00

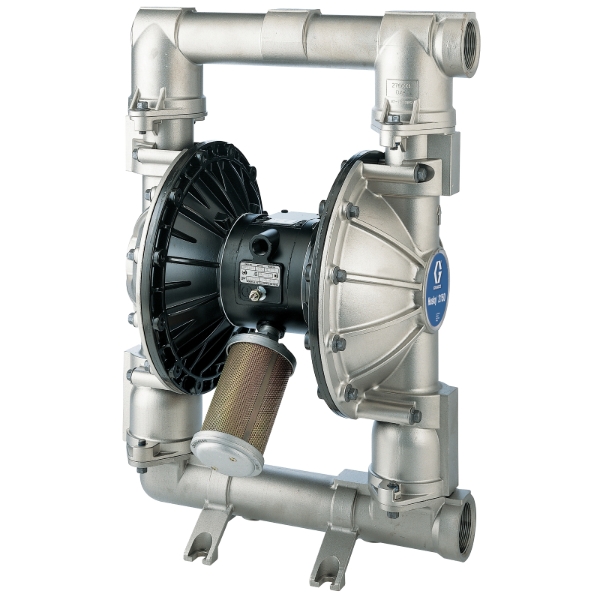

HUSKY PUMP, 2150S-PA01AS1SSSDPTPT

GG DF4341

HUSKY PUMP, 2150S-PA01AS1SSSDPTPT

Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$11,750.00

HUSKY PUMP 2150S-PA01AS1SPSPSPPT

GG DF4666

HUSKY PUMP 2150S-PA01AS1SPSPSPPT

Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$8,670.00

Husky Pump, 2150S-Pa01As1Bnbnbn

GG DF4777

Husky Pump, 2150S-Pa01As1Bnbnbn

$8,950.00

HUSKY PUMP, 2150S-PA01AS1FKFKFK

GG DF4888

HUSKY PUMP, 2150S-PA01AS1FKFKFK

Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$11,030.00

HUSKY PUMP, 2150S-PA01AS1PPPTPTPT

GG DF4911

HUSKY PUMP, 2150S-PA01AS1PPPTPTPT

Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$10,560.00

HUSKY PUMP, 2150S-PA01AS1GEGEGEPT

GG DF4GGG

HUSKY PUMP, 2150S-PA01AS1GEGEGEPT

Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$8,600.00

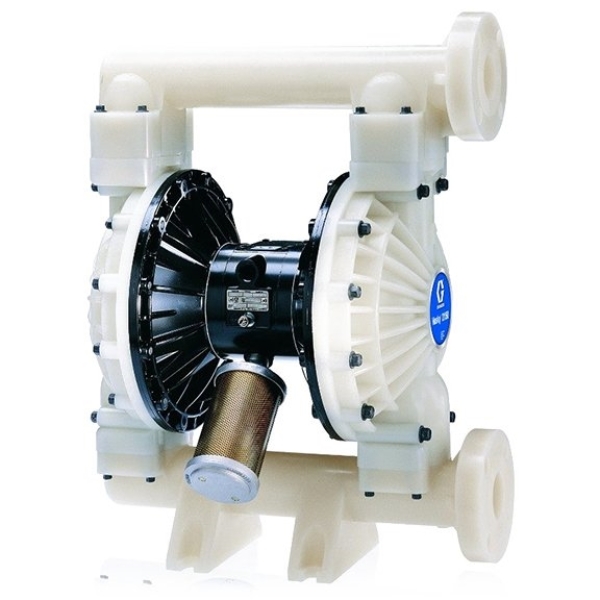

HUSKY PUMP, 2150F-PA01AF2SPSPSPPT

GG DF5666

HUSKY PUMP, 2150F-PA01AF2SPSPSPPT

Husky 2150 PVDF 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$16,530.00

HUSKY PUMP, 2150F-PA01AF2PVPTPTPT

GG DF5A11

HUSKY PUMP, 2150F-PA01AF2PVPTPTPT

Husky 2150 PVDF 2 in. (51 mm) NPT Standard Pump, AL Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$16,510.00

Husky Pump, 2150I-Pa01Ai1Sssdtppt

GG DF6345

Husky Pump, 2150I-Pa01Ai1Sssdtppt

$6,460.00

HUSKY PUMP, 2150A-PA01AA2SSSPSPPT

GG DFC366

HUSKY PUMP, 2150A-PA01AA2SSSPSPPT

Husky 2150 AL Air Operated Double Diaphragm Metal Pump

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$3,170.00

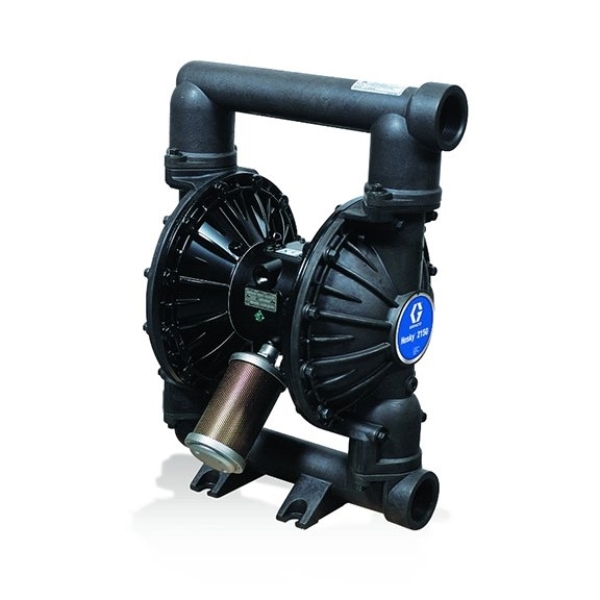

HUSKY PUMP, 2150A-PA01AA2TPACTP

GG DFC525

HUSKY PUMP, 2150A-PA01AA2TPACTP

Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$2,660.00

HUSKY PUMP, 2150A-PA01AA2TPTPTP

GG DFC555

HUSKY PUMP, 2150A-PA01AA2TPTPTP

Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$2,680.00

HUSKY PUMP, 2150S-PA01AS2SSPTPTPT

GG DFD311

HUSKY PUMP, 2150S-PA01AS2SSPTPTPT

Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$10,630.00

HUSKY PUMP, 2150S-PA01AS2SSSDPTPT

GG DFD341

HUSKY PUMP, 2150S-PA01AS2SSSDPTPT

Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, PP Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$10,920.00

HUSKY PUMP, 2150S-PA01AS2TPACTP

GG DFD525

HUSKY PUMP, 2150S-PA01AS2TPACTP

Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, PP Center Section, TPE Seats, AC Balls & TPE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$9,210.00

Husky Pump, 2150S-Pa01As2Spspsppt

GG DFD666

HUSKY PUMP, 2150S-PA01AS2SPSPSPPT

Graco DFD666 Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Industrial

Ball Material: Santoprene

Center Section Material: Aluminum

Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer

Connection Type: Threaded

Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene

Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Type: BSPT

Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Stainless Steel

Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel

Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 145

Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568

Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

Maximum Operating Temperature (Â°C): 82
Maximum Operating Temperature (Â°F): 180

Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35

Overall Height (in): 23.6

Power Source: Air

$9,210.00

HUSKY PUMP, 2150S-PA01AS2PPPTPTPT

GG DFD911

HUSKY PUMP, 2150S-PA01AS2PPPTPTPT

Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$10,160.00

HUSKY PUMP, 2150I-PA01AI2SPSPSPPT

GG DFF666

HUSKY PUMP, 2150I-PA01AI2SPSPSPPT

Husky 2150 Cast Iron Air Operated Double Diaphragm Metal Pump

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$3,910.00

Pump, 2150S-Pa01As5-2Ssptptpt

GG DFP311

PUMP, 2150S-PA01AS5-2SSPTPTPT

Graco DFP311 Husky 2150 SS Pump, AL Center Section, SS Seats, PTFE Balls & Diaphragm, Vertical Outlet Orientation

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

Application: The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the complete air valve is externally accessible so it can be serviced fast and easy without removing the diaphragm pump
Lube-free operation
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 2150

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Supply

Ball Material: PTFE

Center Section Material: Stainless Steel

Diaphragm Material: PTFE

Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8

Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8

Material: Stainless Steel

Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8.27

Maximum Air Pressure (kPa): 827
Maximum Air Pressure (MPa): 0.827
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 145

Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568

Maximum Operating Temperature (Â°C): 66
Maximum Operating Temperature (Â°F): 150

Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35

Power Source: Air

$11,250.00

Husky Pump, 2150S-Pa01As5-1Sssdptpt

GG DFR341

Husky Pump, 2150S-Pa01As5-1Sssdptpt

$11,720.00

Husky Pump, 2150S-Pa01As5-1Spspsppt

GG DFR666

Husky Pump, 2150S-Pa01As5-1Spspsppt

$9,570.00

Kit, Diaphragm, Sb, Sil, Con

GG DK-112

KIT,DIAPHRAGM,SB,SIL,CON

$675.00

Kit, Diaphragm, Sb, Fkm, Col

GG DK-121

Kit, Diaphragm, Sb, Fkm, Col

$715.00

HUSKY PUMP, 1590P-PS01AP2PPPTPTPT

GG DT2911

HUSKY PUMP, 1590P-PS01AP2PPPTPTPT

Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, PP/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$7,560.00

Husky Pump, 1590S-Ps01As1Fkfkfk

GG DT4888

Husky Pump, 1590S-Ps01As1Fkfkfk

$9,900.00

Husky Pump, 1590S-Ps01As1Ppptptpt

GG DT4911

Husky Pump, 1590S-Ps01As1Ppptptpt

$9,670.00

HUSKY PUMP, 2150S-PS01AS1SPSPSPPT

GG DV4666

HUSKY PUMP, 2150S-PS01AS1SPSPSPPT

Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, SS Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$11,440.00

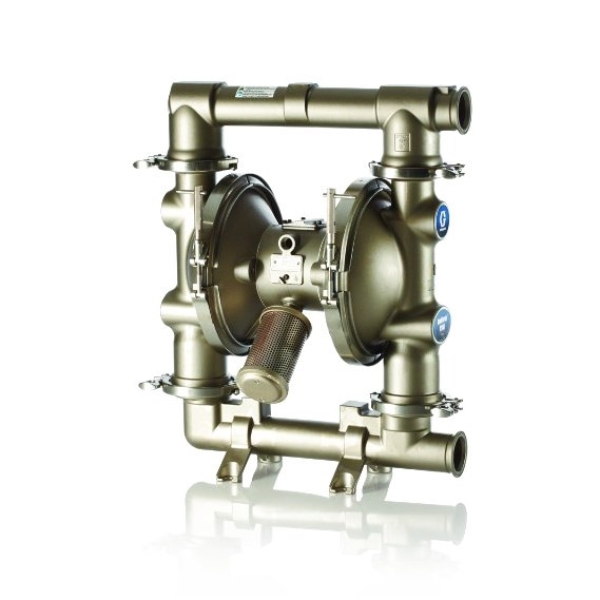

HUSKY PUMP, 2150S-PS01AS1PPPTPTPT

GG DV4911

HUSKY PUMP, 2150S-PS01AS1PPPTPTPT

Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, SS Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$13,010.00

Husky Pump, 2150S-Ps01As5-2Ssptptpt

GG DVP311

Husky Pump, 2150S-Ps01As5-2Ssptptpt

$12,940.00

Assembly, Hose, Catalyst, 1/4

GG E-117-25

Assy, Hose, Catalyst, 1/4

$635.00

Needle, Mll, 14Ga, 3.00L

GG E4000002

Needle, Mll, 14Ga, 3.00L

$25.50

Ndl, Mll, 16Gax1, 50 Pk

GG E4000005-50

Ndl, Mll, 16Gax1, 50 Pk>

$97.50

Ndl, Mll, 18Gax1/2, 50 Pk

GG E4000006-50

Ndl, Mll, 18Gax1/2, 50 Pk>

$100.50

Needle, Mll, 14Gax1, 50 Pk

GG E4000014-50

Needle, Mll, 14Gax1, 50 Pk>

$170.00

Adapter, Needle, LL, 5/16-28, M, Ch

GG E4000016

Adapter, Needle, Ll, 5/16-28, M, Ch

$37.50

Ndl, Mll, 16Gax1/2, 50 Pk

GG E4000088-50

Ndl, Mll, 16Gax1/2, 50 Pk>

$97.50

Tip, G15, G40

GG EAAF610

Tip, G15, G40

$170.50

Tip, G15, G40

GG EAAF612

Tip, G15, G40

$186.00

Tip, G15, G40

GG EAAF712

Tip, G15, G40

$186.00

E-Flo Sp Pump, Cm100Cm, 240V, No Adm

GG EC100CM1

E-Flo Sp Pump, Cm100Cm, 240V, No Adm

$23,290.00

E-Flo Sp Pump, Cm100Cm, 480V, No Adm

GG EC100CM2

E-Flo Sp Pump, Cm100Cm, 480V, No Adm

$27,870.00

E-Flo Sp Pump, Cm100Cm, 240V, Adm

GG EC100CM3

E-Flo Sp Pump, Cm100Cm, 240V, Adm

$25,760.00

E-Flo Sp Pump, Cm100Cm, 480V, Adm

GG EC100CM4

E-Flo Sp Pump, Cm100Cm, 480V, Adm

$30,340.00

E-Flo Sp Pump, Cm100Cs, 240V, No Adm

GG EC100CS1

E-Flo Sp Pump, Cm100Cs, 240V, No Adm

$21,060.00

E-Flo Sp Pump, Cm100Cs, 480V, No Adm

GG EC100CS2

E-Flo Sp Pump, Cm100Cs, 480V, No Adm

$25,630.00

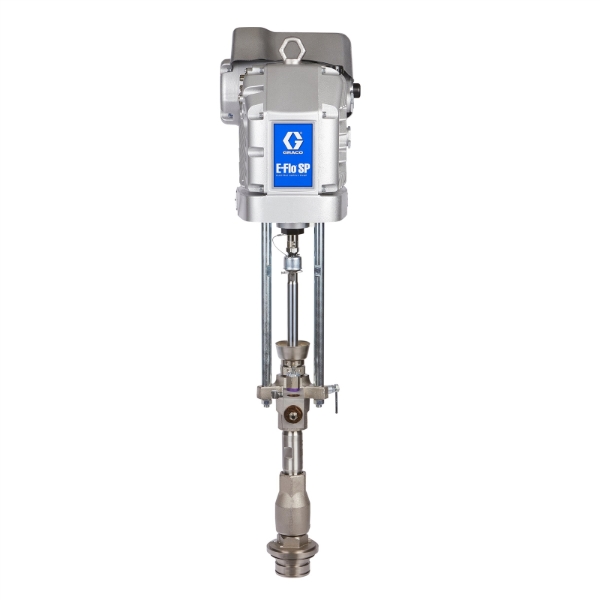

E-FLO SP PUMP, CM100CS, 240V, ADM

GG EC100CS3

E-FLO SP PUMP, CM100CS, 240V, ADM

E-Flo SP Pump, 100cc Check-Mate, Carbon Steel, Severe Duty, 240V, ADM The E-Flo SP electric supply pump is designed for industrial and automotive sealant and adhesive application. This advanced pump will drastically increase efficiency, improve system control capabilities, optimize process performance, and provide critical performance data. Improve process and system performance Advanced material control Significant energy savings Eliminate compressed air usage Extremely quiet motor Prevent downtime Lower maintenance costs

$23,770.00

E-Flo Sp Pump, Cm100Cs, 480V, Adm

GG EC100CS4

E-Flo Sp Pump, Cm100Cs, 480V, Adm

$28,100.00

E-Flo Sp Pump, Cm100Sm, 240V, No Adm

GG EC100SM1

E-Flo Sp Pump, Cm100Sm, 240V, No Adm

$26,850.00

E-Flo Sp Pump, Cm100Sm, 480V, No Adm

GG EC100SM2

E-Flo Sp Pump, Cm100Sm, 480V, No Adm

$31,430.00

E-Flo Sp Pump, Cm100Sm, 240V, Adm

GG EC100SM3

E-Flo Sp Pump, Cm100Sm, 240V, Adm

$29,330.00

E-Flo Sp Pump, Cm100Sm, 480V, Adm

GG EC100SM4

E-Flo Sp Pump, Cm100Sm, 480V, Adm

$33,900.00

E-Flo Sp Pump, Cm100Ss, 240V, No Adm

GG EC100SS1

E-Flo Sp Pump, Cm100Ss, 240V, No Adm

$25,030.00

E-Flo Sp Pump, Cm100Ss, 480V, No Adm

GG EC100SS2

E-Flo Sp Pump, Cm100Ss, 480V, No Adm

$29,610.00

E-Flo Sp Pump, Cm100Ss, 240V, Adm

GG EC100SS3

E-Flo Sp Pump, Cm100Ss, 240V, Adm

$27,530.00

E-Flo Sp Pump, Cm100Ss, 480V, Adm

GG EC100SS4

E-Flo Sp Pump, Cm100Ss, 480V, Adm

$32,090.00

E-Flo Pump, 1Hp, 240, Bsc, 750, Srg, Stnd

GG EC1171

E-Flo Pump, 1Hp, 240, Bsc, 750, Srg, Stnd

$24,390.00

E-Flo Pump, 1Hp, 240, Bsc, 750, Srg, Wall

GG EC1172

E-Flo Pump, 1Hp, 240, Bsc, 750, Srg, Wall

$24,080.00

E-Flo Pump, 1Hp, 240, Adv, 750, Srg, Stnd

GG EC1271

E-Flo Pump, 1Hp, 240, Adv, 750, Srg, Stnd

$24,780.00

E-Flo Pump, 1Hp, 240, Adv, 750, Srg, Wall

GG EC1272

E-Flo Pump, 1Hp, 240, Adv, 750, Srg, Wall

$24,510.00

E-Flo Pump, 1Hp, 240, Bsc, 750, Srg, Stnd

GG EC1571

E-Flo Pump, 1Hp, 240, Bsc, 750, Srg, Stnd

$24,390.00

E-Flo Pump, 1Hp, 240, Bsc, 750, Srg, Wall

GG EC1572

E-Flo Pump, 1Hp, 240, Bsc, 750, Srg, Wall

$24,080.00

E-Flo Pump, 1Hp, 240, Adv, 750, Srg, Stnd

GG EC1671

E-Flo Pump, 1Hp, 240, Adv, 750, Srg, Stnd

$24,780.00

E-Flo Pump, 1Hp, 240, Adv, 750, Srg, Wall

GG EC1672

E-Flo Pump, 1Hp, 240, Adv, 750, Srg, Wall

$24,510.00

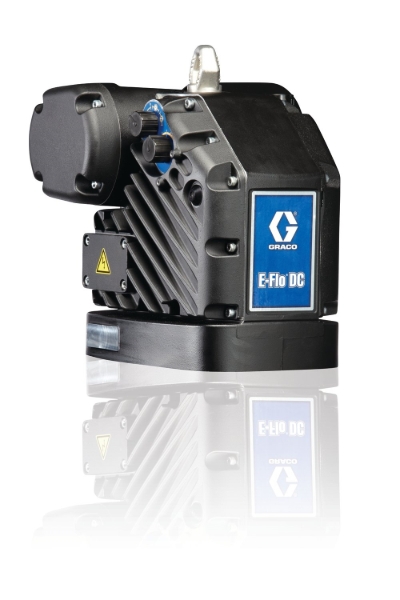

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD

GG EC1A40

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD

E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Basic, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp E-Flo DC (Dual Control) electric circulating pumps are up to five times more efficient than comparable pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation, increases flow rates and decreases downtime. Basic model has simple control knobs to easily adjust pump settings. Quiet electric motor exceeds OSHA sound regulations, meaning happier operators and better results. Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime. Ultralife ceramic coatings on rod and cylinder hold up to the harshest materials, including waterborne. Meets requirements of these approval agencies: ATEX, FM, IECEx Installation simply requires 220 volt single phase power. No VFD (variable frequency drive) needed.

$20,820.00

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD, STND

GG EC1A41

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD, STND

E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Basic, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand E-Flo DC (Dual Control) electric circulating pumps are up to five times more efficient than comparable pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation, increases flow rates and decreases downtime. Basic model has simple control knobs to easily adjust pump settings. Integrated runaway protection prevents pump from premature wear and costly material loss. Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime. Ultralife ceramic coatings on rod and cylinder hold up to the harshest materials, including waterborne. Meets requirements of these approval agencies: ATEX, FM, IECEx Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second.

$21,600.00

E-Flo Pump, 1Hp, 750, Bsc, Tri, Sld, Wall

GG EC1A42

E-Flo Pump, 1Hp, 750, Bsc, Tri, Sld, Wall

$21,270.00

E-Flo Pump, 1Hp, 750, Bsc, NPT, Opn

GG EC1A50

E-FLO PUMP, 1HP, 750, BSC, NPT, OPN

Graco EC1A50 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Basic, ATEX/FM/IECEx, Open Wet Cup Lower, Ultralife Rod/Cylinder, NPT

E-Flo DC (Dual Control) electric circulating pumps are up to five times more efficient than comparable pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation, increases flow rates and decreases downtime.

Basic model has simple control knobs to easily adjust pump settings.
Quiet electric motor exceeds OSHA sound regulations, meaning happier operators and better results.
Open wet cup lower includes Ultralife ceramic coating for improved durability.
Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second.
Pump can run alone to keep production running, if lower maintenance is required.

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Inlet Type: NPT

Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 2.54
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 4-Ball, Open Wet Cup

Includes: Basic Control, No Mounting

Maximum Continuous Cycle Rate (CPM): 12

Maximum Operating Temperature (Â°C): 40
Maximum Operating Temperature (Â°F): 104

Maximum Voltage (V ac): 480

Maximum Working Pressure (bar): 26
Maximum Working Pressure (kPa): 2600
Maximum Working Pressure (MPa): 2.6
Maximum Working Pressure (psi): 377

Minimum Operating Temperature (Â°C): 0
Minimum Operating Temperature (Â°F): 32

Minimum Voltage (V ac): 380

Overall Depth (cm): 50.5
Overall Depth (in): 19.88
Overall Depth (mm): 505

Overall Height (cm): 115.6
Overall Height (in): 45.51
Overall Height (mm): 1156
Overall Width (cm): 43.2
Overall Width (in): 17
Overall Width (mm): 432

$19,480.00

E-Flo Pump, 1Hp, 750, Bsc, NPT, Opn, Stnd

GG EC1A51

E-Flo Pump, 1Hp, 750, Bsc, Npt, Opn, Stnd

$20,400.00

E-Flo Pump, 1Hp, 750, Bsc, NPT, Opn, Wall

GG EC1A52

E-Flo Pump, 1Hp, 750, Bsc, Npt, Opn, Wall

$21,860.00

E-Flo Pump, 1Hp, 750, Bsc, Tri, Opn

GG EC1A60

E-Flo Pump, 1Hp, 750, Bsc, Tri, Opn

$19,650.00

E-Flo Pump, 1Hp, 750, Bsc, Tri, Opn, Stnd

GG EC1A61

E-Flo Pump, 1Hp, 750, Bsc, Tri, Opn, Stnd

$20,400.00

E-Flo Pump, 1Hp, 750, Bsc, Tri, Opn, Wall

GG EC1A62

E-Flo Pump, 1Hp, 750, Bsc, Tri, Opn, Wall

$20,100.00

E-Flo Pump, 1Hp, 480, Bsc, 750, Srg, Stnd

GG EC1A71

E-Flo Pump, 1Hp, 480, Bsc, 750, Srg, Stnd

$26,150.00

E-Flo Pump, 1Hp, 480, Bsc, 750, Srg, Wall

GG EC1A72

E-Flo Pump, 1Hp, 480, Bsc, 750, Srg, Wall

$25,810.00

E-Flo Pump, 1Hp, 750, Adv, NPT, Opn

GG EC1B50

E-FLO PUMP, 1HP, 750, ADV, NPT, OPN

Graco EC1B50 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Advanced, ATEX/FM/IECEx, Open Wet Cup Lower, Ultralife Rod/Cylinder, NPT

E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.

Advanced model lets you easily connect and manage multiple pumps with a single control module.
Integrated runaway protection prevents pump from premature wear and costly material loss.
Open wet cup lower includes Ultralife ceramic coating for improved durability.
Meets requirements of these approval agencies: ATEX, FM, IECEx
Pump can run alone to keep production running, if lower maintenance is required.

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Inlet Type: NPT

Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 2.54
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 4-Ball, Open Wet Cup

Includes: Advanced Control Input, No Mounting

Maximum Continuous Cycle Rate (CPM): 12

Maximum Operating Temperature (Â°C): 40
Maximum Operating Temperature (Â°F): 104

Maximum Voltage (V ac): 480

Maximum Working Pressure (bar): 26
Maximum Working Pressure (kPa): 2600
Maximum Working Pressure (MPa): 2.6
Maximum Working Pressure (psi): 377

Minimum Operating Temperature (Â°C): 0
Minimum Operating Temperature (Â°F): 32

Minimum Voltage (V ac): 380

Overall Depth (cm): 50.5
Overall Depth (in): 19.88
Overall Depth (mm): 505

Overall Height (cm): 115.6
Overall Height (in): 45.51
Overall Height (mm): 1156
Overall Width (cm): 43.2
Overall Width (in): 17
Overall Width (mm): 432
