GRACO INC. S10595

GG 17H045

REACTOR 2 H-40 PROPORTIONER, 400V, 15KW

Graco 17H045 Reactor 2 H-40 Proportioner, 15 kW, 400 V

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Non-Elite

• Amperage (A): 41
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 20.41
• Maximum Flow Rate (lb/min): 45

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 20.11
• Power Rating (kW): 15
• Power Rating (W): 15000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H046

REACTOR 2 H-40 PROPORTIONER, 400V, 20KW

Graco 17H046 Reactor 2 H-40 Proportioner, 20 kW, 400 V

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Non-Elite

• Amperage (A): 52
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 20.41
• Maximum Flow Rate (lb/min): 45

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H051

GG 17H050

GG 17H056

REACTOR 2 H-50 PROPORTIONER, 400V, 20KW

Graco 17H056 Reactor 2 H-50 Proportioner, 20 kW, 400 V

Graco's hydraulic Reactor H-50 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-50
• Product Series: Non-Elite

• Amperage (A): 52
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 23.59
• Maximum Flow Rate (lb/min): 52

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H058

GG 17H061

GG 17H067

GG 17H076

REACTOR 2 H-XP3 PROPORTIONER, 400V, 20KW

Graco 17H076 Reactor 2 H-XP3 Proportioner, 20 kW, 400 V

Graco's hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes



  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry
• Elite Models
  • Graco InSite included
  • Inlet pressure and temperature sensors (interfaces with Graco InSite)
  • Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package

• Model: Reactor 2
• Series: H-XP3
• Product Series: Non-Elite

• Amperage (A): 52 @ 350 to 415 V ac (3-Phase WYE)
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose

• Material Application: Polyurea

• Maximum Flow Rate (cc/min): 10600

• Maximum Flow Rate (GPM): 2.8
• Maximum Flow Rate (L/min): 10.6

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydraulic

• Pressure Type: High

GG 17H101

GG 17H103

GG 17H110

GG 17H131

REACTOR 2 H-30 PROPORTIONER, SEL, 10KW, ELITE

Graco 17H131 Reactor 2 H-30 Elite Proportioner, 10 kW

Graco's hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-30
• Product Series: Elite

• Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 46 @ 200 to 240 V ac (3-Phase Delta), 79 @ 200 to 240 V ac (1-Phase)
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 10.89
• Maximum Flow Rate (lb/min): 24

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 310
• Maximum Hose Length (m): 94.5

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 13.41
• Power Rating (kW): 10
• Power Rating (W): 10000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H132

REACTOR 2 H-30 PROPORTIONER, SEL, 15KW, ELITE

Graco 17H132 Reactor 2 H-30 Elite Proportioner, 15 kW

Graco's hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-30
• Product Series: Elite

• Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 10.89
• Maximum Flow Rate (lb/min): 24

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 310
• Maximum Hose Length (m): 94.5

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 20.11
• Power Rating (kW): 15
• Power Rating (W): 15000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H144

REACTOR 2 H-40 PROPORTIONER, 230V, 20KW, ELITE

Graco 17H144 Reactor 2 H-40 Elite Proportioner, 20 kW, 230 V

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Elite

• Amperage (A): 95
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose
• Includes: Elite Kit

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 20.41
• Maximum Flow Rate (lb/min): 45

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H145

REACTOR 2 H-40 PROPORTIONER, 400V, 15KW, ELITE

Graco 17H145 Reactor 2 H-40 Elite Proportioner, 15 kW, 400 V

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Elite

• Amperage (A): 41
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose
• Includes: Elite Kit

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 20.41
• Maximum Flow Rate (lb/min): 45

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 20.11
• Power Rating (kW): 15
• Power Rating (W): 15000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H146

REACTOR 2 H-40 PROPORTIONER, 400V, 20KW, ELITE

Graco 17H146 Reactor 2 H-40 Elite Proportioner, 20 kW, 400 V

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Elite

• Amperage (A): 52
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose
• Includes: Elite Kit

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 20.41
• Maximum Flow Rate (lb/min): 45

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H153

REACTOR 2 H-50 PROPORTIONER, 230V, 20KW, ELITE

Graco 17H153 Reactor 2 H-50 Elite Proportioner, 20 kW, 230 V

Graco's hydraulic Reactor H-50 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-50
• Product Series: Elite

• Amperage (A): 95
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose
• Includes: Elite Kit

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 23.59
• Maximum Flow Rate (lb/min): 52

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H156

REACTOR 2 H-50 PROPORTIONER, 400V, 20KW, ELITE

Graco 17H156 Reactor 2 H-50 Elite Proportioner, 20 kW, 400 V

Graco's hydraulic Reactor H-50 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-50
• Product Series: Elite

• Amperage (A): 52
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose
• Includes: Elite Kit

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 23.59
• Maximum Flow Rate (lb/min): 52

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 17H170

GG 17H174

REACTOR 2 H-XP3 PROPORTIONER, 230V, 20KW, ELITE

Graco 17H174 Reactor 2 H-XP3 Elite Proportioner, 20 kW, 230 V

Graco's hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes



  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry
• Elite Models
  • Graco InSite included
  • Inlet pressure and temperature sensors (interfaces with Graco InSite)
  • Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package

• Model: Reactor 2
• Series: H-XP3
• Product Series: Elite

• Amperage (A): 95 @ 200 to 240 V ac (3-Phase Delta)
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose
• Includes: Elite Kit

• Material Application: Polyurea

• Maximum Flow Rate (cc/min): 10600

• Maximum Flow Rate (GPM): 2.8
• Maximum Flow Rate (L/min): 10.6

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydrauli

GG 17H175

GG 17H176

REACTOR 2 H-XP3 PROPORTIONER, 400V, 20KW, ELITE

Graco 17H176 Reactor 2 H-XP3 Elite Proportioner, 20 kW, 400 V

Graco's hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes



  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry
• Elite Models
  • Graco InSite included
  • Inlet pressure and temperature sensors (interfaces with Graco InSite)
  • Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package

• Model: Reactor 2
• Series: H-XP3
• Product Series: Elite

• Amperage (A): 52 @ 350 to 415 V ac (3-Phase WYE)
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose
• Includes: Elite Kit

• Material Application: Polyurea

• Maximum Flow Rate (cc/min): 10600

• Maximum Flow Rate (GPM): 2.8
• Maximum Flow Rate (L/min): 10.6

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydraulic<

GG 17H190

GG 17H191

GG 17H192

GG 17H193

GG 17H194

GG 17H196

GG 17H197

GG 17H199

GG 17H229

GG 17H242

GG 17H256

GG 17H280

NUT, M20, PINCH VALVE

GG 17H286

GG 17H313

GG 17H314

GG 17H349

CABLE, M8, 4PIN, M/F, 7.5M

GG 17H363

GG 17H365

GG 17H366

GG 17H370

GG 17H372

GG 17H377

GG 17H387

GG 17H388

GG 17H404

GG 17H408

GG 17H410

GG 17H414

GG 17H417

GG 17H418

GG 17K005

GG 17K006

GG 17K029

GG 17K030

GG 17K032

GG 17K031

GG 17K052

GG 17K053

GG 17K054

GG 17K057

GG 17K058

GG 17K061

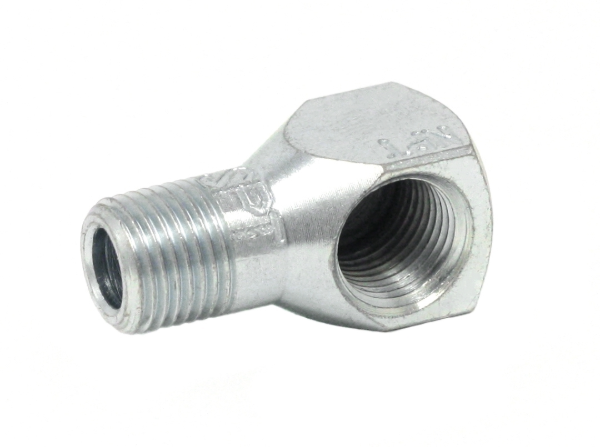

FITTING, ELBOW, STREET, 1/8 NPT BSPT

1/8 NPT female x 1/8 BSPT male elbow

GG 17K062

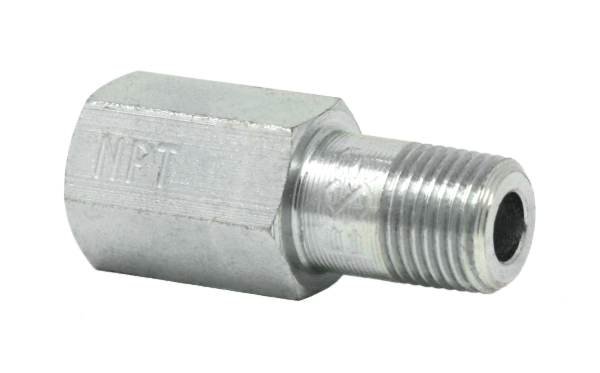

FITTING, ADPTR LG 1/8 NPT TO BSPT

1/8 NPT female x 1/8 BSPT male long

GG 17K063

GG 17K124

GG 17K135

GG 17K152

GG 17K155

GG 17K185

GG 17K186

GG 17K235

GG 17K236

GG 17K264

HOSE, CPLED, 4000PSI, 400F, 15', #8

GG 17K267

HOSE, CPLED, 4000PSI, 400F, 15'#10

GG 17K270

GG 17K277

GG 17K291

GG 17K309

GG 17K313

GG 17K314

GG 17K315

GG 17K316

GG 17K320

GG 17K322

GG 17K323

GG 17K324

GG 17K344

GG 17K351

GG 17K352

GG 17K356

GG 17K373

GG 17K377

GG 17K378

GG 17K379

GG 17K393

GG 17K392

GG 17K397
