GRACO INC. S10595

GG XHD731

XHD RAC TIP, SPRAY, CYLINDER, 731

XHD RAC SwitchTip, .731

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD733

XHD RAC TIP, SPRAY, CYLINDER, 733

XHD RAC SwitchTip, .733

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

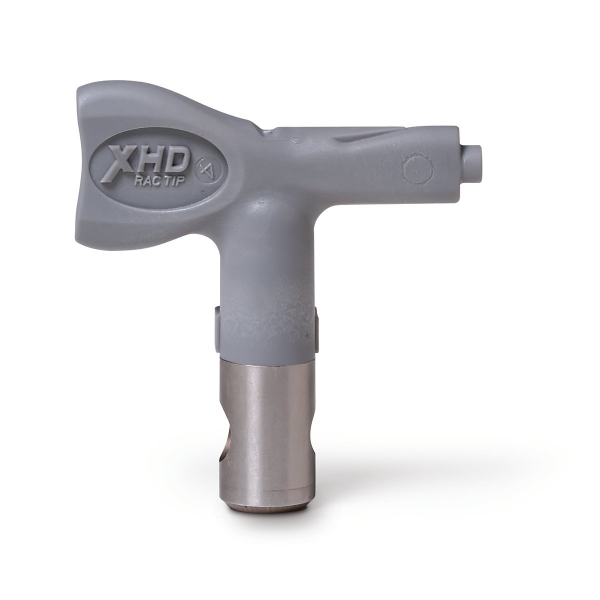

GG XHD735

XHD RAC TIP, SPRAY, CYLINDER, 735

XHD RAC SwitchTip, .735

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD737

XHD RAC TIP, SPRAY, CYLINDER, 737

XHD RAC SwitchTip, .737

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD739

XHD RAC TIP, SPRAY, CYLINDER, 739

XHD RAC SwitchTip, .739

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD741

XHD RAC TIP, SPRAY, CYLINDER, 741

XHD RAC SwitchTip, .741

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD743

XHD RAC TIP, SPRAY, CYLINDER, 743

XHD RAC SwitchTip, .743

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD747

XHD RAC TIP, SPRAY, CYLINDER, 747

XHD RAC SwitchTip, .747

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD749

XHD RAC TIP, SPRAY, CYLINDER, 749

XHD RAC SwitchTip, .749

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD751

XHD RAC TIP, SPRAY, CYLINDER, 751

XHD RAC SwitchTip, .751

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD753

XHD RAC TIP, SPRAY, CYLINDER, 753

XHD RAC SwitchTip, .753

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD755

XHD RAC TIP, SPRAY, CYLINDER, 755

XHD RAC SwitchTip, .755

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD761

XHD RAC TIP, SPRAY, CYLINDER, 761

XHD RAC SwitchTip, .761

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD813

XHD RAC TIP, SPRAY, CYLINDER, 813

XHD RAC SwitchTip, .813

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD767

XHD RAC TIP, SPRAY, CYLINDER, 767

XHD RAC SwitchTip, .767

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD823

XHD RAC TIP, SPRAY, CYLINDER, 823

XHD RAC SwitchTip, .823

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD829

XHD RAC TIP, SPRAY, CYLINDER, 829

XHD RAC SwitchTip, .829

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD833

XHD RAC TIP, SPRAY, CYLINDER, 833

XHD RAC SwitchTip, .833

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD835

XHD RAC TIP, SPRAY, CYLINDER, 835

XHD RAC SwitchTip, .835

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD837

XHD RAC TIP, SPRAY, CYLINDER, 837

XHD RAC SwitchTip, .837

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD839

XHD RAC TIP, SPRAY, CYLINDER, 839

XHD RAC SwitchTip, .839

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD927

XHD RAC TIP, SPRAY, CYLINDER, 927

XHD RAC SwitchTip, .927

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD841

XHD RAC TIP, SPRAY, CYLINDER, 841

XHD RAC SwitchTip, .841

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD855

XHD RAC TIP, SPRAY, CYLINDER, 855

XHD RAC SwitchTip, .855

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD843

XHD RAC TIP, SPRAY, CYLINDER, 843

XHD RAC SwitchTip, .843

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD847

XHD RAC TIP, SPRAY, CYLINDER, 847

XHD RAC SwitchTip, .847

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD851

XHD RAC TIP, SPRAY, CYLINDER, 851

XHD RAC SwitchTip, .851

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD863

XHD RAC TIP, SPRAY, CYLINDER, 863

XHD RAC SwitchTip, .863

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD931

XHD RAC TIP, SPRAY, CYLINDER, 931

XHD RAC SwitchTip, .931

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD933

XHD RAC TIP, SPRAY, CYLINDER, 933

XHD RAC SwitchTip, .933

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD935

XHD RAC TIP, SPRAY, CYLINDER, 935

XHD RAC SwitchTip, .935

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD937

XHD RAC TIP, SPRAY, CYLINDER, 937

XHD RAC SwitchTip, .937

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHD939

XHD RAC TIP, SPRAY, CYLINDER, 939

XHD RAC SwitchTip, .939

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

GG XHT641

Xhd Tip, Spray, Cylinder, Ht

GG XHT643

Xhd Tip, Spray, Cylinder, Ht

GG XHT645

Xhd Tip, Spray, Cylinder, Ht

GG XHT647

Xhd Tip, Spray, Cylinder, Ht

GG XL34R0

Motor, Xl34Rom, Saleable

GG XL65D2

Motor, Xl65, Sensor, Haz, Saleable

GG XL65L0

Motor, Xl65, Low Noise, Saleable

GG XL65R0

Motor, Xl65Rom, Saleable

GG XM0000PKG

Xm Sprayer System, Bare, Xm, Packaged

GG XM5E00

XM SPRAYER SYSTEM XM50, BF, R, IS, V

XM50 Skid System, Hazardous Location, With Viscon HP Heaters, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity Variable ratio system - handles material ratios from 1:1 to 10:1

GG XM5H0E

XM SPRAYER SYSTEM, XM50, R, 480, JB, WP, E

Graco XM5H0E XM50 Skid System, Non-Hazardous, With Electric Heated Hose, 480V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 50

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Electric Heated Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Electric Heated Hose

• Location Category: Non-Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 358
• Maximum Working Pressure (MPa): 35.8
• Maximum Working Pressure (psi): 5200

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Wall

• Primary Fluid Heater Included: Yes

GG XM5H0W

XM SPRAYER SYSTEM, XM50, R, 480, JB, WP, W

Graco XM5H0W XM50 Skid System, Non-Hazardous, With Water Jacketed Hose, 480V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 50

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Water Jacketed Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Water Jacketed Hose, Remote Carriage, Viscon HF, 30:1 Merkur Pump, XTR+ Gun, 25 ft Xtreme Duty Airless Hose, 10 ft Xtreme Duty Whip hose, Junction Box

• Location Category: Non-Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 358
• Maximum Working Pressure (MPa): 35.8
• Maximum Working Pressure (psi): 5200

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Wall

• Primary Fluid Heater Included: Yes

GG XM5H2E

XM SPRAYER SYSTEM, XM50, R, 480, JB, WP, 25, E

XM50 Skid System, Non-Hazardous, With Electric Heated Hose and 25 Gallon Heated Hoppers, 480V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM5H2W

XM SPRAYER SYSTEM, XM50, R, 480, JB, WP, 25, W

XM50 Skid System, Non-Hazardous, With Water Jacketed Hose and 25 Gallon Heated Hoppers, 480V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM5J0E

XM SPRAYER SYSTEM, XM50, R, 240, JB, IS, E

XM50 Skid System, Hazardous Location Components, With Electric Heated Hose, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM5J0W

XM SPRAYER SYSTEM, XM50, R, 240, JB, IS, W

Graco XM5J0W XM50 Skid System, Hazardous Location Components, With Water Jacketed Hose, 240V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 50

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Water Jacketed Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Merkur Solvent Flush Pump, Junction Box, Remote Manifold Carriage, XTR+ Gun, 35 ft Integration Hose and Static Mixers, Viscon HF Heaters, Heated Hose Circulation Kit

• Location Category: Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 358
• Maximum Working Pressure (MPa): 35.8
• Maximum Working Pressure (psi): 5200

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Alternator

• Primary Fluid Heater Included: Yes

GG XM5J2E

XM SPRAYER SYSTEM, XM50, R, 240, JB, IS, 25, E

XM50 Skid System, Hazardous Location Components, With Electric Heated Hose and 25 Gallon Heated Hoppers, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM5J2W

XM SPRAYER SYSTEM, XM50, R, 240, JB, IS, 25, W

Graco XM5J2W XM50 Skid System, Hazardous Location Components, With Water Jacketed Hose and 25 Gallon Heated Hoppers, 240V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 50

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Water Jacketed Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Merkur Solvent Flush Pump, Junction Box, Remote Manifold Carriage, XTR+ Gun, 35 ft Integration Hose and Static Mixers, Viscon HF Heaters, Heated Hose Circulation Kit, 25 Gallon Double Wall Hoppers

• Location Category: Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 358
• Maximum Working Pressure (MPa): 35.8
• Maximum Working Pressure (psi): 5200

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Alternator

• Primary Fluid Heater Included: Yes

GG XM5K0E

XM SPRAYER SYSTEM, XM50, R, 480, JB, IS, E

Graco XM5K0E XM50, 480V, Alternator Power, EX Viscon HF Heaters, Explosion Proof Junction Box, No Feed, Remote Manifold, Electric Hose Control

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 50

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Electric Heated Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Location Category: Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 358
• Maximum Working Pressure (MPa): 35.8
• Maximum Working Pressure (psi): 5200

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Wall

• Primary Fluid Heater Included: Yes

GG XM5K0W

XM SPRAYER SYSTEM, XM50, R, 480, JB, IS, W

Graco XM5K0W XM50 Skid System, Hazardous Location Components, With Water Jacketed Hose, 480V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 50

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Water Jacketed Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Water Jacketed Hose

• Location Category: Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 358
• Maximum Working Pressure (MPa): 35.8
• Maximum Working Pressure (psi): 5200

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Wall

• Primary Fluid Heater Included: Yes

GG XM5K2E

XM SPRAYER SYSTEM, XM50, R, 480, JB, IS, 25, E

XM50 Skid System, Hazardous Location Components, With Electric Heated Hose and 25 Gallon Heated Hoppers, 480V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM5K2W

XM SPRAYER SYSTEM, XM50, R, 480, JB, IS, 25, W

XM50 Skid System, Hazardous Location Components, With Water Jacketed Hose and 25 Gallon Heated Hoppers, 480V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM5M0E

XM SPRAYER SYSTEM, XM50, R, 240, JB, WP, E

XM50 Skid System, Non-Hazardous, With Electric Heated Hose, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM5M0W

XM SPRAYER SYSTEM, XM50, R, 240, JB, WP, W

Graco XM5M0W XM50 Skid System, Non-Hazardous, With Water Jacketed Hose, 240V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 50

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Water Jacketed Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR+ Gun, 35 ft Integrated Hose and Static Mixers, Viscon HF Heaters, Heated Hose Circulation Kit

• Location Category: Non-Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 358
• Maximum Working Pressure (MPa): 35.8
• Maximum Working Pressure (psi): 5200

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Wall

• Primary Fluid Heater Included: Yes

GG XM5M2E

XM SPRAYER SYSTEM, XM50, R, 240, JB, WP, 25, E

XM50s Skid System, Non-Hazardous, With Electric Heated Hose and 25 Gallon Heated Hoppers, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM5M2W

XM SPRAYER SYSTEM, XM50, R, 240, JB, WP, 25, W

Graco XM5M2W XM50s Skid System, Non-Hazardous, With Water Jacketed Hose and 25 Gallon Heated Hoppers, 240V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 50

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Water Jacketed Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR+ Gun, 35 ft Integrated Hose and Static Mixers, Viscon HF Heaters, Junction Box, Heated Hose Circulation Kit, 25 Gallon Double Wall Hoppers

• Location Category: Non-Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 358
• Maximum Working Pressure (MPa): 35.8
• Maximum Working Pressure (psi): 5200

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Wall

• Primary Fluid Heater Included: Yes

GG XM7E00

XM SPRAYER SYSTEM XM70, BF, R, IS, V

XM70 Skid System, Hazardous Location, With Viscon HP Heaters, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity Variable ratio system - handles material ratios from 1:1 to 10:1

GG XM7H0E

XM SPRAYER SYSTEM, XM70, R, 480, JB, WP, E

XM70 Skid System, Non-Hazardous, With Electric Heated Hose, 480V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM7H0W

XM SPRAYER SYSTEM, XM70, R, 480, JB, WP, W

Graco XM7H0W XM70 Skid System, Non-Hazardous, With Water Jacketed Hose, 480V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Water Jacketed Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Water Jacketed Hose, Remote Carriage, Viscon HF, 30:1 Merkur Pump, XTR+ Gun, 25 ft Xtreme Duty Airless Hose, 10 ft Xtreme Duty Whip hose, Junction Box

• Location Category: Non-Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 435
• Maximum Working Pressure (MPa): 43.5
• Maximum Working Pressure (psi): 6300

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Wall

• Primary Fluid Heater Included: Yes

GG XM7H2W

XM SPRAYER SYSTEM, XM70, R, 480, JB, WP, 25, W

XM70 Skid System, Non-Hazardous, With Water Jacketed Hose and 25 Gallon Heated Hoppers, 480V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM7J0E

XM SPRAYER SYSTEM, XM70, R, 240, JB, IS, E

Graco XM7J0E XM70 Skid System, Hazardous Location Components, With Electric Heated Hose, 240V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Electric Heated Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR+ Gun, 35 ft Integrated Hose and Static Mixers, Viscon HF Heaters, Electric Heated Hose Controller

• Location Category: Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 435
• Maximum Working Pressure (MPa): 43.5
• Maximum Working Pressure (psi): 6300

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Alternator

• Primary Fluid Heater Included: Yes

GG XM7J0W

XM SPRAYER SYSTEM, XM70, R, 240, JB, IS, W

Graco XM7J0W XM70 Skid System, Hazardous Location Components, With Water Jacketed Hose, 240V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Water Jacketed Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Merkur Solvent Flush Pump, Junction Box, Remote Manifold Carriage, XTR+ Gun, 35 ft Integration Hose and Static Mixers, Viscon HF Heaters, Heated Hose Circulation Kit

• Location Category: Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 435
• Maximum Working Pressure (MPa): 43.5
• Maximum Working Pressure (psi): 6300

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Alternator

• Primary Fluid Heater Included: Yes

GG XM7J2E

XM SPRAYER SYSTEM, XM70, R, 240, JB, IS, 25, E

Graco XM7J2E XM70 Skid System, Hazardous Location Components, With Electric Heated Hose and 25 Gallon Heated Hoppers, 240V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Electric Heated Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Merkur Solvent Flush Pump, Junction Box, Remote Manifold Carriage, XTR+ Gun, 35 ft Integration Hose and Static Mixers, Viscon HF Heaters, Heated Hose Circulation Kit, 25 Gallon Double Wall Hoppers

• Location Category: Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 435
• Maximum Working Pressure (MPa): 43.5
• Maximum Working Pressure (psi): 6300

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Alternator

• Primary Fluid Heater Included: Yes

GG XM7J2W

XM SPRAYER SYSTEM, XM70, R, 240, JB, IS, 25, W

XM70 Skid System, Hazardous Location Components, With Water Jacketed Hose and 25 Gallon Heated Hoppers, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM7K0E

XM SPRAYER SYSTEM, XM70, R, 480, JB, IS, E

Graco XM7K0E XM70 Skid System, Hazardous Location Components, With Electric Heated Hose, 480V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Electric Heated Hose

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Electric Heated Hose

• Location Category: Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 435
• Maximum Working Pressure (MPa): 43.5
• Maximum Working Pressure (psi): 6300

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Alternator

• Primary Fluid Heater Included: Yes

GG XM7K0W

XM SPRAYER SYSTEM, XM70, R, 480, JB, IS, W

XM70 Skid System, Hazardous Location Components, With Water Jacketed Hose, 480V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM7K2W

XM SPRAYER SYSTEM, XM70, R, 480, JB, IS, 25, W

Graco XM7K2W XM70 Skid System, Hazardous Location Components, With Water Jacketed Hose and 25 Gallon Heated Hoppers, 480V

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Configuration: Water Jacketed Hose and 25 Gallon Heated Hoppers

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Includes: Water Jacketed Hose, 25 Gallon Heated Hopper

• Location Category: Hazardous Location

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Working Pressure (bar): 435
• Maximum Working Pressure (MPa): 43.5
• Maximum Working Pressure (psi): 6300

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Alternator

• Primary Fluid Heater Included: Yes

GG XM7M0E

XM SPRAYER SYSTEM, XM70, R, 240, JB, WP, E

XM70 Skid System, Non-Hazardous, With Electric Heated Hose, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM7M0W

XM SPRAYER SYSTEM, XM70, R, 240, JB, WP, W

XM70 Skid System, Non-Hazardous, With Water Jacketed Hose, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM7M2E

XM SPRAYER SYSTEM, XM70, R, 240, JB, WP, 25, E

XM70s Skid System, Non-Hazardous, With Electric Heated Hose and 25 Gallon Heated Hoppers, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM7M2W

XM SPRAYER SYSTEM, XM70, R, 240, JB, WP, 25, W

XM70s Skid System, Non-Hazardous, With Water Jacketed Hose and 25 Gallon Heated Hoppers, 240V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XM7N00

XM SPRAYER SYSTEM, XM70, R, IS

XM70 Skid System, Hazardous Location, Bare Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

GG XMAA00

Xm Sprayer System Xm, Oem, Wp

GG XMAD00

Xm Sprayer System Xm, Oem

GG XMBA00

Xm Sprayer System Xm, Oem, Wp, R

GG XMBD00

Xm Sprayer System Xm, Oem, R

GG XMEA00

XM SPRAYER SYSTEM XM50, OEM, BF, WP

Airless Plural Component XM50 System with Control Box Wall Power Supply, Reducer Nipple & Reducer Bushing

Precise ratio assurance in a fully configurable system. Engineered to handle the toughest protective coatings, the Graco XM Plural-Component Sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. At the heart of the ratio control is Graco's advanced dosing technology. The major component is constantly flowing while the minor component is injected at higher pressures. Advanced sensing technology allows pumps to compensate for pressure fluctuations, resulting in accurate, on-ratio mixing for better yield and less waste. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Start with a base unit. Then select the accessories you need. You get exactly what you need. No more. No less.

High-pressure equipment for protective coatings New dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity Allows for easy crane transport with eye hooks on air motors Variable ratio system - handles material ratios from 1:1 to 10:2

GG XMED00

Xm Sprayer System Xm50, Oem, Bf

GG XMFA00

Xm Sprayer System Xm50, Oem, Nf, Wp

GG XMFD00

Xm Sprayer System Xm50, Oem, Nf

GG XMGA00

XM SPRAYER SYSTEM XM70, OEM, BF, WP

Airless Plural Component XM70 System with Control Box Wall Power Supply & Pump Filter Screen

Precise ratio assurance in a fully configurable system. Engineered to handle the toughest protective coatings, the Graco XM Plural-Component Sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. At the heart of the ratio control is Graco's advanced dosing technology. The major component is constantly flowing while the minor component is injected at higher pressures. Advanced sensing technology allows pumps to compensate for pressure fluctuations, resulting in accurate, on-ratio mixing for better yield and less waste. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Start with a base unit. Then select the accessories you need. You get exactly what you need. No more. No less.

High-pressure equipment for protective coatings New dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity Allows for easy crane transport with eye hooks on air motors Variable ratio system - handles material ratios from 1:1 to 10:2

GG XMGD00

Xm Sprayer System Xm70, Oem, Bf

GG XMHA00

Xm Sprayer System Xm70, Oem, Nf, Wp

GG XMHD00

XM SPRAYER SYSTEM XM70, OEM, NF

Graco XMHD00 Airless Plural Component XM70 System with Control Box IS/Alternator & Reducer Nipple

Precise ratio assurance in a fully configurable system. Engineered to handle the toughest protective coatings, the Graco XM Plural-Component Sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. At the heart of the ratio control is Graco's advanced dosing technology. The major component is constantly flowing while the minor component is injected at higher pressures. Advanced sensing technology allows pumps to compensate for pressure fluctuations, resulting in accurate, on-ratio mixing for better yield and less waste. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Start with a base unit. Then select the accessories you need. You get exactly what you need. No more. No less.

Application: High-pressure equipment for protective coatings

• New dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display of ratio
• USB port lets you easily access and download historical spraying data
• Allows for easy crane transport with eye hooks on air motors
• Variable ratio system - handles material ratios from 1:1 to 10:3

• Series: XM70 OEM
• 20 gal Heated Hopper Method: None

• Air Inlet Size (cm): 1.905
• Air Inlet Size (in): 3/4
• Air Inlet Size (mm): 19.05
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: Urethane, Two-Component Epoxy

• Component Type: Plural-Component
• Configuration: Bare

• Feed Pumps: None

• Fluid Inlet Size (cm): 3.175
• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Size (mm): 31.75
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Flush Type: Solvent

• Includes: (2) Air Motors, (2) Lowers, (3) Air Hoses

• Location Category: Hazardous Location

• Material Application: Paints, Primers

• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100 psi
• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (cc/min): 11360

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature (°C): 57
• Maximum Operating Temperature (°F): 135

• Maximum Working Pressure (bar): 435
• Maximum Working Pressure (kPa): 43500
• Maximum Working Pressure (MPa): 43.5
• Maximum Working Pressure (psi): 6300

• Minimum Flow Rate (cc/min): 950
• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Fluid Viscosity (cP): 200
• Minimum Mix Ratio: 1:1

• Power Source: Electric

• Primary Fluid Heater Included: No
• Product Type: Plural Component

GG XNH55D

XDX SERIES 20 REEL, HOSE

XDX™ 20, Grease, 3/8 in (10 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, No Guide Arms, Black Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications. Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

GG XR2929

Kit, Mix Module, Rnd, Polyurea

GG XR3535

Kit, Mix Module, Rnd, Polyurea

GG XR4747

Kit, Mix Module, Rnd, Polyurea

GG XR5757

Kit, Mix Module, Rnd, Polyurea

GG XTR520

XTR+ GUN, XTR5+, 1"HND, 4FNG, NO TIP

XTR5+ Airless Spray Gun, Round Handle, 4-Finger Trigger, No Tip New look. New features. A self-locking needle design offers unmatched ease of breaking down for cleaning or rebuilds. Paired with a new look, you'll never think twice about grabbing the correctly pressure rated XTR+ gun for your Graco sprayer. Designed to conquer the toughest protective coatings. Self-locking needle design for faster rebuilds XHD Tip Guard compatible with XHD RAC tips Easily remove and clean gun filter with trigger guard integrated wrench XTR5+ maximum fluid pressure: 5000psi (345 bar, 34.5 MPa)

GG XTR525

Xtr+ Gun, Xtr5+, 1In Hnd, 2Fng, Xhdrac

GG XTR714

Xtr+ Gun, Xtr7-Hf, 1InHnd, 4Fng, Xhdrac

GG XWDMC1

Kit, Accessory, Tip

GG Y06AG0

E-FLO DCI PUMP, 3HP1-48D0-1000SS-G-N-0

E-Flo DCi 2-Ball Electric Pump, 6:1, 1000cc, 3 HP, Stainless Steel Construction, Advanced Controls, No Stand Dual control (DC) supply pump with intelligence (i) has a 1000 cc volume per cycle range. The 2-ball lower attains a 6:1 equivalent pressure ratio. Electric piston pump supplies paints and coatings for automotive manufacturing, as well as architecture, agriculture, transportation and other industries. Modular 3 horse power (HP) motor enables the easy replacement of existing Graco pneumatic or hydraulic pump motors. Three-phase electric motor has an input voltage of 380 to 480 VAC (volts alternating current). DCi Link™ connects via ethernet to your factory’s PLC (programmable logic controller), simplifying integration and truly making your pump intelligent. Advanced controls integrates easily with intrinsically safe input/output (IO). Dual control (DC) allows operation in flow mode for constant circulation or pressure mode for dynamic speed adjustments, whatever your project entails. ATEX, IECEx, JPNEx, CCCEx, and KCS certifications confirm safe operation worldwide. Wetted section has stainless steel construction for durability.

GG Y06AG1

PUMP, 3HP1-48D0-1000SS-G-S-0

E-Flo DCi 2-Ball Electric Pump, 6:1, 1000cc, 3 HP, Stainless Steel Construction, Advanced Controls, Stand/Wall Mount Dual control (DC) supply pump with intelligence (i) has a 1000 cc volume per cycle range. The 2-ball lower attains a 6:1 equivalent pressure ratio. Electric piston pump supplies paints and coatings for automotive manufacturing, as well as architecture, agriculture, transportation and other industries. Modular 3 horse power (HP) motor enables the easy replacement of existing Graco pneumatic or hydraulic pump motors. Three-phase electric motor has an input voltage of 380 to 480 VAC (volts alternating current). DCi Link™ connects via ethernet to your factory’s PLC (programmable logic controller), simplifying integration and truly making your pump intelligent. Advanced controls integrates easily with intrinsically safe input/output (IO). Floor/Wall stand has compact footprint with a space-saving vertical design. Dual control (DC) allows operation in flow mode for constant circulation or pressure mode for dynamic speed adjustments, whatever your project entails. ATEX, IECEx, JPNEx, CCCEx, and KCS certifications confirm safe operation worldwide. Wetted section has stainless steel construction for durability.

GG Y06AK0

E-FLO DCI PUMP, 3HP1-48D0-1000CS-K-N-0

E-Flo DCi 2-Ball Electric Pump, 6:1, 1000cc, 3 HP, Carbon Steel Construction, Advanced Controls, No Stand Dual control (DC) supply pump with intelligence (i) has a 1000 cc volume per cycle range. The 2-ball lower attains a 6:1 equivalent pressure ratio. Electric piston pump supplies paints and coatings for automotive manufacturing, as well as architecture, agriculture, transportation and other industries. Modular 3 horse power (HP) motor enables the easy replacement of existing Graco pneumatic or hydraulic pump motors. Three-phase electric motor has an input voltage of 380 to 480 VAC (volts alternating current). DCi Link™ connects via ethernet to your factory’s PLC (programmable logic controller), simplifying integration and truly making your pump intelligent. Advanced controls integrates easily with intrinsically safe input/output (IO). Dual control (DC) allows operation in flow mode for constant circulation or pressure mode for dynamic speed adjustments, whatever your project entails. ATEX, IECEx, JPNEx, CCCEx, and KCS certifications confirm safe operation worldwide. Wetted section has cost-effective carbon steel construction.

GG Y06AK1

E-FLO DCI PUMP, 3HP1-48D0-1000CS-K-S-0

E-Flo DCi 2-Ball Electric Pump, 6:1, 1000cc, 3 HP, Carbon Steel Construction, Advanced Controls, Stand/Wall Mount Dual control (DC) supply pump with intelligence (i) has a 1000 cc volume per cycle range. The 2-ball lower attains a 6:1 equivalent pressure ratio. Electric piston pump supplies paints and coatings for automotive manufacturing, as well as architecture, agriculture, transportation and other industries. Modular 3 horse power (HP) motor enables the easy replacement of existing Graco pneumatic or hydraulic pump motors. Three-phase electric motor has an input voltage of 380 to 480 VAC (volts alternating current). DCi Link™ connects via ethernet to your factory’s PLC (programmable logic controller), simplifying integration and truly making your pump intelligent. Advanced controls integrates easily with intrinsically safe input/output (IO). Floor/Wall stand has compact footprint with a space-saving vertical design. Dual control (DC) allows operation in flow mode for constant circulation or pressure mode for dynamic speed adjustments, whatever your project entails. ATEX, IECEx, JPNEx, CCCEx, and KCS certifications confirm safe operation worldwide. Wetted section has cost-effective carbon steel construction.
