GRACO INC. S10595

GG 17L550

Fitting, 6 Mm Tube X M10 Male

GG 17L555

Gasket, Pressure Pot, Viton

GG 17L559

Fitting, Tube, 90 Elbow, 1/4 Od

GG 17L565

Sleeve, Durawrap Velcro

GG 17L616

Gear Reducer, 24.88:1 Nema

GG 17L626

Valve, Ball, 1/2 Npt, Brass

GG 17L627

Fitting, Elbow, 1/2 X 1/2 Nptf, Cs

GG 17L628

Meter, Flow, B, Assy

GG 17L629

Meter, Flow, A, Assy

GG 17L631

Kit, Manifold, Unequal-Tee

GG 17L632

Kit, T-Handle, Pop-Up, Eq2

GG 17L635

Kit, Bracket, Pop-Up Ring

GG 17L647

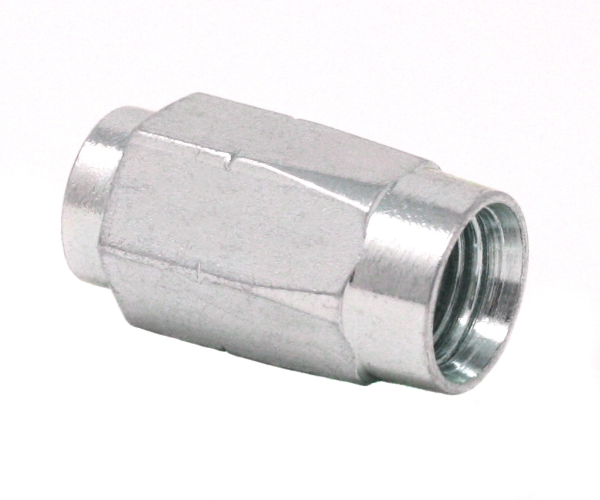

SLEEVE, HOSE

Hose Sleeve - 1/8 inch ID For use with CSP Valves.

Hose Sleeve, 1/8 inch ID

GG 17L648

Sleeve, Hose

GG 17L649

Stud, Straight

GG 17L650

Stud, Elbow

GG 17L651

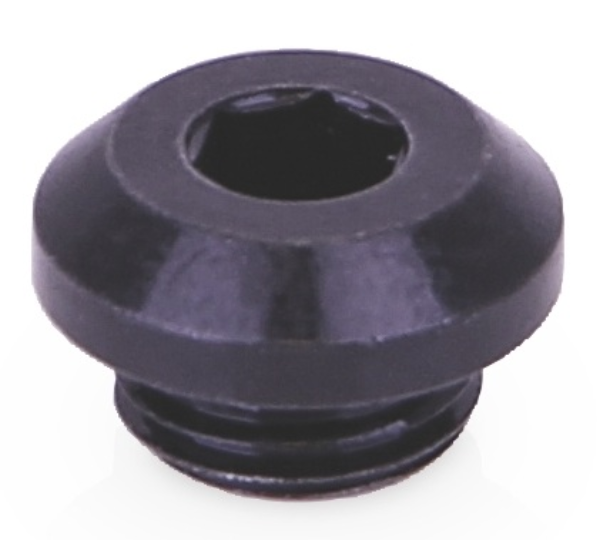

PLUG, DOUBLING, CSP, M10X1

CSP Valves - Plug, Doubling, M10 x 1 For use with CSP Valves.

Outlet Doubling Plug, 3000 psi (20.68 MPa, 206.8 bar)

GG 17L652

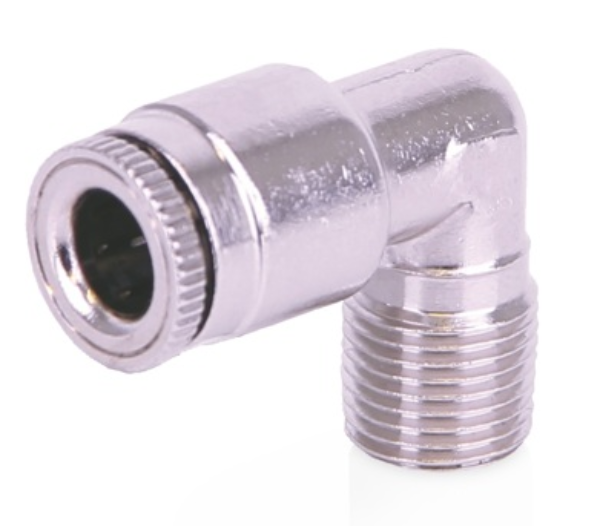

FITTING, PTC, 1/4", ELBOW, W/ 1/8 NPT

CSP Lubrication Point Fitting - Push-To-Connect Stud - 1/4 inch OD Tube x 1/8 inch NPT male 90°, 625 psi For use with CSP Valves.

Push-to-Connect Fitting

1/4 inch OD tube x 1/8 inch NPT male 90°, 625 psi (4.31 MPa, 43.1 bar)

GG 17L653

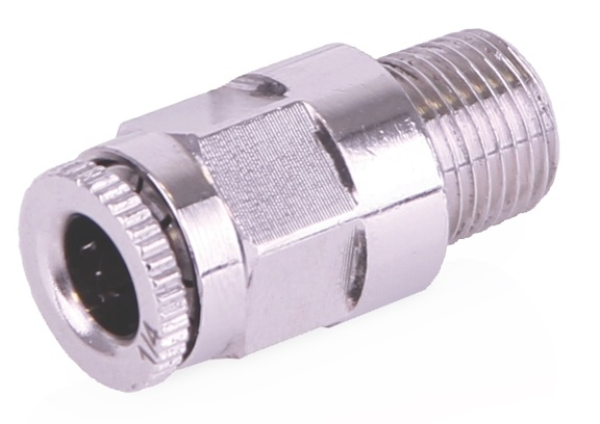

FITTING, PTC, 1/4", W/ 1/8 NPT

CSP Lubrication Point Fitting - Push-To-Connect Stud - 1/4 inch OD tube x 1/8 inch NPT male straight, 625 psi For use with CSP Valves.

Push-to-Connect Fitting

1/4 inch OD tube x 1/8 inch NPT male straight, 625 psi (4.31 MPa, 43.1 bar)

GG 17L656

Fitting, Adapter, 8Jicx12Jic Flange

GG 17L703

Bracket, Shelf, D60, 3400/6500, Paint

GG 17L724

Flash Drive, Usb, 2.0

GG 17L754

Kit, Dust Cap Gl-1 X

GG 17L755

Kit, Dust Cap Gl-1 Xl

GG 17L829

Belt, Vee, Gripnotch, Ax43

GG 17L843

Strainer, 80 Mesh

GG 17L844

Cable, Meter, Flow, Dual, Lcm

GG 17L845

Regulator, Electronic, Pressure

GG 17L850

Kit, Repair, Gca, Lcm, Ratio Control

GG 17L851

KIT, CONTROL, RATIO, LCM

Graco 17L851 Ratio Control Kit with Meters, Display, Pressure Regulator, Remote Alarm & Mounting Bracket

Low pressure (LP) spray foam systems play an instrumental role to an insulation contractor. LP systems are typically portable, convenient, and at times a more cost effective solution than sending out a high pressure rig. LP systems are ideal for some small, touch-up and repair jobs, as well as some in-plant foam applications.

Application: For Refillable Low Pressure Spray Foam Systems

• Model: In:Pulse

• Includes: Meters, Display, Pressure Regulator, Remote Alarm, Mounting Bracket

• Pressure Type: Low Pressure

GG 17L852

Strainer, Line

GG 17L856

O-Ring, Fx75, 206

GG 17L859

Valve, Relief, Pressure

GG 17L860

Ball, Sponge, 60Mm

GG 17L873

Fitting, Nipple, #4Jic X 1/8Mnpt

GG 17L875

Fitting, Nipple, #4Fjic X 1/8Mnpt

GG 17L881

SWITCH, PROXIMITY ADAPT, 1 3/8-16

Proximity Switch, 1 3/8-16, 6000 psi (413.7 bar)

Magnetically-operated sensing devices for sending system data to the controller or PLC.

Available in 115 VAC or 12-32 VDC Available for all series progressive families to provide cycle rates up to 200 CPM Pressure ratings up to 10,000 psi (690 bar) Variety of electrical connections and voltages with or without LED indication Select models available with UL and CSA approvals

GG 17L882

Control, Volume, Pressure

GG 17L888

Nozzle, Needle, 10Ga

GG 17L891

Impulse Hose, Set, Heated, 3/8A 3/8B Buzr

GG 17L892

Impulse Hose, Set, Heated, 3/8A 1/2B Buzr

GG 17L893

Impulse Hose, Set, Unhted, 3/8A 3/8B Buzr

GG 17L894

Impulse Hose, Set, Unhted, 3/8A 1/2B Buzr

GG 17L897

Tie, Cable, Locking, Sst

GG 17L898

Fitting, Reducer, -8 Jic X -4 Jic

GG 17L899

Fitting, Reducer, -10 Jic X -4 Jic

GG 17L927

Plug, Red Alert Filter

GG 17L941

Kit, Hose Repair 1/8

GG 17L942

Kit, Hose Repair 1/4

GG 17L945

Adapter, Flange To 1 1/8-16

GG 17L955

Fitting, Adapter, 8 Jic X 1/2Npt, M

GG 17M072

Retainer, Spring, 316 Sst

GG 17M075

Ball, .312, 316 Sst

GG 17M077

Housing, Regulator, 17-4 Sst

GG 17M078

Spring, Compression, 17-7 Sst

GG 17M080

Housing, Base, 316 Sst

GG 17M081

Seat, Valve, 17-4 Sst

GG 17M093

Cup, Wet, Bellows, 100Cc, 316 Sst

GG 17M099

Cable, Gca, M8, 4Pin, M/F, 15M

GG 17M103

Bracket, Painted

GG 17M132

Airlessco Sprayer, Mp455, Stand

GG 17M133

Airlessco Sprayer, Mp455, Hiboy

GG 17M134

Airlessco Sprayer, Lp555, Stand

GG 17M136

Airlessco Sprayer, Lp555, Loboy

GG 17M135

Airlessco Sprayer, Lp555, Hiboy

GG 17M137

Airlessco Sprayer, Lp655, Stand

GG 17M138

Airlessco Sprayer, Lp655, Hiboy

GG 17M139

Airlessco Sprayer, Lp655, Loboy

GG 17M144

Kit, Repair, Meter, Flow, B

GG 17M146

Kit, Repair, Meter, Flow, A

GG 17M310

Housing, Drive, Gs950

GG 17M314

Housing, Clutch, Machined, Gs950

GG TE80-0023

Quantm Pump, Qtd-Alfc1Ppptpspta200

GG TE80-0026

Quantm Pump, Qtd-Alfc1Gegesppta100

GG TE80-0027

Quantm Pump, Qtd-Alfc1Ssspsppta100

GG TE80-0029

Quantm Pump, Qtd-Pvfc1Fkptpsptf200

GG TE80-0030

Quantm Pump, Qtd-Alfc1Pptptppta100

GG TE80-0031

Quantm Pump, Qtd-Ssfc1Tpactp--S100

GG TE80-0032

QUANTM PUMP, QTD-SSFC1GEGEGEPTS100

QUANTM i80, 1.5"NPT, Stainless Steel Electric Diaphragm Pump, 200-240 V, AL Center, GE Seat, GE Ball, GE Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The stainless-steel fluid section is designed to provide a high level of abrasion and corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this electric pump is an energy-saving workhorse that also delivers lower lifetime costs than less efficient pump technologies and is ideal for applications involving materials that are highly abrasive, paints, solvents or heated materials. This additional resilience means less downtime, which in turn provides a new opportunity to improve your bottom line. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• Powder-coated aluminum electric drive
• 240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
• Non-hazardous

Materials of Construction

• Stainless steel fluid section with NPT end port
• Internal components include Geolast® seat, Geolast® ball, Geolast® diaphragm and PTFE manifold o-ring

GG TE80-0033

Quantm Pump, Qtd-Ssfc1Spspsppts200

GG TE80-0035

QUANTM PUMP, QTD-SSFC1SSSDPSPTS100

QUANTM i80, 1.5"NPT, Stainless Steel Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, SD Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The stainless-steel fluid section is designed to provide a high level of abrasion and corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this electric pump is an energy-saving workhorse that also delivers lower lifetime costs than less efficient pump technologies and is ideal for applications involving materials that are highly abrasive, paints, solvents or heated materials. This additional resilience means less downtime, which in turn provides a new opportunity to improve your bottom line. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• Powder-coated aluminum electric drive
• 240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
• Non-hazardous

Materials of Construction

• Stainless steel fluid section with NPT end port
• Internal components include 316 stainless steel seat, 440C stainless steel ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

GG TE80-0034

Quantm Pump, Qtd-Alfc1Ssspsppta200

GG TE80-0036

QUANTM PUMP, QTD-ALFC1SSBNBNPTA100

QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, BN Ball, BN Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• Powder-coated aluminum electric drive
• 240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
• Non-hazardous

Materials of Construction

• Aluminum fluid section with NPT end port
• Internal components include 316 stainless steel seat, Buna-N ball, Buna-N diaphragm and PTFE manifold o-ring

GG TE80-0037

Quantm Pump, Qtd-Ssfc1Ppptpspts200

GG TE80-0038

Quantm Pump, Qtd-Alfc1Ppbnbnpta100

GG TE80-0039

Quantm Pump, Qtd-Alfc1Ssgegepta100

GG TE80-0040

Quantm Pump, Qtd-Alfc1Ssptpopta200

GG TE80-0041

Quantm Pump, Qtd-Alfc1Ssptpopta100

GG TE80-0042

Quantm Pump, Qtd-Alfc1Sssdsppta100

GG TE80-0043

Quantm Pump, Qtd-Ppfc1Ssptpsptp200

GG TE80-0045

Quantm Pump, Qtd-Ppfc1Pptptpptp200

GG TE80-0046

QUANTM PUMP, QTD-ALFC1SSSDPOPTA100

QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, SD Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• Powder-coated aluminum electric drive
• 240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
• Non-hazardous

Materials of Construction

• Aluminum fluid section with NPT end port
• Internal components include 316 stainless steel seat, 440C stainless steel ball, PTFE Overmold diaphragm and PTFE manifold o-ring

GG TE80-0047

Quantm Pump, Qtd-Ppfc1Ppfkfkptp200

GG TE80-0049

Quantm Pump, Qtd-Ssfc1Sssdpspts200

GG TE80-0050

Quantm Pump, Qtd-Ssfc1Fkptps--S100

GG TE80-0052

QUANTM PUMP, QTD-ALFC1PPSPSPPTA100

QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, PP Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• Powder-coated aluminum electric drive
• 240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
• Non-hazardous

Materials of Construction

• Aluminum fluid section with NPT end port
• Internal components include polypropylene seat, Santoprene ball, Santoprene diaphragm and PTFE manifold o-ring

GG TE80-0053

Quantm Pump, Qtd-Alfc1Ssgegepta200

GG TE80-0055

QUANTM PUMP, QTD-ALFC2SPSPSPPTA100

QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• Powder-coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and IEC 60320-C20 plug
• Non-hazardous

Materials of Construction

• Aluminum fluid section with NPT end port
• Internal components include Santoprene seat, Santoprene ball, Santoprene diaphragm and PTFE manifold o-ring

GG TE80-0054

Quantm Pump, Qtd-Alfc1Sptptppta100

GG TE80-0056

QUANTM PUMP, QTD-PPFC2SPSPSPPTP200

QUANTM i80, 1.5"Flange, Polypropylene Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Designed with a chemical-resistant polypropylene fluid section that provides high corrosion resistance, this groundbreaking electric pump is built to efficiently handle fluid transfer applications involving most chemicals and detergents, sump evacuation applications, as well as applications involving high and low pH materials. With up to 8x more continuous torque at low speeds than conventional motors, this powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• Powder-coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and IEC 60320-C20 plug
• Non-hazardous

Materials of Construction

• Polypropylene fluid section with end flange
• Internal components include Santoprene seat, Santoprene ball, Santoprene diaphragm and PTFE manifold o-ring
