Saniforce Aodd Pump, 3250Hs.Pp01Assassptpoep21

GG SP3B.0126

SANIFORCE AODD PUMP, 3250HS.PP01ASSASSPTPOEP21

Graco SP3B.0126 SaniForce 3250, 3" HS SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PO Diaphragms

Graco's SaniForce 3250, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 230 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.

3 inch sanitary pump with flow rates up to 230 gpm (870 lpm) and pressures up to 100 psi (6.9 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
Optional leak sensors notify users when processes may be compromised
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Pass solids up to 0.75 in. (19 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 3250 HS

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 3/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Sanitary

Ball Material: PTFE

Center Section Material: Polypropylene

Compatible Material: Edible Oil, Food, Personal Care

Compressor Required: Yes
Connection Type: Tri-Clamp

Diaphragm Material: PTFE/EPDM Overmold

Fluid Section Material: 316L Stainless Steel

For Use With: Food and Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: Center Port
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 290
Maximum Air Pressure (bar): 6.9

Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100

Maximum Cycle Rate (CPM): 190

Maximum Flow Rate (GPM): 230
Maximum Flow Rate (L/min): 870

Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100

$20,660.00

SANIFORCE AODD PUMP, 3150HS.PS01ASSAFL-SPEP21

GG SP3F.0008

SANIFORCE AODD PUMP, 3150HS.PS01ASSAFL-SPEP21

SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, SP Diaphragms Graco's SaniForce 3150, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 130 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 2.46 in. (62.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$16,030.00

SANIFORCE AODD PUMP, 3150HS.PS01ASSEFL-EOEP21

GG SP3F.0048

SANIFORCE AODD PUMP, 3150HS.PS01ASSEFL-EOEP21

SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, EO Diaphragms Graco's SaniForce 3150, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 130 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 2.46 in. (62.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$20,110.00

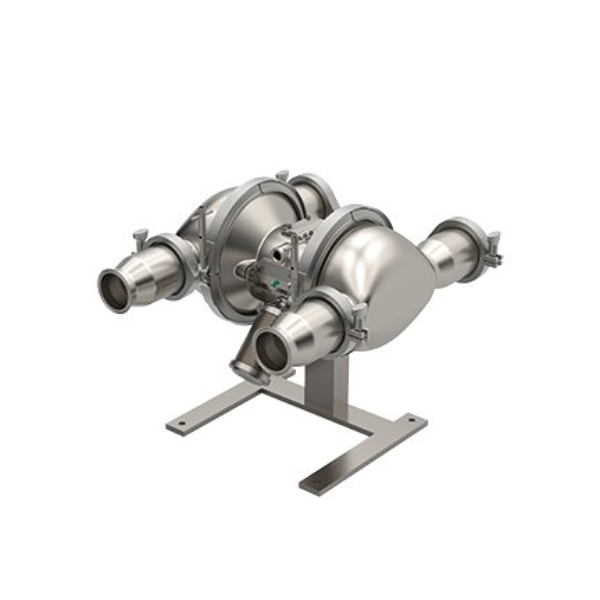

SANIFORCE AODD PUMP, 3150HS.PS01ASSAFL-POEP21

GG SP3F.0004

SANIFORCE AODD PUMP, 3150HS.PS01ASSAFL-POEP21

SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PO Diaphragms Graco's SaniForce 3150, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 130 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 2.46 in. (62.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$16,540.00

Saniforce Aodd Pump, 3250Ph.Pp03Assassepeoep31

GG SP3B.0107

SANIFORCE AODD PUMP, 3250PH.PP03ASSASSEPEOEP31

Graco SP3B.0107 SaniForce 3250, 3" PH SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, EP Balls, EO Diaphragms

3 inch sanitary pump with flow rates up to 230 gpm (870 lpm) and pressures up to 100 psi (6.9 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
Equipped with leak sensor to notify users when processes may be compromised
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Pass solids up to 0.75 in. (19 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 3150 PH

Application: Sanitary

Ball Material: EPDM

Center Section Material: Polypropylene

Compatible Material: Edible Oil, Food, Personal Care

Compressor Required: Yes
Connection Type: Tri-Clamp

Diaphragm Material: EPDM Overmold

Fluid Section Material: 316L Stainless Steel

For Use With: Food and Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: Center Port
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 3.1 (Serialized)

Maximum Air Consumption (SCFM): 290
Maximum Air Pressure (bar): 6.9

Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100

Maximum Cycle Rate (CPM): 190

Maximum Flow Rate (GPM): 230
Maximum Flow Rate (L/min): 870

Maximum Fluid Operating Temperature (Â°C): 121
Maximum Fluid Operating Temperature (Â°F): 250
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100

$24,030.00

Saniforce Aodd Pump, 3150Hs.Ps01Assefl-Poep21

GG SP3F.0052

SANIFORCE AODD PUMP, 3150HS.PS01ASSEFL-POEP21

Graco SP3F.0052 SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PO Diaphragms

Graco's SaniForce 3150, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 130 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 2.46 in. (62.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 3150 HS

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Sanitary

Ball Material: 316 Stainless Steel Flapper

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food, Personal Care

Compressor Required: Yes
Connection Type: Tri-Clamp

Diaphragm Material: PTFE/EPDM Overmold

Fluid Section Material: 316L Stainless Steel

For Use With: Food, Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: Center Port Wye
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 220
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 180

Maximum Flow Rate (GPM): 130
Maximum Flow Rate (L/min): 492

Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

$20,340.00

SANIFORCE AODD PUMP, 3150HS.PS01ASSEFL-SPEP21

GG SP3F.0056

SANIFORCE AODD PUMP, 3150HS.PS01ASSEFL-SPEP21

$19,070.00

SANIFORCE AODD PUMP, 3150HS.PS01ASSAFL-FKFK21

GG SP3F.0002

SANIFORCE AODD PUMP, 3150HS.PS01ASSAFL-FKFK21

SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, FK Diaphragms Graco's SaniForce 3150, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 130 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 3 inch sanitary pump with flow rates up to 130 gpm (568 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 2.46 in. (62.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$16,610.00

Saniforce Aodd Pump, 3150Hs.Ps01Assgfl-Poep21

GG SP3F.0076

SANIFORCE AODD PUMP, 3150HS.PS01ASSGFL-POEP21

Graco SP3F.0076 SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PO Diaphragms

3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 2.46 in. (62.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 3150 HS

Application: Sanitary

Ball Material: 316 Stainless Steel Flapper

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food, Personal Care

Compressor Required: Yes
Connection Type: No Manifold

Diaphragm Material: PTFE/EPDM Overmold

Fluid Section Material: 316L Stainless Steel

For Use With: Food, Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: Dual Inlet/Outlet
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 220
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 180

Maximum Flow Rate (GPM): 130
Maximum Flow Rate (L/min): 492

Maximum Solid Size (cm): 6.25
Maximum Solid Size (in): 2.46
Maximum Solid

$12,570.00

SANIFORCE AODD PUMP, 3150HS.PSP1ASSEFL-PSEP21

GG SP3F.0054

SANIFORCE AODD PUMP, 3150HS.PSP1ASSEFL-PSEP21

SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PS Diaphragms Graco's SaniForce 3150, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 130 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 2.46 in. (62.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$19,980.00

Saniforce Aodd Pump, 3150Hs.Ps01Assgfl-Eoep21

GG SP3F.0072

SANIFORCE AODD PUMP, 3150HS.PS01ASSGFL-EOEP21

Graco SP3F.0072 SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, EO Diaphragms

3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 2.46 in. (62.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 3150 HS

Application: Sanitary

Ball Material: 316 Stainless Steel Flapper

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food, Personal Care

Compressor Required: Yes
Connection Type: No Manifold

Diaphragm Material: EPDM Overmold

Fluid Section Material: 316L Stainless Steel

For Use With: Food, Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: Dual Inlet/Outlet
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 220
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 180

Maximum Flow Rate (GPM): 130
Maximum Flow Rate (L/min): 492

Maximum Fluid Operating Temperature (Â°C): 121
Maximum Fluid Operating Temperature (Â°F): 250
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

Maximum Solid Size (cm): 6.25
Maximum Solid Size (in): 2.46
Maximum Solid Size (mm

$12,350.00

Saniforce Aodd Pump, 3150Hs.Psp1Assgfl-Psep21

GG SP3F.0078

SANIFORCE AODD PUMP, 3150HS.PSP1ASSGFL-PSEP21

Graco SP3F.0078 SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PS Diaphragms

3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 2.46 in. (62.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 3150 HS

Application: Sanitary

Ball Material: 316 Stainless Steel Flapper

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food, Personal Care

Compressor Required: Yes
Connection Type: No Manifold

Diaphragm Material: PTFE/Santoprene 2-Piece

Fluid Section Material: 316L Stainless Steel

For Use With: Food, Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: Dual Inlet/Outlet
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 220
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 180

Maximum Flow Rate (GPM): 130
Maximum Flow Rate (L/min): 492

Maximum Solid Size (cm): 6.25
Maximum Solid Size (in): 2.46
Maximum Solid Size (mm): 62.5

Minimum Fluid Operating Temperature (Â°C): -40
Minimum Fluid Operating Temperature (Â°F): -40

$12,250.00

Lsr Pump, Packing Nut

GG SP401010

Lsr Pump, Packing Nut

$615.00

SANIFORCE AODD PUMP, 3150HS.PS01ASSGFL-SPEP21

GG SP3F.0080

SANIFORCE AODD PUMP, 3150HS.PS01ASSGFL-SPEP21

SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, SP Diaphragms Graco's SaniForce 3150, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 130 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 2.46 in. (62.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$12,050.00

Saniforce Aodd Pump, 3150Hs.Ps01Assafl-Bnbn21

GG SP3F.0084

SANIFORCE AODD PUMP, 3150HS.PS01ASSAFL-BNBN21

Graco SP3F.0084 SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, BN Diaphragms

3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 2.46 in. (62.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 3150 HS

Application: Sanitary

Ball Material: 316 Stainless Steel Flapper

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food, Personal Care

Compressor Required: Yes
Connection Type: Tri-Clamp

Diaphragm Material: Buna-N

Fluid Section Material: 316L Stainless Steel

For Use With: Food and Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: Center Port
Manifold O-Ring Material: Buna
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 220
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 180

Maximum Flow Rate (GPM): 130
Maximum Flow Rate (L/min): 492

Maximum Solid Size (cm): 6.25
Maximum Solid Size (in): 2.46
Maximum Solid Size (mm): 62.5

$15,680.00

Lsr Pump, Female Packing Gland

GG SP401005

GG SP401005
Lsr Pump, Female Packing Gland

$190.00

Lsr Pump, Piston Washer

GG SP401006

GG SP401006
Lsr Pump, Piston Washer

$103.50

Saniforce Aodd Pump, 3150Hs.Ps01Assgfl-Bnbn21

GG SP3F.0096

GG SP3F.0096
SANIFORCE AODD PUMP, 3150HS.PS01ASSGFL-BNBN21
Graco SP3F.0096 SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, BN Diaphragms
Graco's SaniForce 3150, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 130 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 2.46 in. (62.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 3150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: No Manifold
Diaphragm Material: Buna-N
Fluid Section Material: 316L Stainless Steel
For Use With: Food and Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Dual Inlet/Outlet
Manifold O-Ring Material: Buna
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 220
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 180
Maximum Flow Rate (GPM): 130
Maximum Flow Rate (L/min): 492
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 6.25
Maximum Solid Size (in): 2.46
Maximum Solid Size (mm): 62.5
Minimum Fluid Operating Temperature (Â°C): -12
Minimum Fluid Operating Temperature (Â°F): 10
Overall

$12,960.00

Lsr Pump, Bushing

GG SP401009

GG SP401009
Lsr Pump, Bushing

$230.00

Lsr Pump, Male Packing Gland

GG SP401004

GG SP401004
Lsr Pump, Male Packing Gland

$330.00

Saniforce Aodd Pump, 3150Hs.Ps01Assefl-Bnbn21

GG SP3F.0092

GG SP3F.0092
SANIFORCE AODD PUMP, 3150HS.PS01ASSEFL-BNBN21
Graco SP3F.0092 SaniForce 3150, 3" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, BN Diaphragms
Graco's SaniForce 3150, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 130 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
3 inch sanitary pump with flow rates up to 130 gpm (492 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 2.46 in. (62.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 3150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: Tri-Clamp
Diaphragm Material: Buna-N
Fluid Section Material: 316L Stainless Steel
For Use With: Food and Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Center Port Wye
Manifold O-Ring Material: Buna
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 220
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 180
Maximum Flow Rate (GPM): 130
Maximum Flow Rate (L/min): 492
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 6.25
Maximum Solid Size (in): 2.46
Maximum Solid Size (mm): 62.5
<

$18,590.00

Lsr Pump, Catalyst Pump Inlet

GG SP401014

GG SP401014
Lsr Pump, Catalyst Pump Inlet

$370.00

Plate, Stop

GG SP433012

GG SP433012
Plate, Stop

$505.00

Seat, Valve, intake

GG SP433016

GG SP433016
Seat, Valve, Intake

$245.00

Lsr Pump, Washer

GG SP401015

GG SP401015
Lsr Pump, Washer

$155.00

Cylinder, B200, B240 Pumps

GG SP433004

GG SP433004
Cylinder, B200, B240 Pumps

$685.00

Bushing, Pump, B200, B240 Medical

GG SP434004

GG SP434004
Bushing, Pump, B200, B240 Medical

$305.00

Housing, Packing, B200, B240 indust

GG SP433005

GG SP433005
Housing, Packing, B200, B240 Indust

$350.00

Nut, Packing

GG SP434006

GG SP434006
Nut, Packing

$84.00

Cylinder, Abr, 442, 443

GG SP437005

GG SP437005
Cylinder, Abr, 442, 443

$1,335.00

Seat, Adapter

GG SP437006

GG SP437006
Seat, Adapter

$96.00

Plate, intake, Med

GG SP434012

GG SP434012
Plate, Intake, Med

$215.00

Housing, Packing

GG SP438001

GG SP438001
Housing, Packing

$460.00

Bearing, Piston

GG SP443003

GG SP443003
Bearing, Piston

$39.00

Bushing, intake, Med

GG SP434011

GG SP434011
Bushing, Intake, Med

$39.00

Block, Seal Plate

GG SP440003

GG SP440003
Block, Seal Plate

$265.00

Spacer, Piston

GG SP443004

GG SP443004
Spacer, Piston

$245.00

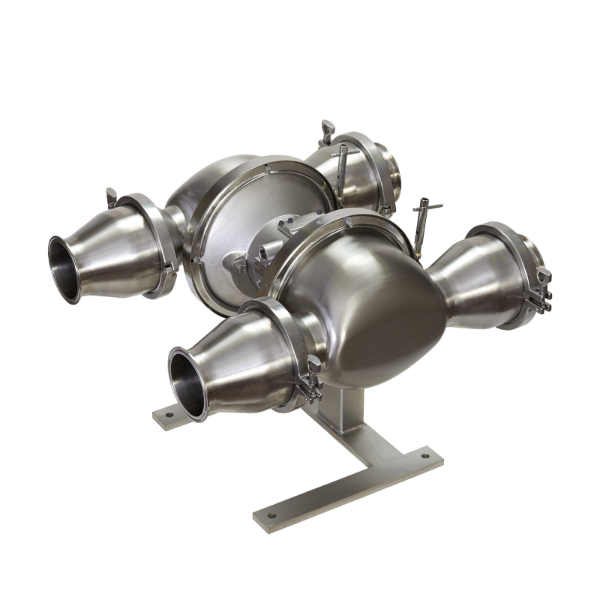

Saniforce Aodd Pump, 4150Hs.Ps01Assgfl-Eoep21

GG SP4F.0048

GG SP4F.0048
SANIFORCE AODD PUMP, 4150HS.PS01ASSGFL-EOEP21
Graco SP4F.0048 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, EO Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: No Manifold
Diaphragm Material: EPDM Overmold
Fluid Section Material: 316L Stainless Steel
For Use With: Food, Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Dual Inlet/Outlet
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 121
Maximum Fluid Operating Temperature (Â°F): 250
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 121
Maximum Fluid Operating Temperature (Â°F): 250
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 9.65
Maximum Solid Size (in): 3.8
Maximum Solid Size (mm):

$15,330.00

Saniforce Aodd Pump, 4150Hs.Psp1Assefl-Psep21

GG SP4F.0030

GG SP4F.0030
SANIFORCE AODD PUMP, 4150HS.PSP1ASSEFL-PSEP21
Graco SP4F.0030 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PS Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: Tri-Clamp
Diaphragm Material: PTFE/Santoprene 2-Piece
Fluid Section Material: 316L Stainless Steel
For Use With: Food, Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Center Port Wye
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 9.65
Maximum Solid Size (in): 3.8
Maximum Solid Size (mm): 96.5
<

$24,180.00

SANIFORCE AODD PUMP, 4150HS.PS01ASSAFL-EOEP21

GG SP4F.0000

GG SP4F.0000
SANIFORCE AODD PUMP, 4150HS.PS01ASSAFL-EOEP21
SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, EO Diaphragms Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 3.8 in. (96.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$23,250.00

SANIFORCE AODD PUMP, 4150HS.PS01ASSEFL-SPEP21

GG SP4F.0032

GG SP4F.0032
SANIFORCE AODD PUMP, 4150HS.PS01ASSEFL-SPEP21
SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, SP Diaphragms Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 3.8 in. (96.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$24,030.00

Saniforce Aodd Pump, 4150Hs.Psp1Assafl-Psep21

GG SP4F.0006

GG SP4F.0006
SANIFORCE AODD PUMP, 4150HS.PSP1ASSAFL-PSEP21
Graco SP4F.0006 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PS Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: Tri-Clamp
Diaphragm Material: PTFE/Santoprene 2-Piece
Fluid Section Material: 316L Stainless Steel
For Use With: Food, Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Center Port
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 9.65
Maximum Solid Size (in): 3.8
Maximum Solid Size (mm): 96.5

$23,130.00

Saniforce Aodd Pump, 4150Hs.Ps01Assefl-Poep21

GG SP4F.0028

GG SP4F.0028
SANIFORCE AODD PUMP, 4150HS.PS01ASSEFL-POEP21
Graco SP4F.0028 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PO Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: Tri-Clamp
Diaphragm Material: PTFE/EPDM Overmold
Fluid Section Material: 316L Stainless Steel
For Use With: Food, Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Center Port Wye
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressu

$24,530.00

Saniforce Aodd Pump, 4150Hs.Ps01Assefl-Eoep21

GG SP4F.0024

GG SP4F.0024
SANIFORCE AODD PUMP, 4150HS.PS01ASSEFL-EOEP21
Graco SP4F.0024 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, EO Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: Tri-Clamp
Diaphragm Material: EPDM Overmold
Fluid Section Material: 316L Stainless Steel
For Use With: Food, Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Center Port Wye
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 121
Maximum Fluid Operating Temperature (Â°F): 250
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 121
Maximum Fluid Operating Temperature (Â°F): 250
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi)

$23,110.00

SANIFORCE AODD PUMP, 4150HS.PS01ASSAFL-SPEP21

GG SP4F.0008

GG SP4F.0008
SANIFORCE AODD PUMP, 4150HS.PS01ASSAFL-SPEP21
SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, SP Diaphragms Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 3.8 in. (96.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$22,960.00

Saniforce Aodd Pump, 4150Hs.Psp1Assgfl-Psep21

GG SP4F.0054

GG SP4F.0054
SANIFORCE AODD PUMP, 4150HS.PSP1ASSGFL-PSEP21
Graco SP4F.0054 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PS Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: No Manifold
Diaphragm Material: PTFE/Santoprene 2-Piece
Fluid Section Material: 316L Stainless Steel
For Use With: Food, Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Dual Inlet/Outlet
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 9.65
Maximum Solid Size (in): 3.8
Maximum Solid Size (mm): 96.5
Minimum Fluid Operating Temperature (Â°C): -40
Minimum Fluid Operating Temperature (Â°F): -40

$15,210.00

Saniforce Aodd Pump, 4150Hs.Ps01Assgfl-Bnbn21

GG SP4F.0072

GG SP4F.0072
SANIFORCE AODD PUMP, 4150HS.PS01ASSGFL-BNBN21
Graco SP4F.0072 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, BN Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: No Manifold
Diaphragm Material: Buna-N
Fluid Section Material: 316L Stainless Steel
For Use With: Food and Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Dual Inlet/Outlet
Manifold O-Ring Material: Buna
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 9.65
Maximum Solid Size (in): 3.8
Maximum Solid Size (mm): 96.5
Minimum Fluid Operating Temperature (Â°C): -12
Minimum Fluid Operating Temperature (Â°F): 10
Overall Heigh

$22,810.00

Saniforce Aodd Pump, 4150Hs.Ps01Assefl-Bnbn21

GG SP4F.0068

GG SP4F.0068
SANIFORCE AODD PUMP, 4150HS.PS01ASSEFL-BNBN21
Graco SP4F.0068 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, BN Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: Tri-Clamp
Diaphragm Material: Buna-N
Fluid Section Material: 316L Stainless Steel
For Use With: Food and Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Center Port Wye
Manifold O-Ring Material: Buna
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 9.65
Maximum Solid Size (in): 3.8
Maximum Solid Size (mm): 96.5

$23,840.00

Repair Kit, Twnmxr, 1:1, Hf, P/V, P/V

GG SPK-1201-00

GG SPK-1201-00
Repair Kit, Twnmxr, 1:1, Hf, P/V, P/V

$515.00

Saniforce Aodd Pump, 4150Hs.Ps01Assafl-Bnbn21

GG SP4F.0060

GG SP4F.0060
SANIFORCE AODD PUMP, 4150HS.PS01ASSAFL-BNBN21
Graco SP4F.0060 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, BN Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: Tri-Clamp
Diaphragm Material: Buna-N
Fluid Section Material: 316L Stainless Steel
For Use With: Food and Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Center Port
Manifold O-Ring Material: Buna
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 9.65
Maximum Solid Size (in): 3.8
Maximum Solid Size (mm): 96.5
Min

$23,260.00

Saniforce Aodd Pump, 4150Hs.Ps01Assgfl-Poep21

GG SP4F.0052

GG SP4F.0052
SANIFORCE AODD PUMP, 4150HS.PS01ASSGFL-POEP21
Graco SP4F.0052 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PO Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
316L stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

Model: SaniForce
Series: 4150 HS
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: 316 Stainless Steel Flapper
Center Section Material: Stainless Steel
Compatible Material: Edible Oil, Food, Personal Care
Compressor Required: Yes
Connection Type: No Manifold
Diaphragm Material: PTFE/EPDM Overmold
Fluid Section Material: 316L Stainless Steel
For Use With: Food, Personal Care
Hazardous Location Approval: ATEX, IECEx
Manifold Configuration: Dual Inlet/Outlet
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM): 235
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 225
Maximum Flow Rate (GPM): 90
Maximum Flow Rate (L/min): 340
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 9.65
Maximum Solid Size (in): 3.8
Maximum Solid Size

$15,560.00

SANIFORCE AODD PUMP, 4150HS.PS01ASSGFL-SPEP21

GG SP4F.0056

GG SP4F.0056
SANIFORCE AODD PUMP, 4150HS.PS01ASSGFL-SPEP21
SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, SP Diaphragms Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Flapper check enables passage of solids up to 3.8 in. (96.5 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$15,060.00

Repair Kit, Twnmxr, 10:1, P/V, Ep/Ep

GG SPK-1203-04

GG SPK-1203-04
Repair Kit, Twnmxr, 10:1, P/V, Ep/Ep

$540.00

Screw, Shoulder

GG SR630018

GG SR630018
Screw, Shoulder

$325.00

Kit, Repair, Snuffer, P, Ep, P/Ep

GG SPK-1211-02

GG SPK-1211-02
Kit, Repair, Snuffer, P, Ep, P/Ep

$255.00

Lsr Piston Rod

GG SR630007

GG SR630007
Lsr Piston Rod

$270.00

Washer, Piston, Dispence, 622-1A

GG SR620010

GG SR620010
Washer, Piston, Dispence, 622-1A

$103.50

Lsr Piston

GG SR630004

GG SR630004
Lsr Piston

$250.00

SANIFORCE PAIL UNLOADER SYSTEM, RAM, HYGIENIC

GG SPU.A01AAA1AA0C21

GG SPU.A01AAA1AA0C21
SANIFORCE PAIL UNLOADER SYSTEM, RAM, HYGIENIC
SaniForce Pail Unit, Stainless Steel Frame, 6:1 PP, PTFE Wiper Seal, Exposed Controls SaniForce Pail Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 1,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The overall system is able to accomodate 5 and 7 gallon (19 and 26 litre) pail sizes. High-pressure sanitary/hygienic container unloading for ingredients or products up to 1,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications

$20,950.00

Nose Piece

GG SR630001

GG SR630001
Nose Piece

$305.00

Lsr Valve, Modification Of 080325

GG SR655034

GG SR655034
Lsr Valve, Modification Of 080325

$200.00

Repair Kit, Snuffer, P/Ep

GG SPK-1210-02

GG SPK-1210-02
Repair Kit, Snuffer, P/Ep

$265.00

Nut, Drive, Rod, Pump, M4-5M

GG SR651027

GG SR651027
Nut, Drive, Rod, Pump, M4-5M

$145.00

Kit, Bulk Pack, Strainer 3/4

GG STR004

GG STR004
Kit, Bulk Pack, Strainer 3/4

Call for pricing

SANIFORCE PAIL UNLOADER SYSTEM, RAM, HYGIENIC

GG SPU.A01AAB1AA0C21

GG SPU.A01AAB1AA0C21
SANIFORCE PAIL UNLOADER SYSTEM, RAM, HYGIENIC
SaniForce Pail Unit, Stainless Steel Frame, 6:1 PP, Buna Wiper Seal, Exposed Controls SaniForce Pail Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 1,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The overall system is able to accomodate 5 and 7 gallon (19 and 26 litre) pail sizes. High-pressure sanitary/hygienic container unloading for ingredients or products up to 1,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications

$20,400.00

Feed Tank

GG ST803001

GG ST803001
Feed Tank

$160.00

Kit, Bulk Pack, Strainer 7/18

GG STR385

GG STR385
Kit, Bulk Pack, Strainer 7/18

Call for pricing

Insert, Shaft

GG SSP-142

GG SSP-142
Insert, Shaft

$145.00

Assembly, Mounting, Pump, Slave, Hybrid

GG SSP-160-XX

GG SSP-160-XX
Assy, Mounting, Pump, Slave, Hybrid

$1,335.00

Assembly, Pump, Slave, Mix, External

GG SSP-190-02

GG SSP-190-02
Assy, Pump, Slave, Mix, External

$6,570.00

Check-Mate Tandem Supply Unit, 63:1, Pxover, D60, 20L

GG TC1677

GG TC1677
Check-Mate Tandem Supply Unit, 63:1, Pxover, D60, 20L

$50,620.00

Check-Mate Tandem Supply Unit, 63:1, Xovr, 6.5, 200L

GG TC176S

GG TC176S
Check-Mate Tandem Supply Unit, 63:1, Xovr, 6.5, 200L

$79,390.00

Check-Mate Tandem Supply Unit, 63:1, Xovr, 6.5, 200L

GG TC186S

GG TC186S
Check-Mate Tandem Supply Unit, 63:1, Xovr, 6.5, 200L

$83,430.00

Check-Mate Tandem Supply Unit, 68:1, Exover, 3.0, 200L

GG TC2R6M

GG TC2R6M
CHECK-MATE TANDEM SUPPLY UNIT,68:1,EXOVER,3.0,200L
Graco TC2R6M 68:1 Ratio 200 L 3.0 RAM Tandem Supply Unit with EPDM Wiper Plate
Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.
For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

$74,470.00

Check-Mate Tandem Supply Unit, 36:1, Xovr, 3.0, 200L

GG TC2J2L

GG TC2J2L
Check-Mate Tandem Supply Unit, 36:1, Xovr, 3.0, 200L

$120,050.00

Check-Mate Tandem Supply Unit, 23:1, Pxover, 3.0, 200L

GG TC257A

GG TC257A
Check-Mate Tandem Supply Unit, 23:1, Pxover, 3.0, 200L

$83,140.00

Check-Mate Tandem Supply Unit, 38:1, Pxover, S20, 20L

GG TC8C73

GG TC8C73
Check-Mate Tandem Supply Unit, 38:1, Pxover, S20, 20L

$42,460.00

Check-Mate Tandem Supply Unit, 68:1, Exover, 6.5, 200L

GG TC2S6G

GG TC2S6G
CHECK-MATE TANDEM SUPPLY UNIT,68:1,EXOVER,6.5,200L

$89,700.00

QUANTM PUMP, QTE-ALFC1TPACTP-A100

GG TE120-0000

GG TE120-0000
QUANTM PUMP, QTE-ALFC1TPACTP-A100
QUANTM i120, 2"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, TP Seat, AC Ball, TP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Aluminum fluid section with NPT end port
Internal components include TPE (Hytrel) seat, acetal ball, TPE (Hytrel) diaphragm and TPE (Hytrel) manifold o-ring

$4,650.00

Check-Mate Tandem Supply Unit, 29:1, Exover, D60, 20L

GG TC3468

GG TC3468
Check-Mate Tandem Supply Unit, 29:1, Exover, D60, 20L

$75,460.00

Dura-Flo Tandem Supply Unit, 47:1, Pxover, 6.5, 200L

GG TDEM8R

GG TDEM8R
DURA-FLO TANDEM SUPPLY UNIT, 47:1, PXOVER, 6.5, 200L
Graco TDEM8R Tandem Supply Unit, Check-Mate, 47:1, Pneumatic Xover, 6.5 in. Ram, 200L, Single EPDM Wiper
Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.
For large drums up to 200 liter (55 gal)
Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 8.62
Maximum Air Inlet Pressure (kg/cmÂ²): 8.79
Maximum Air Inlet Pressure (kPa): 862
Maximum Air Inlet Pressure (psi): 125
Maximum Flow Rate (GPM): 6.9
Maximum Flow Rate (L/min): 26.1
Maximum Fluid Pressure (bar): 324.1
Maximum Fluid Pressure (kPa): 32410
Maximum Fluid Pressure (psi): 4700
Maximum Fluid Pressure (bar): 324.1
Maximum Fluid Pressure (kPa): 32410
Maximum Fluid Pressure (psi): 4700
Maximum Operating Temperature (Â°C): 49
Maximum Operating Temperature (Â°F): 120
Power Type: Pneumatic
Pump Ratio: 47:1
Pump Type: Double Ball
Ram Material: Carbon Steel

$109,590.00

Dura-Flo Tandem Supply Unit, 35:1, Pxover, 6.5, 200L

GG TDFL8R

GG TDFL8R
Dura-Flo Tandem Supply Unit, 35:1, Pxover, 6.5, 200L

$106,580.00

Check-Mate Tandem Supply Unit, 29:1, Exover, D60, 20L

GG TC3368

GG TC3368
Check-Mate Tandem Supply Unit, 29:1, Exover, D60, 20L

$70,610.00

QUANTM PUMP, QTE-ALFC1GEGEGEPTA100

GG TE120-0003

GG TE120-0003
QUANTM PUMP, QTE-ALFC1GEGEGEPTA100
QUANTM i120, 2"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, GE Seat, GE Ball, GE Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Aluminum fluid section with NPT end port
Internal components include Geolast® seat, Geolast® ball, Geolast® diaphragm and PTFE manifold o-ring

$4,680.00

QUANTM PUMP, QTE-PPFC1PPPTPSPTP200

GG TE120-0004

GG TE120-0004
QUANTM PUMP, QTE-PPFC1PPPTPSPTP200
QUANTM i120, 2"Flange, Polypropylene Electric Diaphragm Pump, 200-240 V, AL Center, PP Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Designed with a chemical-resistant polypropylene fluid section that provides high corrosion resistance, this groundbreaking electric pump is built to efficiently handle fluid transfer applications involving most chemicals and detergents, sump evacuation applications, as well as applications involving high and low pH materials. With up to 8x more continuous torque at low speeds than conventional motors, this powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Polypropylene fluid section with end flange
Internal components include polypropylene seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

$9,250.00

QUANTM PUMP, QTE-ALFC1SSPTPSPTA100

GG TE120-0006

GG TE120-0006
QUANTM PUMP, QTE-ALFC1SSPTPSPTA100
QUANTM i120, 2"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Aluminum fluid section with NPT end port
Internal components include 316 stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

$6,180.00

Quantm Pump, Qte-Alfc1Spspsppta200

GG TE120-0009

GG TE120-0009
Quantm Pump, Qte-Alfc1Spspsppta200

$4,680.00

Quantm Pump, Qte-Alfc1Bnbnbn-A200

GG TE120-0008

GG TE120-0008
Quantm Pump, Qte-Alfc1Bnbnbn-A200

$4,880.00

Quantm Pump, Qte-Alfc1Gegegepta200

GG TE120-0002

GG TE120-0002
Quantm Pump, Qte-Alfc1Gegegepta200

$4,680.00

QUANTM PUMP, QTE-CIFC1GEGEGEPTI100

GG TE120-0013

GG TE120-0013
QUANTM PUMP, QTE-CIFC1GEGEGEPTI100
QUANTM i120, 2"NPT, Cast Iron Electric Diaphragm Pump, 200-240 V, AL Center, GE Seat, GE Ball, GE Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Designed with a cast iron fluid section, this groundbreaking electric pump is built to efficiently handle many fluid transfer applications. With up to 8x more continuous torque at low speeds than conventional motors, this powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Cast iron fluid section with NPT end port
Internal components include Geolast® seat, Geolast® ball, Geolast® diaphragm and PTFE manifold o-ring

$6,390.00

Check-Mate Tandem Supply Unit, 68:1, Exover, 3.0, 200L

GG TC2S6M

GG TC2S6M
Check-Mate Tandem Supply Unit, 68:1, Exover, 3.0, 200L

$83,540.00

QUANTM PUMP, QTE-ALFC1SAPTPSPTA200

GG TE120-0011

GG TE120-0011
QUANTM PUMP, QTE-ALFC1SAPTPSPTA200
QUANTM i120, 2"BSPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Aluminum fluid section with BSPT end port
Internal components include 316 stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

$6,130.00

Quantm Pump, Qte-Alfc1Ppptpspta200

GG TE120-0010

GG TE120-0010
Quantm Pump, Qte-Alfc1Ppptpspta200

$5,360.00

QUANTM PUMP, QTE-ALFC1SASPSPPTA100

GG TE120-0016

GG TE120-0016
QUANTM PUMP, QTE-ALFC1SASPSPPTA100
QUANTM i120, 2"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Aluminum fluid section with NPT end port
Internal components include 316 stainless steel seat, Santoprene ball, Santoprene diaphragm and PTFE manifold o-ring

$5,090.00

Quantm Pump, Qte-Ssfc1Ppptpspts200

GG TE120-0020

GG TE120-0020
Quantm Pump, Qte-Ssfc1Ppptpspts200

$11,430.00

QUANTM PUMP, QTE-CIFC1SPSPSPPTI100

GG TE120-0021

GG TE120-0021
QUANTM PUMP, QTE-CIFC1SPSPSPPTI100
QUANTM i120, 2"NPT, Cast Iron Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Designed with a cast iron fluid section, this groundbreaking electric pump is built to efficiently handle many fluid transfer applications. With up to 8x more continuous torque at low speeds than conventional motors, this powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Cast iron fluid section with NPT end port
Internal components include Santoprene seat, Santoprene ball, Santoprene diaphragm and PTFE manifold o-ring

$6,390.00

QUANTM PUMP, QTE-ALFC1PPPTPSPTA100

GG TE120-0012

GG TE120-0012
QUANTM PUMP, QTE-ALFC1PPPTPSPTA100
QUANTM i120, 2"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, PP Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Aluminum fluid section with NPT end port
Internal components include polypropylene seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

$5,510.00

Quantm Pump, Qte-Alfc1Saacpspta100

GG TE120-0019

GG TE120-0019
Quantm Pump, Qte-Alfc1Saacpspta100

$5,570.00

Quantm Pump, Qte-Ssfc1Saptpspts200

GG TE120-0015

GG TE120-0015
Quantm Pump, Qte-Ssfc1Saptpspts200

$11,870.00

QUANTM PUMP, QTE-ALFC1SPPTSPPTA100

GG TE120-0022

GG TE120-0022
QUANTM PUMP, QTE-ALFC1SPPTSPPTA100
QUANTM i120, 2"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, PT Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric Motor
Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous
Materials of Construction
Aluminum fluid section with NPT end port
Internal components include Santoprene seat, PTFE ball, Santoprene diaphragm and PTFE manifold o-ring

$4,760.00
