GRACO INC. S10595

GG SDM6DF

SDX SERIES 20 REEL, HOSE

SDX™ 20, Oil, 1/2 in (13 mm) Inlet, Bare Reel (1/2 in X 50 ft (13 mm X 15 m) Capacity), NPT, Overhead Mount, Yellow Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look. Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm - Easily change the arm position for your application Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish - Baked-on enamel finish protects reel from corrosion

GG SDM6DB

SDX SERIES 20 REEL, HOSE

SDX™ 20, Oil, 1/2 in (13 mm) Inlet, Bare Reel (1/2 in X 50 ft (13 mm X 15 m) Capacity), NPT, Overhead Mount, Metallic Blue Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look. Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm - Easily change the arm position for your application Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish - Baked-on enamel finish protects reel from corrosion

GG SDM6HC

SDX SERIES 20 REEL, HOSE

SDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Tank/Bench Mount, Red Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look. Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm - Easily change the arm position for your application Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish - Baked-on enamel finish protects reel from corrosion

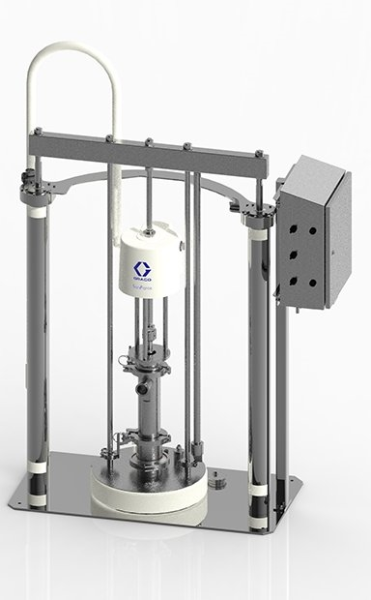

GG SDU.A02AAA3AA0C21

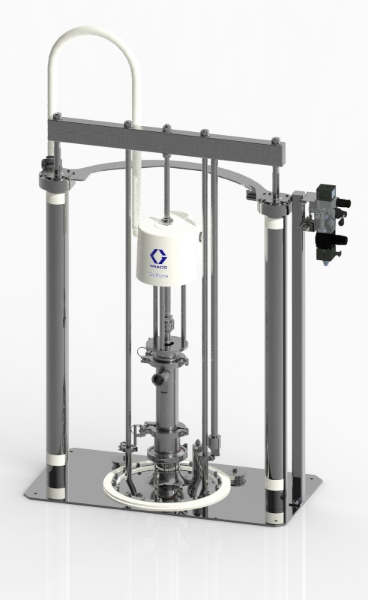

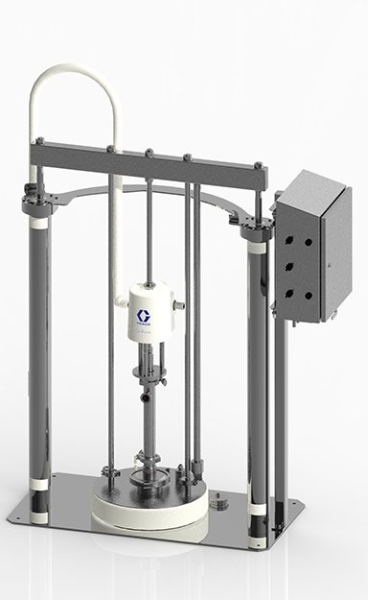

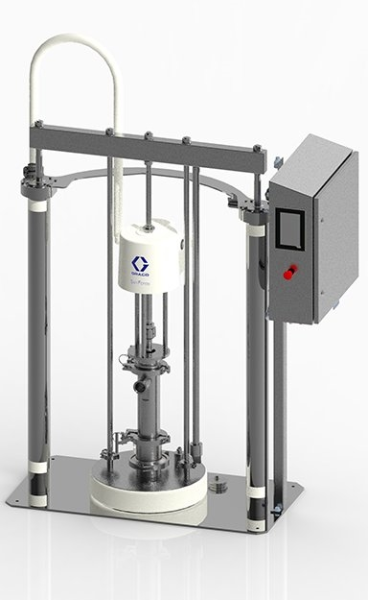

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Stainless Steel Frame, 5:1 PP, Inflatable Seal, Electronic Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter Configurable systems to meet requirements of almost any ingredient unloading application

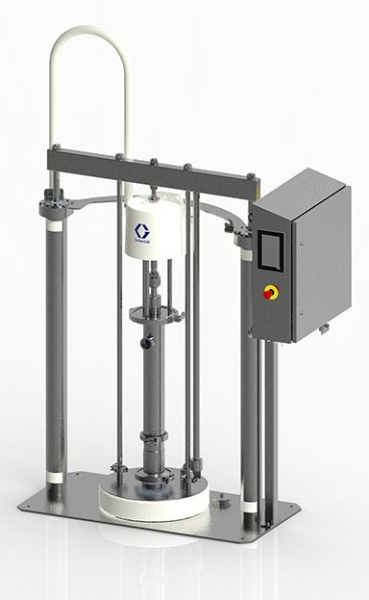

GG SDU.A01AAA3AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Stainless Steel Frame, 5:1 DB, Inflatable Seal, Electronic Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter Configurable systems to meet requirements of almost any ingredient unloading application

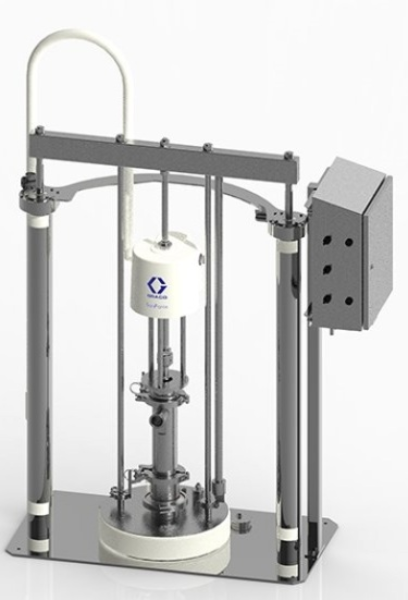

GG SDU.A01BBC5AA0C31

Saniforce Drum Unloader System, Ram, Hygienic

GG SDM65F

SDX SERIES 20 REEL, HOSE

SDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Overhead Mount, Yellow Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look. Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm - Easily change the arm position for your application Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish - Baked-on enamel finish protects reel from corrosion

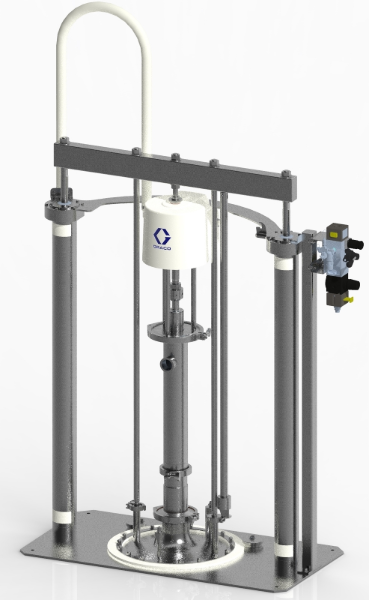

GG SDU.A01BBC2AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

Graco SDU.A01BBC2AA0C21 SaniForce Ram Unit, Stainless Steel Frame, 5:1 DB, Static Wiper, Enclosed Pneumatic Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps

• Reduce material waste with up to 99% material evacuation
• Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
• Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
• Configurable systems to meet requirements of almost any ingredient unloading application

• Model: SaniForce 2.0
• Series: Drum Unloader

• Ambient/Warm Melt/Hot Melt: 90
• Application: Food, Personal Care

• Compatible Drum Height (cm): 101.6
• Compatible Drum Height (in): 40
• Compatible Drum Height (mm): 1016
• Compatible Drum Inside Diameter (cm): 54.6-59.0
• Compatible Drum Inside Diameter (in): 21.5-23.25
• Compatible Drum Inside Diameter (mm): 546-590

• Container Type: Drum
• Control Panel Material: Stainless Steel

• Frame Material: Stainless Steel

• Material Certification: EN 1024:2004 Type 2.1 (Standard)
• Material Container Volume (gal): 55
• Material Container Volume (l): 208

• Maximum Air Inlet Pressure (bar): 6.89
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 13
• Maximum Flow Rate (L/min): 49.2

• Maximum Fluid Pressure (bar): 28.7
• Maximum Fluid Pressure (kPa): 2870
• Maximum Fluid Pressure (psi): 410

• Maximum Fluid Pressure (bar): 28.7
• Maximum Fluid Pressure (kPa): 2870
• Maximum Fluid Pressure (psi): 410

• Maximum Height (cm): 295
• Maximum Height (ft): 9.7
• Maximum Height (in): 116
• Maximum Height (m): 2.95
• Maximum Height (mm): 2946

• Maximum Operating Temperature (°C): 32
• Maximum Operating Temperature (°F): 90

• Maximum Working Pressure (bar): 28.7
• Maximum Working Pressure (kPa): 2900
• Maximum Working Pressure (MPa): 2.9
• Maximum Working Pressure (psi): 410

• Minimum Height (cm): 194
• Minimum Height (ft): 6.4
• Minimum Height (in): 76.2
• Minimum Height (m): 1.94
• Minimum Height (mm): 1935

• Overall Depth (cm): 69.8
• Overall Depth (in): 27.5
• Overall Depth (mm): 699

• Overall Width (cm): 146
• Overall Wid

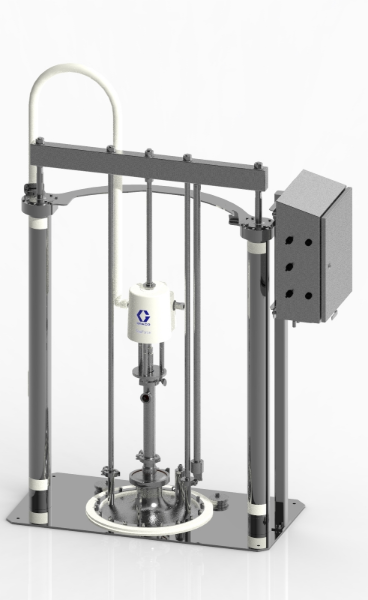

GG SDU.A05AAA3AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Stainless Steel Frame, 12:1 PP, Inflatable Seal, Electronic Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter Configurable systems to meet requirements of almost any ingredient unloading application

GG SDU.A04BBC2AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Stainless Steel Frame, 6:1 PP, Static Wiper, Enclosed Pneumatic Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application

GG SDU.A03AAA1AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

Graco SDU.A03AAA1AA0C21 SaniForce Ram Unit, Stainless Steel Frame, 6:1 DB, Inflatable Seal, Exposed Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps

• Reduce material waste with up to 99% material evacuation
• Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
• Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
• Configurable systems to meet requirements of almost any ingredient unloading application

• Model: SaniForce 2.0
• Series: Drum Unloader

• Ambient/Warm Melt/Hot Melt: 90
• Application: Food, Personal Care

• Compatible Drum Height (cm): 101.6
• Compatible Drum Height (in): 40
• Compatible Drum Height (mm): 1016
• Compatible Drum Inside Diameter (cm): 54.6-59.0
• Compatible Drum Inside Diameter (in): 21.5-23.25
• Compatible Drum Inside Diameter (mm): 546-590

• Container Type: Drum
• Control Panel Material: Aluminum, Plastic
• Control Panel Type: Exposed

• Finish/Coating: Bead Blast

• Frame Material: Stainless Steel

• Material Certification: EN 1024:2004 Type 2.1 (Standard)
• Material Container Volume (gal): 55
• Material Container Volume (l): 208

• Maximum Air Inlet Pressure (bar): 6.89
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Height (cm): 295
• Maximum Height (ft): 9.7
• Maximum Height (in): 116
• Maximum Height (m): 2.95
• Maximum Height (mm): 2946

• Maximum Operating Temperature (°C): 32
• Maximum Operating Temperature (°F): 90

• Maximum Working Pressure (bar): 44.8
• Maximum Working Pressure (kPa): 4480
• Maximum Working Pressure (MPa): 4.5
• Maximum Working Pressure (psi): 650

• Minimum Height (cm): 194
• Minimum Height (ft): 6.4
• Minimum Height (in): 76.2
• Minimum Height (m): 1.94
• Minimum Height (mm): 1935

• Overall Depth (cm): 69.8
• Overall Depth (in): 27.5
• Overall Dep

GG SDU.A04AAA3AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

Graco SDU.A04AAA3AA0C21 SaniForce Ram Unit, SST Frame, 6:1 PP, Inflatable Seal, Electronic Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps

• Reduce material waste with up to 99% material evacuation
• Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
• Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
• Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
• Configurable systems to meet requirements of almost any ingredient unloading application

• Model: SaniForce 2.0 Drum Unloader
• Series: A

• Ambient/Warm Melt/Hot Melt: 90
• Application: Food, Personal Care

• Compatible Drum Height (cm): 101.6
• Compatible Drum Height (in): 40
• Compatible Drum Height (mm): 1016
• Compatible Drum Inside Diameter (cm): 54.6-59.0
• Compatible Drum Inside Diameter (in): 21.5-23.25
• Compatible Drum Inside Diameter (mm): 546-590

• Container Type: Drum
• Control Panel Material: Stainless Steel
• Control Panel Type: Enclosed

• Finish/Coating: Bead Blast

• Frame Material: Stainless Steel

• Material Container Volume (gal): 55
• Material Container Volume (l): 208

• Maximum Air Inlet Pressure (bar): 6.89
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Height (cm): 295
• Maximum Height (ft): 9.7
• Maximum Height (in): 116
• Maximum Height (m): 2.95
• Maximum Height (mm): 2946

• Maximum Operating Temperature (°C): 32
• Maximum Operating Temperature (°F): 90

• Maximum Working Pressure (bar): 44.8
• Maximum Working Pressure (kPa): 4480
• Maximum Working Pressure (MPa): 4.5
• Maximum Working Pressure (psi): 650

• Minimum Height (cm): 194
• Minimum Height (ft): 6.4
• Minimum Height (in): 76.2
• Minimum Height (m): 1.94
• Minimum Height (mm): 1935

• Overall Depth (cm): 69.8

GG SDU.A04AAA1AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

Graco SDU.A04AAA1AA0C21 SaniForce Ram Unit, Stainless Steel Frame, 6:1 PP, Inflatable Seal, Exposed Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps

• Reduce material waste with up to 99% material evacuation
• Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
• Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
• Configurable systems to meet requirements of almost any ingredient unloading application

• Model: SaniForce 2.0
• Series: Drum Unloader

• Ambient/Warm Melt/Hot Melt: 90
• Application: Food, Personal Care

• Compatible Drum Height (cm): 101.6
• Compatible Drum Height (in): 40
• Compatible Drum Height (mm): 1016
• Compatible Drum Inside Diameter (cm): 54.6-59.0
• Compatible Drum Inside Diameter (in): 21.5-23.25
• Compatible Drum Inside Diameter (mm): 546-590

• Container Type: Drum
• Control Panel Material: Aluminum, Plastic
• Control Panel Type: Exposed

• Finish/Coating: Bead Blast

• Frame Material: Stainless Steel

• Material Certification: EN 1024:2004 Type 2.1 (Standard)
• Material Container Volume (gal): 55
• Material Container Volume (l): 208

• Maximum Air Inlet Pressure (bar): 6.89
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Height (cm): 295
• Maximum Height (ft): 9.7
• Maximum Height (in): 116
• Maximum Height (m): 2.95
• Maximum Height (mm): 2946

• Maximum Operating Temperature (°C): 32
• Maximum Operating Temperature (°F): 90

• Maximum Working Pressure (bar): 44.8
• Maximum Working Pressure (kPa): 4480
• Maximum Working Pressure (MPa): 4.5
• Maximum Working Pressure (psi): 650

• Minimum Height (cm): 194
• Minimum Height (ft): 6.4
• Minimum Height (in): 76.2
• Minimum Height (m): 1.94
• Minimum Height (mm): 1935

• Overall Depth (cm): 69.8
• Overall Depth (in): 27.5
• Overall Dep

GG SDM6DD

SDX SERIES 20 REEL, HOSE

SDX™ 20, Oil, 1/2 in (13 mm) Inlet, Bare Reel (1/2 in X 50 ft (13 mm X 15 m) Capacity), NPT, Overhead Mount, Black Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look. Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm - Easily change the arm position for your application Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish - Baked-on enamel finish protects reel from corrosion

GG SDU.A04AAA2AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Stainless Steel Frame, 6:1 PP, Inflatable Seal, Enclosed Pneumatic Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application

GG SDU.A05AAA2AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Stainless Steel Frame, 12:1 PP, Inflatable Seal, Enclosed Pneumatic Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application

GG SDU.A03AAA3AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

Graco SDU.A03AAA3AA0C21 SaniForce Ram Unit, SST Frame, 6:1 DB, Inflatable Seal, Electronic Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps

• Reduce material waste with up to 99% material evacuation
• Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
• Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
• Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
• Configurable systems to meet requirements of almost any ingredient unloading application

• Model: SaniForce 2.0 Drum Unloader
• Series: A

• Ambient/Warm Melt/Hot Melt: 90
• Application: Food, Personal Care

• Compatible Drum Height (cm): 101.6
• Compatible Drum Height (in): 40
• Compatible Drum Height (mm): 1016
• Compatible Drum Inside Diameter (cm): 54.6-59.0
• Compatible Drum Inside Diameter (in): 21.5-23.25
• Compatible Drum Inside Diameter (mm): 546-590

• Container Type: Drum
• Control Panel Material: Stainless Steel
• Control Panel Type: Enclosed

• Finish/Coating: Bead Blast

• Frame Material: Stainless Steel

• Material Container Volume (gal): 55
• Material Container Volume (l): 208

• Maximum Air Inlet Pressure (bar): 6.89
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Height (cm): 295
• Maximum Height (ft): 9.7
• Maximum Height (in): 116
• Maximum Height (m): 2.95
• Maximum Height (mm): 2946

• Maximum Operating Temperature (°C): 32
• Maximum Operating Temperature (°F): 90

• Maximum Working Pressure (bar): 44.8
• Maximum Working Pressure (kPa): 4480
• Maximum Working Pressure (MPa): 4.5
• Maximum Working Pressure (psi): 650

• Minimum Height (cm): 194
• Minimum Height (ft): 6.4
• Minimum Height (in): 76.2
• Minimum Height (m): 1.94
• Minimum Height (mm): 1935

• Overall Depth (cm): 69.8

GG SDU.B01BBC7AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Carbon Steel Frame, 5:1 DB, Static Wiper, Exposed Pneumatic Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application

GG SDU.A07AAA2AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

Graco SDU.A07AAA2AA0C21 SaniForce Ram Unit, Stainless Steel Frame, 1590 PTFE OM, Inflatable Seal, Enclosed Pneumatic Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps

• Reduce material waste with up to 99% material evacuation
• Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
• Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
• Configurable systems to meet requirements of almost any ingredient unloading application

• Model: SaniForce 2.0
• Series: Drum Unloader

• Ambient/Warm Melt/Hot Melt: 90
• Application: Food, Personal Care

• Compatible Drum Height (cm): 101.6
• Compatible Drum Height (in): 40
• Compatible Drum Height (mm): 1016
• Compatible Drum Inside Diameter (cm): 54.6-59.0
• Compatible Drum Inside Diameter (in): 21.5-23.25
• Compatible Drum Inside Diameter (mm): 546-590

• Container Type: Drum
• Control Panel Material: Stainless Steel
• Control Panel Type: Enclosed

• Finish/Coating: Bead Blast

• Frame Material: Stainless Steel

• Material Certification: EN 1024:2004 Type 2.1 (Standard)
• Material Container Volume (gal): 55
• Material Container Volume (l): 208

• Maximum Air Inlet Pressure (bar): 6.89
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 105
• Maximum Flow Rate (L/min): 397

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (psi): 100

• Maximum Height (cm): 295
• Maximum Height (ft): 9.7
• Maximum Height (in): 116
• Maximum Height (m): 2.95
• Maximum Height (mm): 2946

• Maximum Operating Temperature (°C): 32
• Maximum Operating Temperature (°F): 90

• Maximum Working Pressure (bar): 6.9
• Maximum Working Pressure (kPa): 690
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Minimum Height (cm): 194
• Minimum Height (ft): 6.4
• Minimum Height (in): 76.2
• Minimum Height (m): 1.94
• Minimum Height (mm): 1935

• Overall Depth (cm): 69.8
• Overall Depth (in): 27.5

GG SDU.A03AAA2AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

Graco SDU.A03AAA2AA0C21 SaniForce Ram Unit, SST Frame, 6:1 DB, Inflatable Seal, Enclosed Pneumatic Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps

• Reduce material waste with up to 99% material evacuation
• Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
• Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
• Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
• Configurable systems to meet requirements of almost any ingredient unloading application

• Model: SaniForce 2.0 Drum Unloader
• Series: A

• Ambient/Warm Melt/Hot Melt: 90
• Application: Food, Personal Care

• Compatible Drum Height (cm): 101.6
• Compatible Drum Height (in): 40
• Compatible Drum Height (mm): 1016
• Compatible Drum Inside Diameter (cm): 54.6-59.0
• Compatible Drum Inside Diameter (in): 21.5-23.25
• Compatible Drum Inside Diameter (mm): 546-590

• Container Type: Drum
• Control Panel Material: Stainless Steel
• Control Panel Type: Enclosed

• Finish/Coating: Bead Blast

• Frame Material: Stainless Steel

• Material Container Volume (gal): 55
• Material Container Volume (l): 208

• Maximum Air Inlet Pressure (bar): 6.89
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Fluid Pressure (bar): 44.8
• Maximum Fluid Pressure (kPa): 4480
• Maximum Fluid Pressure (psi): 650

• Maximum Height (cm): 295
• Maximum Height (ft): 9.7
• Maximum Height (in): 116
• Maximum Height (m): 2.95
• Maximum Height (mm): 2946

• Maximum Operating Temperature (°C): 32
• Maximum Operating Temperature (°F): 90

• Maximum Working Pressure (bar): 44.8
• Maximum Working Pressure (kPa): 4480
• Maximum Working Pressure (MPa): 4.5
• Maximum Working Pressure (psi): 650

• Minimum Height (cm): 194
• Minimum Height (ft): 6.4
• Minimum Height (in): 76.2
• Minimum Height (m): 1.94
• Minimum Height (mm): 1935

• Overall Depth (cm): 69.8

GG SDU.A16AAA2AA0C21

Saniforce Drum Unloader System, Ram, Hygienic

GG SDU.B02AAA6AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

Graco SDU.B02AAA6AA0C21 SaniForce Ram Unit, Carbon Steel Frame, 5:1 PP, Inflatable Seal, Exposed Pneumatic Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps

• Reduce material waste with up to 99% material evacuation
• Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
• Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates

• Model: SaniForce 2.0
• Series: Drum Unloader

• Ambient/Warm Melt/Hot Melt: 90
• Application: Food, Personal Care

• Compatible Drum Height (cm): 101.6
• Compatible Drum Height (in): 40
• Compatible Drum Height (mm): 1016
• Compatible Drum Inside Diameter (cm): 54.6-59.0
• Compatible Drum Inside Diameter (in): 21.5-23.25
• Compatible Drum Inside Diameter (mm): 546-590

• Container Type: Drum
• Control Panel Material: Aluminum, Plastic
• Control Panel Type: Exposed

• Frame Material: Carbon Steel

• Material Certification: EN 1024:2004 Type 2.1 (Standard)
• Material Container Volume (gal): 55
• Material Container Volume (l): 208

• Maximum Air Inlet Pressure (bar): 6.89
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 13
• Maximum Flow Rate (L/min): 49.2

• Maximum Fluid Pressure (bar): 28.7
• Maximum Fluid Pressure (kPa): 2870
• Maximum Fluid Pressure (psi): 410

• Maximum Fluid Pressure (bar): 28.7
• Maximum Fluid Pressure (kPa): 2870
• Maximum Fluid Pressure (psi): 410

• Maximum Height (cm): 295
• Maximum Height (ft): 9.7
• Maximum Height (in): 116
• Maximum Height (m): 2.95
• Maximum Height (mm): 2946

• Maximum Operating Temperature (°C): 32
• Maximum Operating Temperature (°F): 90

• Maximum Working Pressure (bar): 28.7
• Maximum Working Pressure (kPa): 2870
• Maximum Working Pressure (MPa): 2.9
• Maximum Working Pressure (psi): 410

• Minimum Height (cm): 194
• Minimum Height (ft): 6.4
• Minimum Height (in): 76.2
• Minimum Height (m): 1.94
• Minimum Height (mm): 1935

• Overall Depth (cm): 69.8
• Overall Depth (in): 27.5
• Overall Depth (mm): 699

• Overall Width (cm): 146
• Overall Width (in): 57.5
• Overall Width (mm): 146

GG SDU.B05BBC7AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Carbon Steel Frame, 12:1 PP, Static Wiper, Exposed Pneumatic Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application

GG SE1B.0014

Saniforce Eodd Pump, 1040Hs.Es04Assassptpsep21

GG SE1B.0158

Saniforce Eodd Pump, 1040Hs.Es04Essassptpsep21

GG SDU.A12AAA2AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Stainless Steel Frame, 2150 PTFE OM, Inflatable Seal, Enclosed Pneumatic Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application

GG SE1B.0156

Saniforce Eodd Pump, 1040Hs.Es04Essassptpoep21

GG SE1B.0012

SANIFORCE EODD PUMP, 1040HS.ES04ASSASSPTPOEP21

Graco SE1B.0012 SaniForce 2.0 HS Series Electric Diaphragm Pump, 1040Electric, S04A, SSA, SS, PT, PO, C21

SaniForce electric diaphragm pumps are designed to meet requirements for the most rigorous food, beverage, personal care, and pharmaceutical transfer applications. Providing the same great self-priming, stalling, seal-less design coveted by air operated pumps in an electric package that can solve many of the problems associated with rotary positive displacement pumps. Graco's patented air-charged center all but eliminates pulsation on the fluid outlet of the pump providing a smooth steady flow idea for in process applications, filling systems, and sanitary/hygienic applicator applications.

Application: Sanitary electric positive displacement diaphragm pumps ideal for food, beverage, personal care and pharmaceutical ingredient process and transfer applications.

• Flow rates up to 150 gpm (567 lpm) and pressure up to 100 psi (6.89 bar)
• Handle solids up to 3.8" (96.5 mm) in diameter
• Seal-less design removes common issues associated with rotary shaft seals and handles abrasive material
• Patented air charge reduces pulsation for smooth outlet flow, ideal for in process applications
• Air charge provides ability to stall pump under pressure increasing system safety and removing requirement for circulation loops
• 316L stainless steel wetted section
• Multiple internal elastomers to be compatible with you material and cleaning chemicals
• Tri-clamp and sanitary DIN connections available

• Model: SaniForce
• Series: 1040

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Sanitary

• Ball Material: PTFE

• Center Section Material: Stainless Steel

• Compatible Material: Edible Oil, Food, Personal Care

• Connection Type: Tri-Clamp

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE Overmold

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Section Material: Stainless Steel

• For Use With: Food, Personal Care

• Manifold Configuration: Center Port
• Manifold O-Ring Material: EPDM

• Maximum Air Pressure (bar): 5.5

• Maximum Air Pressure (kPa): 550
• Maximum Air Pressure (MPa): 0.55
• Maximum Air Pressure (psi): 80

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Operating Temperature (°C): 104
• Maximum Operating Temperature (°F): 220

• Maximum Solid Size (cm): 1.12
• Maximum Solid Size (in): 0.44
• Maximum Solid Size (mm): 11.2

• Minimum Operating Temperature (°C): 4.4
• Minimum Operating Temperature (°F): 40

• Pump Ratio: 1:1

GG SE1B.0494

Saniforce Eodd Pump, 1040Ph.Es04Fssassptpsep21

GG SE1B.0206

Saniforce Eodd Pump, 1040Hs.Es04Fssassptpsep21

GG SE1B.0492

Saniforce Eodd Pump, 1040Ph.Es04Fssassptpoep21

GG SE1B.0302

Saniforce Eodd Pump, 1040Ph.Es04Assassptpsep21

GG SE1B.0444

Saniforce Eodd Pump, 1040Ph.Es04Essassptpoep21

GG SE1B.0446

Saniforce Eodd Pump, 1040Ph.Es04Essassptpsep21

GG SE1B.0204

Saniforce Eodd Pump, 1040Hs.Es04Fssassptpoep21

GG SE1B.0300

Saniforce Eodd Pump, 1040Ph.Es04Assassptpoep21

GG SE2B.0534

Saniforce Eodd Pump, 2150Hs.Es15Assassptpsep21

GG SE2B.0022

Saniforce Eodd Pump, 2150Hs.Es04Assassptpsep21

GG SE2B.0598

Saniforce Eodd Pump, 2150Hs.Es16Assassptpsep21

GG SE2B.0086

SANIFORCE EODD PUMP, 2150HS.ES04CSSASSPTPSEP21

Graco SE2B.0086 SaniForce 2150 HS 2 in. (51 mm) SS Electric Pump, 7.5 Hp ATEX Motor, No CMPSR, Center Port Tri-Clamp, SS Center, SS Seat, PT Ball, PS Diaphragm

SaniForce electric diaphragm pumps are designed to meet requirements for the most rigorous food, beverage, personal care, and pharmaceutical transfer applications. Providing the same great self-priming, stalling, seal-less design coveted by air operated pumps in an electric package that can solve many of the problems associated with rotary positive displacement pumps. Graco's patented air-charged center all but eliminates pulsation on the fluid outlet of the pump providing a smooth steady flow idea for in process applications, filling systems, and sanitary/hygienic applicator applications.

Application: Sanitary electric positive displacement diaphragm pumps ideal for food, beverage, personal care and pharmaceutical ingredient process and transfer applications.

• Flow rates up to 150 gpm (567 lpm) and pressure up to 100 psi (6.89 bar)
• Handle solids up to 3.8" (96.5 mm) in diameter
• Seal-less design removes common issues associated with rotary shaft seals and handles abrasive material
• Patented air charge reduces pulsation for smooth outlet flow, ideal for in process applications
• Air charge provides ability to stall pump under pressure increasing system safety and removing requirement for circulation loops
• 316L stainless steel wetted section
• Multiple internal elastomers to be compatible with you material and cleaning chemicals
• Tri-clamp and sanitary DIN connections available

• Model: SaniForce
• Series: 2150 HS

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Sanitary

• Ball Material: PTFE

• Center Section Material: Stainless Steel

• Compatible Material: Edible Oil, Food, Personal Care

• Connection Type: Tri-Clamp

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE/Santoprene 2-Piece

• Fluid Inlet Size (cm): 5.08
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50.8

• Fluid Outlet Size (cm): 5.08
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50.8
• Fluid Section Material: Stainless Steel

• For Use With: Food, Personal Care

• Manifold Configuration: Center Port
• Manifold O-Ring Material: EPDM

• Maximum Air Pressure (bar): 6.89

• Maximum Air Pressure (kPa): 689
• Maximum Air Pressure (MPa): 0.689
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.89
• Maximum Fluid Pressure (kPa): 689
• Maximum Fluid Pressure (MPa): 0.689
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.89
• Maximum Fluid Pressure (kPa): 689
• Maximum Fluid Pressure (MPa): 0.689
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 104
• Maximum Operating Temperature (°F): 220

• Maximum Solid Size (cm): 1.27
• Maximum Solid Size (in): 0.5
• Maximum Solid Size (mm): 12.7

• Minimum Operating Temperature (°C): 4.4
• Minimum Operating Temperature (°F): 40

• Pump Ratio: 1:1

GG SE2B.0406

Saniforce Eodd Pump, 2150Hs.Es14Cssassptpsep21

GG SE2B.0470

Saniforce Eodd Pump, 2150Hs.Es14Dssassptpsep21

GG SE2B.0342

Saniforce Eodd Pump, 2150Hs.Es14Assassptpsep21

GG SE2B.0278

Saniforce Eodd Pump, 2150Hs.Es06Assassptpsep21

GG SE2B.0214

Saniforce Eodd Pump, 2150Hs.Es05Assassptpsep21

GG SE2B.0726

Saniforce Eodd Pump, 2150Hs.Es24Cssassptpsep21

GG SE2B.0662

Saniforce Eodd Pump, 2150Hs.Es24Assassptpsep21

GG SE2B.0918

Saniforce Eodd Pump, 2150Hs.Es26Assassptpsep21

GG SE2B.0982

Saniforce Eodd Pump, 2150Hs.Es94Gssassptpsep21

GG SE2B.1110

Saniforce Eodd Pump, 2150Ph.Es04Assassptpsep21

GG SE2B.0854

Saniforce Eodd Pump, 2150Hs.Es25Assassptpsep21

GG SE2B.1174

Saniforce Eodd Pump, 2150Ph.Es04Cssassptpsep21

GG SE2B.1430

Saniforce Eodd Pump, 2150Ph.Es14Assassptpsep21

GG SE2B.1302

Saniforce Eodd Pump, 2150Ph.Es05Assassptpsep21

GG SE2B.1494

Saniforce Eodd Pump, 2150Ph.Es14Cssassptpsep21

GG SE2B.1558

Saniforce Eodd Pump, 2150Ph.Es14Dssassptpsep21

GG SE2B.1750

Saniforce Eodd Pump, 2150Ph.Es24Assassptpsep21

GG SE2B.1366

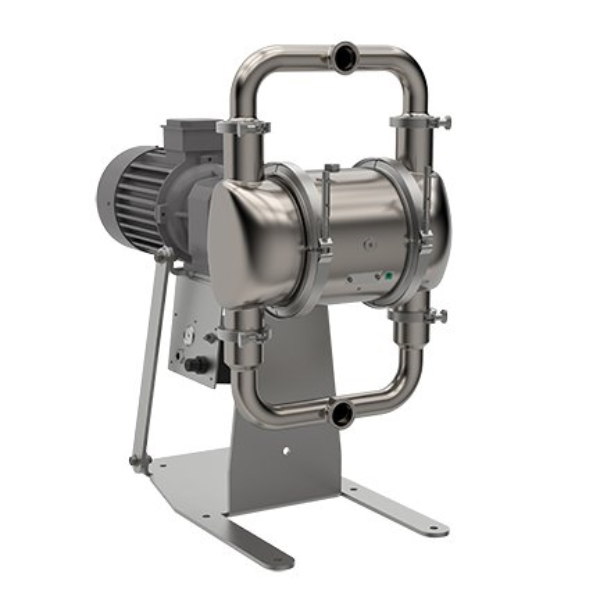

SANIFORCE EODD PUMP, 2150PH.ES06ASSASSPTPSEP21

SaniForce 2150 PH 2 in. (51 mm) SS Electric Pump; 7.5 Hp AC Motor, 220V CMPSR, Center Port Tri-Clamp, SS Center, SS Seat, PT Ball, PS Diaphragm SaniForce electric diaphragm pumps are designed to meet requirements for the most rigorous food, beverage, personal care, and pharmaceutical transfer applications. Providing the same great self-priming, stalling, seal-less design coveted by air operated pumps in an electric package that can solve many of the problems associated with rotary positive displacement pumps. Graco's patented air-charged center all but eliminates pulsation on the fluid outlet of the pump providing a smooth steady flow idea for in process applications, filling systems, and sanitary/hygienic applicator applications. Sanitary electric positive displacement diaphragm pumps ideal for food, beverage, personal care and pharmaceutical ingredient process and transfer applications. Flow rates up to 150 gpm (567 lpm) and pressure up to 100 psi (6.89 bar) Handle solids up to 3.8" (96.5 mm) in diameter Seal-less design removes common issues associated with rotary shaft seals and handles abrasive material Electric operation provides additional pump control Patented air charge reduces pulsation for smooth outlet flow, ideal for in process applications Air charge provides ability to stall pump under pressure increasing system safety and removing requirement for circulation loops 316L stainless steel wetted section Multiple internal elastomers to be compatible with you material and cleaning chemicals Tri-clamp and sanitary DIN connections available

GG SE2B.1686

Saniforce Eodd Pump, 2150Ph.Es16Assassptpsep21

GG SE2B.1622

Saniforce Eodd Pump, 2150Ph.Es15Assassptpsep21

GG SE2B.1942

Saniforce Eodd Pump, 2150Ph.Es25Assassptpsep21

GG SE2B.1814

Saniforce Eodd Pump, 2150Ph.Es24Cssassptpsep21

GG SE3F.0084

Saniforce Eodd Pump, 3000Hs.Es14Assafl-Psep21

GG SE3F.0068

Saniforce Eodd Pump, 3000Hs.Es06Assafl-Psep21

GG SE3F.0020

Saniforce Eodd Pump, 3000Hs.Es04Cssafl-Psep21

GG SE3F.0052

SANIFORCE EODD PUMP, 3000HS.ES05ASSAFL-PSEP21

Graco SE3F.0052 SaniForce 3000 HS 3 in. SS Electric Pump, 7.5 Hp AC Motor, 120V CMPSR, Center Port Tri-Clamp, SS Center, FL Seat, - Ball, PS Diaphragm

SaniForce electric diaphragm pumps are designed to meet requirements for the most rigorous food, beverage, personal care, and pharmaceutical transfer applications. Providing the same great self-priming, stalling, seal-less design coveted by air operated pumps in an electric package that can solve many of the problems associated with rotary positive displacement pumps. Graco's patented air-charged center all but eliminates pulsation on the fluid outlet of the pump providing a smooth steady flow idea for in process applications, filling systems, and sanitary/hygienic applicator applications.

Application: Sanitary electric positive displacement diaphragm pumps ideal for food, beverage, personal care and pharmaceutical ingredient process and transfer applications.

• Flow rates up to 150 gpm (567 lpm) and pressure up to 100 psi (6.89 bar)
• Handle solids up to 3.8" (96.5 mm) in diameter
• Seal-less design removes common issues associated with rotary shaft seals and handles abrasive material
• Patented air charge reduces pulsation for smooth outlet flow, ideal for in process applications
• Air charge provides ability to stall pump under pressure increasing system safety and removing requirement for circulation loops
• 316L stainless steel wetted section
• Multiple internal elastomers to be compatible with you material and cleaning chemicals
• Tri-clamp and sanitary DIN connections available

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Sanitary

• Center Section Material: Stainless Steel

• Compatible Material: Edible Oil, Food, Personal Care

• Connection Type: Tri-Clamp

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE/Santoprene 2-Piece

• Fluid Inlet Size (cm): 7.62
• Fluid Inlet Size (in): 3
• Fluid Inlet Size (mm): 76.2

• Fluid Outlet Size (cm): 7.62
• Fluid Outlet Size (in): 3
• Fluid Outlet Size (mm): 76.2
• Fluid Section Material: Stainless Steel

• For Use With: Food, Personal Care

• Manifold Configuration: Center Port
• Manifold O-Ring Material: EPDM

• Maximum Air Pressure (bar): 6.89

• Maximum Air Pressure (kPa): 689
• Maximum Air Pressure (MPa): 0.689
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 4.14
• Maximum Fluid Pressure (kPa): 414
• Maximum Fluid Pressure (MPa): 0.414
• Maximum Fluid Pressure (psi): 60

• Maximum Fluid Pressure (bar): 4.14
• Maximum Fluid Pressure (kPa): 414
• Maximum Fluid Pressure (MPa): 0.414
• Maximum Fluid Pressure (psi): 60

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Solid Size (cm): 6.25
• Maximum Solid Size (in): 2.46
• Maximum Solid Size (mm): 62.5

• Minimum Operating Temperature (°C): 4.4
• Minimum Operating Temperature (°F): 40

• Pump Ratio: 1:1

GG SE3F.0100

Saniforce Eodd Pump, 3000Hs.Es14Cssafl-Psep21

GG SE2B.2006

Saniforce Eodd Pump, 2150Ph.Es26Assassptpsep21

GG SE3F.0004

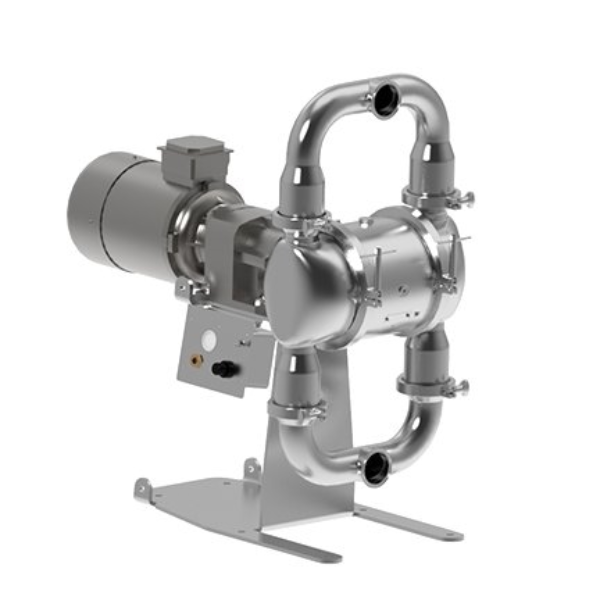

SANIFORCE EODD PUMP, 3000HS.ES04ASSAFL-PSEP21

SaniForce 3000 HS 3 in. SS Electric Pump; 7.5 Hp AC Motor, No CMPSR, Center Port Tri-Clamp, SS Center, FL Seat, - Ball, PS Diaphragm SaniForce electric diaphragm pumps are designed to meet requirements for the most rigorous food, beverage, personal care, and pharmaceutical transfer applications. Providing the same great self-priming, stalling, seal-less design coveted by air operated pumps in an electric package that can solve many of the problems associated with rotary positive displacement pumps. Graco's patented air-charged center all but eliminates pulsation on the fluid outlet of the pump providing a smooth steady flow idea for in process applications, filling systems, and sanitary/hygienic applicator applications. Sanitary electric positive displacement diaphragm pumps ideal for food, beverage, personal care and pharmaceutical ingredient process and transfer applications. Flow rates up to 150 gpm (567 lpm) and pressure up to 100 psi (6.89 bar) Handle solids up to 3.8" (96.5 mm) in diameter Seal-less design removes common issues associated with rotary shaft seals and handles abrasive material Electric operation provides additional pump control Patented air charge reduces pulsation for smooth outlet flow, ideal for in process applications Air charge provides ability to stall pump under pressure increasing system safety and removing requirement for circulation loops 316L stainless steel wetted section Multiple internal elastomers to be compatible with you material and cleaning chemicals Tri-clamp and sanitary DIN connections available

GG SE2B.2070

Saniforce Eodd Pump, 2150Ph.Es94Gssassptpsep21

GG SE3F.0116

Saniforce Eodd Pump, 3000Hs.Es14Dssafl-Psep21

GG SE3F.0132

Saniforce Eodd Pump, 3000Hs.Es15Assafl-Psep21

GG SE3F.0148

Saniforce Eodd Pump, 3000Hs.Es16Assafl-Psep21

GG SE3F.0164

Saniforce Eodd Pump, 3000Hs.Es24Assafl-Psep21

GG SE3F.0212

Saniforce Eodd Pump, 3000Hs.Es25Assafl-Psep21

GG SE3F.0180

Saniforce Eodd Pump, 3000Hs.Es24Cssafl-Psep21

GG SE3F.0228

Saniforce Eodd Pump, 3000Hs.Es26Assafl-Psep21

GG SE3F.0244

Saniforce Eodd Pump, 3000Hs.Es94Gssafl-Psep21

GG SE4F.0052

Saniforce Eodd Pump, 4000Hs.Es14Dssafl-Psep21

GG SE4F.0068

Saniforce Eodd Pump, 4000Hs.Es15Assafl-Psep21

GG SE4F.0100

Saniforce Eodd Pump, 4000Hs.Es24Assafl-Psep21

GG SE4F.0020

Saniforce Eodd Pump, 4000Hs.Es14Assafl-Psep21

GG SE4F.0036

Saniforce Eodd Pump, 4000Hs.Es14Cssafl-Psep21

GG SE4F.0084

Saniforce Eodd Pump, 4000Hs.Es16Assafl-Psep21

GG SE4F.0148

Saniforce Eodd Pump, 4000Hs.Es25Assafl-Psep21

GG SE4F.0164

Saniforce Eodd Pump, 4000Hs.Es26Assafl-Psep21

GG SE4F.0116

Saniforce Eodd Pump, 4000Hs.Es24Cssafl-Psep21

GG SG261001

Nosepiece, 1/4In Nptf

GG SG260005

Cap, Gun, Single-Part

GG SG261-2A

Lsr Gun-Single Part Shut-Off, Air Operated

GG SG260008

Cylinder Body

GG SG261003

Nosepiece, 1/4In Nptm

GG SG225

Mixer, Hand-Gun, 1/2InDia, Ele, 10:1

GG SE4F.0180

Saniforce Eodd Pump, 4000Hs.Es94Gssafl-Psep21

GG SK3201

Kit, Seal, 2Pass Mixer

GG SG263-2A

Lsr Gun, Shut, Off, Single, Mat'L

GG SK3341

Kit, Seal, 3Pass, Mixer

GG SK556

Block, Barrel Stack, 16Mmx12El, Mi

GG SK549

Barrel Stack, Material Manifold

GG SK582

Mixer, 2P, 16 Cartridges, 1/8Npt
