GRACO INC. S10595

GG 17C500

Housing, Diffuser, Turf

GG 17C501

Housing, Filter, Turf

GG 17C502

Seal, Base, Hopper

GG 17C509

Thermolazer Hose, Bead Hose 20.5In

GG 17C521

Sightglass, Pump I6, I10, I16, H10, H16

GG 17C529

Handle, Cover, Pump Solotech

GG 17C539

Cover, Front, Paint, 390

GG 17C540

Cover, Front, Molded, Blue, 390

GG 17C562

Label, Instruction

GG 17C571

Kit, Repair, Charger/Jack, 120V

GG 17C565

Kit, Repair, Charger, 120V, Usa

GG 17C572

Kit, Repair, Charger/Jack, 240V

GG 17C575

Key, Square, Round End

GG 17C576

Key, Square, Round End

GG 17C577

Key, Square, Round End

GG 17C590

Manifold, Filter, Tall

GG 17C591

Manifold, Filter, Tall, Gauged

GG 17C592

Manifold, Filter, Short

GG 17C593

Manifold, Filter, Short, Gauged

GG 17C608

Sightglass, Pump I26, I32, H26, H32

GG 17C653

Piston, Sleeve Honed, Asm, Grs

GG 17C669

Connector, Jumper, Male

GG 17C692

Fitting, Cam/Groove, 1.5M, 1-1/2Npt

GG 17C718

KIT, PUMP, ST, THREADED

Endurance Pump Lower Kit Graco Endurance Pump Lowers lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.

GG 17C725

Indicator, Control, Pressure

GG 17C735

Screw, Mach, Hex, Washer, Hd

GG 17C738

Cap, Oil, Fill Gp300

GG 17C739

Cap, Oil, Fill Gp500

GG 17C740

Cap, Oil, Fill Gp600

GG 17C741

Cap, Oil, Fill Cat

GG 17C750

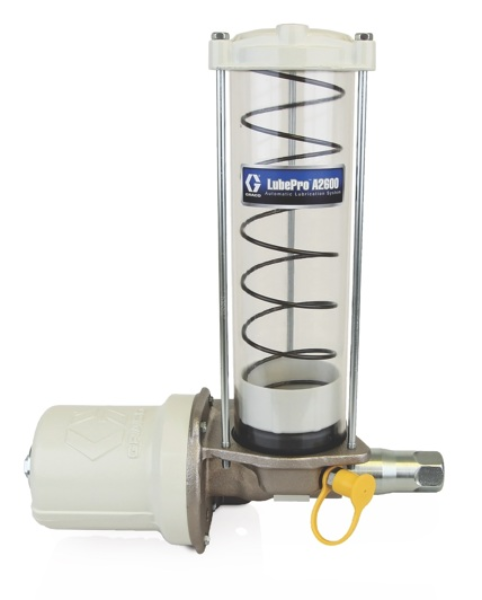

LUBEPRO A2600 PUMP, GREASE

Graco 17C750 LubePro A2600 Horizontal Grease Pump, 2 L Reservoir - NPT

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

Application: Single Stroke Grease Pump for Automatic Lubrication

• LubePro A2600 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 26:1
• A2600 delivers a greater output than competitive models at 2.2 in³ (36.05 cm³) per stroke
• Optional Low Level Detection available, factory installed
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 2 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A2600

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.75
• Fluid Outlet Size (mm): 19.0500
• Fluid Outlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 9.31
• Maximum Air Inlet Pressure (kPa): 931
• Maximum Air Inlet Pressure (psi): 135

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Height (cm): 47.3
• Overall Height (in): 18.62
• Overall Height (mm): 473
• Overall Width (cm): 39.4
• Overall Width (in): 15.5
• Overall Width (mm): 394

• Power Type: Pneumatic

GG 17C752

LUBEPRO A1900 PUMP, LL, OIL

LubePro™ A1900 Horizontal Oil Pump, 2 L Reservoir, Normally Open, Low Level - NPT

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

Single Stroke Oil Pump for Automatic Lubrication LubePro A1900 is compatible with GL-42 and GL-43 injectors Pressure Ratio of 19:1 A1900 delivers a greater output than competitive models at 3.0 in³ (49.16 cm³) per stroke Pneumatic power makes it easy to install into existing air line Optional Low Level Detection available, factory installed Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required Built with high-quality seals tested to outperform the competition High-strength, shatter resistant, 2 liter reservoir Optimally lubricates while your machines are running Provides accurate, reliable lubrication for every lube point Provides higher lube output and faster lubrication cycle

GG 17C753

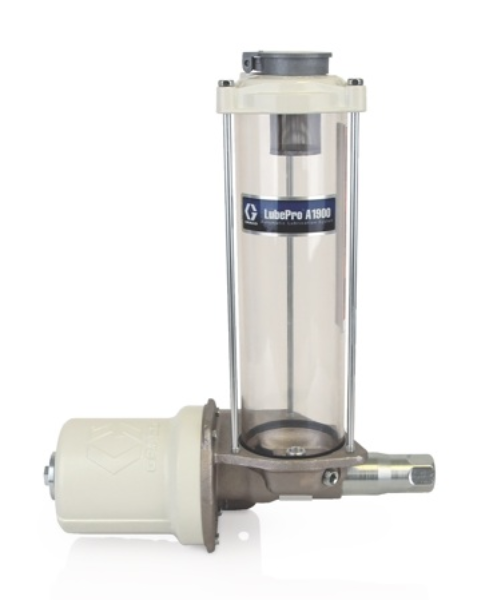

LUBEPRO A1900 PUMP, OIL

Graco 17C753 LubePro A1900 Horizontal Oil Pump, 2 L Reservoir - NPT

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

Application: Single Stroke Oil Pump for Automatic Lubrication

• LubePro A1900 is compatible with GL-42 and GL-43 injectors
• Pressure Ratio of 19:1
• A1900 delivers a greater output than competitive models at 3.0 in³ (49.16 cm³) per stroke
• Optional Low Level Detection available, factory installed
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 2 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A1900

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.75
• Fluid Outlet Size (mm): 19.0500
• Fluid Outlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 12.76
• Maximum Air Inlet Pressure (kPa): 1276
• Maximum Air Inlet Pressure (psi): 185

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Overall Height (cm): 47.3
• Overall Height (in): 18.62
• Overall Height (mm): 473
• Overall Width (cm): 39.4
• Overall Width (in): 15.5
• Overall Width (mm): 394

• Power Type: Pneumatic

GG 17C772

Tag, Warning, Retorque, 1050Hp

GG 17C774

Lsr Piston, Air Cylinder, 5.5 Id

GG 17C775

Cap, Air Cylinder, 5.5 Id

GG 17C776

Gasket, Muffler

GG 17C795

Kit, Repair, Fan, Roller Clutch

GG 17C799

Kit, Repair, St Mot, 240V, W/Fan

GG 17C819

Label, Brand, 390, Pc, Front

GG 17C820

Label, Brand, 390, Pc, Side

GG 17C823

Label, Brand, Ultra, 395Pc, Front

GG 17C827

Label, Brand, Ultramaxii, 490, Top

GG 17C828

Label, Brand, Ultramaxii, 490, Bttm

GG 17C829

Label, Brand, Ultramaxii, 490, Side

GG 17C830

Label, Brand, Ult, Mxii, 490, Top

GG 17C831

Label, Brand, Control, Pressure

GG 17C832

Label, Brand, Ult, Mxii, 490Pc, Side

GG 17C833

Label, Brand, Ultrmxii, 495Pc, Bttm

GG 17C834

Label, Brand, Ultrmxii, 495Pc, Side

GG 17C836

Label, Brand, Ultimxii, 495Pc, Side

GG 17C837

Label, Brand, Ultrmxii, 595Pc, Bttm

GG 17C838

Label, Brand, Ultrmxii, 595Pc, Side

GG 17C840

Label, Brand, Ultimxii, 595Pc, Side

GG 17C851

Label, Brand, Finishpro, 395Pc, Sid

GG 17C852

Label, Finishpro Ii, Front, Top

GG 17C855

Label, Finshproii, 595Pc, Pro, Side

GG 17C875

Label, Brand, Smartcontrol, 2.5

GG 17C883

Bracket, Pump Mount

GG 17C906

Cable, Meter, 16M I.S.

GG 17C908

Kit, Coupler, 3/4 Hose Barb, Rsv

GG 17C909

Harness, Cable, G3000 16In

GG 17C914

Label, Xtreme, Xl45

GG 17C925

Manifold, Hydraulic, Two Piston, Qpq

GG 17C933

Bushing, Ball Knocker, Inlet

GG 17C934

Stem, Ball Knocker, Inlet

GG 17C935

Knob, Ball Knocker, Inlet

GG 17C949

Tube, Suction, Intake

GG 17C964

Label, Smart Control, 2.5, Basic

GG 17C970

Manifold, M2K

GG 17C974

Cap, Manifold, Air, Xl

GG 17C976

Bracket, Guarding, Long

GG 17C978

Tank, Fuel, 2 Gal., Carb Comliant

GG 17C979

Cartridge, Carbon, Fuel Vapor, 300 Cc

GG 17C983

Grindlazer Hose, 1/4In Low Perm, Fuel Line

GG 17C984

Grindlazer Hose, 3/16In Low Perm, Fuel Line

GG 17C985

Grindlazer Hose, 3/16In Low Perm, Fuel Line

GG 17C988

Tube, Pickup, 2 Gal, Fuel Tank

GG 17C989

Cap, Fuel Tank, Epa Compliant

GG 17C990

Hanger, Pail, Threaded

GG 17C992

Kit, Repair, Stinger Tube

GG 17D019

Bracket, Mounting, Carbon Can 300Cc

GG 17D021

Strap, Mounting, Fuel Tank, 2 Gal

GG 17D029

Grindlazer Valve, Fuel, Barb, Slosh/Roll Over

GG 17D030

Grommet, Fuel Valve

GG 17D031

Label, Gh 130 Standard, Side

GG 17D032

Label, Gh 200 Standard, Side

GG 17D033

Label, Gh 200 Procontract, Side

GG 17D034

Label, Gh 230 Standard, Side

GG 17D036

Label, Gh 300 Standard, Side

GG 17D050

Label, Gh 130 Standard, Front

GG 17D051

Label, Gh 200 Standard, Front

GG 17D053

Label, Gh 230 Standard, Front

GG 17D055

Label, Gh 300 Standard, Front

GG 17D088

Label, Identification

GG 17D106

Frame, Cart, Weldment, 230/300 Gh

GG 17D121

Kit, Repair, Rod, Dm230/300, Std

GG 17D122

Kit, Repair, Cylinder, Gh200, Pro

GG 17D123

Kit, Repair, Cylinder, Gh230, Pro

GG 17D124

Kit, Repair, Cyl, Dm, 230/300, Std
