GRACO INC. S10595

GG 24L939

GG 24L940

GG 24L942

GG 24L946

GG 24L947

GG 24L949

GG 24L950

GG 24L951

GG 24L953

GG 24L957

GG 24L958

GG 24L959

GG 24L960

GG 24L963

GG 24L964

GG 24L965

GG 24L967

GG 24L972

GG 24L974

GG 24M024

GG 24L978

GG 24M052

GG 24M029

GG 24M053

GG 24M084

GG 24M085

GG 24M086

GG 24M106

GG 24M107

GG 24M119

GG 24M132

GG 24M136

GG 24M140

GG 24M178

GG 24M176

GG 24R061

GG 24R062

GG 24R065

GG 24R063

GG 24R064

GG 24R066

GG 24R068

KIT, INLET, 1.5", XD REEL

GG 24R069

GG 24R070

GG 24R071

GG 24R072

KIT, ROLLER GUIDE, W/BRCKT, XD40/60

Graco 24R072 XD Series Hose Reel Roller Guide Kit with Bracket for XD40 Series and XD60 Series

• Number of Pieces: 47

GG 24R074

KIT, ROLLER GUIDE, W/BRCKT, XD50

Graco 24R074 Roller Guide Kit with Bracket for XD50â„¢

• Number of Pieces: 47

GG 24R075

GG 24R088

GG 24R102

GG 24R106

GG 24R108

GG 24R110

GG 24R111

KIT, INLET HOSE, 1" A/W & OIL

GG 24R112

GG 24R114

GG 24R115

KIT, INLET HOSE, 1" FUEL

GG 24R117

GG 24R134

GG 24R133

GG 24R144

GG 24R148

GG 24R151

REACTOR E-8P SYSTEM, 120V, MANUAL 2K

Graco 24R151 Reactor E-8P Proportioner Package, 2K Manual Gun, 120 V

The Reactor E-8p Portable Plural-Component Sprayer offers the mobility and efficiency you need to complete small to medium sized joint filling jobs with ease. With easy control and the ability to pump directly from five-gallon material pails, the Reactor E-8p can help you reduce work time and labor costs.

• Lightweight and Portable
  • Built in handles for easy carrying
  • Weighs just 95 pounds (43 kg)
  • Easy to maneuver
  • Simple siphon feeding from 5 gal (19 L) buckets
• Efficient and Fast
  • Simple user controls
  • Electric motor offers high performance while reducing operating costs
  • Recommended maximum output of 0.25 gpm (.95 lpm)
• Built for Maximum Usability
  • Simple, single control knob operation
  • Onboard hose wrap makes storing equipment simple and fast
  • Plugs into standard electrical wall outlet
  • Built-in suction lines allow for use with 5-gal (19 L) pails
• Lightweight and Portable
  • Easy to maneuver up and down stairs, wherever the job goes – only 95 lb (43 kg)
• Alarm / Status Indicator
  • Shuts down unit if off-ratio conditions exist – assures good quality foam at the job site
• Desiccant Air Dryer
  • Allows air to be drawn into pail, protects material from contamination.
• Pressure Balance Valves
  • Quick and easy balancing of system pressures enables correct start-up
• Threaded Bucket Spout Connection
  • Keeps your connection secure and prevents spills
• Electric Motor
  • Proven motor performance and reduced operating costs, plugs into a standard residential outlet
• Easy Controls
  • Intuitive start/stop with single knob operation
• Spray Guns
  • Uses standard Graco Fusion or P2 Guns, provides consistent spray patterns
• Non-heated Hose
  • Easy to maneuver – 70% lighter than standard Reactor heated hose
• Carrying Handle/Hose Wrap
  • Easy to transport, convenient hose storage

• Model: Reactor
• Series: E-8P

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: Quick-Disconnect Pin

• Air Outlet Size (cm): 0.635
• Air Outlet Size (in): 1/4
• Air Outlet Size (mm): 6.35
• Air Outlet Thread Type: NPSM

• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: 2K Manual

• Hose Length (ft): 35
• Hose Length (m): 10.7

• Includes: Proportioner, Manual 2K Gun, Non-Insulated Hose Bundle

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 5.44
• Maximum Flow Rate (lb/min): 12

• Maximum Mix Ratio: 1:1

• Overall De

GG 24R154

REACTOR E-8P SYSTEM, 240V, MANUAL 2K

Graco 24R154 Reactor E-8P Proportioner Package, 2K Manual Gun, 240 V

The Reactor E-8p Portable Plural-Component Sprayer offers the mobility and efficiency you need to complete small to medium sized joint filling jobs with ease. With easy control and the ability to pump directly from five-gallon material pails, the Reactor E-8p can help you reduce work time and labor costs.

• Lightweight and Portable
  • Built in handles for easy carrying
  • Weighs just 95 pounds (43 kg)
  • Easy to maneuver
  • Simple siphon feeding from 5 gal (19 L) buckets
• Efficient and Fast
  • Simple user controls
  • Electric motor offers high performance while reducing operating costs
  • Recommended maximum output of 0.25 gpm (.95 lpm)
• Built for Maximum Usability
  • Simple, single control knob operation
  • Onboard hose wrap makes storing equipment simple and fast
  • Plugs into standard electrical wall outlet
  • Built-in suction lines allow for use with 5-gal (19 L) pails
• Lightweight and Portable
  • Easy to maneuver up and down stairs, wherever the job goes – only 95 lb (43 kg)
• Alarm / Status Indicator
  • Shuts down unit if off-ratio conditions exist – assures good quality foam at the job site
• Desiccant Air Dryer
  • Allows air to be drawn into pail, protects material from contamination.
• Pressure Balance Valves
  • Quick and easy balancing of system pressures enables correct start-up
• Threaded Bucket Spout Connection
  • Keeps your connection secure and prevents spills
• Electric Motor
  • Proven motor performance and reduced operating costs, plugs into a standard residential outlet
• Easy Controls
  • Intuitive start/stop with single knob operation
• Spray Guns
  • Uses standard Graco Fusion or P2 Guns, provides consistent spray patterns
• Non-heated Hose
  • Easy to maneuver – 70% lighter than standard Reactor heated hose
• Carrying Handle/Hose Wrap
  • Easy to transport, convenient hose storage

• Model: Reactor
• Series: E-8P

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: Quick-Disconnect Pin

• Air Outlet Size (cm): 0.635
• Air Outlet Size (in): 1/4
• Air Outlet Size (mm): 6.35
• Air Outlet Thread Type: NPSM

• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: 2K Manual

• Hose Length (ft): 35
• Hose Length (m): 10.7

• Includes: Proportioner, Manual 2K Gun, Non-Insulated Hose Bundle

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 5.44
• Maximum Flow Rate (lb/min): 12

• Maximum Mix Ratio: 1:1

• Overall De

GG 24R175

GG 24R176

GG 24R177

GG 24R178

GG 24R180

GG 24R183

GG 24R186

GG 24R196

GG 24R198

GG 24R236

GG 24R239

GG 24R253

GG 24R254

GG 24R306

GG 24R307

GG 24R309

GG 24R310

GG 24R322

GG 24R337

GG 24R336

GG 24R338

GG 24R339

GG 24R344

KIT, PACKAGE, 10-30KG DRUM NPT

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Three Inch Air Motor -Provides more power to create better flow.

Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.

Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

GG 24R410

GG 24R412

GG 24R413

XD SERIES 60 REEL, 6010, LP, 115VAC, NPT, WHITE

Graco 24R413 XD60â„¢, Air/Water/Diesel Fuel/WOE, 1 in. (25 mm) Inlet/Outlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, 115 VAC Electric Motor, White

The innovative design of the XD60, XD70 and XD80 Series Powered Hose Reel family is packed with features to help you work safer, smarter and faster. The direct-drive motor options include hydraulic, pneumatic and electric for air, water, petroleum- and synthetic-based oil, grease, diesel fuel dispense and waste oil evacuation applications.

• Safe, Reliable Direct Drive and Gear Motors - Drive unit is clean and lubricated for life No need to worry about greasy, exposed drive chains that need maintenance and can be dangerous to operators
• Easy System Integration - Easily change the inlet and motor direction to give you the option of a right or left hand flow orientation
• Heavy-duty Welded Spool - Built to handle the weight of heavy hoses, designed to surround and protect the drive unit from the elements to promote longer lasting, safer operation

• Model: XD
• Series: 60

• Application: Air, Water, Diesel Fuel, WOE

• Bare Reel: 1

• Color: White

• Dry Weight (lb): 133

• Frame Type: Box Frame
• Frequency (Hz): 50/60

• Hose Length (ft): 50

• Hose Reel Type: Bare Reel
• Inlet Size (cm): 2.54
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Temperature (°C): 82
• Maximum Temperature (°F): 180

• Maximum Working Pressure (bar): 41
• Maximum Working Pressure (kPa): 4100
• Maximum Working Pressure (MPa): 4.1
• Maximum Working Pressure (psi): 600

• Minimum Temperature (°C): -40
• Minimum Temperature (°F): -40

• Operating Voltage (V ac): 115
• Outlet Size (cm): 2.54
• Outlet Size (in): 1
• Outlet Size (mm): 25.4
• Outlet Thread Gender: Female
• Outlet Thread Type: NPT

• Overall Height (cm): 66.3
• Overall Height (in): 26.1
• Overall Height (mm): 663
• Overall Length (cm): 66
• Overall Length (in): 26
• Overall Length (mm): 660
• Overall Width (cm): 54.9
• Overall Width (in): 21.6
• Overall Width (mm): 549

• Rated Power (HP): 0.4
• Rated Speed (RPM): 500
• Rating Current (A): 6.5
• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water, Diesel Fuel, WOE

GG 24R414

GG 24R415

GG 24R416

GG 24R419

GG 24R420

GG 24R425

GG 24R428

GG 24R431

GG 24R434

GG 24R440

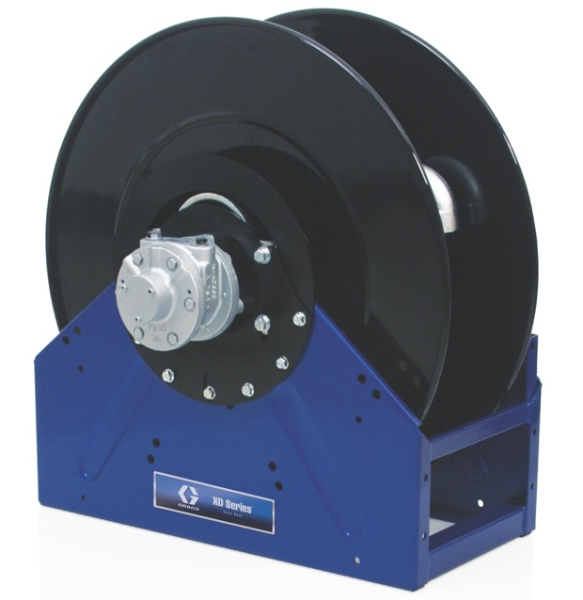

XD SERIES 70 REEL, 7010, LP, 24 VDC, NPT, BLUE

Graco 24R440 XD70â„¢, Air/Water/Diesel Fuel, 1 in. (25 mm) Inlet/Outlet, Bare Reel (1 in. X 100 ft. (25 mm X 30 m), NPT, 24 VDC Electric Motor, Metallic Blue

The innovative design of the XD60, XD70 and XD80 Series Powered Hose Reel family is packed with features to help you work safer, smarter and faster. The direct-drive motor options include hydraulic, pneumatic and electric for air, water, petroleum- and synthetic-based oil, grease, diesel fuel dispense and waste oil evacuation applications.

• Safe, Reliable Direct Drive and Gear Motors - Drive unit is clean and lubricated for life No need to worry about greasy, exposed drive chains that need maintenance and can be dangerous to operators
• Easy System Integration - Easily change the inlet and motor direction to give you the option of a right or left hand flow orientation
• Heavy-duty Welded Spool - Built to handle the weight of heavy hoses, designed to surround and protect the drive unit from the elements to promote longer lasting, safer operation

• Model: XD
• Series: 70

• Application: Air, Water, Diesel Fuel

• Bare Reel: 1

• Color: Metallic Blue

• Dry Weight (lb): 132

• Frame Type: Box Frame

• Hose Length (ft): 100

• Hose Reel Type: Bare Reel
• Inlet Size (cm): 2.54
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Temperature (°C): 82
• Maximum Temperature (°F): 180

• Maximum Working Pressure (bar): 41
• Maximum Working Pressure (kPa): 4100
• Maximum Working Pressure (MPa): 4.1
• Maximum Working Pressure (psi): 600

• Minimum Temperature (°C): -40
• Minimum Temperature (°F): -40

• Operating Voltage (V dc): 24
• Outlet Size (cm): 2.54
• Outlet Size (in): 1
• Outlet Size (mm): 25.4
• Outlet Thread Gender: Female
• Outlet Thread Type: NPT

• Overall Height (cm): 66.3
• Overall Height (in): 26.1
• Overall Height (mm): 663
• Overall Length (cm): 66
• Overall Length (in): 26
• Overall Length (mm): 660
• Overall Width (cm): 61.2
• Overall Width (in): 24.1
• Overall Width (mm): 612

• Rated Power (HP): 0.67
• Rated Speed (RPM): 500
• Rating Current (A): 38
• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water, Diesel Fuel
