GRACO INC. S10595

GG 24Y845

GG 24Y856

GG 24Y858

SD SERIES 5 REEL, CORD, BLK, NO ACCY

Graco 24Y858 SD 5 Series 120 Volt Cord Reel - No Accessory, Cord Only - 50 ft (15 m), 16 AWG, 13 Amp Cord- Black

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 5.
• 50 foot cord and features a 5 foot lead-in cable.
• Cord only, no accessory
• Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

• Model: SD
• Series: 5

• Cord Length (ft): 50
• Cord Length (m): 15

• Includes: Cord Only

• Insulation Type: SJTOW

• Maximum Current (A): 13

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Overall Height (cm): 37.59
• Overall Height (in): 14.8
• Overall Height (mm): 375.9
• Overall Length (cm): 35.2
• Overall Length (in): 13.84
• Overall Length (mm): 352
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Power Cord Connect Type: NEMA 5-15P

• Reel Color: Black

GG 24Y859

SD SERIES 5 REEL, CORD, BLK, NO ACCY

Graco 24Y859 SD 5 Series 120 Volt Cord Reel - No Accessory, Cord Only - 50 ft (15 m), 12 AWG, 20 Amp Cord - Black

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 5.
• 50 foot cord and features a 5 foot lead-in cable.
• Cord only, no accessory
• Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

• Model: SD
• Series: 5

• Cord Length (ft): 50
• Cord Length (m): 15

• Includes: Cord Only

• Insulation Type: SJOOW

• Maximum Current (A): 20

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Overall Height (cm): 37.59
• Overall Height (in): 14.8
• Overall Height (mm): 375.9
• Overall Length (cm): 35.2
• Overall Length (in): 13.84
• Overall Length (mm): 352
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Power Cord Connect Type: NEMA 5-20P

• Reel Color: Black

GG 24Y861

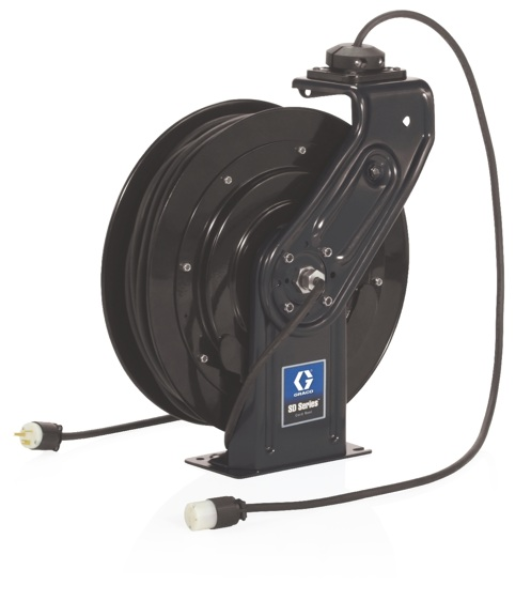

SD SERIES 5 REEL, CORD, BLK, SINGLE

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

Adjustable Arm - Easily change the arm position to fit more applications. Works on walls, ceilings or bench mounts.

Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

GG 24Y862

SD SERIES 5 REEL, CORD, BLK, SINGLE

Graco 24Y862 SD 5 Series 120 Volt Cord Reel - Single Industrial Receptacle - 35 ft (10 m), 12 AWG, 20 Amp Cord- Black

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 5.
• 35 foot (10 m) cord and features a 5 foot lead-in cable.
• Single industrial receptacle
• Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

• Model: SD
• Series: 5

• Cord Length (ft): 35
• Cord Length (m): 10

• Includes: Single Industrial Receptacle

• Insulation Type: SJOOW

• Maximum Current (A): 20

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Overall Height (cm): 37.59
• Overall Height (in): 14.8
• Overall Height (mm): 375.9
• Overall Length (cm): 35.2
• Overall Length (in): 13.84
• Overall Length (mm): 352
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Power Cord Connect Type: NEMA 5-20P

• Reel Color: Black

GG 24Y869

GG 24Y863

SD SERIES 5 REEL, CORD, BLK, SINGLE

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

Adjustable Arm - Easily change the arm position to fit more applications. Works on walls, ceilings or bench mounts.

Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

GG 24Y871

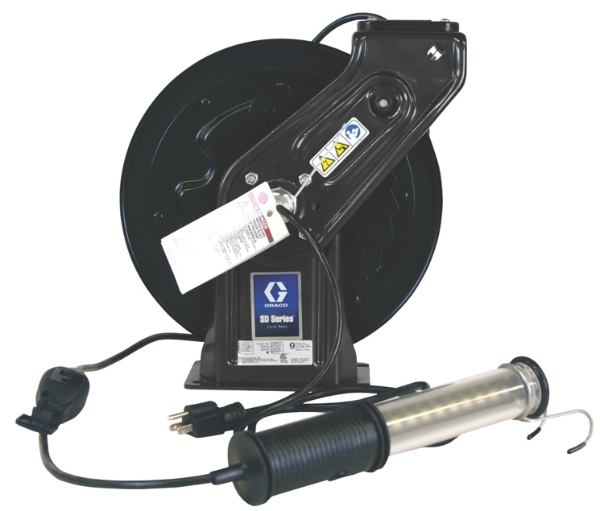

SD SERIES 5 REEL, LIGHT, BLK, LED, W/TAP

Graco 24Y871 SD 5 Series 120 Volt Cord and Light Reel - LED Light with In-Line Tool Tap - 35 ft (10 m) 16 AWG, 12 Amp Cord - Black

The SD 5 and SD 10 Series Cord and Light Reels allow you to organize your work space for a safer, more productive work environment. Choose from 35, 50 and 95 foot (11, 15, 29 meter) optionsto fit your shop perfectly. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 5.
• 35 foot (10 m) cord and features a 5 foot lead-in cable.
• LED light
• Heavy-Duty Pedestal
  • High-strength steel construction with rolled edges and ribbed stress points that won’t flex or twist.

• Model: SD
• Series: 5

• Cord Length (ft): 35
• Cord Length (m): 10

• Includes: LED Light with Tool Tap

• Insulation Type: SJTOW

• Maximum Current (A): 12

• Maximum Operating Temperature (°C): 40
• Maximum Operating Temperature (°F): 104

• Overall Height (cm): 37.59
• Overall Height (in): 14.8
• Overall Height (mm): 375.9
• Overall Length (cm): 35.2
• Overall Length (in): 13.84
• Overall Length (mm): 352
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Power Cord Connect Type: NEMA 5-15P

• Reel Color: Black

GG 24Y872

SD SERIES 5 REEL, LIGHT, BLK, LED, W/TAP

The SD 5 and SD 10 Series Cord and Light Reels allow you to organize your work space for a safer, more productive work environment. Choose from 35, 50 and 95 foot (11, 15, 29 meter) optionsto fit your shop perfectly. Make Graco your single source for your entire reel bank.

Adjustable Arm

• Easily change the arm position to fit more applications. Works on walls, ceilings or bench mounts.

Heavy-Duty Pedestal

• High-strength steel construction with rolled edges and ribbed stress points that won’t flex or twist.

GG 24Y873

SD SERIES 5 REEL, CORD, BLK, NO ACCY

Graco 24Y873 SD 5 Series 230 Volt Cord Reel - No Accessory, Cord Only - 10 m, 10 Amp Cord- Black

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 5.
• 10 meter cord and features a 5 foot lead-in cable.
• Cord only, no accessory
• Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

• Model: SD
• Series: 5

• Cord Length (ft): 35
• Cord Length (m): 10

• Insulation Type: H05RR-F

• Maximum Current (A): 10

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Overall Height (cm): 37.59
• Overall Height (in): 14.8
• Overall Height (mm): 375.9
• Overall Length (cm): 35.2
• Overall Length (in): 13.84
• Overall Length (mm): 352
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Reel Color: Black

GG 24Y876

SD SERIES 5 REEL, CORD, BLK, SINGLE

Graco 24Y876 SD 5 Series 230 Volt Cord Reel - Single Industrial Receptacle - 15 m, 10 Amp Cord - Black

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 5.
• 15 meter cord and features a 5 foot (1.5 meter) lead-in cable.
• Single industrial receptacle
• Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won’t flex or twist.

• Model: SD
• Series: 5

• Cord Length (ft): 50
• Cord Length (m): 15

• Includes: Single Industrial Receptacle

• Insulation Type: H05RR-F

• Maximum Current (A): 10

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Overall Height (cm): 37.59
• Overall Height (in): 14.8
• Overall Height (mm): 375.9
• Overall Length (cm): 35.2
• Overall Length (in): 13.84
• Overall Length (mm): 352
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Power Cord Connect Type: CEE 7/7 16 A

• Reel Color: Black

GG 24Y879

SD SERIES 10 REEL, CORD, BLK, NO ACCY

Graco 24Y879 SD 10 Series 120 Volt Cord Reel - No Accessory, Cord Only - 95 ft (29 m), 16 AWG, 10 Amp Cord - Black

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 10.
• 95 foot (29 m) cord and features a 5 foot lead-in cable.
• Cord only, no accessory
• Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

• Model: SD
• Series: 10

• Cord Length (ft): 95
• Cord Length (m): 29

• Includes: Cord Only

• Insulation Type: SJTOW

• Maximum Current (A): 10

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Overall Height (cm): 49.53
• Overall Height (in): 19.5
• Overall Height (mm): 495.3
• Overall Length (cm): 44.5
• Overall Length (in): 17.5
• Overall Length (mm): 445
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Power Cord Connect Type: NEMA 5-15P

• Reel Color: Black

GG 24Y880

SD SERIES 10 REEL, CORD, BLK, NO ACCY

Graco 24Y880 SD 10 Series 120 Volt Cord Reel - No Accessory, Cord Only - 95 ft (29 m), 12 AWG, 18 Amp Cord - Black

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 10.
• 95 foot (29 m) cord and features a 5 foot lead-in cable.
• Cord only, no accessory
• Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

• Model: SD
• Series: 10

• Cord Length (ft): 95
• Cord Length (m): 29

• Includes: Cord Only

• Insulation Type: SJOOW

• Maximum Current (A): 18

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Overall Height (cm): 49.53
• Overall Height (in): 19.5
• Overall Height (mm): 495.3
• Overall Length (cm): 44.5
• Overall Length (in): 17.5
• Overall Length (mm): 445
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Power Cord Connect Type: NEMA 5-20P

• Reel Color: Black

GG 24Y882

SD SERIES 10 REEL, CORD, BLK, SINGLE

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

Adjustable Arm - Easily change the arm position to fit more applications. Works on walls, ceilings or bench mounts.

Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

GG 24Y883

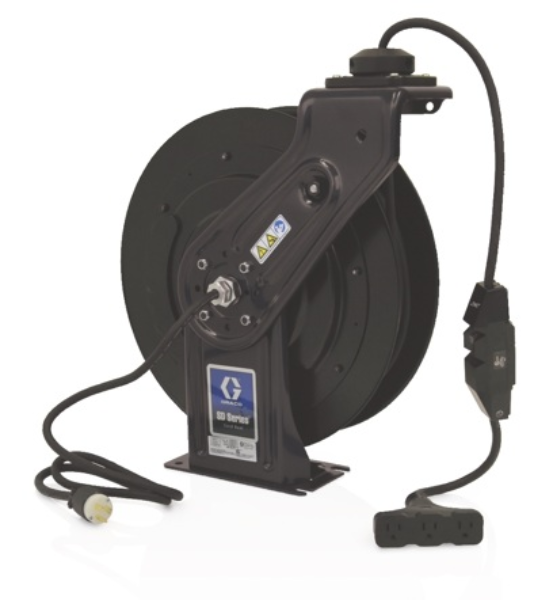

SD SERIES 10 REEL, CORD, BLK, TRIPLUG, GFCI

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

Adjustable Arm - Easily change the arm position to fit more applications. Works on walls, ceilings or bench mounts.

Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

GG 24Y886

SD SERIES 10 REEL, LIGHT, BLK, LED (110V)

Graco 24Y886 SD 10 Series 120 Volt Light Reel - LED Light - 95 ft (29 m), 16 AWG, <1 Amp Cord - Black

The SD 5 and SD 10 Series Cord and Light Reels allow you to organize your work space for a safer, more productive work environment. Choose from 35, 50 and 95 foot (11, 15, 29 meter) optionsto fit your shop perfectly. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 10.
• 95 foot (29 m) cord and features a 5 foot lead-in cable.
• LED light
• Heavy-Duty Pedestal
  • High-strength steel construction with rolled edges and ribbed stress points that won’t flex or twist.

• Model: SD
• Series: 10

• Cord Length (ft): 95
• Cord Length (m): 29

• Includes: LED Light

• Insulation Type: SJTOW

• Maximum Current (A): 0.05

• Maximum Operating Temperature (°C): 40
• Maximum Operating Temperature (°F): 104

• Overall Height (cm): 49.53
• Overall Height (in): 19.5
• Overall Height (mm): 495.3
• Overall Length (cm): 44.5
• Overall Length (in): 17.5
• Overall Length (mm): 445
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Power Cord Connect Type: NEMA 5-15P

• Reel Color: Black

GG 24Y887

SD SERIES 10 REEL, LIGHT, BLK, LED, W/TAP

The SD 5 and SD 10 Series Cord and Light Reels allow you to organize your work space for a safer, more productive work environment. Choose from 35, 50 and 95 foot (11, 15, 29 meter) optionsto fit your shop perfectly. Make Graco your single source for your entire reel bank.

Adjustable Arm

• Easily change the arm position to fit more applications. Works on walls, ceilings or bench mounts.

Heavy-Duty Pedestal

• High-strength steel construction with rolled edges and ribbed stress points that won’t flex or twist.

GG 24Y888

SD SERIES 10 REEL, CORD, BLK, NO ACCY

Graco 24Y888 SD 10 Series 230 Volt - No Accessory, Cord Only - 25 Meters, 16 Amp - Black

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 10.
• 25 meter cord and features a 5 foot lead-in cable.
• Cord only, no accessory
• Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

• Model: SD
• Series: 10

• Cord Length (ft): 82
• Cord Length (m): 25

• Insulation Type: H07RN-F

• Maximum Current (A): 16

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Overall Height (cm): 49.53
• Overall Height (in): 19.5
• Overall Height (mm): 495.3
• Overall Length (cm): 44.5
• Overall Length (in): 17.5
• Overall Length (mm): 445
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Reel Color: Black

GG 24Y893

GG 24Y889

SD SERIES 10 REEL, CORD, BLK, SINGLE

Graco 24Y889 SD 10 Series 230 Volt Cord Reel - Single Industrial Receptacle - 25 Meters, 16 Amp - Black

Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

• Heavy-duty steel construction, SD Series size 10.
• 25 meter cord and features a 5 foot lead-in cable.
• Single industrial receptacle
• Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

• Model: SD
• Series: 10

• Cord Length (ft): 82
• Cord Length (m): 25

• Includes: Single Industrial Receptacle

• Insulation Type: H07RN-F

• Maximum Current (A): 16

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Overall Height (cm): 49.53
• Overall Height (in): 19.5
• Overall Height (mm): 495.3
• Overall Length (cm): 44.5
• Overall Length (in): 17.5
• Overall Length (mm): 445
• Overall Width (cm): 11.938
• Overall Width (in): 4.7
• Overall Width (mm): 119.38

• Power Cord Connect Type: CEE 7/7 16 A

• Reel Color: Black

GG 24Y898

GG 24Y899

KIT, CENTER SECTION, SST

GG 24Y919

GG 24Y922

GG 24Y923

GG 24Y932

GG 24Y929

GG 24Y946

GG 24Y945

GG 24Y947

MANIFOLD,ASSY,CC,7 VALVE,LP,CIRC

Graco 24Y947 7 Valve SST Low Pressure Circulating Valve

GG 24Y986

GG 24Y991

GG 24Y995

GG 24Z000

GG 24Z003

GG 24Z020

LUBEPRO A2800 PUMP, OIL, 0.6L

Graco 24Z020 LubePro A2800 Vertical Oil Pumps, 0.6 liter Reservoir - NPT

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2800 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 28:1
• A2800 delivers a greater output than competitive models at 0.56 in³ (9.18 cm³) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 0.6 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A2800

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Overall Depth (cm): 13
• Overall Depth (in): 5.1
• Overall Depth (mm): 130

• Overall Height (cm): 31.8
• Overall Height (in): 12.53
• Overall Height (mm): 318
• Overall Width (cm): 13.3
• Overall Width (in): 5.25
• Overall Width (mm): 133

• Power Type: Pneumatic

GG 24Z022

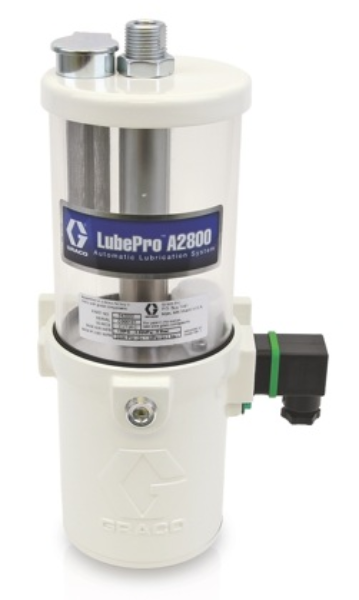

LUBEPRO A2800 PUMP, OIL, 0.6L, N.C, LL

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

GG 24Z018

PROMIX 2KE PROPORTIONER, PUMP, ACID

Graco 24Z018 ProMix 2KE Acid Catalyst Plural Component Proportioner, 23:1 Merkur & Merkur Bellows pumps, intrinsically safe alternator power

The ProMix 2KE proportioner is designed to manage tough acid catalyst applications like cabinetry and bar counter tops. The corrosion resistance fluid section, and smart fluid plate with 316 and 17-4 SST catalyst sections, can easily handle strong acid catalysts.

• Designed for multi-color, two component, in-booth applications
• Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
• Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
• Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more

• Model: ProMix
• Series: 2KE

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual Air-Assist

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Includes: 2KE Pump-Based Proportioner, Non Intrinsically Safe AC Powered

• Material Type: Two Component

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Fluid Viscosity (cP): 5000

• Maximum Fluid Viscosity (cP): 5000

• Maximum Mix Ratio: 30:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 158
• Maximum Working Pressure (kPa): 15800
• Maximum Working Pressure (MPa): 15.8
• Maximum Working Pressure (psi): 2300
• Measuring Type: Pump

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: N/A
• Number of Colors: 1

• Number of Resin Colors: 1

• Power Source: Electric

• Proportioning Type: Manual Electronic

• Pump Ratio: 23:1
• Pump Type: Air-Assisted Bellows

GG 24Z021

LUBEPRO A2800 PUMP, OIL, 0.6L, N.O, LL

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

GG 24Z023

GG 24Z024

GG 24Z025

LUBEPRO A2800 PUMP, OIL, 0.6L, N.C, LL, EU

Graco 24Z025 LubePro A2800 Vertical Oil Pumps, 0.6 liter Reservoir, Normally Closed, Low Level - BSPP

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2800 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 28:1
• A2800 delivers a greater output than competitive models at 0.56 in³ (9.18 cm³) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 0.6 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A2800

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Includes: Low Level

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Overall Depth (cm): 13
• Overall Depth (in): 5.1
• Overall Depth (mm): 130

• Overall Height (cm): 31.8
• Overall Height (in): 12.53
• Overall Height (mm): 318
• Overall Width (cm): 17.3
• Overall Width (in): 6.8
• Overall Width (mm): 173

• Power Type: Pneumatic

GG 24Z026

LUBEPRO A2800 PUMP, OIL, 2.0L

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

GG 24Z027

LUBEPRO A2800 PUMP, OIL, 2.0L, N.O, LL

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

GG 24Z029

LUBEPRO A2800 PUMP, OIL, 2.0L, EU

Graco 24Z029 LubePro A2800 Vertical Oil Pumps, 2 liter Reservoir - BSPP

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2800 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 28:1
• A2800 delivers a greater output than competitive models at 0.56 in³ (9.18 cm³) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 2 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A2800

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Overall Depth (cm): 13
• Overall Depth (in): 5.1
• Overall Depth (mm): 130

• Overall Height (cm): 50.4
• Overall Height (in): 19.83
• Overall Height (mm): 504
• Overall Width (cm): 13.3
• Overall Width (in): 5.25
• Overall Width (mm): 133

• Power Type: Pneumatic

GG 24Z030

LUBEPRO A2800 PUMP, OIL, 2.0L, N.O, LL, EU

Graco 24Z030 LubePro A2800 Vertical Oil Pumps, 2 liter Reservoir, Normally Open, Low Level - BSPP

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2800 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 28:1
• A2800 delivers a greater output than competitive models at 0.56 in³ (9.18 cm³) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 2 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A2800

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Includes: Low Level

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Overall Depth (cm): 13
• Overall Depth (in): 5.1
• Overall Depth (mm): 130

• Overall Height (cm): 50.4
• Overall Height (in): 19.83
• Overall Height (mm): 504
• Overall Width (cm): 17.3
• Overall Width (in): 6.8
• Overall Width (mm): 173

• Power Type: Pneumatic

GG 24Z037

GG 24Z038

GG 24Z040

GG 24Z039

GG 24Z041

GG 24Z043

KIT, MOTOR, NEMA, EXP PR, 0.5 HP

GG 24Z044

KIT, MOTOR, NEMA, EXP PR, 1.0 HP

Graco 24Z044 Kit, Motor, Class 1 Division 1, NEMA 143TC Flange, 1.0 HP

GG 24Z045

KIT, MOTOR, NEMA, EXP PR, 3.0 HP

GG 24Z050

GG 24Z052

LUBEPRO A2900 PUMP, GRS, 1LB, N.O, LL

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

GG 24Z051

LUBEPRO A2900 PUMP, GRS, 1LB

Graco 24Z051 LubePro A2900 Vertical Grease Pumps, 1 lb. (0.45 kg) Reservoir - NPT

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2900 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 29:1
• A2900 delivers a greater output than competitive models at 0.58 in³ (9.5 cm³) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 1 lb (0.45 kg) reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point

• Model: LubePro
• Series: A2900

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 16.5
• Overall Depth (in): 6.5
• Overall Depth (mm): 165

• Overall Height (cm): 31.8
• Overall Height (in): 12.53
• Overall Height (mm): 318
• Overall Width (cm): 13.3
• Overall Width (in): 5.25
• Overall Width (mm): 133

• Power Type: Pneumatic

GG 24Z053

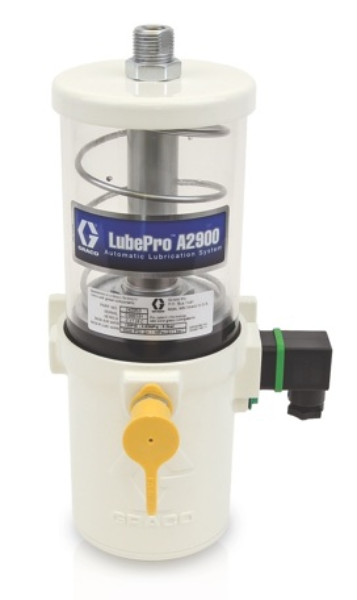

LUBEPRO A2900 PUMP, GRS, 1LB, N.C, LL

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

GG 24Z054

LUBEPRO A2900 PUMP, GRS, 1LB, EU

Graco 24Z054 LubePro A2900 Vertical Grease Pumps, 1 lb. (0.45 kg) Reservoir - BSPP

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2900 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 29:1
• A2900 delivers a greater output than competitive models at 0.58 in³ (9.5 cm³) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 1 lb (0.45 kg) reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point

• Model: LubePro
• Series: A2900

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 16.5
• Overall Depth (in): 6.5
• Overall Depth (mm): 165

• Overall Height (cm): 31.8
• Overall Height (in): 12.53
• Overall Height (mm): 318
• Overall Width (cm): 13.3
• Overall Width (in): 5.25
• Overall Width (mm): 133

• Power Type: Pneumatic

GG 24Z055

GG 24Z056

GG 24Z057

LUBEPRO A2900 PUMP, GRS, 4LB

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

GG 24Z058

LUBEPRO A2900 PUMP, GRS, 4LB, N.O, LL

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

GG 24Z059

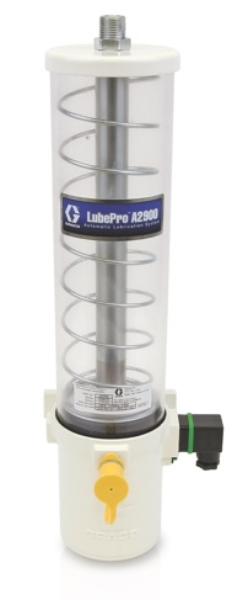

LUBEPRO A2900 PUMP, GRS, 4LB, N.C, LL

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

GG 24Z060

GG 24Z061

LUBEPRO A2900 PUMP, GRS, 4LB, N.O, LL, EU

Graco 24Z061 LubePro A2900 Vertical Grease Pumps, 4 lb. (1.81 kg) Reservoir, Normally Open, Low Level - BSPP

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2900 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 29:1
• A2900 delivers a greater output than competitive models at 0.58 in³ (9.5 cm³) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 4 lb (1.81 kg) reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point

• Model: LubePro
• Series: A2900

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Includes: Low Level

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 16.5
• Overall Depth (in): 6.5
• Overall Depth (mm): 165

• Overall Height (cm): 50.4
• Overall Height (in): 19.83
• Overall Height (mm): 504
• Overall Width (cm): 17.5
• Overall Width (in): 6.9
• Overall Width (mm): 175

• Power Type: Pneumatic

GG 24Z062

LUBEPRO A2900 PUMP, GRS, 4LB, N.C, LL, EU

Graco 24Z062 LubePro A2900 Vertical Grease Pumps, 4 lb. (1.81 kg) Reservoir, Normally Closed, Low Level - BSPP

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2900 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 29:1
• A2900 delivers a greater output than competitive models at 0.58 in³ (9.5 cm³) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 4 lb (1.81 kg) reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point

• Model: LubePro
• Series: A2900

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500

• Includes: Low Level

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 16.5
• Overall Depth (in): 6.5
• Overall Depth (mm): 165

• Overall Height (cm): 50.4
• Overall Height (in): 19.83
• Overall Height (mm): 504
• Overall Width (cm): 17.5
• Overall Width (in): 6.9
• Overall Width (mm): 175

• Power Type: Pneumatic

GG 24Z123

GG 24Z094

GG 24Z126

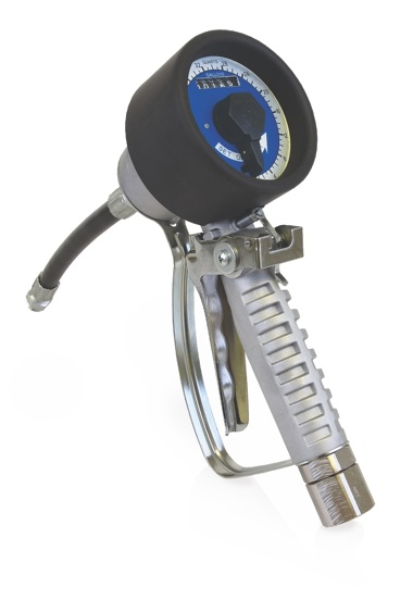

METER, PRESET, 60 QRT, FLEX, NPT

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).

GG 24Z127

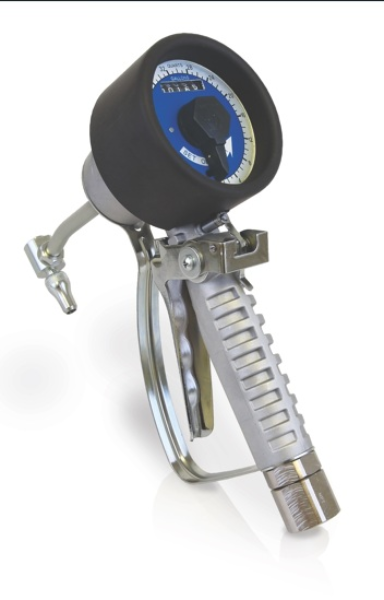

METER, PRESET, 60 QRT, RIGID, NPT

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).

GG 24Z129

METER, PRESET, 60 GAL, FLEX, NPT

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).

GG 24Z132

METER, PRESET, 60 LITER, FLEX, NPT

Graco 24Z132 60 Liter Preset Meter - Includes Nozzle/Extension Kit - Flex Extension - NPT

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).

• Preset meter automatically shuts-off flow when preset quantity has been dispensed
• Impact-resistant shroud resists against scratches and protects knob and dial from damage
• Dial and face design made simple, easy to read and set
• Built-in totalizer to manage material usage
• Inlet 1/2 in. NPT with swivel
• Measures fluid in liters
• Features flexible extension with oil nozzle
• 5 Year Warranty

• Compatible Material: Oil, Antifreeze

• Dispense Type: Preset

• Display Type: Mechanical

• Extension Type: Flexible

• Includes: Bare Meter, Nozzle Kit
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 8
• Maximum Flow Rate (L/min): 30

• Maximum Operating Temperature (°C): 70
• Maximum Operating Temperature (°F): 160

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (MPa): 10
• Maximum Working Pressure (psi): 1500
• Meter Accuracy (%): ±1%
• Meter Pressure Loss (bar): 2
• Meter Pressure Loss (kPa): 200
• Meter Pressure Loss (psi): 30

• Metering Gun Weight (kg): 1.58
• Metering Gun Weight (lb): 3.5

• Minimum Operating Temperature (°C): -45
• Minimum Operating Temperature (°F): -50

• Nozzle Type: Manual

• Outlet Size (cm): 1.27
• Outlet Size (in): 0.75
• Outlet Size (mm): 12.7
• Outlet Thread Type: ORB

• Recommended Environment: Indoor, Outdoor

GG 24Z150

KIT, MOTOR, IEC, AC, 0.37KW

Graco 24Z150 Kit, Motor, ATEX, IEC 71B Flange, 0.37 KW

GG 24Z151

KIT, MOTOR, IEC, AC, 0.75KW

GG 24Z152

KIT, MOTOR, IEC, AC, 1.50KW

Graco 24Z152 Kit, Motor, ATEX, IEC 90L Flange, 1.5 KW

GG 24Z153

KIT, MOTOR, IEC, AC, 2.20KW

GG 24Z206

GG 24Z208

GG 24Z207

GG 24Z209

GG 24Z210

GG 24Z211

GG 24Z212

GG 24Z213

GG 24Z214

GG 24Z215

GG 24Z225

GG 24Z253

GG 24Z266

GG 24Z267

GG 24Z268

GG 24Z269

GG 24Z270

GG 24Z271

GG 24Z272

GG 24Z273

GG 24Z274

GG 24Z278
