GRACO INC. S10595
GRACO INC. S10595 branded products
KIT, REPAIR, ROCKER SWITCH
GG 24Y329
GG 24Y329
KIT, REPAIR, ROCKER SWITCH
Repair Kit, Switch, ProX17, ProX19, ProX21 Stand/Cart Replace a worn or damaged switch with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Graco Tech Support can further assist with troubleshooting sprayer operation $13.80
REACTOR HEATED HOSE, X-WRAP, 3/8, 50', CA
GG 24Y395
GG 24Y395
REACTOR HEATED HOSE, X-WRAP, 3/8, 50', CA
High Pressure 50 ft (15 m) Heated Hose with 3/8 in (9.5 mm) Diameter and Xtreme-Wrap Scuff GuardGraco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
New Xtreme-Wrap Scuff Guard
- Form fitting to the hose, no more baggy excess material
- Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
- Sheds surface moisture and won't absorb water to weigh down the hose bundle; will not freeze solid in cold temperatures
- Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors
Joint Protectors
- Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft hoses with the new Xtreme-Wrap will come with one Joint Protector.
Resistance Temperature Detector (RTD)
- Graco’s latest advanced controls on Reactor 2 and Integrated Reactor utilize RTD technology. RTDs offer the highest accuracy and the best day-to-day repeatability of material temperatures in your hose. RTD technology allows the machine to automatically shut down if the sensor is damaged, which saves wasted time and materials.
$4,430.00

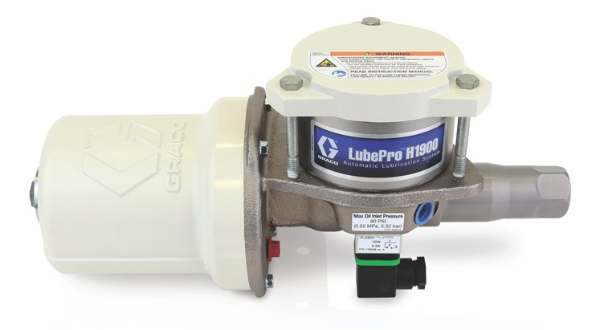

Lubepro H1900 Pump, Ll
GG 24Y499
GG 24Y499
LUBEPRO H1900 PUMP, LL
Graco 24Y499 LubePro H1900 Horizontal Oil Pump, Low Level - NPT
Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball® pump - the leader in durability and quality for over 50 years.
Application: Single Stroke Oil Pump for Automatic Lubrication- LubePro H1900 is compatible with GL-42 and GL-43 injectors
- Pressure Ratio of 19:1
- H1900 delivers a greater output than competitive models at 3.0 in³ (49.2 cm³) per stroke
- Pneumatic power makes it easy to install into existing air line
- Optional Low Level Detection available, factory installed
- Built with high-quality seals tested to outperform the competition
- Optimally lubricates while your machines are running
- Provides accurate, reliable lubrication for every lube point
- Provides higher lube output and faster lubrication cycle
- Model: LubePro
- Series: H1900
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Application: In-Plant Machinery
- Compatible Material: Oil
- Compatible Metering Device: Series Progressive, Single Line Parallel
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: NPT
- Includes: Low Level
- Maximum Air Inlet Pressure (bar): 12.76
- Maximum Air Inlet Pressure (kPa): 1276
- Maximum Air Inlet Pressure (psi): 185
- Maximum Fill Inlet Pressure (bar): 5.52
- Maximum Fill Inlet Pressure (kPa): 552
- Maximum Fill Inlet Pressure (psi): 80
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum cST Grade (cST): 40
- Overall Width (cm): 39.4
- Overall Width (in): 15.5
- Overall Width (mm): 394
- Power Type: Pneumatic
$2,170.00
Manifold, Mix, Pump, Promix 2Ke Acid
GG 24Y547
GG 24Y547
Manifold, Mix, Pump, Promix 2Ke Acid $4,790.00

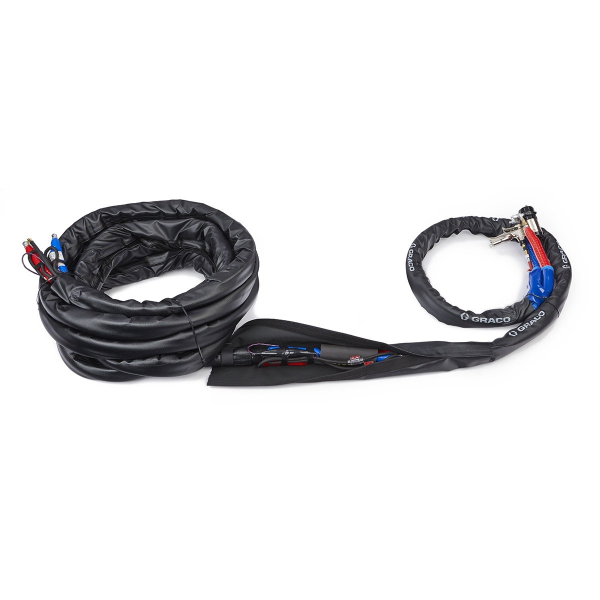

REACTOR HEATED HOSE, X-WRAP, 3/8, 50'
GG 24Y549
GG 24Y549
REACTOR HEATED HOSE, X-WRAP, 3/8, 50'
50 ft x 3/8 in Heated Hose, 2000 psi, Without Cable, Xtreme-Wrap, Reactor 1 & 2Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
New Xtreme-Wrap Scuff Guard
- Form fitting to the hose, no more baggy excess material
- Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
- Sheds surface moisture and won't absorb water to weigh down the hose bundle; will not freeze solid in cold temperatures
- Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors
Joint Protectors
- Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft (15 m) hoses with the new Xtreme-Wrap will come with one Joint Protector.
$2,840.00
Saniforce Eodd Pump, 1040Fg-Ea04As13Ssptptpt21
GG 24Y575
GG 24Y575
Saniforce Eodd Pump, 1040Fg-Ea04As13Ssptptpt21 $12,060.00

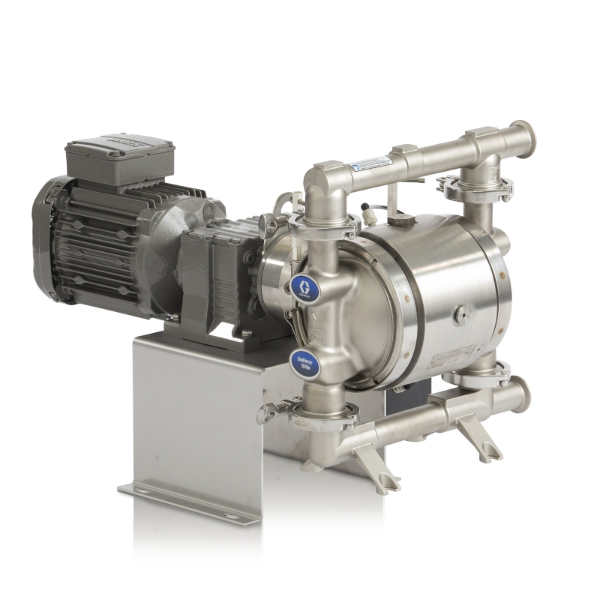

SANIFORCE EODD PUMP, 1040FG-EA04AS13SSSPSPEP21
GG 24Y579
GG 24Y579
SANIFORCE EODD PUMP, 1040FG-EA04AS13SSSPSPEP21
SaniForce 1040e S/S EODD Pump with Al Center, S/S Seats, EPDM O-Rings, Santoprene Balls, Santoprene Diaphragm & 1.5 in Sanitary FlangeThe SaniForce 1040e combine all of the benefits of a traditional air operated diaphragm pump like self-priming, stalling under pressure and increased diaphragm life with the benefits of an electric pump like energy cost savings, reduced pulsation and increased pump control.
1 inch (25.4 mm) air-operated double diaphragm sanitary pump with flow rates up to 40 gpm (151 lpm) - ideal for food-related applications Low pulsation makes this pump ideal for applications that need smooth flow 5 times more efficient than an air operated diaphragm pump Patent pending technology allows pump to stall under pressure preventing pump failures from clogged lines or closed valves Energy efficient electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps Less Noise disturbance thru less than 70 dBa compared to an AODD Mobile cart options available for easy and quick movement Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions $11,900.00
Saniforce Eodd Pump, 1040Fg-Ea04As14Ssspspep21
GG 24Y583
GG 24Y583
Saniforce Eodd Pump, 1040Fg-Ea04As14Ssspspep21 $12,320.00
SANIFORCE EODD PUMP, 1040FG-ES04AS13SSPTPOPT21
GG 24Y596
GG 24Y596
SANIFORCE EODD PUMP, 1040FG-ES04AS13SSPTPOPT21
SaniForce 1040e Sanitary S/S EODD Pump with PTFE O-Rings, S/S Seats, PTFE Balls, PTFE/EPDM Overmold Diaphragm & Tri Clamp PortingThe SaniForce 1040e combine all of the benefits of a traditional air operated diaphragm pump like self-priming, stalling under pressure and increased diaphragm life with the benefits of an electric pump like energy cost savings, reduced pulsation and increased pump control.
1 inch (25.4 mm) air-operated double diaphragm sanitary pump with flow rates up to 40 gpm (151 lpm) - ideal for food-related applications Low pulsation makes this pump ideal for applications that need smooth flow 5 times more efficient than an air operated diaphragm pump Patent pending technology allows pump to stall under pressure preventing pump failures from clogged lines or closed valves Energy efficient electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps Less Noise disturbance thru less than 70 dBa compared to an AODD Mobile cart options available for easy and quick movement Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions $13,770.00
SANIFORCE EODD PUMP, 1040FG-ES04AS13SSPTPTPT21
GG 24Y597
GG 24Y597
SANIFORCE EODD PUMP, 1040FG-ES04AS13SSPTPTPT21
SaniForce 1040e Sanitary S/S EODD Pump with S/S Seats, PTFE O-Rings, Santoprene Balls & Diaphragm & 1.5 in Sanitary FlangeThe SaniForce 1040e combine all of the benefits of a traditional air operated diaphragm pump like self-priming, stalling under pressure and increased diaphragm life with the benefits of an electric pump like energy cost savings, reduced pulsation and increased pump control.
1 inch (25.4 mm) air-operated double diaphragm sanitary pump with flow rates up to 40 gpm (151 lpm) - ideal for food-related applications Low pulsation makes this pump ideal for applications that need smooth flow 5 times more efficient than an air operated diaphragm pump Patent pending technology allows pump to stall under pressure preventing pump failures from clogged lines or closed valves Energy efficient electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps Less Noise disturbance thru less than 70 dBa compared to an AODD Mobile cart options available for easy and quick movement Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions $14,240.00
