GRACO INC. S10595
GRACO INC. S10595 branded products
Toughtek System, F340E, 230V, Pkg W/Remote
GG 25A507
GG 25A507
TOUGHTEK SYSTEM, F340E, 230V, PKG W/REMOTE
Graco 25A507 ToughTek F340e Package, 230V, 10A
Engineered with Graco’s proprietary piston pump technology, the ToughTek F340e piston pump is perfect for small to medium jobs that spray up to 100 bags per day and is capable of producing pressures of up to 600 psi (41 bar) using an energy efficient direct drive electric motor. This high pumping pressure will allow your crew to spray up to 150 feet (46 m) from the machine and pump 15 bags per hour.
- Piston pump technology easily handles fireproofing materials
- Gets projects done faster with high-pressure performance
- Electric operation – plugs into a standard 120V, 15A wall outlet
- Easy to use, simple to maintain
- Ideal for fireproofing over structural steel or spray foam insulation
- Features ProGuard System
- Built-in protection system continually monitors operation
- Dual LED indicators provide instant feedback while applying material
- Automatically shuts pump off to protect from thermal overload or excessive pressure
- Model: ToughTek
- Series: F340e
- Application: Fireproofing
- Compatible Material: Cementitious Material
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Hopper Capacity (gal): 20
- Includes: Remote On/Off Switch
- Input Voltage (V ac): 230
- Material: Fireproofing
- Material Output (bags/hr): 20
- Maximum Continuous Cycle Rate (CPM): 150
- Maximum Flow Rate (GPM): 12
- Maximum Flow Rate (L/min): 24.61
- Maximum Hose Length (ft): 150
- Maximum Input Amperage (A): 10
- Maximum Operating Temperature (°C): 49
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 41.3
- Maximum Working Pressure (kPa): 4130
- Maximum Working Pressure (MPa): 4.1
- Maximum Working Pressure (psi): 600
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Motor Type: Brushless
- Portable: Portable
- Power Rating (HP): 2
$17,480.00
XHT Gun, Spray, High Flow, High Temp
GG 25A536
GG 25A536
XHT GUN, SPRAY, HIGH FLOW, HIGH TEMP
Graco 25A536 XHT Spray Gun with XHD RAC Guard and XHT647 SwitchTip
Application: For spraying viscous materials at elevated temperatures.- Includes an XHD RAC Guard and XHT647 SwitchTip
- Model: XHT
- Compatible Material: Viscous Materials
- Fluid Inlet Size (cm): 0.9525
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Size (mm): 9.525
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Orifice Size (cm): 0.32
- Fluid Orifice Size (in): 0.125
- Fluid Orifice Size (mm): 3.2
- Gun Activation: Manual
- Gun Type: Airless Gun
- Gun Weight (g): 720
- Gun Weight (kg): 0.66
- Gun Weight (lb): 1.45
- Gun Weight (oz): 23.2
- Includes: XHD RAC Guard, XHT647 SwitchTip
- Maximum Fluid Pressure (bar): 450
- Maximum Fluid Pressure (kPa): 45000
- Maximum Fluid Pressure (MPa): 45
- Maximum Fluid Pressure (psi): 6500
- Maximum Fluid Temperature (°C): 200
- Maximum Fluid Temperature (°F): 390
- Maximum Fluid Pressure (bar): 450
- Maximum Fluid Pressure (kPa): 45000
- Maximum Fluid Pressure (MPa): 45
- Maximum Fluid Pressure (psi): 6500
- Maximum Fluid Temperature (°C): 200
- Maximum Fluid Temperature (°F): 390
- Maximum Fluid Working Pressure (bar): 450
- Maximum Fluid Working Pressure (MPa): 45
- Maximum Fluid Working Pressure (psi): 6500
- Overall Height (cm): 17.8
- Overall Height (in): 7.0
- Overall Height (mm): 178
- Overall Length (cm): 21
- Overall Length (in): 8.25
- Overall Length (mm): 210
- Purge Method: Liquid
$1,015.00
Reactor E-8P Oem System, Sprayer, W/2K
GG 25A846
GG 25A846
REACTOR E-8P OEM SYSTEM, SPRAYER, W/2K
Graco 25A846 Reactor E-8P Proportioner OEM Package, 2K Manual Gun, 240 V
Designed specifically for new no-heat foam insulation formulations, the Reactor E-8p produces an air-seal solution that's in demand by homeowners who want to make their homes more energy-efficient. Whether you're expanding your existing insulation application opportunities or just starting your business, the Reactor E-8p provides a quick return on investment. As a touch-up system, the Reactor E-8p frees up larger rigs for medium and large jobs, while enabling you to finish the job affordably.
Application: For air sealing attics and rim joists with unheated spray polyurethane foam.- Best choice for portability and high-quality foam
- Haul it in your van or pickup truck
- Easy to move up and down stairs
- Telescoping handle and wheels makes it easy to maneuver at the job site
- Plugs into a standard residential outlet (120 VAC, 15 amp)
- Weighs just 96 pounds (44 kg)
- Easy to read pressure gauges ensure you're spraying on-ratio and delivering high-quality foam
- An economical alternative to froth kits
- Electric Motor
- Proven motor performance, uses standard residential outlet
- Telescoping Handle
- Easy handling from your vehicle to the home
- Lightweight
- Easy to maneuver up and down stairs – only 95 lb (43 kg
- Threaded Bucket Spout Connection
- Keeps your connection secure and prevents spills
- Pressure Balance Valves
- Quick and easy balancing of system pressures enables correct start-up
- Simple User Controls
- Intuitive start/stop with single control knob
- Model: Reactor
- Series: E-8P
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: Quick-Disconnect Pin
- Air Outlet Size (cm): 0.635
- Air Outlet Size (in): 1/4
- Air Outlet Thread Type: NPSM
- Application: Spray Foam
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: 2K Manual
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: Proportioner, Manual 2K Gun, Non-Insulated Hose Bundle
- Material Application: Polyurethane Foam
- Maximum Flow Rate (kg/min): 5.44
- Maximum Flow Rate (lb/min): 12
- Maximum Mix Ratio: 1:1
- Overall Depth (cm): 38.3
- Overall Depth (in): 15.06
- Overall Depth (mm): 383
- Overall Height (cm): 61.3
- Overall Height (in): 24.12
- Overall Height (mm): 613
- Overall Width (cm): 87.8
- Overall Width (in): 34.58
- Overall Width (mm): 878
- Power Source: Electric
- Pressure Type: Low Pressure
- Product Type: Plural Component
$12,530.00
MODULE, STACK, MED MXR, VLV
GG 25A992
GG 25A992
MODULE, STACK, MED MXR, VLV
Straight Thread Multi-pass Mixing Stack Material check valve onlyThe multi-pass stack includes multiple mixing elements to optimize mixing of the material. Three configurations of the mixing stack are available to meet the specific needs of your system.
Reduce downtime and increase production with mixing stacks.
Supports up to 30 mix elements
Configure the equipment to run as few mix elements as required: 6, 12, 18, 24, or 30
$6,530.00

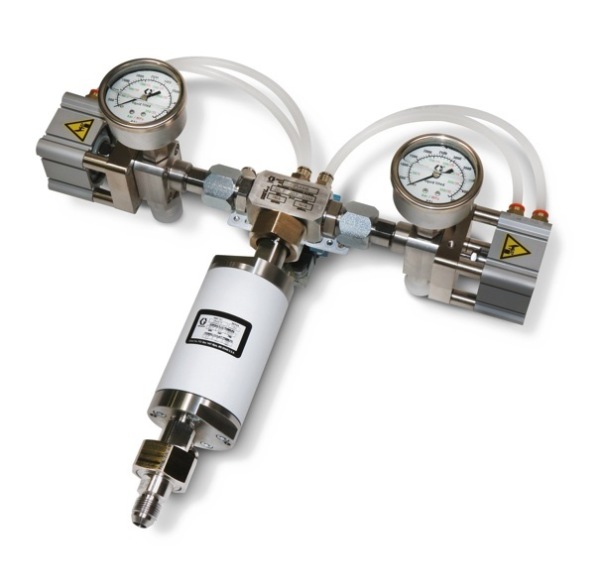

MODULE, STACK, MED MXR, VLV, CLR
GG 25A993
GG 25A993
MODULE, STACK, MED MXR, VLV, CLR
Straight Thread Multi-pass Mixing Stack with A/B Shut Off valves and Color InjectorThe multi-pass stack includes multiple mixing elements to optimize mixing of the material. Three configurations of the mixing stack are available to meet the specific needs of your system.
Reduce downtime and increase production with mixing stacks.
Supports up to 30 mix elements
Configure the equipment to run as few mix elements as required: 6, 12, 18, 24, or 30
$10,470.00
Kit, Manifold, Hi-Flow, Blast Circuit, Outlet
GG 25B051
GG 25B051
Kit, Manifold, Hi-Flow, Blast Circuit, Outlet $459.00
Pump, Lower, Pc, 1.45 cc/Rev, Fkm
GG 25B055
GG 25B055
PUMP,LOWER,PC,1.45 CC/REV,FKM
Graco 25B055 Progressive Cavity Pump,LOWER,PC,1.45 CC/REV,FKM
The Graco Progressive Cavity pump is the optimal solution for single component, medium to high viscosity material metering and dispensing. The improved material inlet path reduces pressure restrictions, minimizing dead space and material build up. The rotor and stator are made of durable materials that maximize its service life, making it ideal for handling abrasive materials. Designed for maximum life and minimum maintenance, the PC Pump provides a continuous flow while maintaining the integrity of your material.
$14,710.00
Advanjet Control Box, Hm-2600C, Stand Alone
GG 25B085
GG 25B085
ADVANJET CONTROL BOX,HM-2600C,STAND ALONE
$13,390.00
Pump, Lower, Pc, 1.00cc/Rev, Fkm
GG 25B193
GG 25B193
PUMP,LOWER,PC,1.00CC/REV,FKM
Graco 25B193 Progressive Cavity Pump,LOWER,PC,1.00CC/REV,FKM
The Graco Progressive Cavity pump is the optimal solution for single component, medium to high viscosity material metering and dispensing. The improved material inlet path reduces pressure restrictions, minimizing dead space and material build up. The rotor and stator are made of durable materials that maximize its service life, making it ideal for handling abrasive materials. Designed for maximum life and minimum maintenance, the PC Pump provides a continuous flow while maintaining the integrity of your material.
$14,710.00
Kit, Stator, Pc Pump, 1.45 cc
GG 25B231
GG 25B231
KIT,STATOR,PC PUMP,1.45 CC
KIT INCLUDES: KIT, STATOR, 1.45CC/REV [QTY. 1 ], SEAL, WASHER, PTFE [QTY. 2 ]
$3,170.00
Kit, Procontrol 1Ke Plus
GG 25B285
GG 25B285
KIT, PROCONTROL 1KE PLUS
Graco 25B285 ProControl 1KE Plus Open Loop Fluid Pressure Control, Advanced Display Control Module, G3000 meter, fluid regulator, I/P
This ProControl 1KE Plus package provides an off-the-shelf solution to actively manage one component (1K) fluids, improve spray performance, and increase efficiency. Higher specification packages and upgrade kits are available for additional capabilities.
- Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste.
- Open loop control allows operators to set and adjust fluid pressure to target level.
- Fluid management package works with manual paint spray guns or automatic spray applicators.
- Model: ProControl
- Series: 1KE Plus
- Control Box Voltage (V dc): 15
- Flow Control Type: Fluid Flow Monitor
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Inlet Pressure (bar): 20
- Maximum Fluid Inlet Pressure (psi): 300
- Maximum Fluid Inlet Pressure (bar): 20
- Maximum Fluid Inlet Pressure (psi): 300
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 20.7
- Maximum Working Pressure (MPa): 2.1
- Maximum Working Pressure (psi): 300
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Power Source: Order separate
$14,500.00
KIT, PROCONTROL 1KE PLUS
GG 25B286
GG 25B286
KIT, PROCONTROL 1KE PLUS
ProControl 1KE Plus Open Loop Fluid Pressure Control, Advanced Display Control Module, G3000 meter, I/P This ProControl 1KE Plus package makes one component (1K) fluid management simple and cost-effective. Add component(s) to customize for specific finishing needs. Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste. Open loop control allows operators to set and adjust fluid pressure to target level. Settings protected by Personal Identification Number (PIN) security lock or limit adjustable ranges, helping ensure consistency and optimal results from operator to operator, job to job. $19,320.00
KIT, PROCONTROL 1KE PLUS
GG 25B289
GG 25B289
KIT, PROCONTROL 1KE PLUS
ProControl 1KE Plus Gun Atomizing Air Control with I/P and air regulator and gauge This ProControl 1KE Plus package provides an off-the-shelf solution to actively manage one component (1K) fluids, improve spray performance, and increase efficiency. Higher specification packages and upgrade kits are available for additional capabilities. Atomizing air control helps manual or automatic paint spray guns consistently produce a high quality finish. Advanced Display Control Module (ADCM) gives operator instant feedback by showing comprehensive system parameters and material usage on an easy-to-read screen. Settings protected by Personal Identification Number (PIN) security lock or limit adjustable ranges, helping ensure consistency and optimal results from operator to operator, job to job. $10,050.00
KIT, PROCONTROL 1KE PLUS
GG 25B292
GG 25B292
KIT, PROCONTROL 1KE PLUS
ProControl 1KE Plus Closed Loop Fluid Pressure / Flow Control, ADCM, G3000 meter, Fluid Regulator, Pressure Transducer & I/P This ProControl 1KE Plus package provides an off-the-shelf solution to actively manage one component (1K) fluids, improve spray performance, and increase efficiency. Higher specification packages and upgrade kits are available for additional capabilities. Closed loop control automatically and precisely adjusts fluid pressure or flow rate to maintain optimal spray performance, minimizing waste and maximizing quality. Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste. Advanced Display Control Module (ADCM) gives operator instant feedback by showing comprehensive system parameters and material usage on an easy-to-read screen. Full feature fluid management package works with manual paint spray guns or automatic spray applicators. $15,720.00
KIT, PROCONTROL 1KE PLUS
GG 25B295
GG 25B295
KIT, PROCONTROL 1KE PLUS
ProControl 1KE Plus Closed Loop Fluid Pressure / Flow Control, ADCM, Pressure Transducer & I/P This ProControl 1KE Plus package makes one component (1K) fluid management simple and cost-effective. Add component(s) to customize for specific finishing needs. Closed loop control automatically and precisely adjusts fluid pressure or flow rate to maintain optimal spray performance, minimizing waste and maximizing quality. Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste. Advanced Display Control Module (ADCM) gives operator instant feedback by showing comprehensive system parameters and material usage on an easy-to-read screen. Fluid management package works with manual paint spray guns or automatic spray applicators. $11,340.00
Kit, Procontrol 1Ke Plus
GG 25B294
GG 25B294
KIT, PROCONTROL 1KE PLUS
Graco 25B294 ProControl 1KE Plus Closed Loop Fluid Pressure / Flow Control, ADCM, Fluid Regulator, Pressure Transducer & I/P
This ProControl 1KE Plus package makes one component (1K) fluid management simple and cost-effective. Add component(s) to customize for specific finishing needs.
- Closed loop control automatically and precisely adjusts fluid pressure or flow rate to maintain optimal spray performance, minimizing waste and maximizing quality.
- Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste.
- Advanced Display Control Module (ADCM) gives operator instant feedback by showing comprehensive system parameters and material usage on an easy-to-read screen.
- Model: ProControl
- Series: 1KE Plus
- Control Box Voltage (V dc): 15
- Flow Control Type: Fluid Flow Control
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Inlet Pressure (bar): 7
- Maximum Fluid Inlet Pressure (psi): 100
- Maximum Fluid Inlet Pressure (bar): 7
- Maximum Fluid Inlet Pressure (psi): 100
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (MPa): 0.7
- Maximum Working Pressure (psi): 100
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Power Source: Order separate
$14,500.00
KIT, PROCONTROL 1KE PLUS
GG 25B299
GG 25B299
KIT, PROCONTROL 1KE PLUS
ProControl 1KE Plus Closed Loop Fluid Pressure/Flow & Atomizing Air Control, ADCM, Air Regulator, Pressure Transducer, 2 I/P's This ProControl 1KE Plus package makes one component (1K) fluid management simple and cost-effective. Add component(s) to customize for specific finishing needs. Atomizing air control helps manual or automatic paint spray guns consistently produce a high quality finish. Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste. Settings protected by Personal Identification Number (PIN) security lock or limit adjustable ranges, helping ensure consistency and optimal results from operator to operator, job to job. Advanced Display Control Module (ADCM) gives operator instant feedback by showing comprehensive system parameters and material usage on an easy-to-read screen. $19,700.00

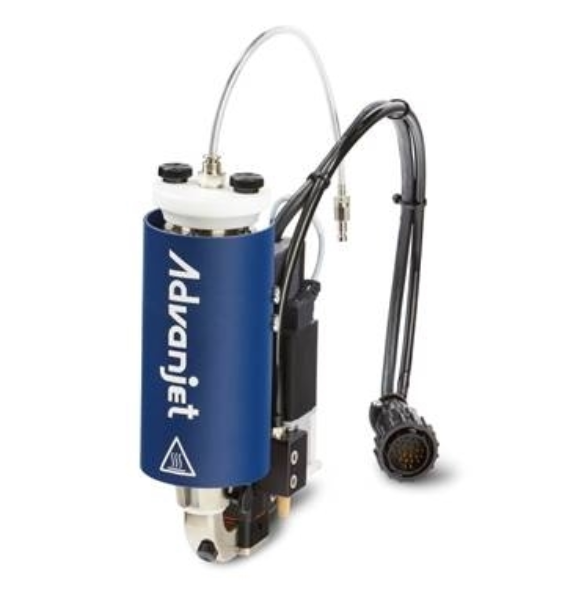

ADVANJET VALVE, HM-2600
GG 25B315
GG 25B315
ADVANJET VALVE, HM-2600
Advanjet HM-2600 Hot Melt Jet Valve The HM-2600 Diaphragm Jet with advanced high-temperature diaphragm is easy to use and especially easy to clean. The secret is the novel diaphragm design. A single easily replaceable diaphragm eliminates dynamic fluid seals common in all other jets. Only the nozzle plate and diaphragm are in contact with the fluid. The jetting mechanism is isolated from the fluid to ensure contamination-free operation. Specifically Designed for High-temperature Operations Smart Heating Extends Material and Jet LifeDual independent temperature controllers for the jet and the melter allow heating the nozzle to optimum jetting temperature while keeping the PUR at reduced temperature for extended life. The HM-2600 nozzle and syringe heaters provide jetting temperatures up to 150°C. Thermal isolation keeps the jet actuator below 55°C during operation while jetting fluid at 150°C. Clean Melting for Quick Cleaning
Designed for easy cleaning, the HM-2600 syringe melter features a disposable feed tube. To eliminate having to clean residual PUR between the syringe and the jet, a thermal jacket surrounds the high-temperature feed tube, so the syringe can be removed with the feed tube attached. The unique disposable feed tube means minimal cleaning and quick syringe exchange. Additionally, the feed tube locking feature allows for “hot swapping” a preheated syringe for uninterrupted production. Standalone Controller
The HM-2600C Controller has been designed specifically for PUR dispensing, including dual independent temperature controllers and dual independent power supplies for the jet and the melter. Precision air regulators and gauges allow fine-tuning of jetting parameters. Six independent recipes can be easily input and stored from the fully programmable front panel, and an RS-232 computer interface offers PC integration. Recipes can be triggered via a digital I/O connection for easy robot integration.
Features:
- Hot melt dispensing up to 150°C
- Line speeds up to 100mm/sec
- Readily achievable 400 μm lines
- Designed for quick and easy cleaning
- Dual independent temperature controllers for the jet and the melter to optimize jetting performance and maximize material life
- Unique disposable feed tube
- No fluid seals to clean or replace
- Advanced high-temperature diaphragm with tungsten carbide tip
- Tungsten carbide nozzle for long life
$13,660.00
