GRACO INC. S10595

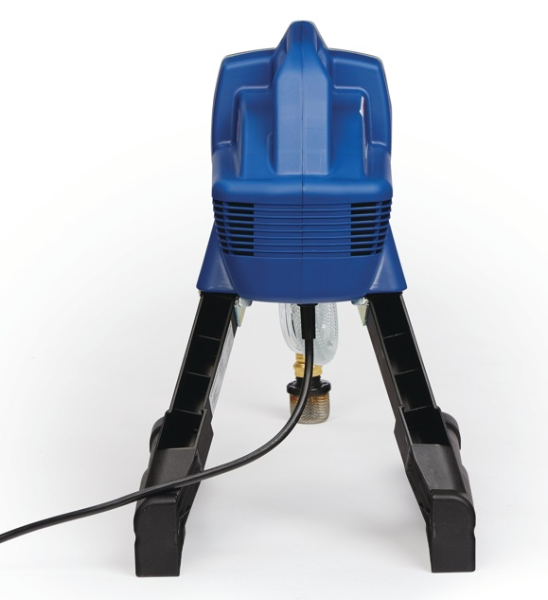

MAGNUM SPRAYER, X5
GG 262800
MAGNUM SPRAYER, X5
Magnum X5 Electric TrueAirless Sprayer DIY homeowners and handymen get cost-efficient, high-speed performance with the Magnum X5. This airless sprayer is ideal for painting interior projects and exterior projects, such as decks, siding, fences and small houses. Choose the X5 when you paint on a quarterly basis. Hardened Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints Flexible Suction Tube - Spray directly from 1 or 5 gallon paint containers TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings Power Flush - Connects to garden hose for fast cleanup Durable Frame - Compact, lightweight and easy to carry Adjustable Pressure - Easy control of paint flow PushPrime - Fast and reliable start-up every timeTOUGHTEK SPRAYER, MORTAR, HOPPER, HTX 680
GG 262909

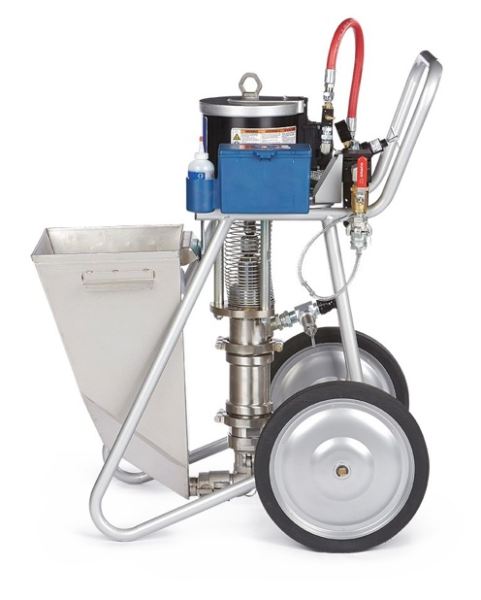

TOUGHTEK SPRAYER, MORTAR, HOPPER, HTX 680
ToughTek M680a Piston Pump Package, HTX 680 Applicator, Stainless Steel HopperThe ToughTek M680a piston pump handles abrasive materials such as epoxy mortars, non-skid coatings (bridges and marine industry – solvent based coatings) or cementitious materials, and tackles difficult polymers with fillers such as glass flake, silica or sand. The all stainless design makes cleanup of epoxy mortars easy and worry-free.
Portable sprayer for mortar, cementitious and heavily filled materialsPrimary features:
- Low pressure pumping (200 to 500 psi/13.7 to 34.5 bar) reduces wear on pump lower
- Less material waste and more consistent finish than hand-trowling
- Fast, easy cleaning with high velocity flush
- Can be quickly disassembled for hand cleaning
- Explosion-proof for hazardous spray areas
- One convenient air source to run pump and atomize air
Flex Hose Applicator
- Best for heavily filled materials that easily pack out
- Includes Round Nozzle; provides a rough finish texture
- Simple design, easy to clean
- Order part number 24T947
Pole Applicator
- For hard to reach areas
- Best for heavily filled materials that easily pack out
- Includes Round Nozzle; provides a rough finish texture
- Simple design, easy to clean
- Order part number 24T946
HTX 680 Applicator
- Good for lighter materials that do not typically pack out
- Includes Round Pattern Nozzles; provides a medium round pattern texture finish
- Air mixed into fluid through multiple venturi ports provides a consistent pattern
- Gives a more controlled pattern for lightweight materials or high solids coatings
- Includes flat pattern discs - spreads the pattern out like a fan, giving a wider coverage area per pass
- Order part number 24U209
Large Capacity Hopper
- 25 gal (95 L) hopper kit
- Ideal for materials that require more than 10 gal/38 liter capacity, such as fireproofing
- Boost productivity by minimizing refills
- Easily connects to ToughTek M680a
- Easy to connect and maneuver
- Order part number 24W889
TOUGHTEK SPRAYER, MORTAR, COMPLETE
GG 262927
TOUGHTEK SPRAYER, MORTAR, COMPLETE
ToughTek M680a Complete Piston Pump Package, HTX 680 Applicator, Flex Hose Applicator, Stainless Steel HopperThe ToughTek M680a piston pump handles abrasive materials such as epoxy mortars, non-skid coatings (bridges and marine industry – solvent based coatings) or cementitious materials, and tackles difficult polymers with fillers such as glass flake, silica or sand. The all stainless design makes cleanup of epoxy mortars easy and worry-free.
Portable sprayer for mortar, cementitious and heavily filled materialsPrimary features:
- Low pressure pumping (200 to 500 psi/13.7 to 34.5 bar) reduces wear on pump lower
- Less material waste and more consistent finish than hand-trowling
- Fast, easy cleaning with high velocity flush
- Can be quickly disassembled for hand cleaning
- Explosion-proof for hazardous spray areas
- One convenient air source to run pump and atomize air
Flex Hose Applicator
- Best for heavily filled materials that easily pack out
- Includes Round Nozzle; provides a rough finish texture
- Simple design, easy to clean
- Order part number 24T947
Pole Applicator
- For hard to reach areas
- Best for heavily filled materials that easily pack out
- Includes Round Nozzle; provides a rough finish texture
- Simple design, easy to clean
- Order part number 24T946
HTX 680 Applicator
- Good for lighter materials that do not typically pack out
- Includes Round Pattern Nozzles; provides a medium round pattern texture finish
- Air mixed into fluid through multiple venturi ports provides a consistent pattern
- Gives a more controlled pattern for lightweight materials or high solids coatings
- Includes flat pattern discs - spreads the pattern out like a fan, giving a wider coverage area per pass
- Order part number 24U209
Large Capacity Hopper
- 25 gal (95 L) hopper kit
- Ideal for materials that require more than 10 gal/38 liter capacity, such as fireproofing
- Boost productivity by minimizing refills
- Easily connects to ToughTek M680a
- Easy to connect and maneuver
- Order part number 24W889
CONTRACTOR FLAT TIP, SPRAY
GG 269225
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 225 The 225 Contractor Flat Tip is designed for narrower surfaces and thicker materials. The 225 Flat Tip has a 0.025 inch orifice and produces a 4 to 6 inch fan.Contractor Flat Tip, Spray
GG 269227
CONTRACTOR FLAT TIP, SPRAY
Graco 269227 Contractor Flat Tip, 227
The 227 Contractor Flat Tip is designed for narrower surfaces and thicker materials. The 227 Flat Tip has a 0.027 inch orifice and produces a 4 to 6 inch fan.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.74
- Maximum Flow Rate (L/min): 2.80
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.027
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
CONTRACTOR FLAT TIP, SPRAY
GG 269313
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 313 The 313 Contractor Flat Tip is designed for narrow surfaces. The 313 Flat Tip has a 0.013 inch orifice and produces a 6 to 8 inch fan.CONTRACTOR FLAT TIP, SPRAY
GG 269311
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 311 The 311 Contractor Flat Tip is designed for narrow surfaces and thin materials. The 311 Flat Tip has a 0.011 inch orifice and produces a 6 to 8 inch fan.CONTRACTOR FLAT TIP, SPRAY 319
GG 269319
CONTRACTOR FLAT TIP, SPRAY 319
Contractor Flat Tip, 319 The 319 Contractor Flat Tip is designed for narrow surfaces and thick materials. The 319 Flat Tip has a 0.019 inch orifice and produces a 6 to 8 inch fan.CONTRACTOR FLAT TIP, SPRAY
GG 269321
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 321 The 321 Contractor Flat Tip is designed for narrow surfaces and thick materials. The 321 Flat Tip has a 0.021 inch orifice and produces a 6 to 8 inch fan.CONTRACTOR FLAT TIP, SPRAY
GG 269323
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 323 The 323 Contractor Flat Tip is designed for narrow surfaces and thick materials. The 323 Flat Tip has a 0.023 inch orifice and produces a 6 to 8 inch fan.CONTRACTOR FLAT TIP, SPRAY
GG 269411
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 411 The 411 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.011 inch orifice.CONTRACTOR FLAT TIP, SPRAY
GG 269419
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 419 The 419 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.019 inch orifice.CONTRACTOR FLAT TIP, SPRAY
GG 269421
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 421The 421 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.021 inch orifice.
CONTRACTOR FLAT TIP, SPRAY
GG 269423
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 423 The 423 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.023 inch orifice.CONTRACTOR FLAT TIP, SPRAY
GG 269425
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 425 The 425 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.025 inch orifice.Contractor Flat Tip, Spray
GG 269435
CONTRACTOR FLAT TIP, SPRAY
Graco 269435 Contractor Flat Tip, 435
The 435 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.035 inch orifice.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.035
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
CONTRACTOR FLAT TIP, SPRAY 511
GG 269511
CONTRACTOR FLAT TIP, SPRAY 511
Contractor Flat Tip, 511 The 511 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.011 inch orifice.CONTRACTOR FLAT TIP, SPRAY
GG 269517
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 517 The 517 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.017 inch orifice.CONTRACTOR FLAT TIP, SPRAY
GG 269521
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 521 The 521 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.021 inch orifice.CONTRACTOR FLAT TIP, SPRAY 527
GG 269527
CONTRACTOR FLAT TIP, SPRAY 527
Contractor Flat Tip, 527 The 527 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.027 inch orifice.CONTRACTOR FLAT TIP, SPRAY 531
GG 269531
CONTRACTOR FLAT TIP, SPRAY 531
Contractor Flat Tip, 531 The 531 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.031 inch orifice.CONTRACTOR FLAT TIP, SPRAY
GG 269829
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 829 The 829 Contractor Flat Tip produces a 16 to 18 inch fan and has a 0.029 inch orifice.Hose, Blast, 50Ft, 1.00, Pneu, Ext
GG 26A077
HOSE, BLAST, 50FT, 1.00, PNEU, EXT
XD Series 40 Reel, Bare, D Spr, Af, Blue
GG 26A140
Xd Series 40 Reel, Bare, D Spr, Af, BlueXD Series 40 Reel, Bare, D Spr, Af, Yel
GG 26A141
XD SERIES 40 REEL, BARE, D SPR, AF, YEL
Graco 26A141 XD40â„¢, Antifreeze, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, Yellow
Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
Application: Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.- Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
- Model: XD
- Series: 40
- Application: Antifreeze
- Bare Reel: 1
- Color: Yellow
- Dry Weight (lb): 116
- Frame Type: Box Frame
- Hose Inside Diameter (in): 1
- Hose Inside Diameter (mm): 25.4
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Bare Reel
- Includes Hose: No
- Inlet Size (in): 1
- Inlet Size (mm): 25.4
- Inlet Thread Type: NPT
- Maximum Working Pressure (psi): 600
- Outlet Size (in): 1
- Outlet Size (mm): 25.4
- Overall Height (in): 26.13
- Overall Height (mm): 664
- Overall Length (in): 26.4
- Overall Length (mm): 671
- Overall Width (in): 16.54
- Overall Width (mm): 420
- Recommended Environment: Indoor, Outdoor
- Recommended Fluid Type: Antifreeze
XD Series 40 Reel, Bare, D Spr, Af, Wht
GG 26A142
Xd Series 40 Reel, Bare, D Spr, Af, WhtXD Series 50 Reel, Bare, A Spr, Af, Blu
GG 26A143
XD SERIES 50 REEL, BARE, A SPR, AF, BLU
Graco 26A143 XD50â„¢, Antifreeze, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 100 ft. (25 mm X 30 m) Capacity), NPT, Metallic Blue
Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
Application: Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.- Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
- Model: XD
- Series: 50
- Application: Antifreeze
- Bare Reel: 1
- Color: Metallic Blue
- Dry Weight (lb): 162
- Frame Type: Box Frame
- Hose Inside Diameter (in): 1
- Hose Inside Diameter (mm): 25.4
- Hose Length (ft): 100
- Hose Length (m): 30
- Hose Reel Type: Bare Reel
- Includes Hose: No
- Inlet Size (in): 1
- Inlet Size (mm): 25.4
- Inlet Thread Type: NPT
- Maximum Working Pressure (psi): 600
- Outlet Size (in): 1
- Outlet Size (mm): 25.4
- Overall Height (in): 30.13
- Overall Height (mm): 765
- Overall Length (in): 29.4
- Overall Length (mm): 747
- Overall Width (in): 17.47
- Overall Width (mm): 444
- Recommended Environment: Indoor, Outdoor
- Recommended Fluid Type: Antifreeze
