GRACO INC. S10595
KIT, PUMP, 24CM-CS, 1400CC, UH-L
GG 25V505
KIT, PUMP, 24CM-CS, 1400CC, UH-L
Dura-Flo XL 1400cc Severe-Duty The Dura-Flo lower is legendary in the world of high-pressure pumps — holding up to the mostsevere applications and materials. The new Dura-Flo XL has an incredibly long 11.25 inchstroke — resulting in less change-overs, more paint per stroke and longer overall life. Adjustable Wet Cup- Extend your packing life by manuallytightening the wet cup
- Durable packing stack for extendedtime between repacks
- U-Cup packing design effectively sealsunder high pressure
- Quickly swap out your pumpwith just a few simple tools
- Less restrictions results in lesspressure drop and higher performance
- Severe Duty Coating - Hard Chrome over Stainless Steelfor extended life with aggressivetraffic coatings
KIT, PUMP, 18CM-CS, 1000CC, MAX
GG 25V506
KIT, PUMP, 18CM-CS, 1000CC, MAX
Dura-Flo XL 1000cc MaxLife The Dura-Flo lower is legendary in the world of high-pressure pumps — holding up to the mostsevere applications and materials. The new Dura-Flo XL has an incredibly long 11.25 inchstroke — resulting in less change-overs, more paint per stroke and longer overall life. Adjustable Wet Cup- Extend your packing life by manuallytightening the wet cup
- Durable packing stack for extendedtime between repacks
- U-Cup packing design effectively sealsunder high pressure
- Quickly swap out your pumpwith just a few simple tools
- Less restrictions results in lesspressure drop and higher performance
- MaxLife Coating - Achieve 3X Life over SevereDuty Coating
KIT, PUMP, 24CM-CS, 1400CC, MAX
GG 25V507
KIT, PUMP, 24CM-CS, 1400CC, MAX
Dura-Flo XL 1400cc MaxLife The Dura-Flo lower is legendary in the world of high-pressure pumps — holding up to the mostsevere applications and materials. The new Dura-Flo XL has an incredibly long 11.25 inchstroke — resulting in less change-overs, more paint per stroke and longer overall life. Adjustable Wet Cup- Extend your packing life by manuallytightening the wet cup
- Durable packing stack for extendedtime between repacks
- U-Cup packing design effectively sealsunder high pressure
- Quickly swap out your pumpwith just a few simple tools
- Less restrictions results in lesspressure drop and higher performance
- MaxLife Coating - Achieve 3X Life over SevereDuty Coating
KING SPRAYER, ROOFING RIG, K70
GG 26C349
KING SPRAYER, ROOFING RIG, K70
King 70:1 Sprayer, Roofing RigHigh-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
- This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
- All motor parts are easily accessible and require simple maintenance.
- The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
- The icing potential has been reduced by up to 70%
- With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
- Eliminating the "wink" in your pattern - it is a difference you will feel.
- Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.
- Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
King Sprayer, Roofing Rig, K71
GG 26C351
KING SPRAYER, ROOFING RIG, K71
Graco 26C351 King 71:1 Sprayer, Roofing Rig
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Application: High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.- Simple Maintenance
- This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
- All motor parts are easily accessible and require simple maintenance.
- Improved Icing Performance
- The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
- The icing potential has been reduced by up to 70%
- Less Pulsation
- With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
- Eliminating the "wink" in your pattern - it is a difference you will feel.
- New Air Motor
- Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
- Model: King
- Approved for Hazardous Locations: Yes
- Frame Configuration: Heavy-Duty Cart
- Gun Model: XHF
- Lower Type: Non-Filter
- Maximum Fluid Working Pressure (psi): 7100
- Package Options: Air Controls, Hose, Gun, Hopper
- Package Pressure Ratio (Motor/Lower): 71:1 XL10000 / 290cc
KIT, PUMP/CART/SDP8 GL
GG 26C366
KIT, PUMP/CART/SDP8 GL
Pulse® FC Roll-Around Package - SDP8 Gear Lube Meter, Rigid Extension Capture the true power of a wire-free system with a Pulse FC mobile roll-around package including LD pump, cart, meter, fluid hose and air regulator.
KIT, PUMP/CART/SDP8 RIGID
GG 26C409
KIT, PUMP/CART/SDP8 RIGID
Pulse® FC Roll-Around Package - SDP8 Oil Meter, Rigid Extension Capture the true power of a wire-free system with a Pulse FC mobile roll-around package including LD pump, cart, meter, fluid hose and air regulator. Grease Jockey Electric Valve, Vent, 12Vdc, Deu, N.O. 1K psi
GG 26C493
Grease Jockey Electric Valve, Vent, 12Vdc, Deu, N.O. 1Kpsi Grease Jockey Electric Pump, 2L, 12Vdc, Prem, Fp
GG 26C494
Grease Jockey Electric Pump, 2L, 12Vdc, Prem, Fp Grease Jockey Electric Pump, 2L, 12Vdc, Basic, 1K psi
GG 26C495
Grease Jockey Electric Pump, 2L, 12Vdc, Basic, 1Kpsi Kit, Seat 2150 Fg Ss
GG 26C568
KIT, SEAT 2150 FG SS
Graco 26C568 2-inch 316 Stainless Steel Seat Kit
Htx Sprayer, 2030 Comp, Stx Gun, 50Ft
GG 26C681
Htx Sprayer, 2030 Comp, Stx Gun, 50Ft

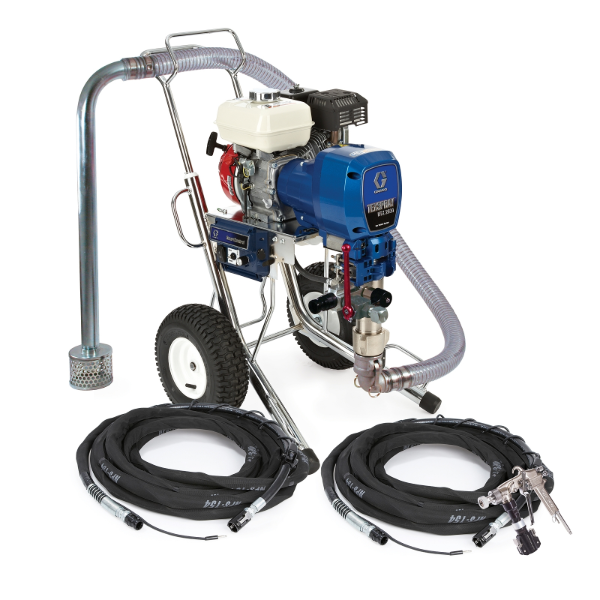

HTX SPRAYER, 2030COMP, STX GUN, 100FT
GG 26C682
HTX SPRAYER, 2030COMP, STX GUN, 100FT
TexSpray HTX 2030 Complete, STX Trigger Gun and 100' Hose The HTX 2030 Complete Texture Sprayer is specifically engineered to spray the most demanding materials — from exterior smooth and aggregate coatings, elastomerics, acrylic coatings, drywall mud finishes as well as paints and primers with the included high-pressure MaxLife Endurance Pump. Apply interior and exterior texture finishes with aggregate size up to 2.5 mm. High-Output Texture Pump- Time-Saving Production Rates
- Pump aggregated materials up to 2.5mm with extra large passages
- More uptime with no-tools hose connections at pump and gun
- Consistent, optimal performance with innovative foot valve soft seal
- Full-Range Flow Control (.6 to 3 gpm)
- Remotely stops and starts material flow right at the pump
- Smooth, controlled material flow prevents pack-out conditions
- Soft start eliminates material blast to ensure finish quality
- Reduced Pack-Out Conditions
- Easily spray more demanding and aggressive aggregate materials
- Easily Expand Job Capabilities
- Easily convert to a high-pressure airless sprayer
- Spray heavier smooth coatings: skim coat, level 5, primers and paints
- System automatically recognizes installed pump and converts to airless sprayer
- Maximum flow from oversized, unobstructed fluid passages
- Simulated Acoustic (Popcorn)
- Orange Peel & Fine Splatter
- Splatter
- Knockdown
- Textured Acrylics & Elastomerics
- Deck Coatings
- EIFS & Synthetic Stucco Finish Coats
- Skim Coat/Level 5 (Airless)
- Primers/Paints (Airless)
Htx Sprayer, 2030Comp+, Stx Gun, 50ft
GG 26C683
Htx Sprayer, 2030Comp+, Stx Gun, 50 Ft Htx Sprayer, 2030Comp+, Stx Gun, 100Ft
GG 26C684
Htx Sprayer, 2030Comp+, Stx Gun, 100Ft

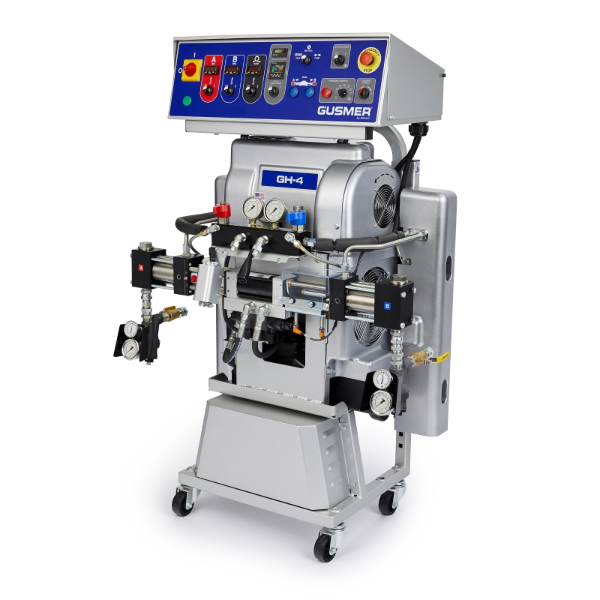

GUSMER GH-4 SYSTEM, 15KW, 3PH
GG 26C699
GUSMER GH-4 SYSTEM, 15KW, 3PH
Gusmer GH-4 Proportioner Package, 15 kW, 230 V, 3PH The GH-4 is engineered to be both simple and reliable. Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer GH-4 hydraulic proportioner: a simple, durable machine offering impressive performance at an attractive price. Ideal for a wide range of spray foam applications, including roofing insulation, residential insulation, commercial wall insulation and concrete lifting. The Gusmer system features easy access and service to the electrical cabinet. With standard off-the-shelf hardware it’s an easy-to-use and easy-to-maintain design. Gusmer Gh-4 System, 15Kw, 3Ph/N
GG 26C700
GUSMER GH-4 SYSTEM, 15KW, 3PH/N
Graco 26C700 Gusmer GH-4 Proportioner Package, 15 kW, 400 V, 3PH
The GH-4 is engineered to be both simple and reliable. Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer GH-4 hydraulic proportioner: a simple, durable machine offering impressive performance at an attractive price.
Application: Ideal for a wide range of spray foam applications, including roofing insulation, residential insulation, commercial wall insulation and concrete lifting.- The Gusmer system features easy access and service to the electrical cabinet. With standard off-the-shelf hardware it’s an easy-to-use and easy-to-maintain design.
- Model: Gusmer
- Series: GH-4
- Gun Type: No Gun
- Hose Length (ft): 410
- Hose Length (m): 125
- Hose Package: No Hose
- Maximum Flow Rate (lb/min): 45
- Maximum Operating Temperature (°F): 190
- Maximum Spray Pressure (bar): 140.0000
- Maximum Spray Pressure (kPa): 1400
- Maximum Spray Pressure (psi): 2000
- Mix Ratio: 1:1
- Overall Depth (cm): 53.34
- Overall Depth (in): 21
- Overall Depth (mm): 533.4
- Overall Height (cm): 137.16
- Overall Height (in): 54
- Overall Height (mm): 1371.6
- Overall Width (cm): 81.28
- Overall Width (in): 32
- Overall Width (mm): 812.8000

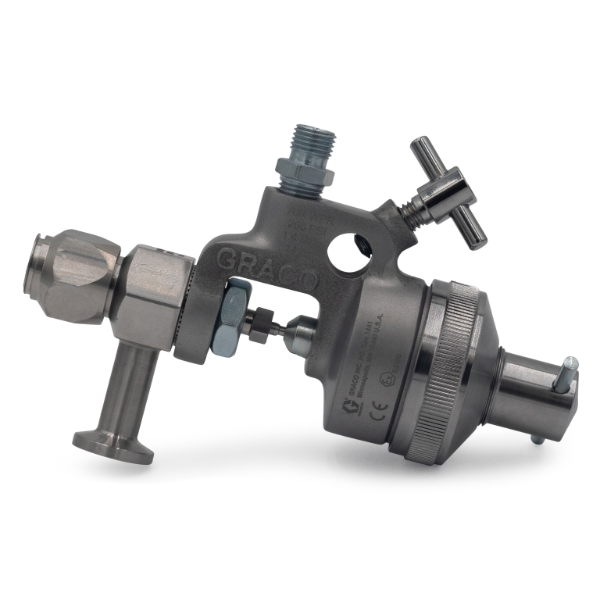

VALVE, SPRAY, SANIFORCE
GG 26C799
VALVE, SPRAY, SANIFORCE
SaniForce In-Line Spray ApplicatorDesigned on Graco’s proven high-performing airless spray technology, the SaniForce spray applicator delivers a clean solution for hygienic spray coating applications. This automatic spray technology ensures exceptional results even in the most demanding environments and delivers precise and reliable coatings. The applicator is offered alongside a range of tip selections, allowing you to accommodate a wide variety of materials, viscosities and spray patterns.
Upgrade your spray performance with Graco's new sanitary applicator, designed for precise and hygienic coating. Constructed with FDA compliant materials, it is suitable for food, personal care, and pharmaceutical applications. The adjustable spray pattern allows for easy tip orientation, enabling efficient vertical or horizontal spraying .
· Handles pressures up to 600 psi
· Designed with FDA-compliant materials
· 1/2 in tri-clamp fluid inlet
· Tips sold separately
