GRACO INC. S10595
GRACO INC. S10595 branded products
Voltex System, Table Top, Efr
GG 25U256
GG 25U256
VOLTEX SYSTEM, TABLE TOP, EFR
Graco 25U256 Voltex System Package with Valve, Table Mount Control Box, and Cable Kit for EFR Integration
The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage.
Application: Reliably mixes, recirculates, and dispenses difficult foaming polyurethanes, low viscosity silicones, and other hard to blend two component chemistries.- Easily integrates with Graco EFR meter, mix, and dispense systems with included cables and control box for a complete dispensing solution.
- Control system delivers precision RPM control, and real time monitoring for dispensing process stability.
- Built with durable check valves and disposable mixers that reduce maintenance and downtime.
- Air Inlet Size (in): 5/16
- Air Inlet Size (mm): 8
- Air Inlet Thread Gender: Female
- Maximum Fluid Temperature (°C): 65
- Maximum Fluid Temperature (°F): 149
- Maximum Fluid Temperature (°C): 65
- Maximum Fluid Temperature (°F): 149
- Maximum Fluid Working Pressure (bar): 6.9
- Maximum Fluid Working Pressure (MPa): 6.9
- Maximum Fluid Working Pressure (psi): 1000
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Working Pressure (bar): 68.9
- Maximum Working Pressure (MPa): 6.9
$21,510.00
Voltex System, Table, Recirc, Efr
GG 25U257
GG 25U257
VOLTEX SYSTEM, TABLE, RECIRC, EFR
Graco 25U257 Voltex System Package with Recirculation Valve, Table Mount Control Box, and Cable Kit for EFR Integration
The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage.
Application: Reliably mixes, recirculates, and dispenses difficult foaming polyurethanes, low viscosity silicones, and other hard to blend two component chemistries.- Recirculation controls activate between dispensing to properly suspend mixed materials and prevent premature curing.
- Easily integrates with Graco EFR meter, mix, and dispense systems with included cables and control box for a complete dispensing solution.
- Control system delivers precision RPM control, and real time monitoring for dispensing process stability.
- System package contains all electronic components necessary for running the precision servo motor of the Voltex Dynamic Mix Valve.
- Air Inlet Size (in): 5/16
- Air Inlet Size (mm): 8
- Air Inlet Thread Gender: Female
- Maximum Fluid Temperature (°C): 65
- Maximum Fluid Temperature (°F): 149
- Maximum Fluid Temperature (°C): 65
- Maximum Fluid Temperature (°F): 149
- Maximum Fluid Working Pressure (bar): 6.9
- Maximum Fluid Working Pressure (MPa): 6.9
- Maximum Fluid Working Pressure (psi): 1000
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Working Pressure (bar): 68.9
- Maximum Working Pressure (MPa): 6.9
$31,790.00

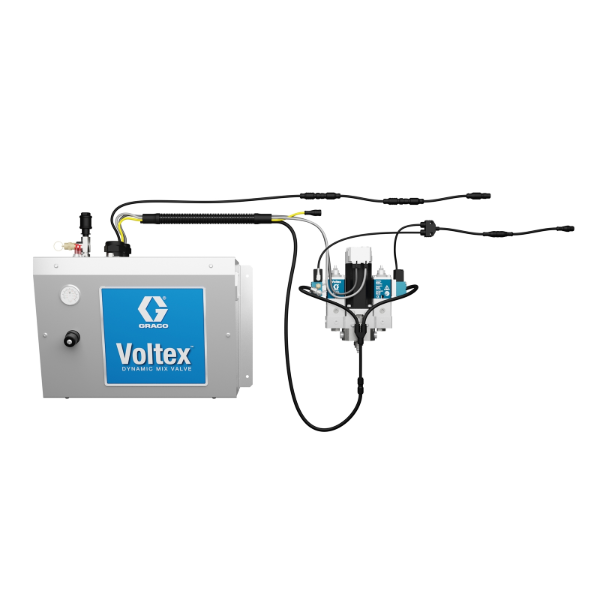

VOLTEX SYSTEM, WALL MOUNT, EFR
GG 25U258
GG 25U258
VOLTEX SYSTEM, WALL MOUNT, EFR
Voltex System Package with Valve, Wall Mount Control Box, and Cable Kit for EFR Integration The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage. Reliably mixes, recirculates, and dispenses difficult foaming polyurethanes, low viscosity silicones, and other hard to blend two component chemistries. Easily integrates with Graco EFR meter, mix, and dispense systems with included cables and control box for a complete dispensing solution. Control system delivers precision RPM control, and real time monitoring for dispensing process stability. Built with durable check valves and disposable mixers that reduce maintenance and downtime. System package contains all electronic components necessary for running the precision servo motor of the Voltex Dynamic Mix Valve. $21,670.00

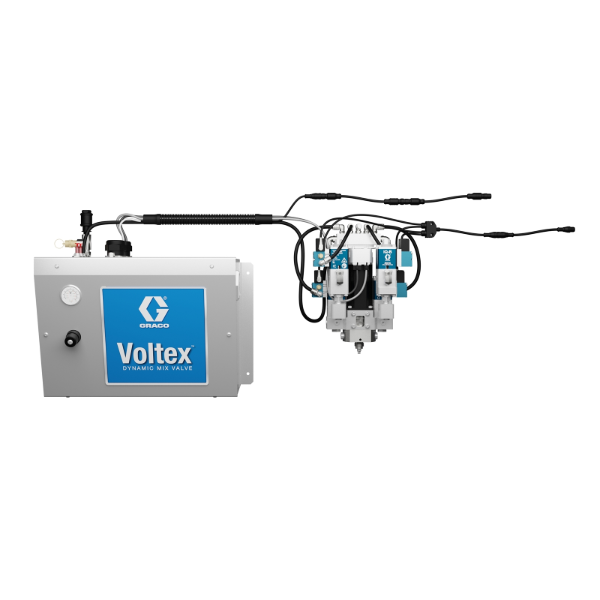

VOLTEX SYSTEM, WALL MT, RECIRC, EFR
GG 25U259
GG 25U259
VOLTEX SYSTEM, WALL MT, RECIRC, EFR
Voltex System Package with Recirculation Valve, Wall Mount Control Box, and Cable Kit for EFR Integration The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage. Reliably mixes, recirculates, and dispenses difficult foaming polyurethanes, low viscosity silicones, and other hard to blend two component chemistries. Recirculation controls activate between dispensing to properly suspend mixed materials and prevent premature curing. Easily integrates with Graco EFR meter, mix, and dispense systems with included cables and control box for a complete dispensing solution. Control system delivers precision RPM control, and real time monitoring for dispensing process stability. Built with durable check valves and disposable mixers that reduce maintenance and downtime. System package contains all electronic components necessary for running the precision servo motor of the Voltex Dynamic Mix Valve. $30,710.00
Transducer, 0-5K, 4.5Vdc, 3/8, W/Cable
GG 25U285
GG 25U285
Transducer, 0-5K, 4.5Vdc, 3/8, W/Cable $639.00
Adapter, Nozzle, Sealer, Spray, Assembly
GG 25U305
GG 25U305
Adapter, Nozzle, Sealer, Spray, Assy $321.00
Dyna-Star Compact System, Cds 60#, Glc2200 No Afso
GG 25U315
GG 25U315
Dyna-Star Compact System, Cds 60#, Glc2200 No Afso $10,400.00
Dyna-Star Compact System, Cds 60#, Glc2200 Afso
GG 25U316
GG 25U316
Dyna-Star Compact System, Cds 60#, Glc2200 Afso $11,900.00
Dyna-Star Compact System, Cds 60#, Glcx No Afso
GG 25U317
GG 25U317
Dyna-Star Compact System, Cds 60#, Glcx No Afso $10,870.00
DYNA-STAR COMPACT SYSTEM, CDS 60#, GLCX AFSO
GG 25U318
GG 25U318
DYNA-STAR COMPACT SYSTEM, CDS 60#, GLCX AFSO
DYNA-STAR COMPACT SYSTEM,CDS 60#,GLCX AFSO $12,350.00

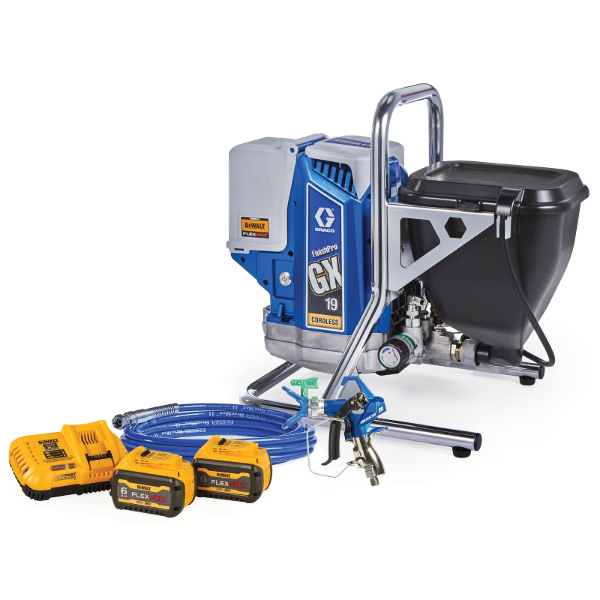

FINISHPRO GX19 SPRAYER, CORDLESS, NA
GG 25U341
GG 25U341
FINISHPRO GX19 SPRAYER, CORDLESS, NA
FinishPro GX 19 Cordless Airless Sprayer Introducing the FinishPro GX 19 Cordless, the industry's fastest and most portable finishing sprayer ever built! Designed to deliver full system performance with the freedom to work anywhere — even where power is not available.Ultimate Power and Proven Performance
Powered By DEWALT®- High capacity 6ah FlexVolt batteries — spray up to 6 gallons before charging is required
- Delivered complete with two batteries and the fan-cooled Fast Charger
Brushless DC Motor
- Powerful brushless DC motor provides extended battery run time
- Lightweight, compact design allows for increased portability
Perfect Airless Finish
RAC X Fine Finish Low Pressure (FF LP) SwitchTip- Perfect Airless Finish
- Easiest pattern overlap
- Up to 2X the tip life of standard tips
Spray in the Tightest Areas with Ease
Contractor PC Compact Gun- Smallest most light weight gun on the market
- 50% lighter trigger pull
- ProConnect cartridge allows you to rebuild the gun in seconds
Easy Maintenance and Long Life
ProX Power-Piston Pump featuring ProXChange- Small deadband pressure ensures the finest finish possible
- Exceptional durability and long life piston pump
- Exclusive lifetime lubricated wiper pad for maintenance free operation
- Modular pump components for easy maintenance
- Fast and easy on-the-job pump replacement—no tools needed
- Eliminate labor costs and down time expenses
Finish Jobs Faster
Extremely Portable- Lighter than any competitive system
- Easy Carry Handle makes transportation easy
- Lid prevents splashes and spills while carrying
Easy Material Handling
1.5 Gallon Hopper- Ideal for spraying small amounts of material
- Faster cleanup with smooth inside surface — solvent resistant
- Never mess with a drain line again — drain line hook keeps drain tube in place
$3,220.00
KIT, VOLTEX, VALVE, RECIRC
GG 25U361
GG 25U361
KIT, VOLTEX, VALVE, RECIRC
Voltex Two-Component Dynamic Mix Valve with Recirculation The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage. Reliably mixes, recirculates, and dispenses difficult foaming polyurethanes, low viscosity silicones, and other hard to blend two component chemistries. Recirculation controls activate between dispensing to properly suspend mixed materials and prevent premature curing. Easily integrates with Graco meter, mix, and dispense systems like the EFR, PR70, or HFR for a complete dispensing solution. Control system delivers precision RPM control, and real time monitoring for dispensing process stability. Built with durable check valves and disposable mixers that reduce maintenance and downtime. $23,140.00
KIT, POWER SHUTOFF, 13MM MIXER
GG 25U384
GG 25U384
KIT, POWER SHUTOFF, 13MM MIXER
Voltex 2K Power Shut-Off Kit for 13mm Mixer 2K Power Shut-Off Kit for Voltex Dynamic Mix Valves ensure clean material dispense and shut-off to eliminate bead tails, dripping, and messy clean up. $2,990.00
KIT, POWER SHUTOFF, 8MM MIXER
GG 25U386
GG 25U386
KIT, POWER SHUTOFF, 8MM MIXER
Voltex 2K Power Shut-Off Kit for 8mm Mixer 2K Power Shut-Off Kit for Voltex Dynamic Mix Valves ensure clean material dispense and shut-off to eliminate bead tails, dripping, and messy clean up. $5,980.00
KIT, PUMP/CART/PULSE RIGID
GG 25D948
GG 25D948
KIT, PUMP/CART/PULSE RIGID
Pulse® Roll-Around Package - Meter with Rigid ExtensionPulse Fluid Management wireless technology allows you to control your mobile drums and dispenses by providing security for expensive drums of synthetic and
semi-synthetic fluids. Each package contains everything you need to manage your drums in existing Pulse installations. Drum not included.
$4,120.00
KIT, PUMP/CART/PULSE FLEX
GG 25D952
GG 25D952
KIT, PUMP/CART/PULSE FLEX
Pulse® Roll-Around Package - Meter with Flexible ExtensionPulse Fluid Management wireless technology allows you to control your mobile drums and dispenses by providing security for expensive drums of synthetic and
semi-synthetic fluids. Each package contains everything you need to manage your drums in existing Pulse installations. Drum not included.
$4,120.00
KIT, PUMP/CART/PULSE GEARLUBE
GG 25D953
GG 25D953
KIT, PUMP/CART/PULSE GEARLUBE
Pulse® Roll-Around Package - Meter with Gear Lube ExtensionPulse Fluid Management wireless technology allows you to control your mobile drums and dispenses by providing security for expensive drums of synthetic and
semi-synthetic fluids. Each package contains everything you need to manage your drums in existing Pulse installations. Drum not included.
$4,120.00
KIT, WIPER, PTFE, SPU
GG 25D961
GG 25D961
KIT, WIPER, PTFE, SPU
Plate Replacement Seal Kit, PTFE $700.00
KIT, WIPER, FDA NITRILE, SPU
GG 25D962
GG 25D962
KIT, WIPER, FDA NITRILE, SPU
Plate Replacement Seal Kit, Buna-N $398.00
