GRACO INC. S10595
GRACO INC. S10595 branded products

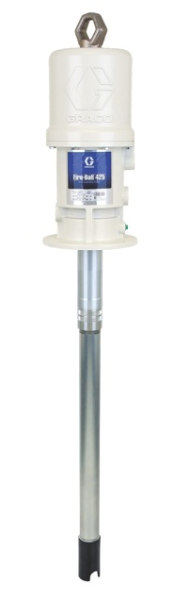

FIREBALL 425 PUMP, 10:1, 55 GL
GG 222065
GG 222065
FIREBALL 425 PUMP, 10:1, 55 GL
Fire-Ball® 425 Series 10:1 55 Gallon (200 Liter) Drum Size Oil Pump - Cover MountWith a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!
The Fire-Ball 425 is the pump of choice for your most demanding high volume applications - an ideal choice for applications such as truck fleet service facilities and in-plant applications where multiple dispenses happen at the same time. Durable Casting - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life. $6,000.00

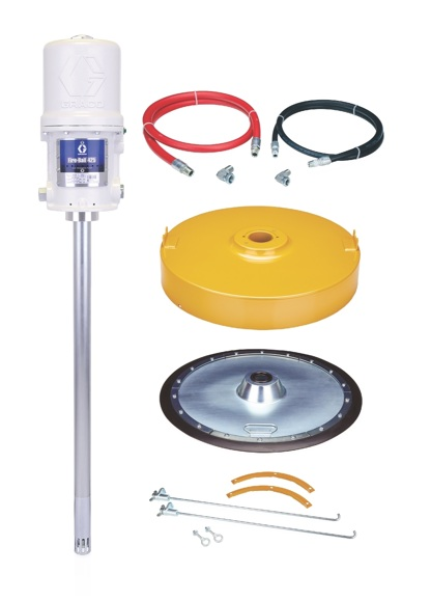

FIREBALL 425 PUMP, 50:1, TRK PKG
GG 222075
GG 222075
FIREBALL 425 PUMP, 50:1, TRK PKG
Fire-Ball® 425 Series 50:1 400 lb. (180 kg) Grease Pump - Lube Truck PackageThe Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
The Fire-Ball 425 is the pump of choice for your most demanding high volume applications. Durable Casting - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life. $9,760.00
FIREBALL 300 PUMP, LUBT, LP
GG 222086
GG 222086
FIREBALL 300 PUMP, LUBT, LP
Fire-Ball® 300 Series 5:1 16 Gallon (60 Liter) Open-Head Oil Pump - Lube Truck Package As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently. Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops. Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life. $2,750.00
Cart, Drum, 120#
GG 222245
GG 222245
CART, DRUM, 120#
Graco 222245 Fire-Ball® 300 Series 50:1 120 lb (55 kg). Grease Pump - Portable Package with Heavy Duty Cart
As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Application: Install the Fire-Ball 300 50:1 in grease dispense applications.- Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
- Model: Fire-Ball
- Series: 300
- Application: Industrial
- Compatible Drum Size (gal): N/A
- Compatible Material: Grease
- Container Size (lb): 120
- Includes: Pump, Dispense Kit, Cover, Follow Plate
- Maximum Working Pressure (psi): 5000
- Mount Location: Cart Mount
- Pump Ratio: N/A
$5,900.00
Kit, Repair, Seals
GG 222850
GG 222850
KIT, REPAIR, SEALS
Graco 222850 UHMWPE and Leather Packings Repair Kit, for Dura-Flo 1800 (standard for 246987, 246988)
KIT INCLUDES: GLAND, PACKING, MALE [QTY. 1 ], GLAND, PACKING, FEMALE [QTY. 1 ], GLAND, PACKING, MALE [QTY. 1 ], GLAND, PACKING, FEMALE [QTY. 1 ], PACKING, VEE [QTY. 3 ], PACKING, VEE [QTY. 3 ], PACKING, VEE, LEATHER [QTY. 4 ], PACKING, VEE, LEATHER [QTY. 2 ], PACKING, O-RING [QTY. 1 ], PACKING, O-RING [QTY. 1 ], SEAL, ACETAL [QTY. 2 ]
$623.00
VISCOUNT II PUMP, 26:1
GG 222892
GG 222892
VISCOUNT II PUMP, 26:1
Viscount Hydraulic Motor with Dura-Flo 1800 (430 cc) Lower, 3 PTFE/2 Leather Packings The rugged pump lower construction with Severe Duty rods and cylinders reduces downtime and extends the interval between repairs. The simple construction makes service and repair fast and easy. The efficient hydraulic powered piston makes these pumps the ideal choice for factory and outdoor mobile use, even at below freezing temperatures. Clean, quiet operation with no airborne contamination Up to three times more energy efficient than comparable compressed air systems Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Reduce routine maintenance and cut repairs time in half of comparable pump lowers Eliminate downtime without ice build-up $22,060.00
VISCOUNT II PUMP, 26:1
GG 222897
GG 222897
VISCOUNT II PUMP, 26:1
Viscount Hydraulic Motor with Dura-Flo 1800 (430 cc) Lower, 3 UHMWPE/2 PTFE Packings The rugged pump lower construction with Severe Duty rods and cylinders reduces downtime and extends the interval between repairs. The simple construction makes service and repair fast and easy. The efficient hydraulic powered piston makes these pumps the ideal choice for factory and outdoor mobile use, even at below freezing temperatures. Clean, quiet operation with no airborne contamination Up to three times more energy efficient than comparable compressed air systems Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Reduce routine maintenance and cut repairs time in half of comparable pump lowers Eliminate downtime without ice build-up $26,820.00
Pump, Recip, Displ
GG 222988
GG 222988
PUMP, RECIP, DISPL
Graco 222988 Dura-Flo 1800 (430 cc) Carbon Steel Lower, 5 PTFE, 32 Mpa (324 bar, 4700 psi), Series A
$7,920.00
Pump, Recip, Displ
GG 222992
GG 222992
PUMP, RECIP, DISPL
Graco 222992 Dura-Flo 2400 (580 cc) Carbon Steel Lower, 5 PTFE Packings, 24 Mpa, Series A
$8,190.00
Valve, Restrictor (Recirculating)
GG 223617
GG 223617
VALVE, RESTRICTOR (RECIRCULATING)
Graco 223617 Fluid Restrictor Valve, 1/4 npsm(m) inlet/outlet, 300 psi (21 bar) max, SST, 3/8 twistlock outlet to gun
- Manually adjust flow settings at the gun
- Tamper resistant adjustment knob to eliminate operator interference
- Circulate materials though the valve to ensure a uniform fluid suspension and eliminate material stagnation
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Connects quickly to spray guns using twistlock connector
$713.00
REGULATOR, PRESS, FLUID (SST)
GG 223621
GG 223621
REGULATOR, PRESS, FLUID (SST)
Gun Mounted Fluid Regulator, 3/8 twistlock inlet/outlet, 200 max inbound fluid psi (14 bar), SST wetted parts Stainless steel materials are compatible with catalyst and waterborne materials Easy and accurate pressure adjustment at the gun to fine tune pressure settings during production Connects quickly to spray guns using twistlock connector Circulate materials though the regulator to ensure a uniform fluid suspension and eliminate material stagnation $464.00
REGULATOR, PRESS, FLUID (SST)
GG 223622
GG 223622
REGULATOR, PRESS, FLUID (SST)
Gun Mounted Fluid Regulator, 3/8 npsm(f) inlet/outlet, 200 max inbound psi (14 bar), SST wetted parts Stainless steel materials are compatible with catalyst and waterborne materials Easy and accurate pressure adjustment at the gun to fine tune pressure settings during production Connects quickly to spray guns using twistlock connector Circulate materials though the regulator to ensure a uniform fluid suspension and eliminate material stagnation $427.00
Motor, Hydr, Visc Ii
GG 223646
GG 223646
MOTOR, HYDR, VISC II
Graco 223646 Viscount II Hydraulic Motor, 1500 psi (103 bar)
$14,030.00
Husky System, Evacuator Rolling Drain
GG 223695
GG 223695
Husky System, Evacuator Rolling Drain $2,030.00
Regulator, Back Pressure
GG 223824
GG 223824
REGULATOR, BACK PRESSURE
Graco 223824 Corrosion Resistant Fluid Back Pressure Regulator, low shear mechanical (20 gpm, 300 psi max fluid pressure, 2 in sanitary)
Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand
- Stainless steel membrane diaphragm is highly wear resistant while maintaining accurate responsiveness
- Low Shear diaphragm valve has minimal restriction to reduce material degradation and color matching issues, especially with metallic paint
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 5.08
- Inlet Size (in): 2
- Inlet Size (mm): 50.8
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.14
- Maximum Regulated Pressure (bar): 14
- Maximum Regulated Pressure (kPa): 1400
- Maximum Regulated Pressure (psi): 200
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 1
- Minimum Regulated Pressure (kPa): 100
- Minimum Regulated Pressure (MPa): 0.1
- Minimum Regulated Pressure (psi): 15
- Outlet Size (cm): 5.08
- Outlet Size (in): 2
- Outlet Size (mm): 50.8
$7,180.00
KIT, FILTER, 100 MESH
GG 224456
GG 224456
KIT, FILTER, 100 MESH
Replacement Screen for 100 Mesh Gun Filter Replacement Filter Screen Element for a Gun Filter Assembly 218133. $14.70
KIT, FILTER, 50 MESH
GG 224455
GG 224455
KIT, FILTER, 50 MESH
Gun Filter Screen Element, 50 mesh Replacement Filter Screen Element for a Gun Filter Assembly 218131. $14.70
