GRACO INC. S10595

GG 191202

Seat, Valve

GG 191211

Housing, Pump, Fluid

GG 191213

Plate, Tie, Pump

GG 191216

Plate, Tie, Viscount I

GG 191217

Spacer, Tie Rod

GG 191220

Spacer, Spring

GG 191222

Fitting, Bead, Tank

GG 191227

Pin, Straight

GG 191231

Gland, Packing, Male

GG 191232

Gland, Packing, Female

GG 191234

Nut, Packing

GG 191248

Base, Pump, Mount

GG 191253

Roadlazer Pump, Vane

GG 191255

Housing, Swivel

GG 191264

Spacer, Gas, Spring

GG 191287

Boot, Red W/White

GG 191288

Boot, Blue W/White

GG 191294

Boot, Black

GG 191295

Boot, Yellow

GG 191315

Cam

GG 191320

Trigger, Dispense, Metered

GG 191396

Cable, Printer, 50 Ft

GG 191407

Diaphragm, Hytrel, Surge Tank

GG 191408

Diaphragm, Ptfe, Surge Tank

GG 191541

Cover, Fluid, 2150

GG 191543

Manifold, Outlet 2150, Npt, Powerder Coated

GG 191547

Piston, Fluid

GG 191553

Plate, Diaphragm, 205, Acetal

GG 191548

Cylinder, Fluid

GG 191574

Diaphragm, Regulator, Hytrel

GG 191575

Diaphragm, Regulator, Ptfe

GG 191579

Housing, Valve, Sst

GG 191584

Housing, Adapter, Regulator

GG 191585

Rod, Piston

GG 191586

Fitting, Bulkhead, 3/8In Npt, Sst

GG 247057

FUSION MP GUN, XF1818, FTM317

Graco 247057 Flat Pattern Fusion Mechanical Purge Direct Impingement Gun, 0.017 in (0.43 mm) Orifice Size & Mix Chamber, 0.018 in (0.46 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.043
• Fluid Orifice Size (in): 0.017
• Fluid Orifice Size (mm): 0.43

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .018

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

GG 247061

FUSION MP GUN, XF2323, FTM424

Graco 247061 Fusion Mechanical Purge DI Gun, 0.024 in (0.61 mm) Orifice Size, 0.023 in (0.58 mm) Impingement Port, & 8-10 in (203-254 mm) Flat Pattern Size

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .023

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 10 in @ 24 in from target

GG 247058

FUSION MP GUN, XF1818, FTM424

Flat Pattern Fusion Mechanical Purge Direct Impingement Gun, 0.024 in (0.61 mm) Orifice Size & Mix Chamber, 0.018 in (0.46 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

For high output spray polyurethane foam and polyurea applications. Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit Long-lasting PolyCarballoy mix module Advanced mix module and tip provides superior mixing capabilities

GG 247062

FUSION MP GUN, XF2323, FTM438

Graco 247062 Flat Pattern Fusion Mechanical Purge Direct Impingement Gun, 0.038 in (0.96 mm) Orifice Size & Mix Chamber, 0.023 in (0.58 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .023

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

GG 247063

FUSION MP GUN, XF2323, FTM624

Graco 247063 Fusion Mechanical Purge DI Gun, 0.024 in (0.61 mm) Orifice Size, 0.023 in (0.58 mm) Impingement Port, & 12-14 in (305-356 mm) Flat Pattern Size

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .023

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247065

FUSION MP GUN, XF2929, FTM424

Graco 247065 Fusion Mechanical Purge DI Gun, 0.024 in (0.61 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port, & 8-10 in (203-254 mm) Flat Pattern Size

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .029

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 10 in @ 24 in from target

GG 247066

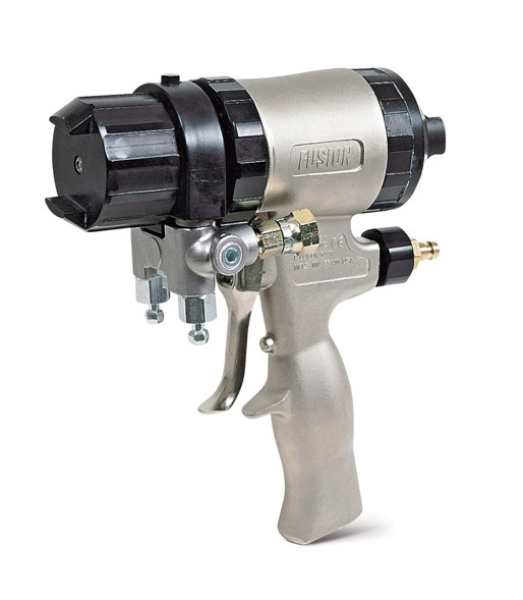

FUSION MP GUN, XF2929, FTM438

Flat Pattern Fusion Mechanical Purge Direct Impingement Gun, 0.038 in (0.96 mm) Orifice Size & Mix Chamber, 0.029 in (0.74 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

For high output spray polyurethane foam and polyurea applications. Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit Long-lasting PolyCarballoy mix module Advanced mix module and tip provides superior mixing capabilities

GG 247067

FUSION MP GUN, XF2929, FTM624

Graco 247067 Fusion Mechanical Purge DI Gun, 0.024 in (0.61 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port, & 12-14 in (305-356 mm) Flat Pattern Size

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .029

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247073

Fusion Mp Gun, Xf3535, Ftm438

GG 247075

FUSION MP GUN, XF3535, FTM638

Graco 247075 Fusion Mechanical Purge DI Gun, 0.038 in (0.96 mm) Orifice Size, 0.035 in (0.9 mm) Impingement Port & 12-14 in (305-356 mm) Flat Pattern Size

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .035

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 14 in @ 24 in from target

GG 247081

FUSION MP GUN, XF4747, FTM624

Graco 247081 Flat Pattern Fusion Mechanical Purge Direct Impingement Gun with 0.024 in (0.61 mm) Orifice Size & Mix Chamber with 0.047 in (1.2 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .047

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247082

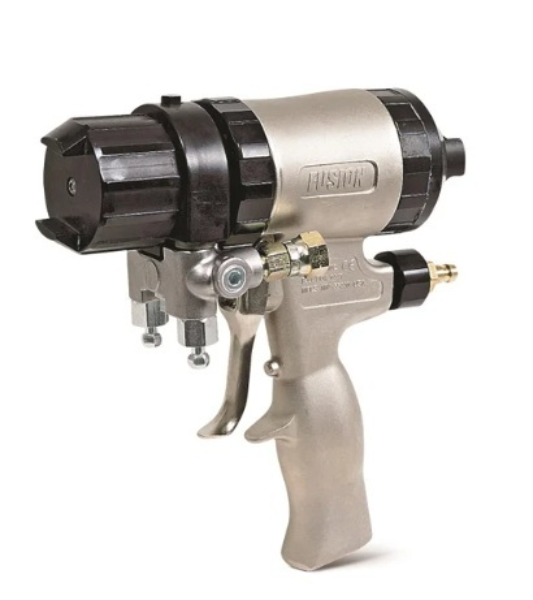

FUSION MP GUN, XF4747, FTM638

Fusion Mechanical Purge DI Gun, 0.038 in (0.96 mm) Orifice Size, 0.047 in (1.2 mm) Impingement Port, & 12-14 in (305-356 mm) Flat Pattern Size

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

For high output spray polyurethane foam and polyurea applications. Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit Long-lasting PolyCarballoy mix module Advanced mix module and tip provides superior mixing capabilities

GG 247083

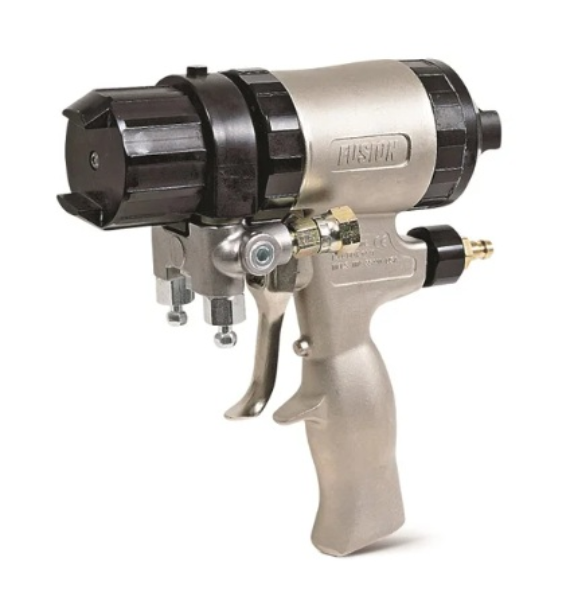

FUSION MP GUN, XF4747, FTM838

Graco 247083 Fusion Mechanical Purge DI Gun, 0.038 in (0.96 mm) Orifice Size, 0.047 in (1.2 mm) Impingement Port, & 16-18 in (406-457 mm) Flat Pattern Size

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .047

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 16-18 in @ 24 in from target

GG 247089

FUSION MP GUN, XF5757, FTM638

Graco 247089 Flat Pattern Fusion Mechanical Purge Direct Impingement Gun, 0.038 in (0.96 mm) Orifice Size & Mix Chamber, 0.057 in (1.45 mm) Impingement port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .057

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 14 in @ 24 in from target

GG 247090

FUSION MP GUN, XF5757, FTM838

Graco 247090 Flat Pattern Fusion Mechanical Purge Direct Impingement Gun, 0.038 in (0.96 mm) Orifice Size & Mix Chamber, 0.038 in (0.96 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .057

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 16-18 in @ 24 in from target

GG 247091

FUSION MP GUN, XF5757, FTM848

Graco 247091 Flat Spray Fusion Mechanical-Purge Direct Impingement Spray Gun

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurea, Non-Flammable Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .057

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

GG 247074

FUSION MP GUN, XF3535, FTM624

Graco 247074 Flat Pattern Fusion Mechanical Purge Direct Impingement Gun, 0.024 in (0.61 mm) Orifice Size & Mix Chamber, 0.035 in (0.89 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .035

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247102

FUSION AP GUN, AF2020, FT0438

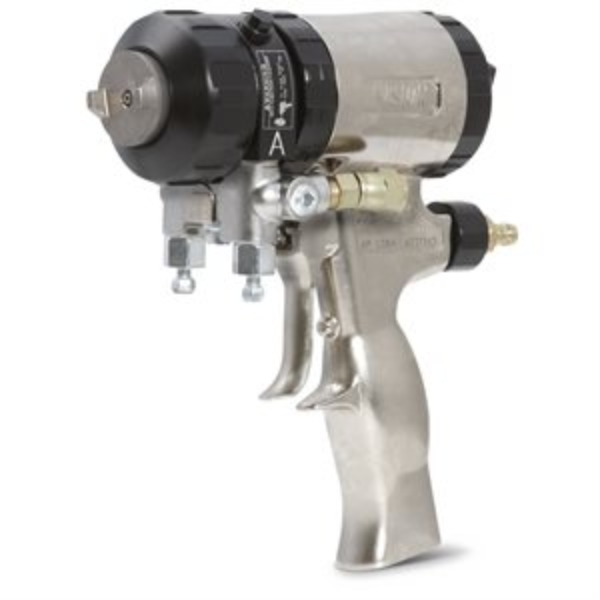

Graco 247102 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.020 in (0.51 mm) Impingement Port and 8-10 in (203-254 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 000 (.020)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 8-10 in @ 24 in from target

GG 247103

FUSION AP GUN, AF2020, FT0624

Graco 247103 Flat Pattern Fusion Air-Purge Gun with 0.024 in (0.61 mm) Orifice Size, 0.020 in (0.51 mm) Impingement Port and 12-14 in (305-356 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 000 (.020)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247104

FUSION AP GUN, AF2020, FT0638

Graco 247104 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.020 in (0.51 mm) Impingement Port and 12-14 in (305-356 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 000 (.020)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247107

FUSION AP GUN, AF2020, FT0838

Graco 247107 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.020 in (0.51 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 000 (.020)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 16-18 in @ 24 in from target

GG 247108

FUSION AP GUN, AF2020, FT0848

Flat Pattern Fusion Air-Purge Gun with 0.048 in (1.2 mm) Orifice Size, 0.020 in (0.51 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

For high output spray polyurethane foam and polyurea applications. Easy air-blast tip cleaning reduces build-up and tip clogging. Long-lasting side seals means less downtime for maintenance Quick-release fluid housing - lets you easily change the mix chambers without tools Hand-tightened front cap - no tools needed to clean and maintain seals and mix chamber Ergonomic handle

GG 247114

FUSION AP GUN, AF2929, FT0638

Graco 247114 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 12-14 in (305-356 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.029
• Impingement Port Size (mm): 0.70

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 00 (.029)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247118

FUSION AP GUN, AF2929, FT0848

Graco 247118 Flat Pattern Fusion Air-Purge Gun with 0.048 in (1.2 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.122
• Fluid Orifice Size (in): 0.048
• Fluid Orifice Size (mm): 1.22

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.029
• Impingement Port Size (mm): 0.70

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 00 (.029)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 16-18 in @ 24 in from target

GG 247121

FUSION AP GUN, AF4242, FT0424

Graco 247121 Flat Spray Fusion Air-Purge Spray Gun with 0.024 in (0.61 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurea, Non-Flammable Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.042
• Impingement Port Size (mm): 1.00

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 01 (.042)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 8-10 in @ 24 in from target

GG 247122

FUSION AP GUN, AF4242, FT0438

Graco 247122 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.042 in (1.6 mm) Impingement Port and 8-10 in (203-254 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.042
• Impingement Port Size (mm): 1.00

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 01 (.042)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 8-10 in @ 24 in from target

GG 247123

FUSION AP GUN, AF4242, FT0624

Graco 247123 Flat Pattern Fusion Air-Purge Gun with 0.024 in (0.61 mm) Orifice Size and Mix Chamber with 0.042 in (1.6 mm) Impingement Port

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.042
• Impingement Port Size (mm): 1.00

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 01 (.042)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247124

FUSION AP GUN, AF4242, FT0638

Graco 247124 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.042 in (1.6 mm) Impingement Port and 12-14 in (305-356 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.042
• Impingement Port Size (mm): 1.00

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 01 (.042)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247127

Fusion Ap Gun, Af4242, Ft0838

GG 247131

FUSION AP GUN, AF5252, FT0424

Graco 247131 Flat Pattern Fusion Air-Purge Gun with 0.024 in (0.61 mm) Orifice Size, 0.052 in (1.3 mm) Impingement Port and 8-10 in (203-254 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 02 (.052)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 8-10 in @ 24 in from target

GG 247128

FUSION AP GUN, AF4242, FT0848

Graco 247128 Flat Pattern Fusion Air-Purge Gun with 0.048 in (1.2 mm) Orifice Size and Mix Chamber with 0.042 in (1.6 mm) Impingement Port

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.122
• Fluid Orifice Size (in): 0.048
• Fluid Orifice Size (mm): 1.22

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.042
• Impingement Port Size (mm): 1.00

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 01 (.042)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 16-18 in @ 24 in from target

GG 247132

FUSION AP GUN, AF5252, FT0438

Graco 247132 Flat Spray Fusion Air-Purge Spray Gun with 0.038 in (0.96 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 02 (.052)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 8-10 in @ 24 in from target

GG 247133

Fusion Ap Gun, Af5252, Ft0624

GG 247134

FUSION AP GUN, AF5252, FT0638

Graco 247134 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.052 in (1.3 mm) Impingement Port and 12-14 in (305-356 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 02 (.052)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 12-14 in @ 24 in from target

GG 247138

FUSION AP GUN, AF5252, FT0848

Graco 247138 Flat Pattern Fusion Air-Purge Gun with 0.048 in (1.2 mm) Orifice Size and Mix Chamber with 0.052 in (1.3 mm) Impingement Port

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.122
• Fluid Orifice Size (in): 0.048
• Fluid Orifice Size (mm): 1.22

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 02 (.052)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 18 in @ 24 in from target

GG 247144

Reactor Pump, Displ., W/Lube, .396

GG 247147

Monark Transfer Pump, 5:1

GG 247148

Rod, Connecting

GG 247168

Pump, Displ, Recip, 6 Cm, 203 Mm, Sst

GG 247164

REACTOR HEATED HOSE, 3500, W/SCUFF, 1/4X3/8

50 ft x 1/4 and 3/8 in Heated Hose, 3500 psi, Thermocouple, Mesh Scuff, Reactor 1

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

For Reactor proportioners.

New multi-strand copper heating element has greatly increased hose quality:

• Provides 10-times* the flex life compared to previous flat copper heating element
• Long-term, even heating without hot spots
• Backwards compatible with existing Reactor heated hoses

Copper-heated hoses are designed specifically for use with Graco proportioners Covered with proprietary butyl cover for protection against moisture sensitive isocyanate Hoses are covered with foam insulation for heat retention Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings Helix-design whip hose uses braided copper wires for added flexibility and longer life

GG 247190

Pump, Recip, Displ 9Cm Sst

GG 247213

Fusion Mp Gun, Mr3535, Rtm055

GG 247211

FUSION MP GUN, MR3535, RTM030

Graco 247211 Standard Round Spray Fusion Mechanical-Purge Spray Gun

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurea, Non-Flammable Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.076
• Fluid Orifice Size (in): 0.030
• Fluid Orifice Size (mm): 0.76

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Port Size (in): 0.035
• Impingement Port Size (mm): 0.89
• Impingement Type: Standard

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 245
• Maximum Fluid Working Pressure (MPa): 24.5
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .035

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Product Type: Spray Gun

• Purge Metho

GG 247218

FUSION MP GUN, MR4747, RTM040

Graco 247218 Round Pattern Fusion Mechanical Purge Gun with 0.040 in (1.0 mm) Orifice Size and Mix Chamber with 0.047 in (1.2 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Round

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.102
• Fluid Orifice Size (in): 0.040
• Fluid Orifice Size (mm): 1.02

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Standard

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .047

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

GG 247219

FUSION MP GUN, MR4747, RTM055

Graco 247219 Round Pattern Fusion Mechanical Purge Gun with 0.055 in (1.4 mm) Orifice Size and Mix Chamber with 0.047 in (1.2 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Round

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.140
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.40

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Standard

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .047

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 9 in @ 24 in from target
