GRACO INC. S10595
Cylinder, Regulator, Bp, Medium Press
GG 19Y871
Cylinder, Regulator, Bp, Medium PressCover, Regulator, Bp, Air, Upper, Mp
GG 19Y872
Cover, Regulator, Bp, Air, Upper, MpKit, Label, Warning, Hp20, Corded
GG 19Y966
Kit, Label, Warning, Hp20, CordedKit, Label, Warning, Hp20, Crdlss
GG 19Y969
Kit, Label, Warning, Hp20, CrdlssSOLOTECH ST10 PUMP, I10-MPM-CS-SS-A1-A1-0
GG 19Z002
SOLOTECH ST10 PUMP, I10-MPM-CS-SS-A1-A1-0
SoloTech™ i10 Hypalon Peristaltic Hose Pump with CSM Hose, 316 Stainless Steel Barb & BLDC MotorGraco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolutionSolotech St10 Pump, I10-Mpm-Cs-Hs-A1-A1-0
GG 19Z004
SOLOTECH ST10 PUMP, I10-MPM-CS-HS-A1-A1-0
Graco 19Z004 SoloTech i10 Hypalon Peristaltic Hose Pump with CSM Hose, Hastelloy-C Barb & BLDC Motor
Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i10
- Application: Industrial
- Barb Material: Hastelloy
- Flow Rate (GPM): 0.67
- Gear Ratio: 37.66:1
- Hose Diameter (cm): 1
- Hose Diameter (in): 0.4
- Hose Diameter (mm): 10
- Hose Material: CSM
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 0.95
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.5
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.5
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature (°C): 40
- Maximum Storage Temperature (°F): 104
- Minimum Flow Rate (GPM): 0.017
- Minimum Storage Temperature (°C): -10
- Minimum Storage Temperature (°F): 14
- Motor Type: Brushless DC
- Outlet Size (cm): 9
- Outlet Size (in): 3.54
- Outlet Size (mm): 90
- Overall Height (cm): 53
- Overall Height (in): 21
- Overall Height (mm): 533
- Overall Length (cm): 41
- Overall Length (in): 16.3
- Overall Length (mm): 414
- Overall Width (cm): 33
- Overall Width (in): 13
- Overall Width (mm): 330
- Power Rating (HP): 120
- Power Rating (kW): 89.48
- Power Rating (W): 89484
- Pump Speed (RPM): 2-93

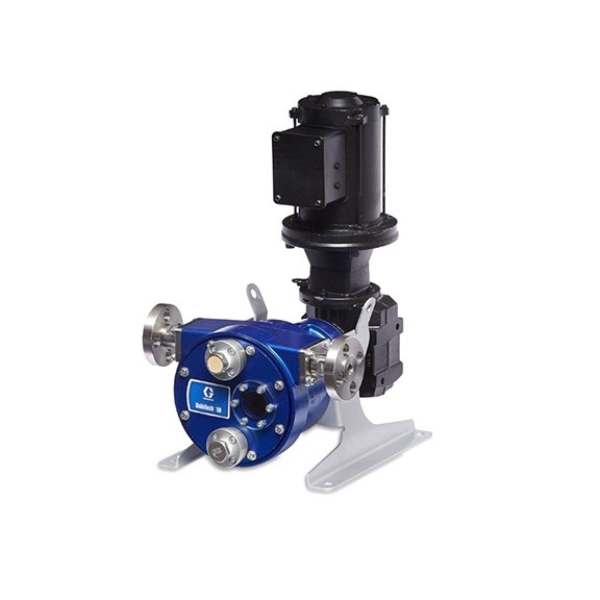

SOLOTECH ST10 PUMP, I10-MPM-BN-SS-A1-A1-0
GG 19Z005
SOLOTECH ST10 PUMP, I10-MPM-BN-SS-A1-A1-0
SoloTech™ i10 Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & BLDC MotorGraco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolutionSOLOTECH ST10 PUMP, I10-MPM-EP-SS-A1-A1-0
GG 19Z006
SOLOTECH ST10 PUMP, I10-MPM-EP-SS-A1-A1-0
SoloTech™ i10 EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & BLDC MotorsGraco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolutionSolotech St10 Pump, I10-Mpm-Ep-Pv-A1-A1-0
GG 19Z007
SOLOTECH ST10 PUMP, I10-MPM-EP-PV-A1-A1-0
Graco 19Z007 SoloTech i10 EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & BLDC Motor
Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i10
- Application: Industrial
- Barb Material: PVDF
- Flow Rate (GPM): 0.67
- Gear Ratio: 37.66:1
- Hose Diameter (cm): 1
- Hose Diameter (in): 0.4
- Hose Diameter (mm): 10
- Hose Material: EPDM
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 0.95
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.5
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.5
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature (°C): 40
- Maximum Storage Temperature (°F): 104
- Minimum Flow Rate (GPM): 0.017
- Minimum Storage Temperature (°C): -10
- Minimum Storage Temperature (°F): 14
- Motor Type: Brushless DC
- Outlet Size (cm): 9
- Outlet Size (in): 3.54
- Outlet Size (mm): 90
- Overall Height (cm): 53
- Overall Height (in): 21
- Overall Height (mm): 533
- Overall Length (cm): 41
- Overall Length (in): 16.3
- Overall Length (mm): 414
- Overall Width (cm): 33
- Overall Width (in): 13
- Overall Width (mm): 330
- Power Rating (HP): 120
- Power Rating (kW): 89.48
- Power Rating (W): 89484
- Pump Speed (RPM): 2-93
Solotech St10 Pump, I10-Mpm-Ep-Hs-A1-A1-0
GG 19Z008
SOLOTECH ST10 PUMP, I10-MPM-EP-HS-A1-A1-0
Graco 19Z008 SoloTech i10 EPDM Peristaltic Hose Pump with EPDM Hose, Hastelloy-C Barb & BLDC Motor
Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i10
- Application: Industrial
- Barb Material: Hastelloy
- Flow Rate (GPM): 0.67
- Gear Ratio: 37.66:1
- Hose Diameter (cm): 1
- Hose Diameter (in): 0.4
- Hose Diameter (mm): 10
- Hose Material: EPDM
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 0.95
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.5
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.5
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature (°C): 40
- Maximum Storage Temperature (°F): 104
- Minimum Flow Rate (GPM): 0.017
- Minimum Storage Temperature (°C): -10
- Minimum Storage Temperature (°F): 14
- Motor Type: Brushless DC
- Outlet Size (cm): 9
- Outlet Size (in): 3.54
- Outlet Size (mm): 90
- Overall Height (cm): 53
- Overall Height (in): 21
- Overall Height (mm): 533
- Overall Length (cm): 41
- Overall Length (in): 16.3
- Overall Length (mm): 414
- Overall Width (cm): 33
- Overall Width (in): 13
- Overall Width (mm): 330
- Power Rating (HP): 120
- Power Rating (kW): 89.48
- Power Rating (W): 89484
- Pump Speed (RPM): 2-93
SOLOTECH ST10 PUMP, I10-LAC-NR-SS-A1-A1-0
GG 19Z009
SOLOTECH ST10 PUMP, I10-LAC-NR-SS-A1-A1-0
SoloTech™ i10 Low Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC MotorGraco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolutionSOLOTECH ST10 PUMP, I10-LAC-CS-SS-A1-A1-0
GG 19Z010
SOLOTECH ST10 PUMP, I10-LAC-CS-SS-A1-A1-0
SoloTech™ i10 Low Speed Hypalon Peristaltic Hose Pump with CSM Hose, 316 Stainless Steel Barb & AC MotorGraco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolutionSolotech St10 Pump, I10-Lac-Cs-Pv-A1-A1-0
GG 19Z011
SOLOTECH ST10 PUMP, I10-LAC-CS-PV-A1-A1-0
Graco 19Z011 SoloTech i10 Low Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & AC Motor
Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i10
- Application: Industrial
- Barb Material: PVDF
- Flow Rate (GPM): 0.08
- Gear Ratio: 157.43:1
- Hose Diameter (cm): 1
- Hose Diameter (in): 0.4
- Hose Diameter (mm): 10
- Hose Material: CSM
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 0.95
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.5
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.5
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature (°C): 40
- Maximum Storage Temperature (°F): 104
- Minimum Flow Rate (GPM): 0.013
- Minimum Storage Temperature (°C): -10
- Minimum Storage Temperature (°F): 14
- Motor Type: Low Speed AC
- Outlet Size (cm): 9
- Outlet Size (in): 3.54
- Outlet Size (mm): 90
- Overall Height (cm): 42
- Overall Height (in): 16.7
- Overall Height (mm): 424
- Overall Length (cm): 41
- Overall Length (in): 16.2
- Overall Length (mm): 411
- Overall Width (cm): 33
- Overall Width (in): 13
- Overall Width (mm): 330
- Pump Speed (RPM): 2-11
Solotech St10 Pump, I10-Lac-Bn-Ss-A1-A1-0
GG 19Z013
SOLOTECH ST10 PUMP, I10-LAC-BN-SS-A1-A1-0
Graco 19Z013 SoloTech i10 Low Speed Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & AC Motor
Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i10
- Application: Industrial
- Barb Material: Stainless Steel
- Flow Rate (GPM): 0.08
- Gear Ratio: 157.43:1
- Hose Diameter (cm): 1
- Hose Diameter (in): 0.4
- Hose Diameter (mm): 10
- Hose Material: Nitrile
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 0.95
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.5
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.5
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature (°C): 40
- Maximum Storage Temperature (°F): 104
- Minimum Flow Rate (GPM): 0.013
- Minimum Storage Temperature (°C): -10
- Minimum Storage Temperature (°F): 14
- Motor Type: Low Speed AC
- Outlet Size (cm): 9
- Outlet Size (in): 3.54
- Outlet Size (mm): 90
- Overall Height (cm): 42
- Overall Height (in): 16.7
- Overall Height (mm): 424
- Overall Length (cm): 41
- Overall Length (in): 16.2
- Overall Length (mm): 411
- Overall Width (cm): 33
- Overall Width (in): 13
- Overall Width (mm): 330
- Pump Speed (RPM): 2-11
Solotech St10 Pump, I10-Lac-Ep-Ss-A1-A1-0
GG 19Z014
SOLOTECH ST10 PUMP, I10-LAC-EP-SS-A1-A1-0
Graco 19Z014 SoloTech i10 Low Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & AC Motor
Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i10
- Application: Industrial
- Barb Material: Stainless Steel
- Flow Rate (GPM): 0.08
- Gear Ratio: 157.43:1
- Hose Diameter (cm): 1
- Hose Diameter (in): 0.4
- Hose Diameter (mm): 10
- Hose Material: EPDM
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 0.95
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.5
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.5
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature (°C): 40
- Maximum Storage Temperature (°F): 104
- Minimum Flow Rate (GPM): 0.013
- Minimum Storage Temperature (°C): -10
- Minimum Storage Temperature (°F): 14
- Motor Type: Low Speed AC
- Outlet Size (cm): 9
- Outlet Size (in): 3.54
- Outlet Size (mm): 90
- Overall Height (cm): 42
- Overall Height (in): 16.7
- Overall Height (mm): 424
- Overall Length (cm): 41
- Overall Length (in): 16.2
- Overall Length (mm): 411
- Overall Width (cm): 33
- Overall Width (in): 13
- Overall Width (mm): 330
- Pump Speed (RPM): 2-11

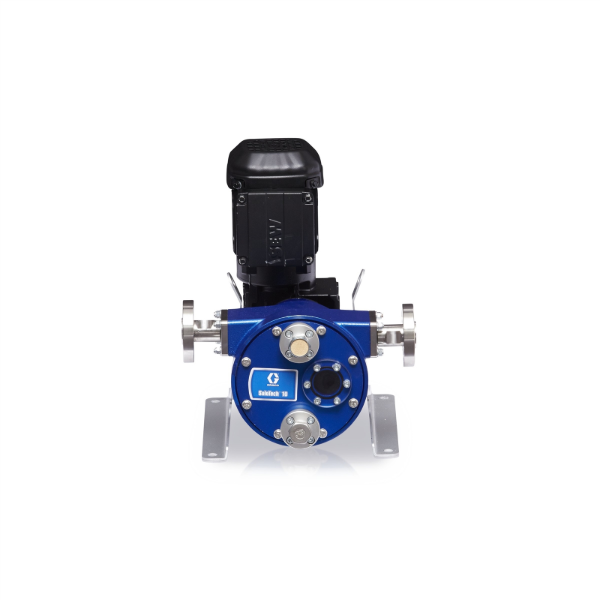

SOLOTECH ST10 PUMP, I10-LAC-EP-PV-A1-A1-0
GG 19Z015
SOLOTECH ST10 PUMP, I10-LAC-EP-PV-A1-A1-0
SoloTech™ i10 Low Speed EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & AC MotorGraco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolutionSolotech St10 Pump, I10-Lac-Ep-Hs-A1-A1-0
GG 19Z016
SOLOTECH ST10 PUMP, I10-LAC-EP-HS-A1-A1-0
Graco 19Z016 SoloTech i10 Low Speed EPDM Peristaltic Hose Pump with EPDM Hose, Hastelloy-C Barb & AC Motor
Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i10
- Application: Industrial
- Barb Material: Hastelloy
- Flow Rate (GPM): 0.08
- Gear Ratio: 157.43:1
- Hose Diameter (cm): 1
- Hose Diameter (in): 0.4
- Hose Diameter (mm): 10
- Hose Material: EPDM
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 0.95
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.5
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.5
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature (°C): 40
- Maximum Storage Temperature (°F): 104
- Minimum Flow Rate (GPM): 0.013
- Minimum Storage Temperature (°C): -10
- Minimum Storage Temperature (°F): 14
- Motor Type: Low Speed AC
- Outlet Size (cm): 9
- Outlet Size (in): 3.54
- Outlet Size (mm): 90
- Overall Height (cm): 42
- Overall Height (in): 16.7
- Overall Height (mm): 424
- Overall Length (cm): 41
- Overall Length (in): 16.2
- Overall Length (mm): 411
- Overall Width (cm): 33
- Overall Width (in): 13
- Overall Width (mm): 330
- Pump Speed (RPM): 2-11
SOLOTECH ST10 PUMP, I10-MAC-NR-SS-A1-A1-0
GG 19Z017
SOLOTECH ST10 PUMP, I10-MAC-NR-SS-A1-A1-0
SoloTech™ i10 Mid Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC MotorGraco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolutionRegulator, Assembly, Remote Cup, 1 Qt. S
GG 236142
Regulator, Assy, Remote Cup, 1 Qt. SKIT, FILTER, 490ST, 30 M
GG 236495
KIT, FILTER, 490ST, 30 M
Manifold Filter, Short, 30 mesh, 2 pk Using a standard pump manifold filter is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time. Use 30 mesh for materials such as heavy latex, block filler, or elastomeric.POWER-STAR PUMP, TRANSFER, HYDRAULIC, 1:1
GG 236754
POWER-STAR PUMP, TRANSFER, HYDRAULIC, 1:1
Power-Star™ Series 1:1 Universal Size Hydraulic-Powered Oil PumpHydraulic Power-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed-air systems.
Built-In Reliability - Self-lubricating vertical design for long life and reliable operation in high-vibration environments. Quiet Hydraulic Motor - No need for add-on mufflers. High-Efficiency Motor - Uses less hydraulic oil.
