GRACO INC. S10595
GRACO INC. S10595 branded products
Reactor Unheated Hose, 50ft, 3/8, Air, Insul
GG 24M653
GG 24M653
Reactor Unheated Hose, 50', 3/8, Air, Insul $1,690.00
Reactor Heated Hose, 2000, 1/2, W/Rtd, Can/Sg
GG 24N001
GG 24N001
REACTOR HEATED HOSE, 2000, 1/2, W/RTD, CAN/SG
Graco 24N001 Low Pressure 50 ft (15 m) Heated Hose with 1/2 in Diameter and Scuff Guard
Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
Application: For Reactor proportioners.- New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
- Resistance Temperature Detector (RTD)
- Graco’s latest advanced controls on Reactor 2 and Integrated Reactor utilize RTD technology. RTDs offer the highest accuracy and the best day-to-day repeatability of material temperatures in your hose. RTD technology allows the machine to automatically shut down if the sensor is damaged, which saves wasted time and materials.
- Copper-heated hoses are designed specifically for use with Graco proportioners
- Hoses are covered with foam insulation for heat retention
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
- Helix-design whip hose uses braided copper wires for added flexibility and longer life
- Model: Reactor Heated Hoses
- Series: Mesh Scuff
- Connection Type: Male x Female
- For Use With: Plural Component Proportioners
- Hose Heating Type: External Heated
- Hose Length (cm): 1524
- Hose Length (ft): 50
- Hose Length (in): 600
- Hose Length (m): 15.2
- Hose Length (mm): 15200
- Includes: RTD Cable, Standard Braided Scuff Guard, CAN Cable
- Inside Diameter (cm): 1.27
- Inside Diameter (in): 1/2
- Inside Diameter (mm): 12.7
- Material: Nylon
- Maximum Temperature (°C): 82
- Maximum Temperature (°F): 180
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
$3,700.00

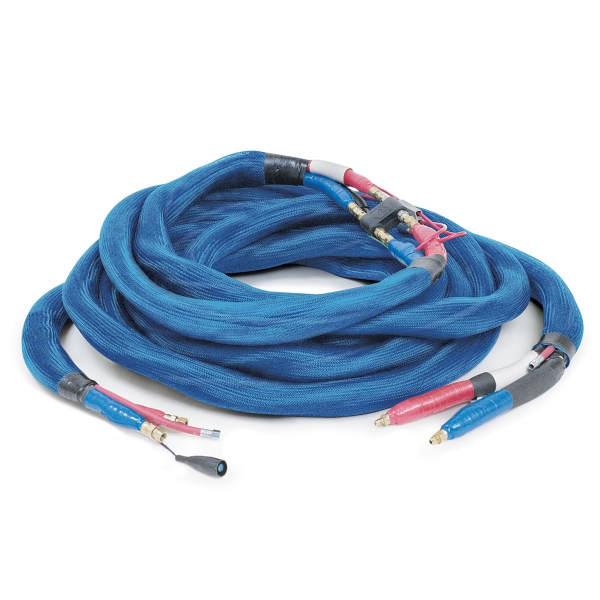

REACTOR HEATED HOSE, 2000, 1/2, W/RTD AND SG
GG 24N000
GG 24N000
REACTOR HEATED HOSE, 2000, 1/2, W/RTD AND SG
50 ft x 1/2 in Heated Hose, 2000 psi, RTD, Mesh Scuff, Reactor 2Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
Resistance Temperature Detector (RTD)
- Graco’s latest advanced controls on Reactor 2 and Integrated Reactor utilize RTD technology. RTDs offer the highest accuracy and the best day-to-day repeatability of material temperatures in your hose. RTD technology allows the machine to automatically shut down if the sensor is damaged, which saves wasted time and materials.
$3,430.00
KIT, REPAIR, SPONGE BALL
GG 248515
GG 248515
KIT, REPAIR, SPONGE BALL
Sponge Ball Clean Out Kit Kit includes five (5) 1-inch cleaning balls. $55.75

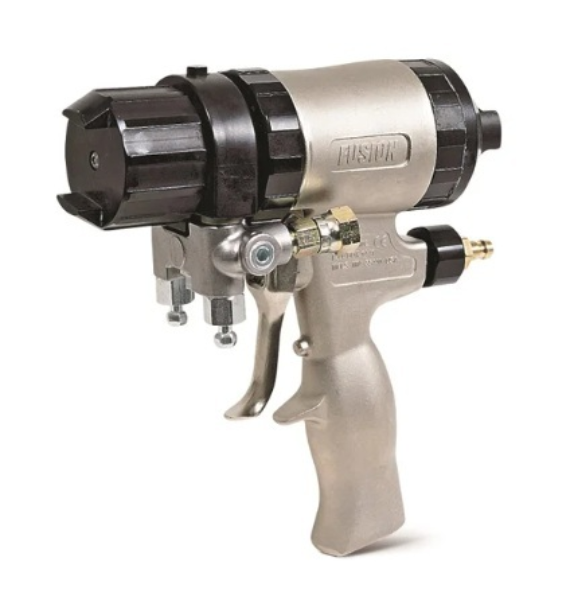

FUSION MP GUN, SOLVENT PURGE
GG 248597
GG 248597
FUSION MP GUN, SOLVENT PURGE
Manual Fusion Solvent-Purge GunWhether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.
For high output spray polyurethane foam and polyurea applications.Fusion Mechanical Purge (MP) Gun – Designed for superior mixing
- Handles from very low output, thin mil applications to large, high flow, high-output applications just by changing the mix module and tip
- Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
- Smoother finish and better atomization
- Offers more advanced features than all other mechanical-purge guns combined
- Long-lasting mix modules provide excellent mixing
- Advanced mix module and tip design provides excellent mix and material
- properties, and significantly reduces repair and maintenance costs
CeramTip
- Durable and easy to change
- Round and flat patterns
Adjustable Front Packing PolyCarballoy Mix Module
- For proven long life
Adjustable Front Packing PolyCarballoy Mix Module
- For proven long life
Contoured Trigger
- Easy two-figure actuation
Ergonomic Handle
- Smooth curved handle improves operator comfort and reduces fatigue
Purge Rod
- Easy-to-set, one piece rod for longer life
Safety Stop
- Manual on/off
$5,190.00
FUSION AP GUN, RND
GG 248617
GG 248617
FUSION AP GUN, RND
Round Fusion Air-Purge Gun with 00-01 Mix Chamber and 0.037 in (0.94 mm) Orifice SizeWith long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
For high output spray polyurethane foam and polyurea applications. Easy air-blast tip cleaning reduces build-up and tip clogging. Long-lasting side seals means less downtime for maintenance Quick-release fluid housing - lets you easily change the mix chambers without tools Hand-tightened front cap - no tools needed to clean and maintain seals and mix chamber Ergonomic handle $3,680.00

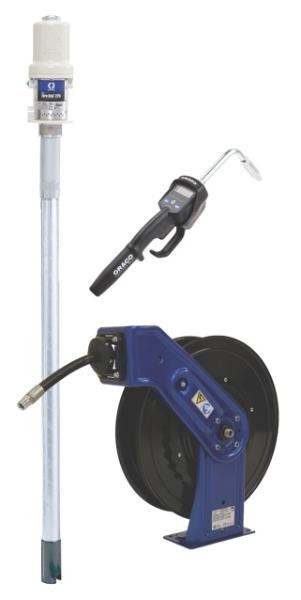

FIREBALL 225 SYSTEM, DISPENSE, BULK OIL
GG 248622
GG 248622
FIREBALL 225 SYSTEM, DISPENSE, BULK OIL
Mini Fire-Ball® 225 3:1 1/2 in. x 35 ft. (12.7 mm x 11 m) Manual Hose Reel Package for OilYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life. $3,030.00

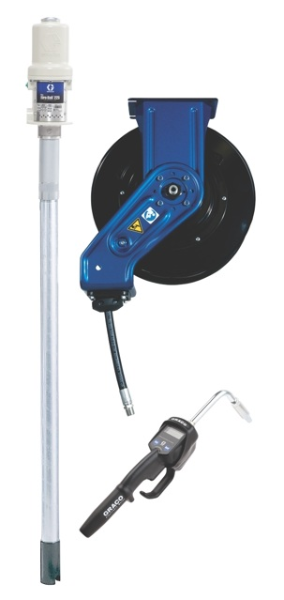

FIREBALL 225 SYSTEM, DISPENSE, BULK OIL
GG 248623
GG 248623
FIREBALL 225 SYSTEM, DISPENSE, BULK OIL
Mini Fire-Ball® 225 3:1 1/2 in. x 50 ft. (12.7 mm x 15.2 m) Manual Hose Reel Package for OilYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life. $3,110.00

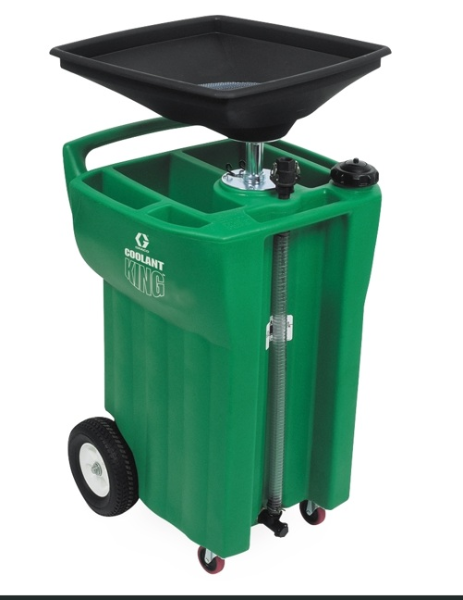

CART, DRAIN, USED ANTIFREEZE
GG 248632
GG 248632
CART, DRAIN, USED ANTIFREEZE
25 gal (95 l) Used-Antifreeze Receiver with Used-Filter Tray, Tool Holders, Sight GaugeCoolant King is designed with the busy shop in mind. With oversized tires and push-pull handles it allows for smooth maneuvering. The full-length sight gauge lets you know when the tank is full.
Large Offset Collection Pan - This funnel can be raised to a maximum height of 72 in. (183 cm) and is equipped with a filter screen to prevent debris from entering the tank. Convenient Tool Tray; Built-in holding bins for new or used filters, wrenches, and rags all at your fingertips. Liquid Sight Gauge; A full-length liquid level sight gauge lets you know when the tank is full. Large 25 Gallon (94.6L) Capacity Receiver; Made from a heavy-duty, durable UV stabilized polymer. Dent-, rust-, and corrosion-resistant. Oversized Tires; Easily maneuver over hose and rough floors. Two Evacuation Port Options; Choose from the gravity drain valve at the bottom or suction-evacuation from the top. $1,150.00

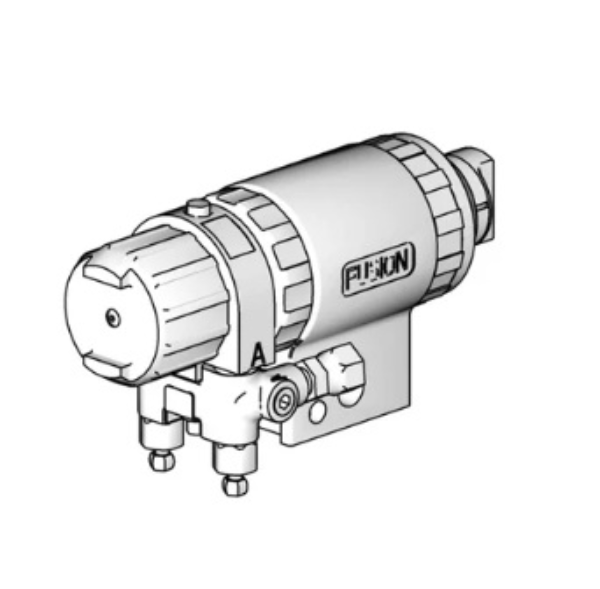

FUSION MP GUN, AUTO, SOLV. PURGE, FUSN
GG 248647
GG 248647
FUSION MP GUN, AUTO, SOLV. PURGE, FUSN
Fusion Automatic Solvent-Purge GunWhether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.
For high output spray polyurethane foam and polyurea applications.Fusion Mechanical Purge (MP) Gun – Designed for superior mixing
- Handles from very low output, thin mil applications to large, high flow, high-output applications just by changing the mix module and tip
- Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
- Smoother finish and better atomization
- Offers more advanced features than all other mechanical-purge guns combined
- Long-lasting mix modules provide excellent mixing
- Advanced mix module and tip design provides excellent mix and material
- properties, and significantly reduces repair and maintenance costs
CeramTip
- Durable and easy to change
- Round and flat patterns
Adjustable Front Packing PolyCarballoy Mix Module
- For proven long life
Adjustable Front Packing PolyCarballoy Mix Module
- For proven long life
Contoured Trigger
- Easy two-figure actuation
Ergonomic Handle
- Smooth curved handle improves operator comfort and reduces fatigue
Purge Rod
- Easy-to-set, one piece rod for longer life
Safety Stop
- Manual on/off
$5,880.00
Manifold, Remote Mix, No Restr., Bare
GG 248874
GG 248874
Manifold, Remote Mix, No Restr., Bare $3,950.00
Monark Pump, Solv, 5 Gl Pail Mt, 23:1
GG 248885
GG 248885
Monark Pump, Solv, 5 Gl Pail Mt, 23:1 $5,320.00
Manifold, Rmix W/Restrictor, Skid Mt
GG 248923
GG 248923
Manifold, Rmix W/Restrictor, Skid Mt $4,240.00
KIT, ACCY, MOTOR, DRIVE, USA
GG 248949
GG 248949
KIT, ACCY, MOTOR, DRIVE, USA
Electric Motor Kit Utilize a gas sprayer inside or outside with an electric motor kit. Quickly swap the gas engine for an electric motor in seconds – without tools. Electric Motor Kit for GH 200/230 Standard and ProContractor Series sprayers. $2,090.00
Check-Mate 800 Pump, Shovel, 8 Cm
GG 198469
GG 198469
CHECK-MATE 800 PUMP,SHOVEL,8 CM
Graco 198469 8 cm Carbon Steel Pump Shovel with Carbon Steel Intake Housing
$7,890.00
