GRACO INC. S10595

GG 19Z025

SOLOTECH ST10 PUMP, I10-HAC-NR-SS-A1-A1-0

Graco 19Z025 SoloTech i10 High Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i10

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 0.646

• Gear Ratio: 19.5:1

• Hose Diameter (cm): 1
• Hose Diameter (in): 0.4
• Hose Diameter (mm): 10
• Hose Material: Rubber

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 0.95
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.5

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 0.67
• Maximum Flow Rate (L/min): 2.5

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.108

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: High Speed AC

• Outlet Size (cm): 9
• Outlet Size (in): 3.54
• Outlet Size (mm): 90

• Overall Height (cm): 46
• Overall Height (in): 18.2
• Overall Height (mm): 462
• Overall Length (cm): 41
• Overall Length (in): 16.2
• Overall Length (mm): 411
• Overall Width (cm): 33
• Overall Width (in): 13
• Overall Width (mm): 330

• Pump Speed (RPM): 15-92

GG 19Z026

SOLOTECH ST10 PUMP, I10-HAC-CS-SS-A1-A1-0

Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z027

SOLOTECH ST10 PUMP, I10-HAC-CS-PV-A1-A1-0

Graco 19Z027 SoloTech i10 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i10

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 0.646

• Gear Ratio: 19.5:1

• Hose Diameter (cm): 1
• Hose Diameter (in): 0.4
• Hose Diameter (mm): 10
• Hose Material: CSM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 0.95
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.5

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 0.67
• Maximum Flow Rate (L/min): 2.5

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.108

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: High Speed AC

• Outlet Size (cm): 9
• Outlet Size (in): 3.54
• Outlet Size (mm): 90

• Overall Height (cm): 46
• Overall Height (in): 18.2
• Overall Height (mm): 462
• Overall Length (cm): 41
• Overall Length (in): 16.2
• Overall Length (mm): 411
• Overall Width (cm): 33
• Overall Width (in): 13
• Overall Width (mm): 330

• Pump Speed (RPM): 15-92

GG 19Z028

SOLOTECH ST10 PUMP, I10-HAC-BN-SS-A1-A1-0

Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z030

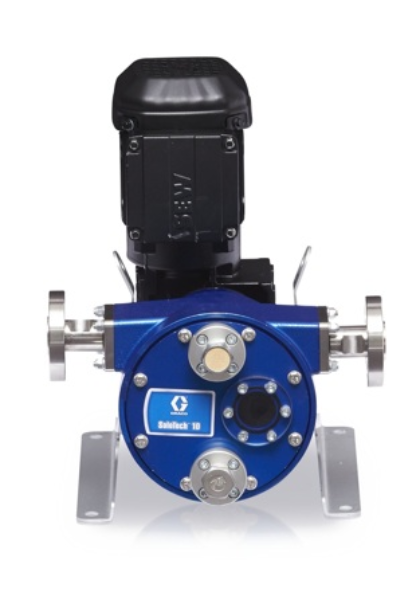

SOLOTECH ST10 PUMP, I10-HAC-EP-SS-A1-A1-0

Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z031

SOLOTECH ST10 PUMP, I10-HAC-EP-PV-A1-A1-0

Graco’s SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z033

SOLOTECH ST23 PUMP, I23-MPM-NR-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z034

SOLOTECH ST23 PUMP, I23-MPM-CS-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z035

SOLOTECH ST23 PUMP, I23-MPM-CS-PV-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

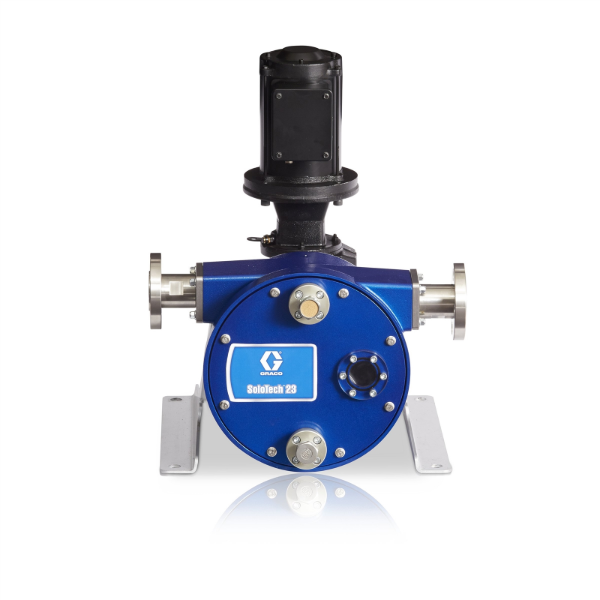

GG 19Z038

SOLOTECH ST23 PUMP, I23-MPM-BN-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z041

SOLOTECH ST23 PUMP, I23-LAC-NR-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z042

SOLOTECH ST23 PUMP, I23-LAC-CS-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z043

SOLOTECH ST23 PUMP, I23-LAC-EP-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z045

SOLOTECH ST23 PUMP, I23-LAC-CS-PV-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z046

SOLOTECH ST23 PUMP, I23-LAC-CS-HS-A1-A1-0

Graco 19Z046 SoloTech i23 Low Speed Hypalon Peristaltic Hose Pump with CSM Hose, Hastelloy-C Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i23

• Application: Industrial

• Barb Material: Hastelloy

• Flow Rate (GPM): 0.572

• Gear Ratio: 157:1

• Hose Diameter (cm): 2.3
• Hose Diameter (in): 0.91
• Hose Diameter (mm): 23
• Hose Material: CSM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 4.5
• Maximum Flow Rate (L/min): 17

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.095

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Low Speed AC

• Outlet Size (cm): 10.8
• Outlet Size (in): 4.25
• Outlet Size (mm): 108

• Overall Height (cm): 44
• Overall Height (in): 17.5
• Overall Height (mm): 445
• Overall Length (cm): 51
• Overall Length (in): 20.1
• Overall Length (mm): 511
• Overall Width (cm): 44
• Overall Width (in): 17.2
• Overall Width (mm): 437

• Power Rating (HP): 0.25
• Power Rating (kW): 0.19
• Power Rating (W): 186

• Pump Speed (RPM): 2-11

GG 19Z050

SOLOTECH ST23 PUMP, I23-MAC-CS-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z051

SOLOTECH ST23 PUMP, I23-MAC-EP-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

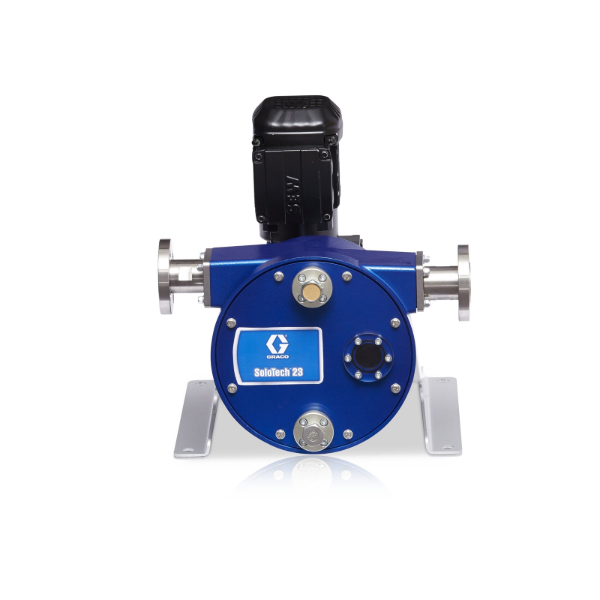

GG 19Z052

SOLOTECH ST23 PUMP, I23-MAC-BN-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z053

SOLOTECH ST23 PUMP, I23-MAC-CS-PV-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z054

SOLOTECH ST23 PUMP, I23-MAC-EP-PV-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z057

SOLOTECH ST23 PUMP, I23-HAC-NR-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z058

SOLOTECH ST23 PUMP, I23-HAC-CS-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z060

SOLOTECH ST23 PUMP, I23-HAC-BN-SS-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z061

SOLOTECH ST23 PUMP, I23-HAC-CS-PV-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z062

SOLOTECH ST23 PUMP, I23-HAC-EP-PV-A1-A1-0

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z063

GG 19Z065

SOLOTECH ST26 PUMP, I26-0-BN-SS-A1-A1-M

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z066

SOLOTECH ST26 PUMP, I26-0-NR-PV-A1-A1-M

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z068

SOLOTECH ST26 PUMP, I26-MPM-EP-SS-A1-A1-0

Graco 19Z068 SoloTech i26 EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel & BLDC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 10.2

• Gear Ratio: 38.23:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.257

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Brushless DC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 41
• Overall Height (in): 16
• Overall Height (mm): 406
• Overall Length (cm): 93
• Overall Length (in): 36.8
• Overall Length (mm): 935
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 350
• Power Rating (kW): 261
• Power Rating (W): 260995

• Pump Speed (RPM): 2-94

GG 19Z069

SOLOTECH ST26 PUMP, I26-MPM-EP-PV-A1-A1-0

Graco 19Z069 SoloTech i26 EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & BLDC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 10.2

• Gear Ratio: 38.23:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.257

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Brushless DC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 41
• Overall Height (in): 16
• Overall Height (mm): 406
• Overall Length (cm): 93
• Overall Length (in): 36.8
• Overall Length (mm): 935
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 350
• Power Rating (kW): 261
• Power Rating (W): 260995

• Pump Speed (RPM): 2-94

GG 19Z070

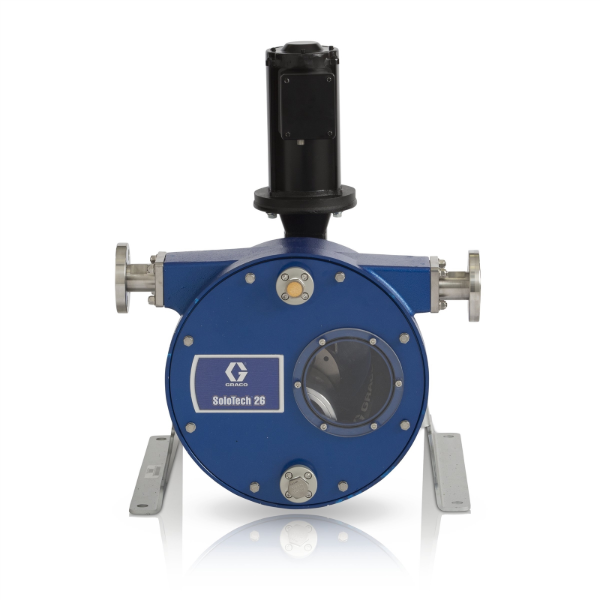

SOLOTECH ST26 PUMP, I26-MPM-BN-SS-A1-A1-0

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z073

SOLOTECH ST26 PUMP, I26-HAC-NR-SS-A1-A1-0

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z074

SOLOTECH ST26 PUMP, I26-HAC-CS-SS-A1-A1-0

Graco 19Z074 SoloTech i26 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 10.175

• Gear Ratio: 19.50:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: CSM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 1.7

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: High Speed AC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 42
• Overall Height (in): 16.5
• Overall Height (mm): 419
• Overall Length (cm): 92
• Overall Length (in): 36.1
• Overall Length (mm): 917
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 2
• Power Rating (kW): 1.49
• Power Rating (W): 1491

• Pump Speed (RPM): 16-93

GG 19Z075

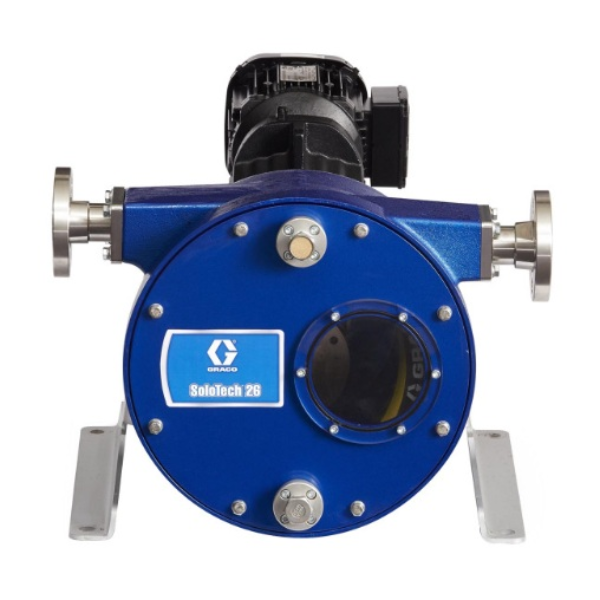

SOLOTECH ST26 PUMP, I26-HAC-EP-SS-A1-A1-0

Graco 19Z075 SoloTech i26 High Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 10.175

• Gear Ratio: 19.50:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 1.7

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: High Speed AC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 42
• Overall Height (in): 16.5
• Overall Height (mm): 419
• Overall Length (cm): 92
• Overall Length (in): 36.1
• Overall Length (mm): 917
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 2
• Power Rating (kW): 1.49
• Power Rating (W): 1491

• Pump Speed (RPM): 16-93

GG 19Z077

SOLOTECH ST26 PUMP, I26-HAC-CS-PV-A1-A1-0

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z080

SOLOTECH ST26 PUMP, I26-HAC-EP-HS-A1-A1-0

Graco 19Z080 SoloTech i26 High Speed EPDM Peristaltic Hose Pump with EPDM Hose, Hastelloy-C Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: Hastelloy

• Flow Rate (GPM): 10.175

• Gear Ratio: 19.50:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 1.7

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: High Speed AC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 42
• Overall Height (in): 16.5
• Overall Height (mm): 419
• Overall Length (cm): 92
• Overall Length (in): 36.1
• Overall Length (mm): 917
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 2
• Power Rating (kW): 1.49
• Power Rating (W): 1491

• Pump Speed (RPM): 16-93

GG 19Z083

SOLOTECH ST26 PUMP, I26-LAC-EP-SS-A1-A1-0

Graco 19Z083 SoloTech i26 Low Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 1.354

• Gear Ratio: 145:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.225

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Low Speed AC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 39
• Overall Height (in): 15.5
• Overall Height (mm): 394
• Overall Length (cm): 84
• Overall Length (in): 33
• Overall Length (mm): 838
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 0.33
• Power Rating (kW): 0.25
• Power Rating (W): 246

• Pump Speed (RPM): 2-12

GG 19Z085

SOLOTECH ST26 PUMP, I26-LAC-CS-PV-A1-A1-0

Graco 19Z085 SoloTech i26 Low Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 1.354

• Gear Ratio: 145:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: CSM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.225

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Low Speed AC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 39
• Overall Height (in): 15.5
• Overall Height (mm): 394
• Overall Length (cm): 84
• Overall Length (in): 33
• Overall Length (mm): 838
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 0.33
• Power Rating (kW): 0.25
• Power Rating (W): 246

• Pump Speed (RPM): 2-12

GG 19Z086

SOLOTECH ST26 PUMP, I26-LAC-EP-PV-A1-A1-0

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z089

SOLOTECH ST26 PUMP, I26-MAC-NR-SS-A1-A1-0

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z091

SOLOTECH ST26 PUMP, I26-MAC-EP-SS-A1-A1-0

Graco 19Z091 SoloTech i26 Mid Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 4.175

• Gear Ratio: 48:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.695

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Mid Speed AC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 42
• Overall Height (in): 16.5
• Overall Height (mm): 419
• Overall Length (cm): 86
• Overall Length (in): 33.9
• Overall Length (mm): 861
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 1
• Power Rating (kW): 0.75
• Power Rating (W): 746

• Pump Speed (RPM): 6-38

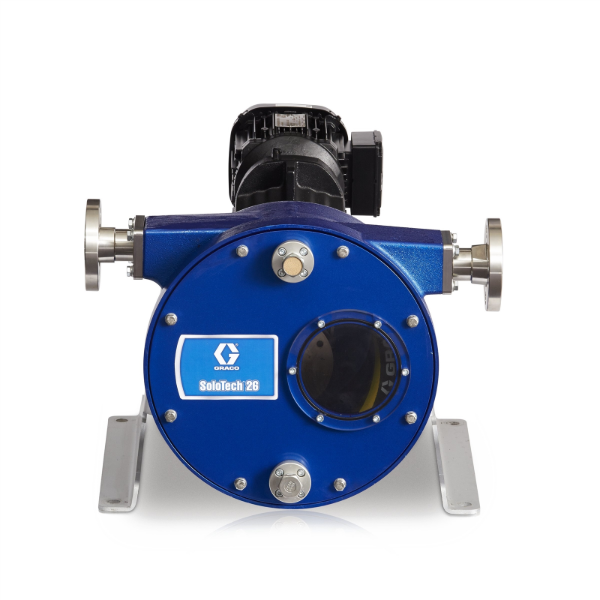

GG 19Z092

SOLOTECH ST26 PUMP, I26-MAC-BN-SS-A1-A1-0

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

GG 19Z093

SOLOTECH ST26 PUMP, I26-MAC-CS-PV-A1-A1-0

Graco 19Z093 SoloTech i26 Mid Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 4.175

• Gear Ratio: 48:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: CSM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.695

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Mid Speed AC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 42
• Overall Height (in): 16.5
• Overall Height (mm): 419
• Overall Length (cm): 86
• Overall Length (in): 33.9
• Overall Length (mm): 861
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 1
• Power Rating (kW): 0.75
• Power Rating (W): 746

• Pump Speed (RPM): 6-38

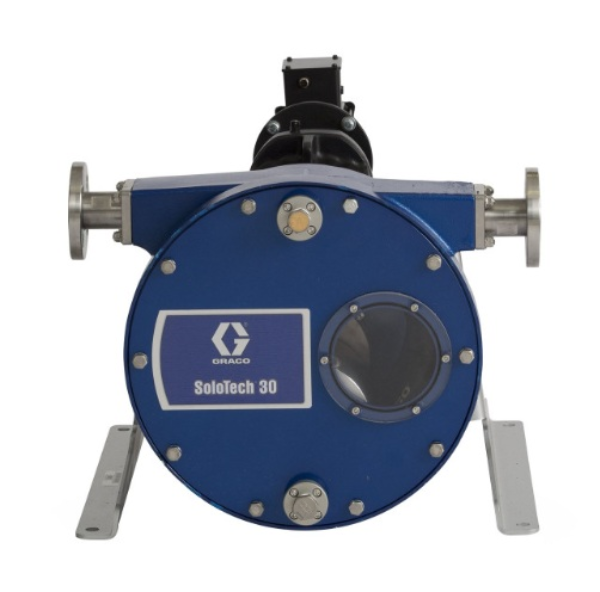

GG 19Z097

SOLOTECH ST30 PUMP, MPM/NR/SS/A1/A1/0/

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

GG 19Z099

SOLOTECH ST30 PUMP, MPM/EP/SS/A1/A1/0/

Graco 19Z099 SoloTech i30 EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & BLDC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 16.025

• Gear Ratio: 36.61:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.43

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Brushless DC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 47
• Overall Height (in): 18.5
• Overall Height (mm): 470
• Overall Length (cm): 103
• Overall Length (in): 40.4
• Overall Length (mm): 1026
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 300
• Power Rating (kW): 224
• Power Rating (W): 223710

• Pump Speed (RPM): 2-92

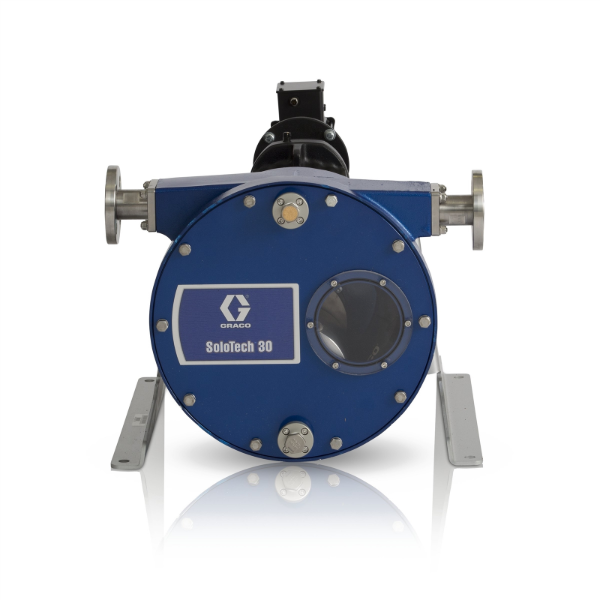

GG 19Z100

SOLOTECH ST30 PUMP, MPM/BN/SS/A1/A1/0/

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

GG 19Z101

SOLOTECH ST30 PUMP, MPM/CS/PV/A1/A1/0/

Graco 19Z101 SoloTech i30 Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & BLDC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 16.025

• Gear Ratio: 36.61:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: CSM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.43

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Brushless DC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 47
• Overall Height (in): 18.5
• Overall Height (mm): 470
• Overall Length (cm): 103
• Overall Length (in): 40.4
• Overall Length (mm): 1026
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 300
• Power Rating (kW): 224
• Power Rating (W): 223710

• Pump Speed (RPM): 2-92

GG 19Z102

SOLOTECH ST30 PUMP, MPM/EP/PV/A1/A1/0/

Graco 19Z102 SoloTech i30 EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & BLDC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 16.025

• Gear Ratio: 36.61:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.43

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Brushless DC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 47
• Overall Height (in): 18.5
• Overall Height (mm): 470
• Overall Length (cm): 103
• Overall Length (in): 40.4
• Overall Length (mm): 1026
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 300
• Power Rating (kW): 224
• Power Rating (W): 223710

• Pump Speed (RPM): 2-92

GG 19Z105

SOLOTECH ST30 PUMP, MAC/NR/SS/A1/A1/0/

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

GG 19Z106

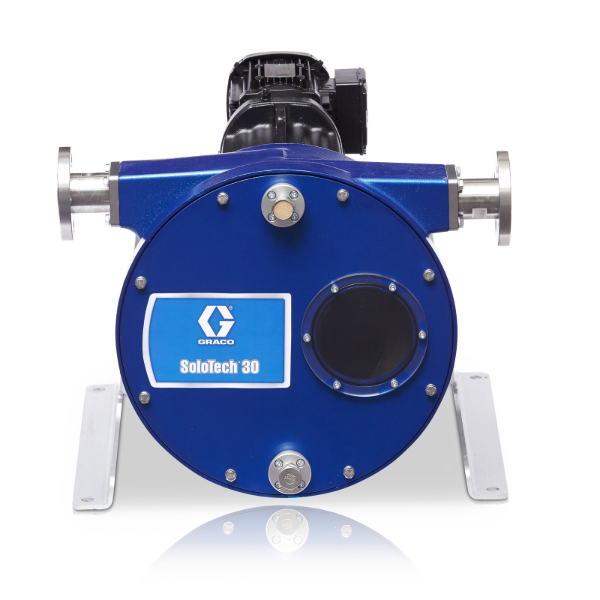

SOLOTECH ST30 PUMP, MAC/CS/SS/A1/A1/0/

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

GG 19Z107

SOLOTECH ST30 PUMP, MAC/EP/SS/A1/A1/0/

Graco 19Z107 SoloTech i30 Mid Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 6.56

• Gear Ratio: 48:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 1.09

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Mid Speed AC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 74
• Overall Height (in): 29.1
• Overall Height (mm): 739
• Overall Length (cm): 67
• Overall Length (in): 26.5
• Overall Length (mm): 673
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 1.5
• Power Rating (kW): 1.12
• Power Rating (W): 1119

• Pump Speed (RPM): 6-37

GG 19Z108

SOLOTECH ST30 PUMP, MAC/BN/SS/A1/A1/0/

Graco 19Z108 SoloTech i30 Mid Speed Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 6.56

• Gear Ratio: 48:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: Nitrile

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 1.09

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Mid Speed AC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 74
• Overall Height (in): 29.1
• Overall Height (mm): 739
• Overall Length (cm): 67
• Overall Length (in): 26.5
• Overall Length (mm): 673
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 1.5
• Power Rating (kW): 1.12
• Power Rating (W): 1119

• Pump Speed (RPM): 6-37

GG 19Z109

SOLOTECH ST30 PUMP, MAC/CS/PV/A1/A1/0/

Graco 19Z109 SoloTech i30 Mid Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 6.56

• Gear Ratio: 48:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: CSM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 1.09

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Mid Speed AC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 74
• Overall Height (in): 29.1
• Overall Height (mm): 739
• Overall Length (cm): 67
• Overall Length (in): 26.5
• Overall Length (mm): 673
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 1.5
• Power Rating (kW): 1.12
• Power Rating (W): 1119

• Pump Speed (RPM): 6-37

GG 19Z110

SOLOTECH ST30 PUMP, MAC/EP/PV/A1/A1/0/

Graco 19Z110 SoloTech i30 Mid Speed EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 6.56

• Gear Ratio: 48:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 1.09

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Mid Speed AC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 74
• Overall Height (in): 29.1
• Overall Height (mm): 739
• Overall Length (cm): 67
• Overall Length (in): 26.5
• Overall Length (mm): 673
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 1.5
• Power Rating (kW): 1.12
• Power Rating (W): 1119

• Pump Speed (RPM): 6-37

GG 19Z114

SOLOTECH ST30 PUMP, HAC/CS/SS/A1/A1/0/

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

GG 19Z115

SOLOTECH ST30 PUMP, HAC/EP/SS/A1/A1/0/

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

GG 19Z118

SOLOTECH ST30 PUMP, HAC/EP/PV/A1/A1/0/

Graco 19Z118 SoloTech i30 High Speed EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 16

• Gear Ratio: 19.5:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 2.675

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: High Speed AC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 77
• Overall Height (in): 30.3
• Overall Height (mm): 770
• Overall Length (cm): 67
• Overall Length (in): 26.5
• Overall Length (mm): 673
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 3
• Power Rating (kW): 2.24
• Power Rating (W): 2237

• Pump Speed (RPM): 15-91

GG 19Z123

SOLOTECH ST30 PUMP, LAC/EP/SS/A1/A1/0/

Graco 19Z123 SoloTech i30 Low Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 2.1

• Gear Ratio: 157.43:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.35

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Low Speed AC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 51
• Overall Height (in): 20
• Overall Height (mm): 508
• Overall Length (cm): 87
• Overall Length (in): 34.4
• Overall Length (mm): 874
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 0.5
• Power Rating (kW): 0.37
• Power Rating (W): 373

• Pump Speed (RPM): 2-12

GG 19Z126

SOLOTECH ST30 PUMP, LAC/EP/PV/A1/A1/0/

Graco 19Z126 SoloTech i30 Low Speed EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction
  • Cast aluminum housing reduces pump weight
  • Improved mounting flexibility with adjustable feet
• Electric Motor
  • Choose between AC and Brushless DC models
  • Multiple gearbox offerings to meet your exact flow rate needs
  • Hazardous location motors available
• Brushless DC Motor
  • Batch dispense mode
  • Wider turndown ratio allows for larger flow range
  • Maintenance reminders
• Removable Cover
  • Aluminum covers with larger sight window makes it easy to access and see internal parts
  • Optional leak detector kit mounts on cover
• Hose Barb Assembly
  • Easy to install or remove – no special tools needed
  • Available with PVDF and SST barbs options
  • Floating flange for easy installation
• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages
• Extended hose life - only one hose compression per revolution

• Model: SoloTech
• Series: i30

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 2.1

• Gear Ratio: 157.43:1

• Hose Diameter (cm): 3
• Hose Diameter (in): 1.2
• Hose Diameter (mm): 30
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 3.2
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 32

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 15.8
• Maximum Flow Rate (L/min): 59.8

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.35

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Low Speed AC

• Outlet Size (cm): 12.5
• Outlet Size (in): 4.92
• Outlet Size (mm): 125

• Overall Height (cm): 51
• Overall Height (in): 20
• Overall Height (mm): 508
• Overall Length (cm): 87
• Overall Length (in): 34.4
• Overall Length (mm): 874
• Overall Width (cm): 59
• Overall Width (in): 23.3
• Overall Width (mm): 592

• Power Rating (HP): 0.5
• Power Rating (kW): 0.37
• Power Rating (W): 373

• Pump Speed (RPM): 2-12

GG 19Z193

GG 19Z197

GG 19Z199

GG 19Z200

GG 19Z205

GG 2000047

GG 2000079

GG 2000137

GG 234367

GG 234387

GG 234388

GG 234411

GG 234419

GG 234428

GG 234434

GG 234530

GG 234531

GG 234532

GG 234536

GG 234538

GG 234632

GG 234742

GG 234777

GG 234780

GG 234782

GG 234784

VALVE, HIGH OUTPUT W/GAUGE

GG 234911

TRITON SPRAYER, AL, PUMP PAIL MNT, STELLAIR COMP

GG 234960

GG 234963

GG 234983

GG 235006

GG 23502-00

GG 235041

GG 235119

REGULATOR, ASSY, AIR GUN

GG 23513-00

GG 235136

GG 235165

GG 235186

GG 235187

GG 23526-01

GG 235272
