GRACO INC. S10595
Straight, Nozzle, .012 .050 Engagement
GG 130012
Straight, Nozzle, .012 .050 Engagement Single Oriface Right Angle Nozzle, .012
GG 130111
Single Oriface Right Angle Nozzle, .012
13:1 Ration External Mix Gel System with 35ft(10.7m) Hose
GG 16R033
13:1 Ration External Mix Gel System with 35ft(10.7m) Hose
To keep material costs low, the system has been designed so that it doesn't need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.
- Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change. Precision engineered linkage offers you superior ratio control and consistent cure.
- Easy maintenance - fewer repair parts. Long lasting seals mean less downtime. Pumps last longer between planned maintenances. No surge bottle necessary, less parts, solvent and resin needed to prime the pump.
- Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day. Tracks cycles for preventive maintenance schedule. Displays real time flow rate - eliminates material waste due to worn spray tips.
- Keeps the catalyst pump primed for consistent delivery.
- Truly engineered linkage for superior ratio control. Allows for infinite adjustment of catalyst percentage. No tools required ensures proper catalyst percentage and optimum results. Variance of 1% or less.
- Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern. Shortened stroke on pump for better spray pattern.
- Easy user interface with all gauges in one location.
Screw, SHC, 3/8-16 X .5in, Nylon 6/6, Black
GG 17E419
Screw, SHC, 3/8-16 X .5in, Nylon 6/6, Black Kit, Air Cap, Conv., General Industry
GG 2000293
Kit, Air Cap, Conv., General Industry
FIREBALL 425 PUMP, 75:1, 35 LB
GG 239731
FIREBALL 425 PUMP, 75:1, 35 LB
Fire-Ball® 425 Series 75:1 35 lb (16 kg). Container Pail Length Grease PumpThe Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
The Fire-Ball 425 is the pump of choice for your most demanding high volume applications. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life. Kit, Assembly, Bellows Displacement Rods
GG 24A649
Kit, Assembly, Bellows Displacement Rods

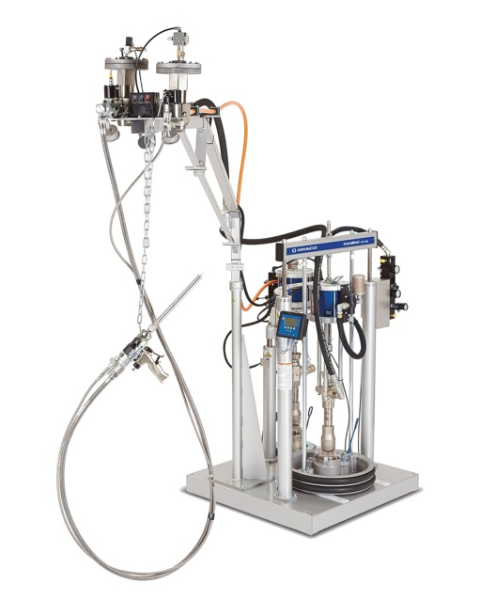

EXACTABLEND AGP SYSTEM, 100CC/100CC, BOOM
GG 24R815
EXACTABLEND AGP SYSTEM, 100CC/100CC, BOOM
55/5 gal (200/19 L) AGP-P100 Polysulfide Machine with BoomThe Graco ExactaBlend AGP (Advanced Glazing Proportioner) provides on-ratio dispensing of two-component sealants and adhesives for curtainwall, insulating glass and other applications. The variable ratio ExactaBlend AGP offers advanced technologies at an affordable price.
Precise application of silicone materials in insulating glass or structural glazing applications is critical for delivering superior adhesion, durability and leak-free performance.Advanced pumping technology creates a better, more consistent bead – which results in reduced rework and less wasted material. Real-time ratio assurance means less waste, more profits- Provides automatic shut-down if off-ratio conditions occur
- Cuts material waste and reduces rework for a healthier bottom line
- Ultimately reduces the chance of seal failure on insulating glass
- Results in better quality end product
- Quick and easy setup – operator simply enters the ratio setting
- Easy to switch ratio settings
- Base purge is fast, clean and easy with the simple touch of a button
- A & B material usage
- Flow rate
- Alarm events
- Ratio
NXT Air Motor, 6500 cc, De-Icing Exhaust, No Monitoring
GG N65DN0
NXT Air Motor, 6500 cc, De-Icing Exhaust, No Monitoring SPRA VALVE, SPRAY 8 IN DIA
GG 563276
SPRA VALVE, SPRAY 8 IN DIA
Air-lube Control Valve and Nozzle Assembly - 8 in. spray diameter, wideConserves air–air required only during spray interval
Versatile–can be used with any centralized lube system or mechanical oiler and will handle grease or oil
External mix nozzle purges itself and prevents clogging
Saves lubricant by spraying smaller amounts at frequent intervals, provides better film, with no waste
8 in. spray diameter, wide
Lubriquip part number 510-652-230 Trabon part number 10652-W Gun, Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 0.047 in (1.2 mm) nozzle, smart display, standard coatings
GG L85M12
PRO XP GUN, ES, 85KV, SMART, 1.2
Graco L85M12 Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 0.047 in (1.2 mm) nozzle, smart display, standard coatings
Available in 85 kV, this general model is the smallest profile gun with an internal power supply on the market. It comes with smart technology that empowers you to maximize efficiency and productivity.
Application: For applying Class A or decorative finishes with standard and specialty coatings- The 1.2 mm nozzle is for lower fluid flow.
- Smart controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier.
- Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight electrostatic gun model.
- Model: Pro Xp
- Series: 85
- Product Series: A
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Manual
- Coating Type: Standard, Specialty
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes
- Display Type: Smart
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 675
- Gun Weight (kg): 0.675
- Gun Weight (lb): 1.49
- Gun Weight (oz): 23.81
- Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm 2): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature ( degree C): 48
- Maximum Fluid Temperature ( degree F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm 2): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature ( degree C): 48
- Maximum Fluid Temperature ( degree F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 25
- Nozzle Size (cm): 0.12
- Nozzle Size (in): 0.047
- Nozzle Size (mm): 1.2
- Overall Length (cm): 26.67
- Overall Length (in): 10.5
- Overall Length (mm): 266.7
Magnet, Air Cylinder, Spool, Pd, 1.5B
GG 01/2805-1/11
Magnet, Air Cylinder, Spool, Pd, 1.5B Valve Assy, Non Drip, 11/16, EP
GG 02/0707-02/50
Valve Assy, Non Drip, 11/16, EP Valve Assy, Non-Drip, 5/8, Cat, EP
GG 02/0715-02/50
Valve Assy, Non-Drip, 5/8, Cat, EP
