GRACO INC. S10595
MINI METER-FLO PUMP, MOTOR ASSY 1CU/IN
GG 564412
MINI METER-FLO PUMP, MOTOR ASSY 1CU/IN
Miniature Meter-Flo® Assembly - Pump, Gear motor, Reducer Assembly, 1 cu in/min (16 cc/min)Designed for use with virtually any type of Series Progressive or Single Line Resistive oil lubrication system. The Miniature Meter-Flo has a rugged steel reservoir and motor assembly withstands the toughest applications.
Capable of high volumetric output operating continuously at pressures up to 1,000 psi (69 bar)
Compact with several options to create a complete system using feedback and control
Nominal displacements of 1 cu. in./min. (16 cc/mm.)
An adjustable internal relief protects pump from excessive pressures. Factory set at 1,000 psi (69 bar)
Pump, Gear motor and Reducer assembly - no reservoir
Reservoir has a suction line strainer, return line port, visual level gauge, pressure gauge and filler/strainer with spring return cap
Options include low level switch, high pressure indicator, and lube cycle timer
Lubriquip part number 540-800-610 MINI METER-FLO PUMP, MOTOR ASSY 8CU/IN
GG 564414
MINI METER-FLO PUMP, MOTOR ASSY 8CU/IN
Miniature Meter-Flo® Assembly - Pump, Gear motor, Reducer Assembly, 8 cu in/min (131 cc/min)Designed for use with virtually any type of Series Progressive or Single Line Resistive oil lubrication system. The Miniature Meter-Flo has a rugged steel reservoir and motor assembly withstands the toughest applications.
Capable of high volumetric output operating continuously at pressures up to 1,000 psi (69 bar)
Compact with several options to create a complete system using feedback and control
Nominal displacements of 8 cu. in./min. (131 cc/mm.)
An adjustable internal relief protects pump from excessive pressures. Factory set at 1,000 psi (69 bar)
Pump, Gear motor and Reducer assembly - no reservoir
Reservoir has a suction line strainer, return line port, visual level gauge, pressure gauge and filler/strainer with spring return cap
Options include low level switch, high pressure indicator, and lube cycle timer
Lubriquip part number 540-800-630 MINI METER-FLO PUMP, MOTOR ASSY 14CU/IN
GG 564415
MINI METER-FLO PUMP, MOTOR ASSY 14CU/IN
Miniature Meter-Flo® Assembly - Pump, Gear motor, Reducer Assembly, 14 cu in/min (229 cc/min)Designed for use with virtually any type of Series Progressive or Single Line Resistive oil lubrication system. The Miniature Meter-Flo has a rugged steel reservoir and motor assembly withstands the toughest applications.
Capable of high volumetric output operating continuously at pressures up to 1,000 psi (69 bar) Compact with several options to create a complete system using feedback and control Nominal displacements of 14 cu. in./min. (229 cc/mm.) An adjustable internal relief protects pump from excessive pressures. Factory set at 1,000 psi (69 bar) Pump, Gear motor and Reducer assembly - no reservoir Reservoir has a suction line strainer, return line port, visual level gauge, pressure gauge and filler/strainer with spring return cap Options include low level switch, high pressure indicator, and lube cycle timer Lubriquip part number 540-800-640 Lubrisystem Pump, 20# Grs Plstc 3000 Gage
GG 564423
Lubrisystem Pump, 20# Grs Plstc 3000 Gage INDICATOR, RUPTURE, 1/8 NPTF, 3700 PSI
GG 564476
INDICATOR, RUPTURE, 1/8 NPTF, 3700 PSI
Replacement Rupture-to-Atmosphere Indicator, 1/8 in NPTF, 3700 psi Rupture-to-Atmosphere Indicators for use with MJ, MSP, MHH and MXP Divider Valves.Used in conjunction with system pressure switch–can warn of a fault while allowing lube system to continue to deliver to critical bearings.
Requires replacement of the rupture disc to restart the lube system.
Easy information on blocked lines, high system pressure or blocked bearings.
Lubriquip part number 509-494-100 Trabon part number 9494-100 KIT, ACC, OUTPUT UNION 3 PUMPS
GG 571026
KIT, ACC, OUTPUT UNION 3 PUMPS
G-Series Pump Accessories - Three Pump Union Kit For use with G-Series Pumps.Three pump union kit–joins the output of the left, right and center pumps for maximum output
KIT, REMOTE MANUAL RUN, 12V
GG 571030
KIT, REMOTE MANUAL RUN, 12V
G-Series Pump Accessories - Remote Manual Run/Monitoring Light - 12 VDC For use with G-Series Pumps.Remote manual run/monitoring light–12 VDC
KIT, REMOTE MANUAL RUN, 24V
GG 571031
KIT, REMOTE MANUAL RUN, 24V
G-Series Pump Accessories - Remote Manual Run/Monitoring Light - 12 VDC, 90-240 VAC For use with G-Series Pumps.Remote manual run/monitoring light–24 VDC, 90-240 VAC
KIT, REMOTE MAN RUN, 12V, W/CABLE
GG 571032
KIT, REMOTE MAN RUN, 12V, W/CABLE
G-Series Pump Accessory - Remote Manual Run/Monitoring Light Kit - 12 VDC, includes 16 foot M12 cable For use with G-Series Pumps.Remote manual run/monitoring light kit–12 VDC, includes 16 foot M12 cable
KIT, FUSE, 24V, 4A
GG 571040
KIT, FUSE, 24V, 4A
Fuse Kit for G-Series Pumps - 4A, 24 VDC For use with G-Series Pumps.4A Fuse, 24 VDC Input Voltage
Element, Pump, Replacement, 100 Pack
GG 571041PK
Element, Pump, Replacement, 100 Pack KIT, REPAIR, 2L PADDLE
GG 571044
KIT, REPAIR, 2L PADDLE
G-Series Repair Kit - 2L Reservoir, Paddle For use with G-Series Pumps.Replacement Paddle, 2L Paddle - for models without follow plate
Module, Valve, Secondary, Boom, Komatsu
GG 25V614
Module, Valve, Secondary, Boom, Komatsu Module, Valve, Secondary, Front, Komatsu
GG 25V615
Module, Valve, Secondary, Front, Komatsu Module, Valve, Secondary, Rear, Komatsu
GG 25V616
Module, Valve, Secondary, Rear, Komatsu

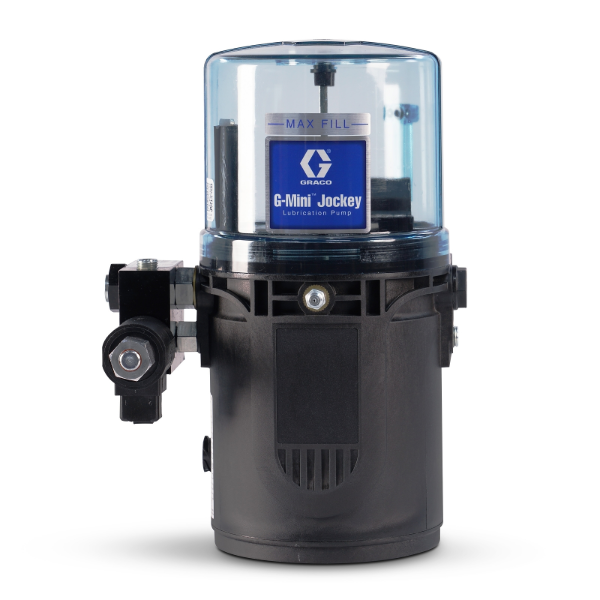

G-MINI JOCKEY PUMP, GMJ, NFP, 2L, 12V, CPC, NC
GG 25V700
G-MINI JOCKEY PUMP, GMJ, NFP, 2L, 12V, CPC, NC
2L G-Mini Jockey, 12V The electric G-Mini Jockey is an automatic lubrication system designed to keep lubrication points greased on medium-duty commercial vehicles. With its small footprint, the pump can be mounted in a convenient location that is easy to access for refilling. Mounting the controller in the cab allows the driver to receive real time pump feedback to ensure proper operation. Up to 30 lubrication points Remote controller allows for in-cab feedback 2 Liter reservoir
G-MINI JOCKEY PUMP, GMJ, NFP, 1L, 12V, CPC, NC
GG 25V701
G-MINI JOCKEY PUMP, GMJ, NFP, 1L, 12V, CPC, NC
1L G-Mini Jockey, 12V The electric G-Mini Jockey is an automatic lubrication system designed to keep lubrication points greased on medium-duty commercial vehicles. With its small footprint, the pump can be mounted in a convenient location that is easy to access for refilling. Mounting the controller in the cab allows the driver to receive real time pump feedback to ensure proper operation. Up to 30 lubrication points Remote controller allows for in-cab feedback 1 Liter reservoir
G-MINI JOCKEY KIT, TIMER, GREASE JOCKEY, GMJ
GG 25V702
G-MINI JOCKEY KIT, TIMER, GREASE JOCKEY, GMJ
G-Mini Jockey Timer With Cable Basic timer to configure on and off run times
G-MINI JOCKEY KIT, TIMER, GLC 2200, GMJ
GG 25V703
G-MINI JOCKEY KIT, TIMER, GLC 2200, GMJ
GLC 2200 Timer Kit The GLC2200 controller is an upgrade of the standard G-Mini Jockey controller that, when used with a pressure switch, allows pressure feedback and control.
G-MINI JOCKEY KIT, SWITCH, PRESSURE, GMJ
GG 25V704
G-MINI JOCKEY KIT, SWITCH, PRESSURE, GMJ
Pressure Switch Kit For use with G-Mini Jockey systems with GLC2200 controller to allow pressure feedback.
G-MINI JOCKEY KIT, BRACKET, INJECTOR, GMJ
GG 25V705
G-MINI JOCKEY KIT, BRACKET, INJECTOR, GMJ
Injector Bracket Kit For mounting an injector bank directly to the G-Mini Jockey pump. Use for short run applications G-Mini Jockey Kit, Reservoir and Seal, 1L, Gmini
GG 25V706
G-Mini Jockey Kit, Reservoir & Seal, 1L, Gmini CONTROL BOX, UNIVERSAL, PRO, PULSE
GG 25V710
CONTROL BOX, UNIVERSAL, PRO, PULSE
Universal Controller for Pulse Pro The Pulse Universal Controller can manage the dispense of any fluid type that runs through an in-line meter with pulse leads, even diesel and DEF. For use with Pulse Pro Fluid Management System Utilize with existing equipment Great solution for outdoor filling stations, municipalities and large equipment workshops Controller is IP69K rated for outdoor use CONTROL BOX, UNIVERSAL, ASSET, PULSE
GG 25V711
CONTROL BOX, UNIVERSAL, ASSET, PULSE
Universal Controller for Pulse Asset The Pulse Universal Controller can manage the dispense of any fluid type that runs through an in-line meter with pulse leads. For use with Pulse Asset Fluid Management System Utilize with existing equipment Great solution for lube trucks, in-plant and first fill applications Controller is IP69K rated for outdoor use Lubepro H1900 Pump, Eu
GG 25Y498
LUBEPRO H1900 PUMP, EU
Graco 25Y498 LubePro H1900 Horizontal Oil Pump - BSPP
Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball® pump - the leader in durability and quality for over 50 years.
Application: Single Stroke Oil Pump for Automatic Lubrication- LubePro H1900 is compatible with GL-42 and GL-43 injectors
- Pressure Ratio of 19:1
- H1900 delivers a greater output than competitive models at 3.0 in³ (49.2 cm³) per stroke
- Pneumatic power makes it easy to install into existing air line
- Optional Low Level Detection available, factory installed
- Built with high-quality seals tested to outperform the competition
- Optimally lubricates while your machines are running
- Provides accurate, reliable lubrication for every lube point
- Provides higher lube output and faster lubrication cycle
- Model: LubePro
- Series: H1900
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Application: In-Plant Machinery
- Compatible Material: Oil
- Compatible Metering Device: Series Progressive, Single Line Parallel
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: BSPP
- Maximum Air Inlet Pressure (bar): 12.76
- Maximum Air Inlet Pressure (kPa): 1276
- Maximum Air Inlet Pressure (psi): 185
- Maximum Fill Inlet Pressure (bar): 5.52
- Maximum Fill Inlet Pressure (kPa): 552
- Maximum Fill Inlet Pressure (psi): 80
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum cST Grade (cST): 40
- Overall Width (cm): 39.4
- Overall Width (in): 15.5
- Overall Width (mm): 394
- Power Type: Pneumatic
Lubepro H1900 Pump, LL, Eu
GG 25Y499
LUBEPRO H1900 PUMP, LL, EU
Graco 25Y499 LubePro H1900 Horizontal Oil Pump, Low Level - BSPP
Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball® pump - the leader in durability and quality for over 50 years.
Application: Single Stroke Oil Pump for Automatic Lubrication- LubePro H1900 is compatible with GL-42 and GL-43 injectors
- Pressure Ratio of 19:1
- H1900 delivers a greater output than competitive models at 3.0 in³ (49.2 cm³) per stroke
- Pneumatic power makes it easy to install into existing air line
- Optional Low Level Detection available, factory installed
- Built with high-quality seals tested to outperform the competition
- Optimally lubricates while your machines are running
- Provides accurate, reliable lubrication for every lube point
- Provides higher lube output and faster lubrication cycle
- Model: LubePro
- Series: H1900
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Application: In-Plant Machinery
- Compatible Material: Oil
- Compatible Metering Device: Series Progressive, Single Line Parallel
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Type: BSPP
- Includes: Low Level
- Maximum Air Inlet Pressure (bar): 12.76
- Maximum Air Inlet Pressure (kPa): 1276
- Maximum Air Inlet Pressure (psi): 185
- Maximum Fill Inlet Pressure (bar): 5.52
- Maximum Fill Inlet Pressure (kPa): 552
- Maximum Fill Inlet Pressure (psi): 80
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum cST Grade (cST): 40
- Overall Width (cm): 39.4
- Overall Width (in): 15.5
- Overall Width (mm): 394
- Power Type: Pneumatic
REACTOR HEATED HOSE, 50', 1/2, W/O CABLE
GG 261335
REACTOR HEATED HOSE, 50', 1/2, W/O CABLE
50 ft (15 m) Heated 2 Component Hose with 1/2 in Inside DiameterGraco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
REACTOR HEATED HOSE, 50', 3/8 X 1/2
GG 261336
REACTOR HEATED HOSE, 50', 3/8 X 1/2
50 ft (15 m) Heated Custom Application 2 Component Hose with 3/8 (9.5 mm) and 1/2 in Inside DiameterGraco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
